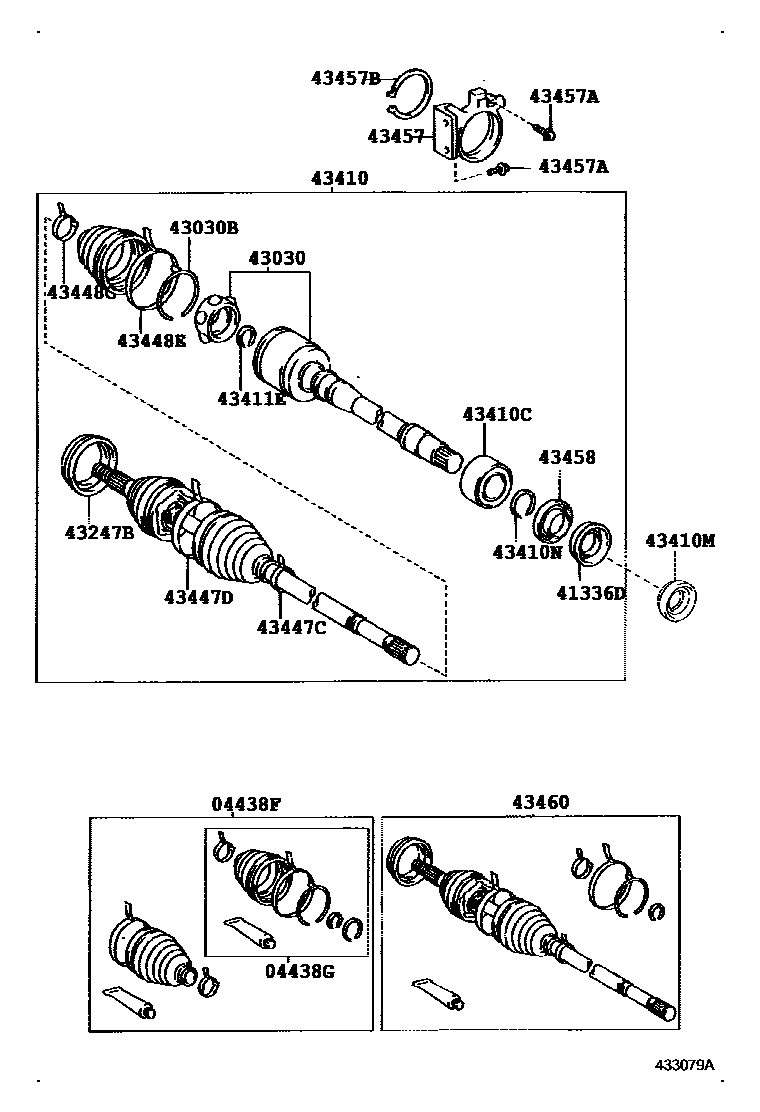

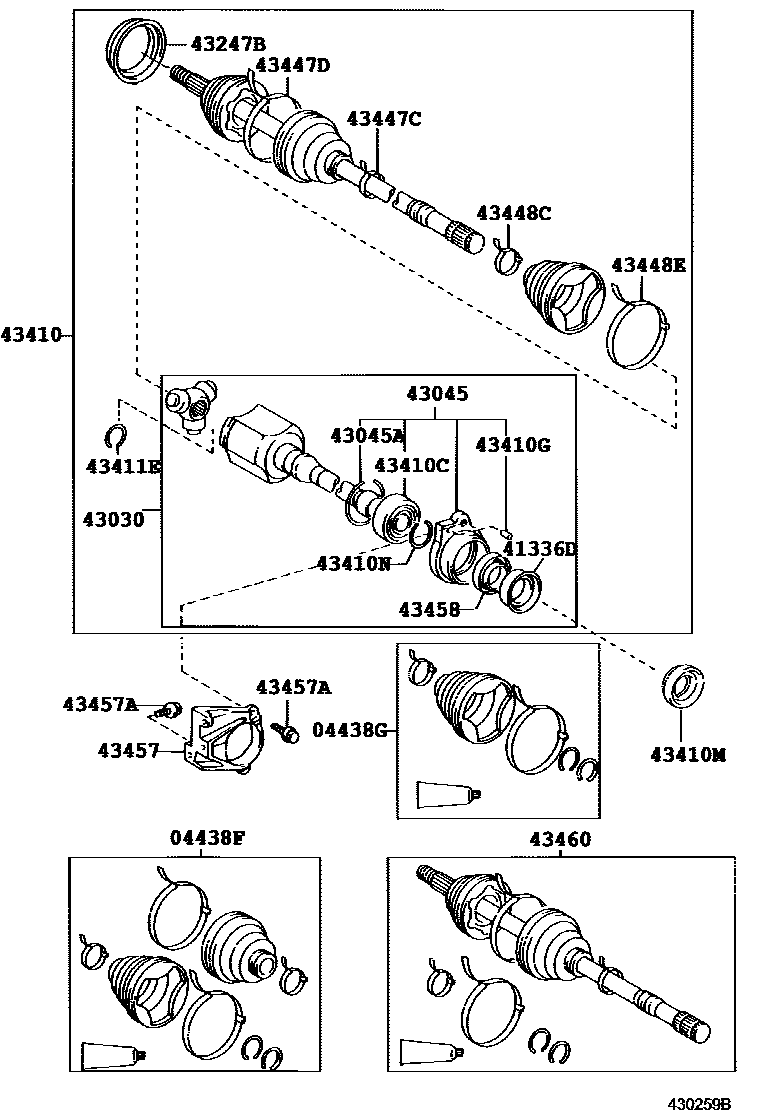

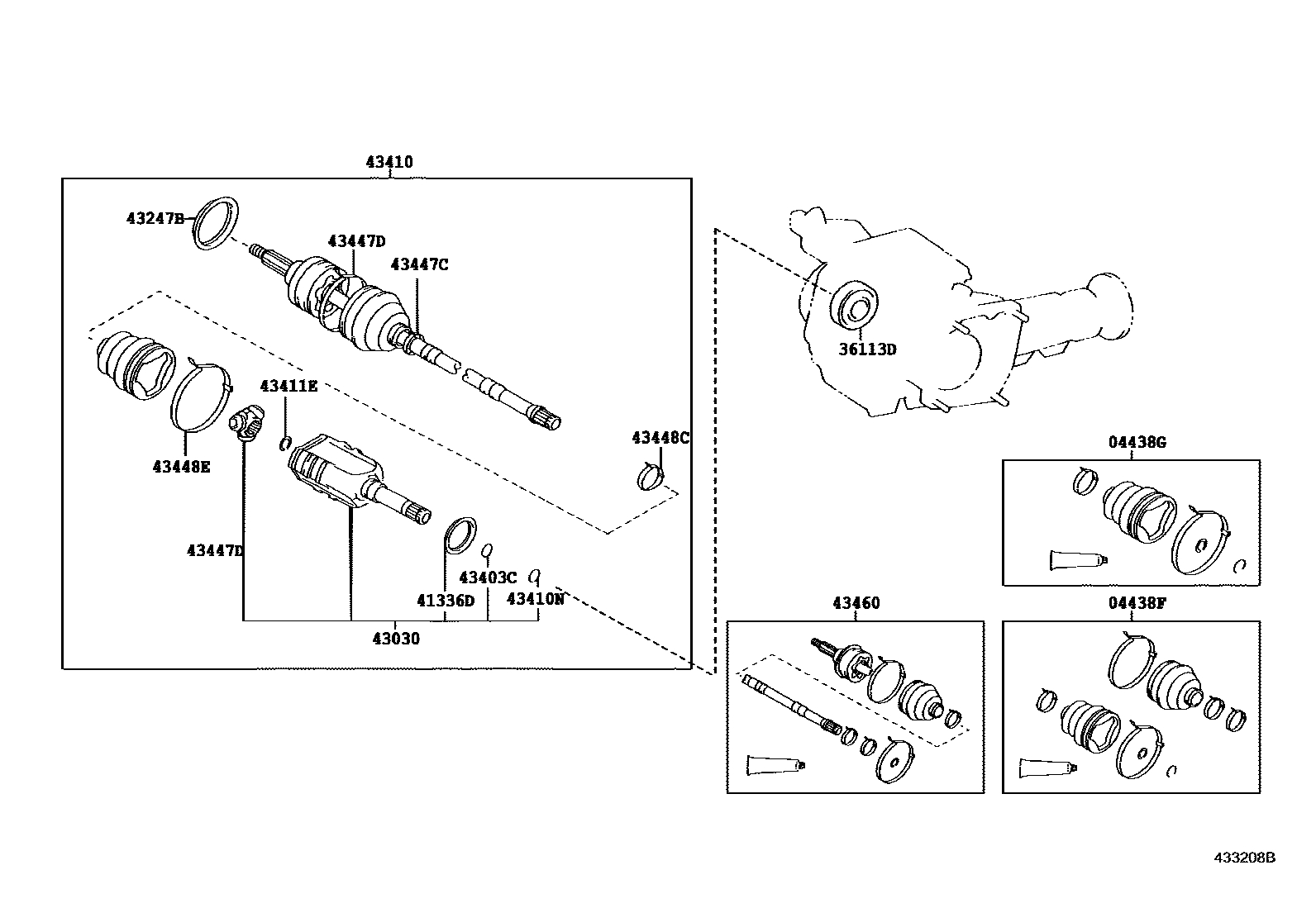

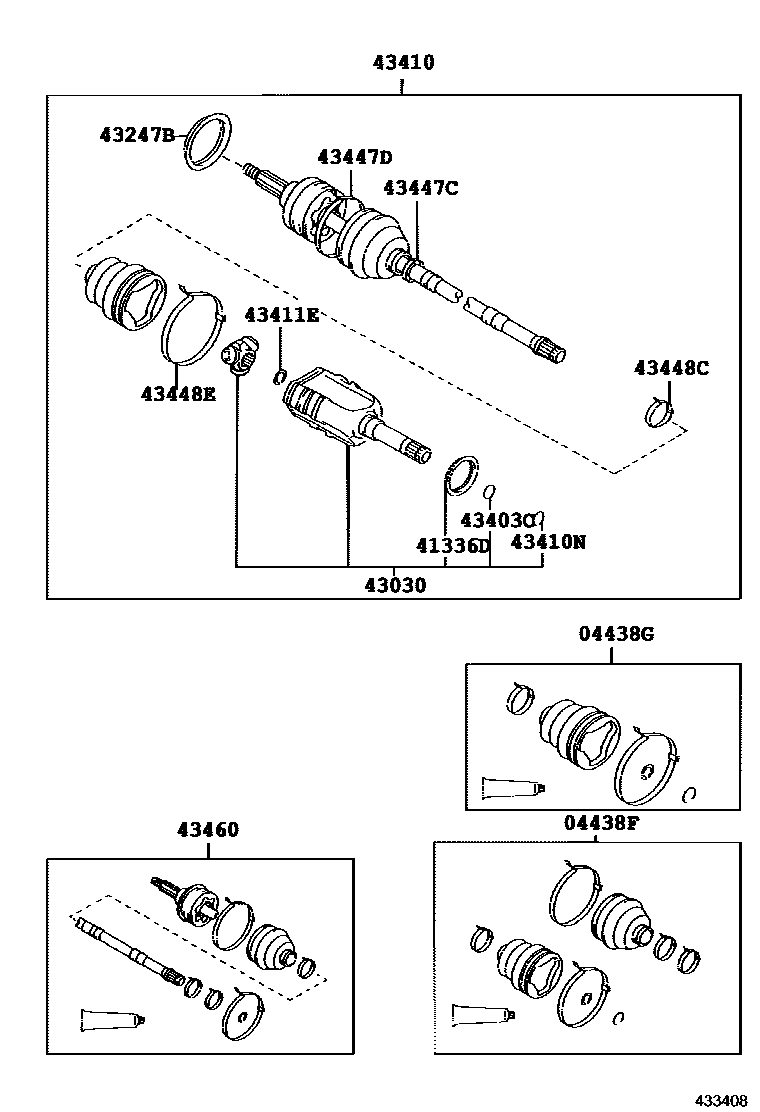

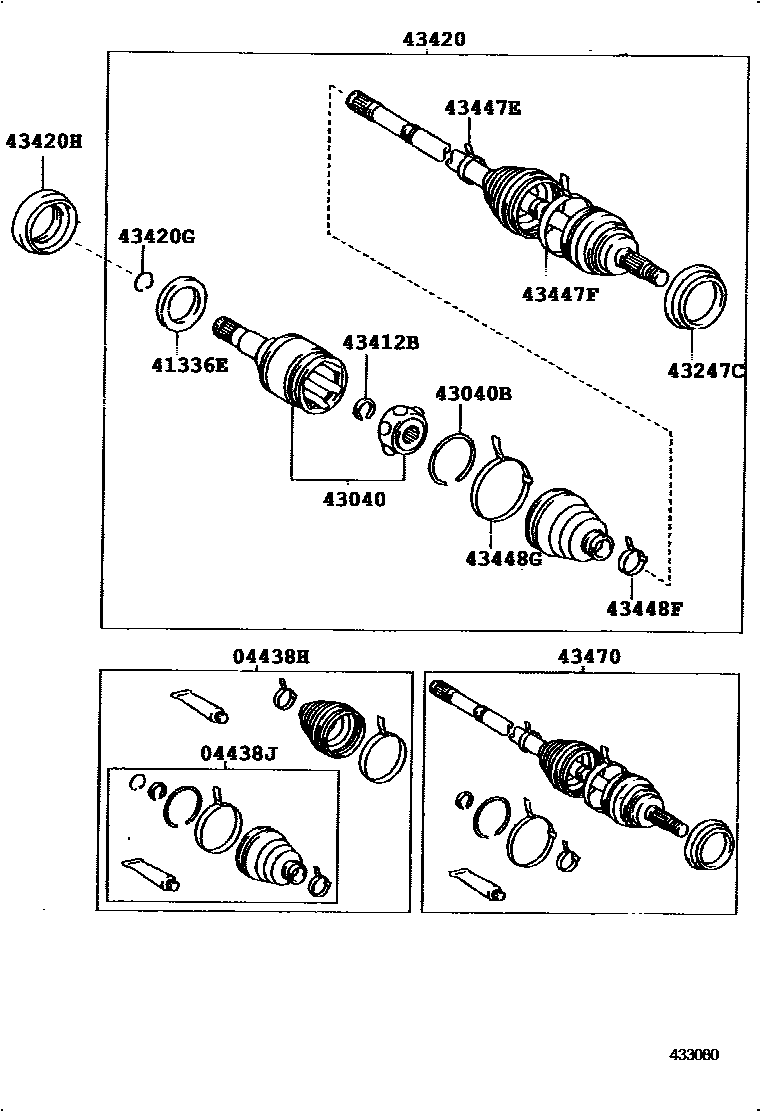

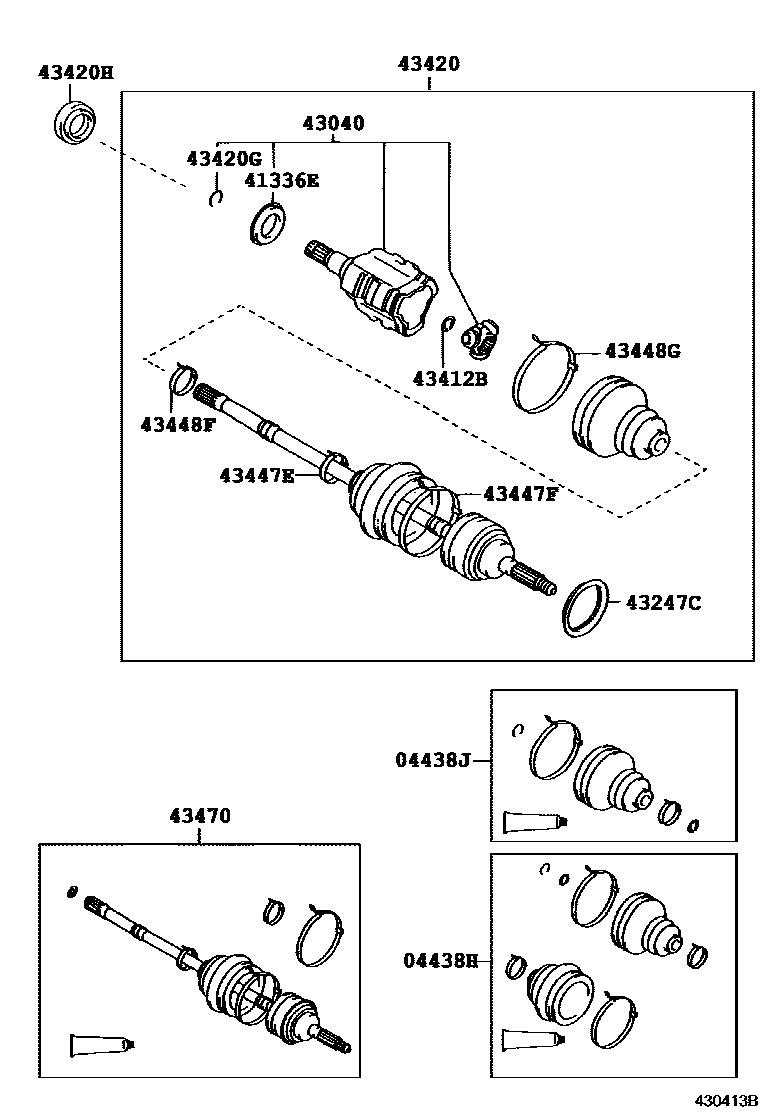

Toyota RAV4 Front Drive Shaft — Figure 4302
Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 6 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-12290 · 04438-12300 · 04438-12301 · 04438-12302 · 04438-20131 · 04438-20132 · 04438-32172 · 04438-42040 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-12420 · 04438-20121 · 04438-32161 · 04438-32230 · 04438-32231 · 04438-42030 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-12290 · 04438-12300 · 04438-12301 · 04438-12302 · 04438-20131 · 04438-20132 · 04438-32172 · 04438-42060 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-12420 · 04438-20121 · 04438-32161 · 04438-32230 · 04438-32231 · 04438-42050 |
| 36113D | Toyota part | 90310-50002 · 90311-50025 |
| 41336D | Right front driveshaft dust cover | 41336-12020 · 41336-20011 · 41336-20040 · 41336-20050 |
| 41336E | Left front driveshaft dust cover | 41336-12030 · 41336-12040 · 41336-32020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-20030 · 43030-32060 · 43030-42010 · 43403-12050 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-79001 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-20010 · 43040-32040 · 43040-42010 · 43403-12060 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-79001 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20010 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 96153-00680 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43403C | O-ring (for front drive shaft inboard universal joint) | 90301-26006 |
| 43410 | Right front driveshaft assembly | 43410-20581 · 43410-20582 · 43410-42010 · 43410-42011 · 43410-42012 · 43410-42020 · 43410-42051 |
| 43410C | Bearings (for front driveshaft) | 90363-36001 · 90363-36004 · 90363-41001 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410M | Toyota part | 90311-35019 · 90311-35045 · 90311-40004 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90520-38015 · 90521-26004 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22005 · 90520-25034 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22005 · 90520-25034 |
| 43420 | Left front drive shaft assembly | 43420-20302 · 43420-20303 · 43420-42010 · 43420-42011 · 43420-42012 · 43420-42020 · 43420-42041 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 · 90521-27005 · 90521-33002 |
| 43420H | Toyota part | 90311-35020 · 90311-35047 · 90311-44003 · 90311-50010 · 90311-50027 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-16030 · 42345-20090 · 42345-20100 · 90949-01A65 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16040 · 42345-20110 · 42345-20120 · 90949-01076 · 90949-01937 · 90949-01946 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-16030 · 42345-20090 · 42345-20100 · 90949-01A65 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16040 · 42345-20110 · 42345-20120 · 90949-01076 · 90949-01937 · 90949-01946 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-16010 · 90949-01078 · 90949-01108 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16040 · 42346-22010 · 90949-01076 · 90949-01946 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-16010 · 90949-01078 · 90949-01108 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16040 · 42346-22010 · 90949-01076 · 90949-01946 |
| 43457 | drive shaft bearing bracket | 43457-20040 · 43457-20050 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10285 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43458 | Front drive shaft dust cover | 43458-12010 · 43458-20011 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-19656 · 43470-19657 · 43470-19658 · 43470-49015 · 43470-49025 · 43470-49026 · 43470-49027 · 43470-49028 · 43470-49046 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-29248 · 43470-29249 · 43470-29250 · 43470-49015 · 43470-49025 · 43470-49026 · 43470-49027 · 43470-49028 · 43470-49046 |
