Toyota RAV4 分动器油泵 — Figure 3617

Toyota RAV4 EPC diagram 3617, 分动器油泵, with 1 images and 9 PNC and OE references.

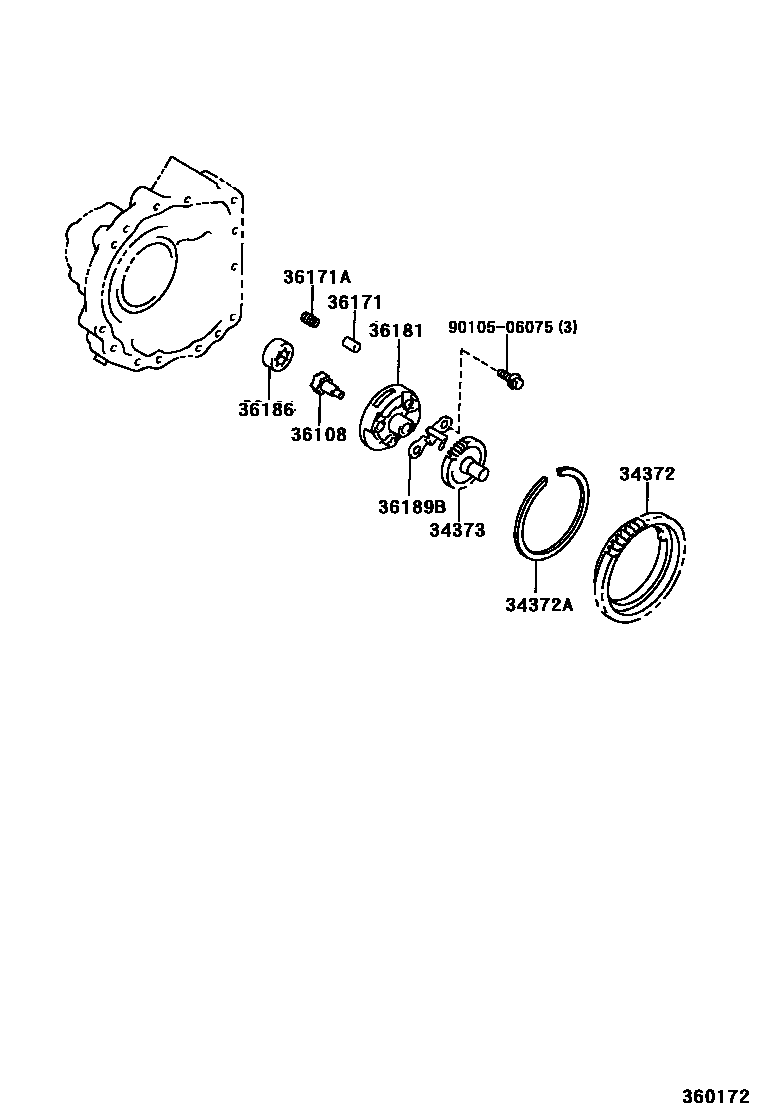

Toyota RAV4 分动器油泵 EPC diagram — 360172
分动器油泵 — 360172 (199404 – 999999)

PNC and OE references

PNCPart nameOE numbers
34372Transfer case oil pump drive gear34372-12010
34372AShaft snap ring (for transfer case oil pump driving gear)90520-99005
34373Transfer case oil pump driven gear34373-12010
36108Transfer case oil pump active rotor sub-assembly36108-12010
36171Transfer case oil cooler pressure reducing valve36171-12010
36171ACompression spring (for transfer case oil cooler pressure reducing valve)90501-06049
36181Transfer case oil pump body36181-32010
36186Transfer case oil pump driven rotor36186-12010
36189BTransfer case oil pump driven gear block36189-32010
