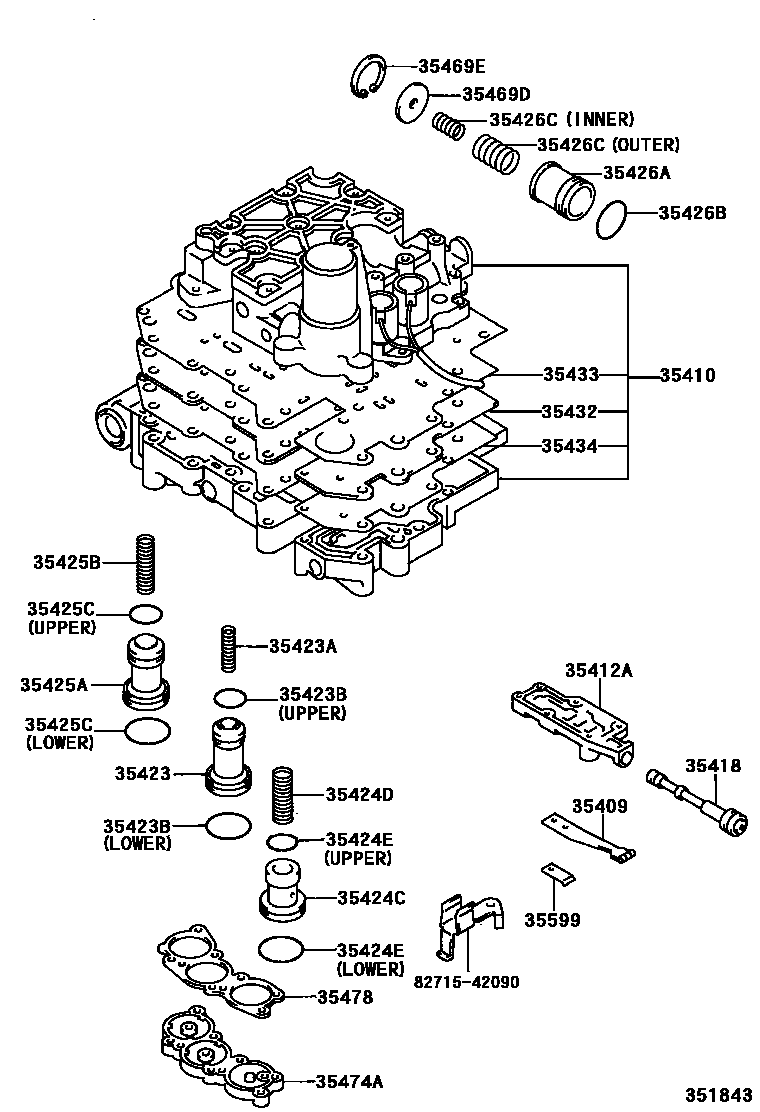

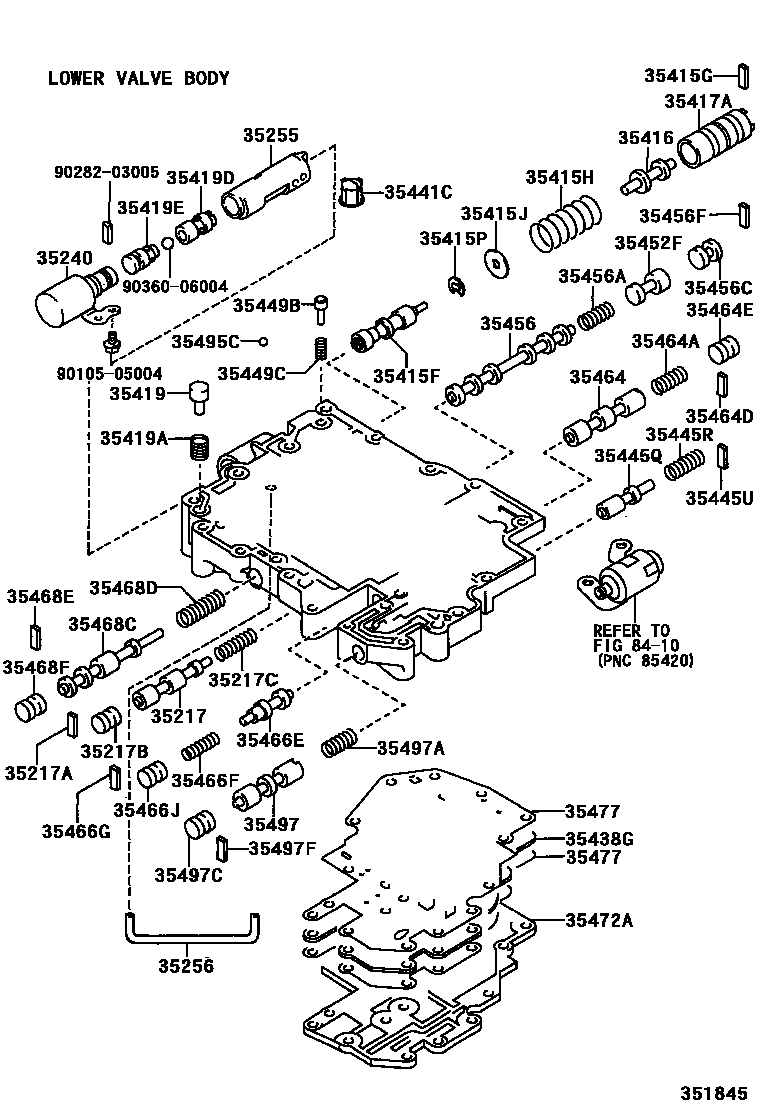

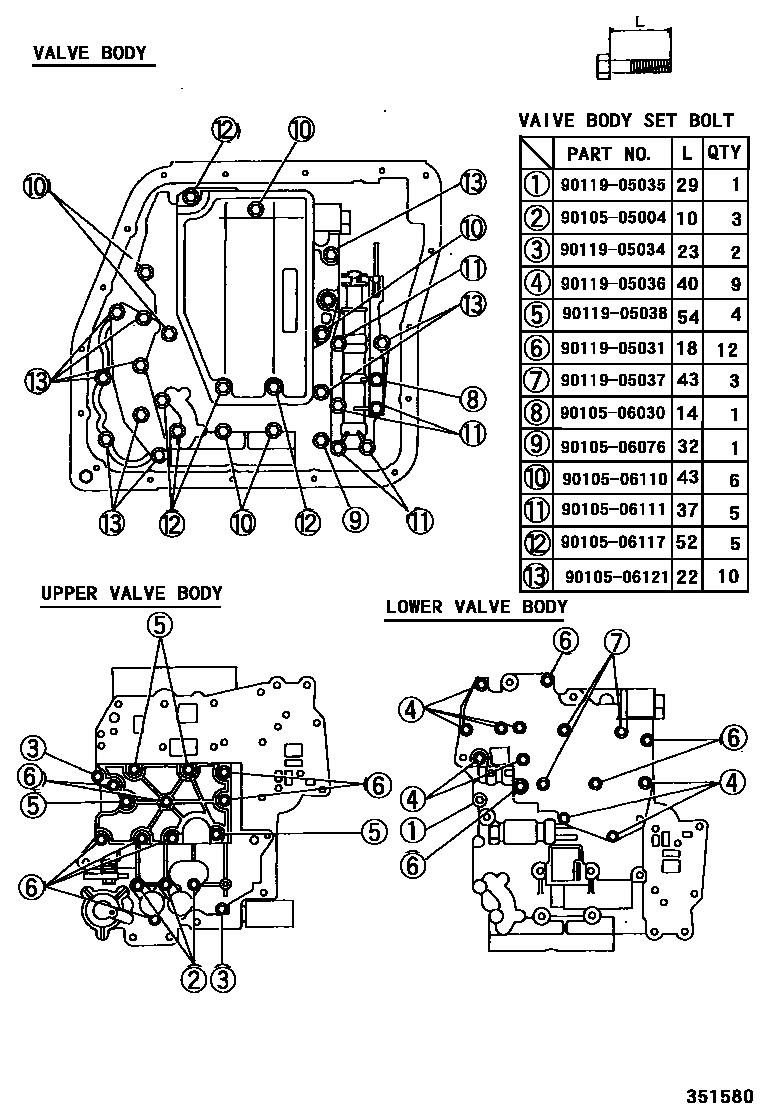

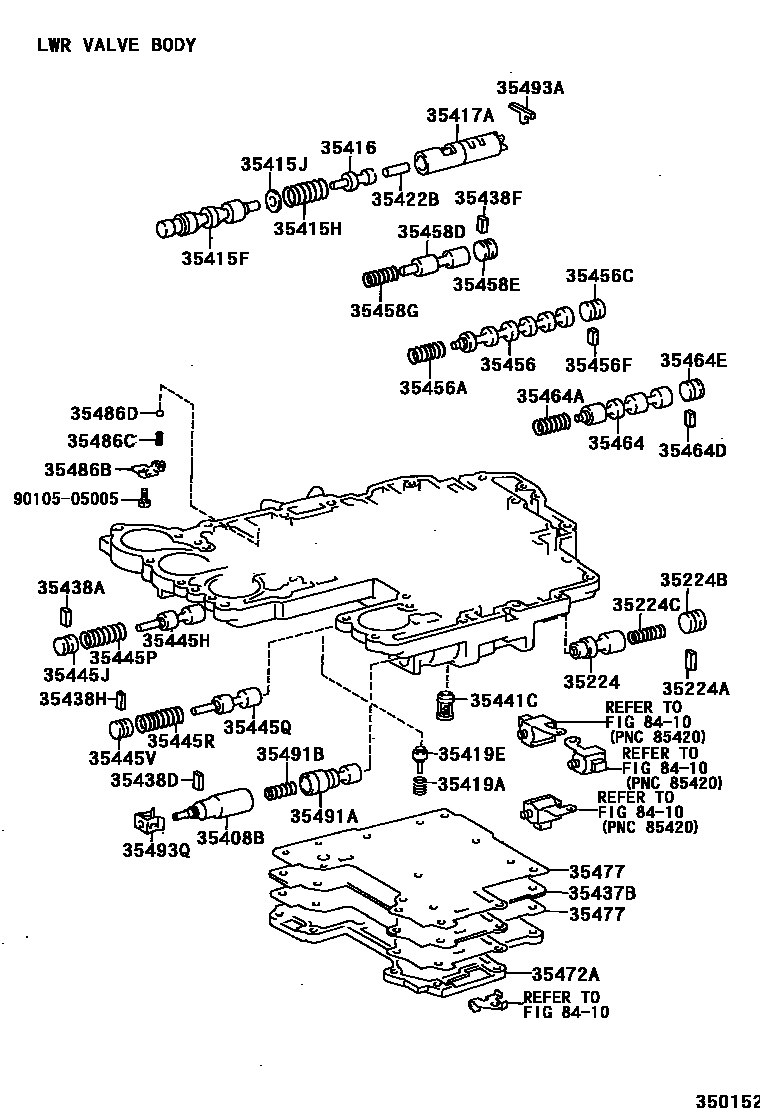

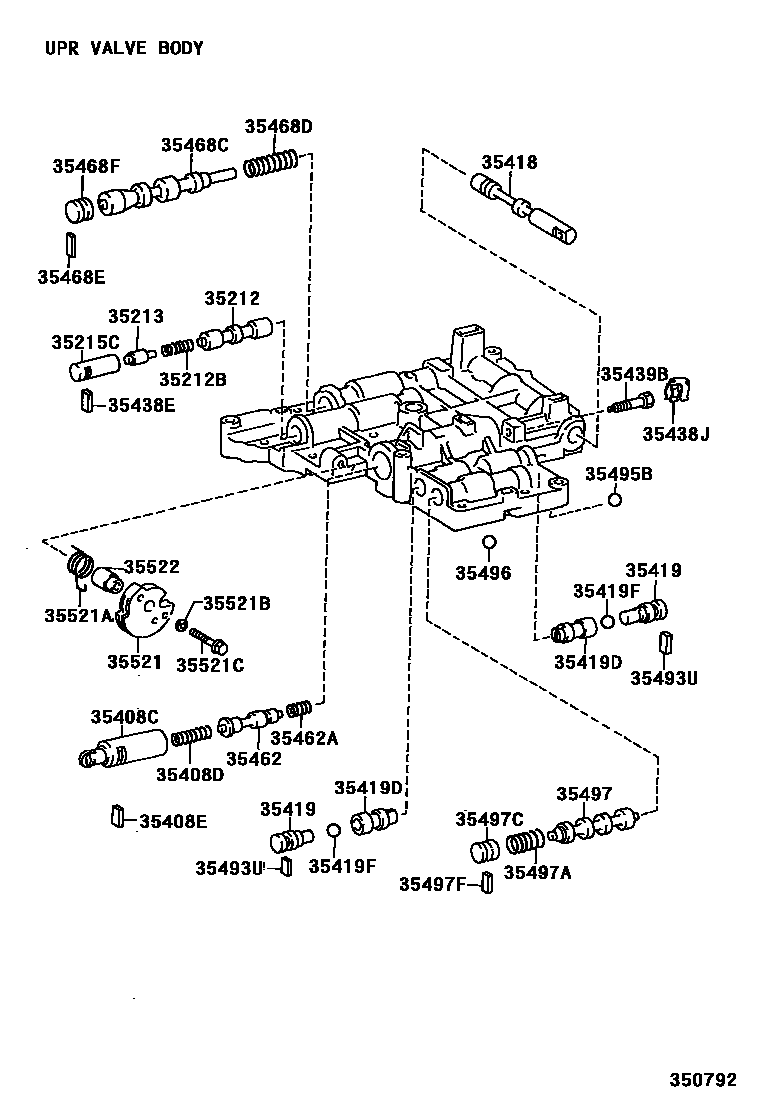

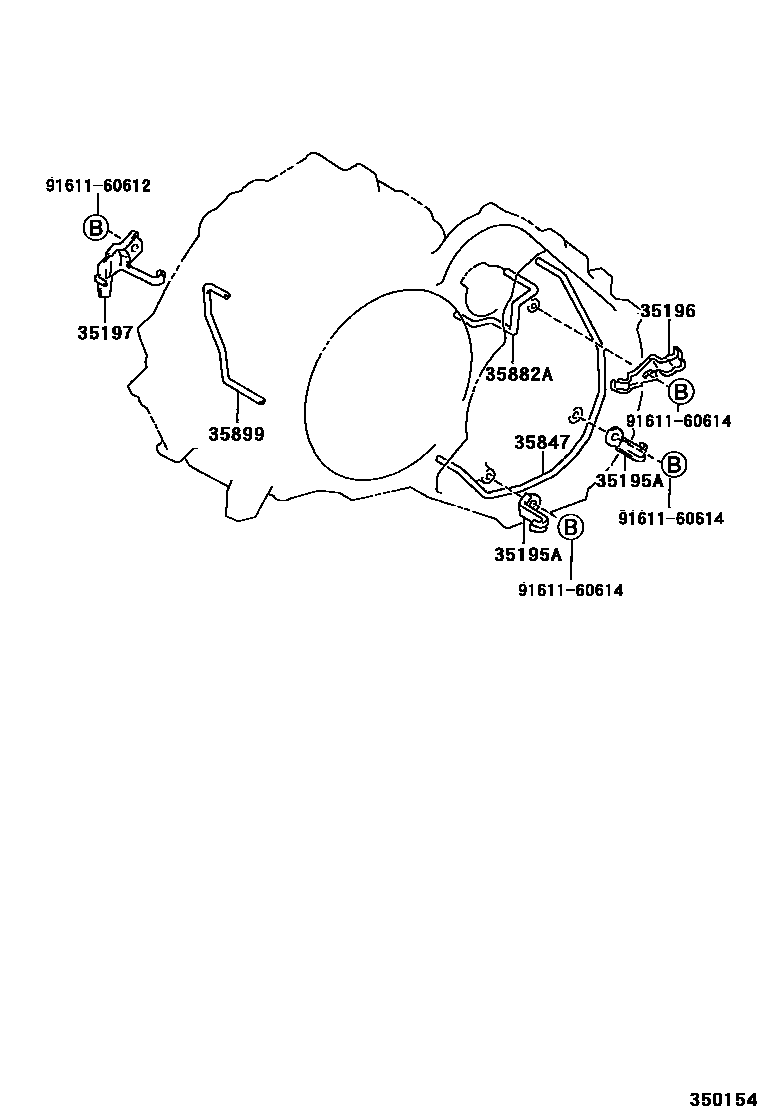

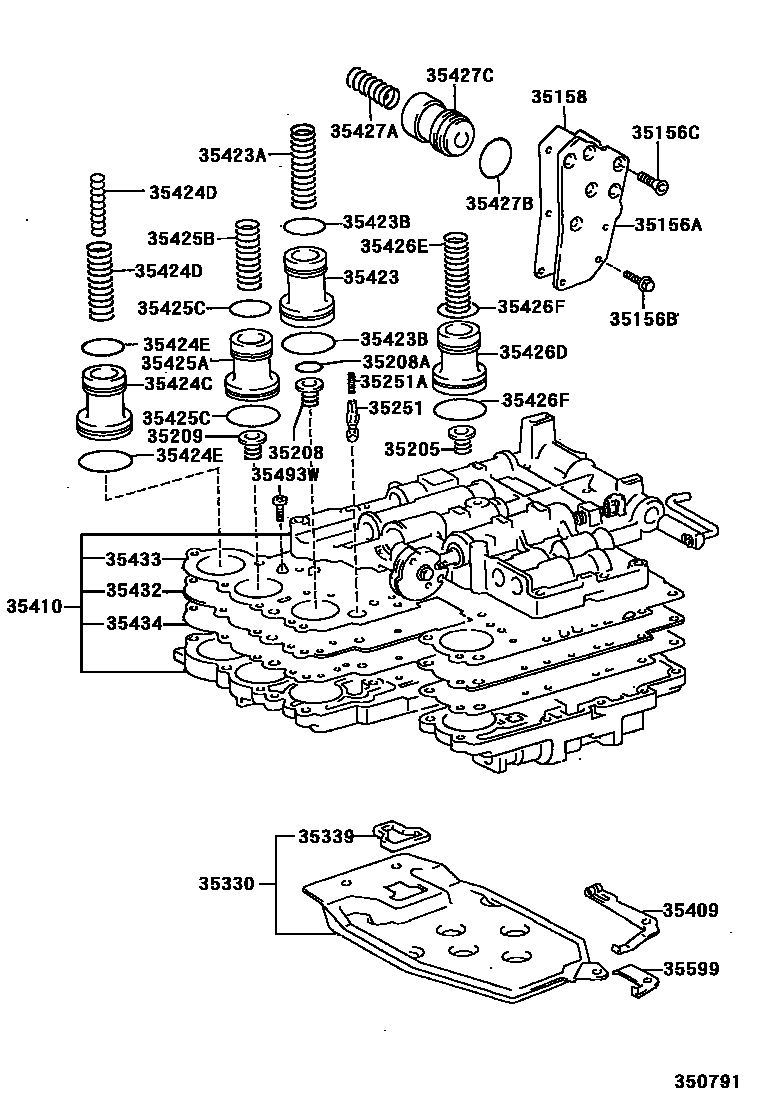

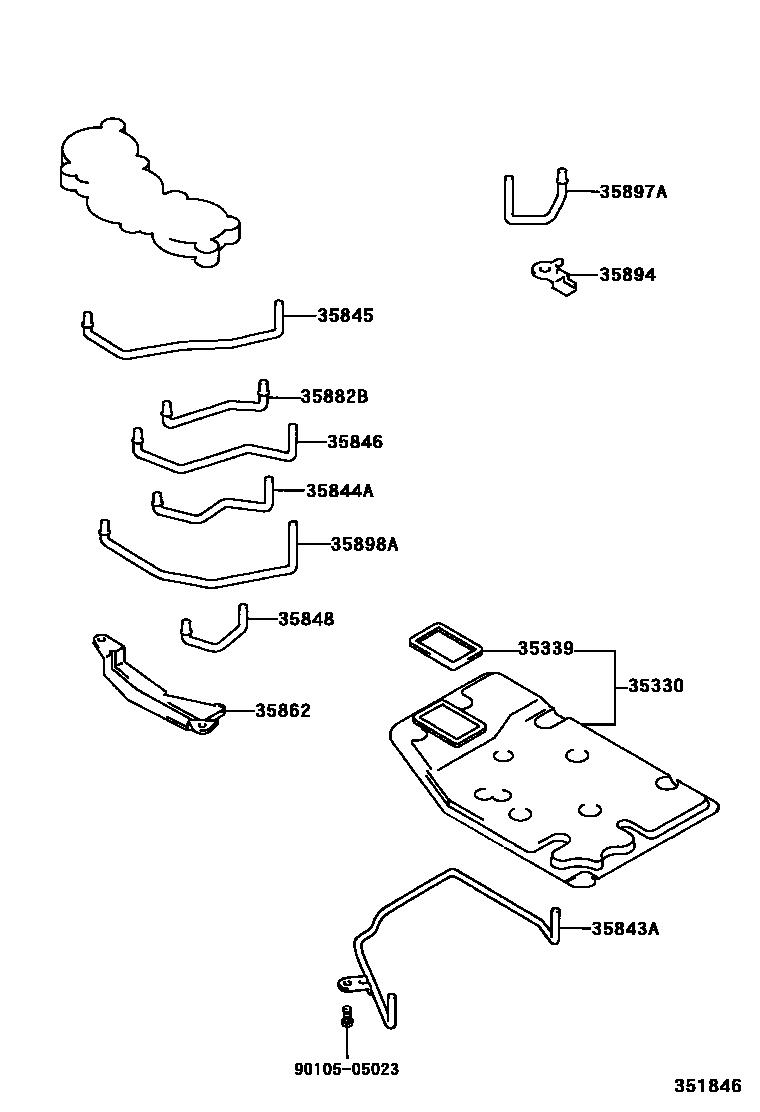

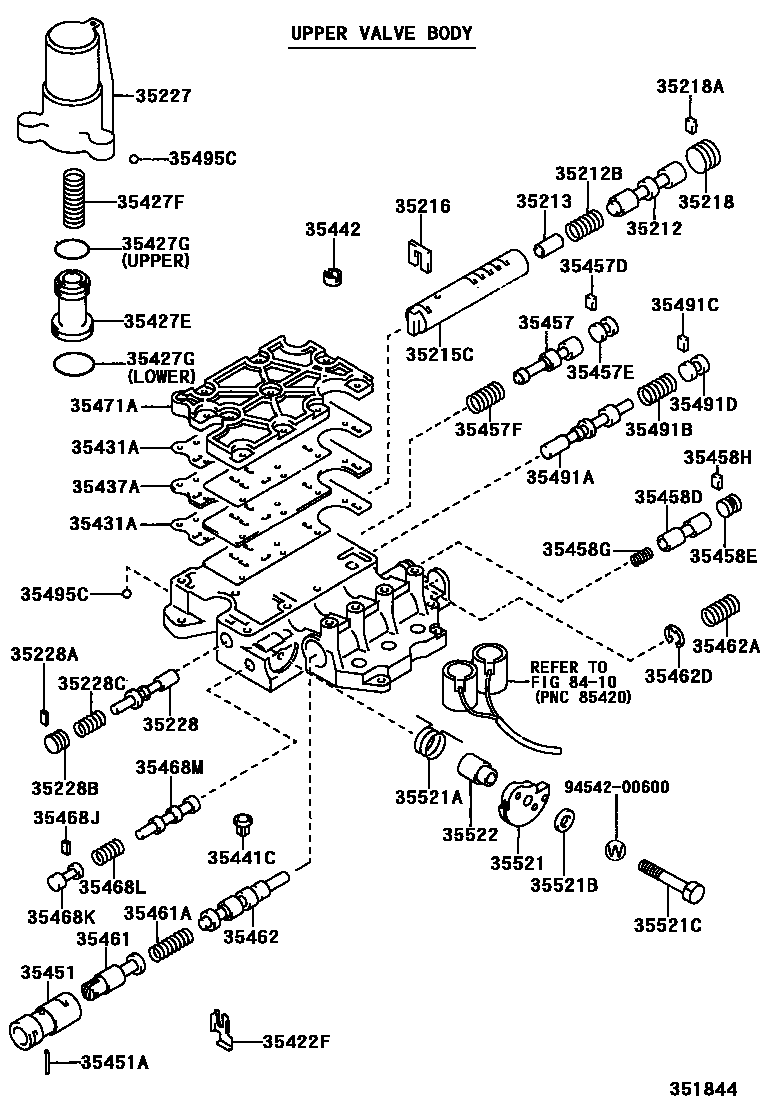

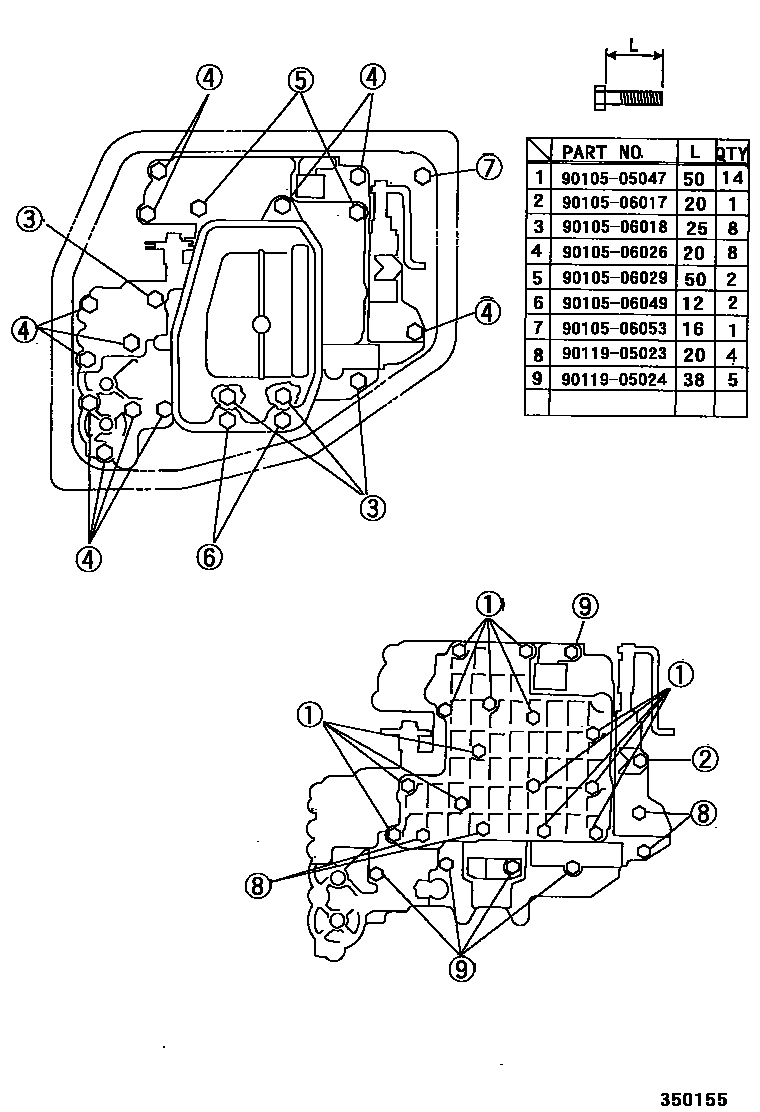

Toyota RAV4 阀体和滤油网(ATM) — Figure 3512
Toyota RAV4 EPC diagram 3512, 阀体和滤油网(ATM), with 10 images and 186 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35156A | No. 2 gearbox block | 35156-20010 |
| 35156B | Bolt (for gearbox block No. 2) | 90105-06049 |
| 35156C | Bolt (for gearbox block No. 2) | 90149-60041 |
| 35158 | No. 2 gearbox shield gasket | 35158-20020 |
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-12030 |
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-12030 |
| 35197 | No. 3 transmission axle oil supply pipe clamp | 35197-12030 |
| 35205 | C-3 Accumulator Spring Sub-Assembly | 35205-20010 |
| 35208 | B-2 Accumulator Spring Sub-Assembly | 35205-20040 |
| 35208A | Hole snap ring (for B-2 accumulator spring) | 90521-22004 |
| 35209 | C-2 Accumulator spring sub-assembly | 35209-20030 |
| 35212 | lock relay valve | 35212-12010 · 35212-32010 |
| 35212B | Compression spring (for locking relay valve) | 90501-05010 · 90501-07023 |
| 35213 | Lock relay control valve | 35213-12020 · 35213-32010 |
| 35215C | No. 1 locking relay valve sleeve | 35215-12040 · 35215-32010 |
| 35216 | Valve sleeve stop | 35216-32020 |
| 35217 | No. 2 accumulator control valve | 35217-32010 |
| 35217A | Straight key (for No. 2 accumulator control valve) | 90282-03017 |
| 35217B | Plunger (for No. 2 accumulator control valve) | 90339-04003 |
| 35217C | compression spring | 90501-06034 |
| 35218 | Lock relay valve plunger | 35218-32010 |
| 35218A | Straight key (for locking the relay valve plunger) | 90282-03011 |
| 35224 | reverse gear control valve | 35224-50010 |
| 35224A | Straight key (for reverse gear control valve) | 90282-03002 |
| 35224B | Plunger (for reverse control valve) | 90339-05020 |
| 35224C | Compression spring (for reverse control valve) | 90501-06056 |
| 35227 | B-0 accumulator cylinder | 35227-32011 |
| 35228 | Second gear regulator valve | 35228-32010 |
| 35228A | Straight key (for second-speed regulator valve) | 90282-03011 |
| 35228B | Plunger (for second-speed regulator valve) | 90339-04025 |
| 35228C | Compression spring (for second-speed regulator valve) | 90501-09122 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-42010 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35255 | One-way valve sleeve | 35255-42010 |
| 35256 | One-way valve oil supply pipe | 35256-42010 |
| 35330 | Valve body oil filter assembly | 35330-12030 · 35330-32031 |
| 35339 | Oil filter gasket | 35339-12020 · 35339-32020 |
| 35408B | Accumulator control valve plunger sub-assembly | 35408-50010 |
| 35408C | Throttle valve plunger sub-assembly | 35408-12010 |
| 35408D | Compression spring (for throttle plunger) | 90501-10119 |
| 35408E | Straight key (for throttle plunger) | 90282-03015 |
| 35409 | Manual lock spring sub-assembly | 35409-12030 · 35409-32030 |
| 35410 | Transmission valve body assembly | 35410-20440 · 35410-20441 · 35410-42010 · 35410-42011 · 35410-42020 · 35410-42030 |
| 35412A | Manual valve body | 35412-32020 |
| 35415F | Main regulator valve | 35415-12030 · 35415-32024 · 35415-32025 |
| 35415G | Straight key (for main regulator valve) | 90282-03017 |
| 35415H | Compression spring (for main regulator valve) | 90501-14117 · 90501-16120 |
| 35415J | Gasket (for main regulator valve) | 90201-08067 · 94614-10600 |
| 35415P | E-ring (for main regulator valve) | 90523-06004 |
| 35416 | No. 1 main regulator valve plunger | 35416-32031 · 35416-50010 |
| 35417A | Main regulator valve sleeve | 35417-12030 · 35417-32032 |
| 35418 | Manual valve | 35418-12030 · 35418-32010 |
| 35419 | No. 1 one-way valve | 35419-32010 · 35419-50020 |
| 35419A | Compression spring (for one-way valve) | 90501-08139 · 90501-10056 |
| 35419D | No. 2 one-way valve | 35419-50030 |
| 35419E | No. 3 one-way valve | 35419-50010 · 35419-50020 |
| 35419F | One way valve ball | 90360-06004 |
| 35422B | No. 2 main regulator valve plunger | 35422-50011 |
| 35422F | Valve damping stop | 35422-32020 |
| 35423 | B-2 Accumulator Piston | 35403-32010 · 35403-33010 · 35423-12010 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-22034 · 90501-25031 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-21006 · 90301-22185 · 90301-29187 · 90301-30005 |
| 35424C | C-1 Accumulator Piston | 35424-12030 · 35424-32021 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-20136 · 90501-24027 · 90501-29028 · 90501-29029 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-23194 · 90301-29187 · 90301-30005 · 90301-36006 |
| 35425A | C-2 Accumulator Piston | 35405-32010 · 35425-20040 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-20094 · 90501-20126 · 90501-24028 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-25002 · 90301-26190 · 90301-29187 · 90301-34007 |
| 35426A | C-0 Accumulator Piston | 35426-32020 |
| 35426B | O-ring (for C-0 accumulator piston) | 90301-30005 |
| 35426C | Compression spring (for C-0 accumulator piston) | 90501-26036 · 90501-29019 |
| 35426D | C-3 Accumulator Piston | 35426-12030 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-22034 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-22185 · 90301-29187 |
| 35427A | Compression spring (for B-4 accumulator piston) | 90501-26078 |
| 35427B | O-ring (for B-4 accumulator piston) | 90301-22185 |
| 35427C | B-4 Accumulator Piston | 35427-13010 |
| 35427E | B-0 accumulator piston | 35401-32011 |
| 35427F | Compression spring (for B-0 accumulator piston) | 90501-17023 · 90501-17026 |
| 35427G | O-ring (for B-0 accumulator piston) | 90301-20002 · 90301-25002 |
| 35431A | Upper body cover gasket | 35431-32023 |
| 35432 | No. 1 valve body plate | 35432-20330 · 35432-42010 · 35432-42011 |
| 35433 | No. 1 valve body gasket | 35433-12050 · 35433-42010 |
| 35434 | No. 2 valve body gasket | 35434-12030 · 35434-42010 |
| 35437A | Upper valve body cover | 35437-32021 |
| 35437B | Valve body cover | 35437-20040 |
| 35438A | Second gear slide regulator valve spring seat | 35438-22020 |
| 35438D | Accumulator control valve spring seat | 35438-22020 |
| 35438E | Lock relay valve spring seat | 35438-22020 |
| 35438F | Lock spring seat | 35438-22020 |
| 35438G | No. 2 valve body plate | 35438-32010 · 35438-32011 · 35438-32012 |
| 35438H | Low gear coast regulator valve spring seat | 35438-22020 |
| 35438J | Throttle valve spring seat | 35438-50010 |
| 35439B | Throttle valve screw | 35439-50010 |
| 35441C | Solenoid valve oil filter | 35441-12020 · 35441-32020 |
| 35442 | Throttle regulator oil filter | 35442-32020 |
| 35445H | Second gear slide regulator valve | 35445-12020 |
| 35445J | Plunger (for second gear slide regulator valve) | 90339-04030 |
| 35445P | Compression spring (for second gear coast regulator valve) | 90501-10186 |
| 35445Q | Low gear coast regulator valve | 35445-12020 · 35445-32010 |
| 35445R | Compression spring (for low range coast regulator valve) | 90501-09086 · 90501-09119 |
| 35445U | Straight key (for low speed coast regulator valve) | 90282-03002 |
| 35445V | Plunger (for low range coast regulator valve) | 90339-04030 |
| 35449B | Pressure reducing valve | 35449-32010 |
| 35449C | Compression spring (for pressure reducing valve) | 90501-09032 |
| 35451 | Throttle valve sleeve | 35451-32010 |
| 35451A | Direct sales (with throttle sleeve) | 90250-03036 |
| 35452F | 2nd-3rd gear shift valve plunger | 35452-32010 |
| 35456 | 2nd-3rd gear shift valve | 35456-12020 · 35456-32030 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-08135 · 90501-09088 |
| 35456C | Plunger (for 2-3 gear shift valve) | 90339-05017 · 90339-05019 |
| 35456F | Straight key (for 2-3 gear shift valve) | 90282-03002 · 90282-03017 · 90282-03028 |
| 35457 | Throttle regulator valve | 35457-32010 |
| 35457D | Straight key (for throttle regulator valve) | 90282-03011 |
| 35457E | Plunger (for throttle regulator valve) | 90339-04003 |
| 35457F | Compression spring (for throttle regulator valve) | 90501-09037 |
| 35458D | reverse valve | 35458-32010 · 35458-50010 |
| 35458E | Plunger (for reverse valve) | 90339-04028 · 90339-04030 |
| 35458G | Compression spring (for reverse valve) | 90501-06026 · 90501-06055 |
| 35458H | Straight key (for reverse valve) | 90282-03017 |
| 35461 | Downshift plug | 35408-32010 |
| 35461A | Compression spring (for downshift plug) | 90501-10054 |
| 35462 | throttle valve | 35462-32010 · 35462-50010 |
| 35462A | Compression spring (for throttle valve) | 90501-07022 · 90504-06002 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35464 | 1-2 gear shift valve | 35464-12040 · 35464-32030 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-08135 · 90501-09116 |
| 35464D | Straight key (for 1-2 gear shift valve) | 90282-03002 · 90282-03011 |
| 35464E | Plunger (for 1-2 gear shift valve) | 90339-04025 · 90339-05019 |
| 35466E | Second gear lock valve | 35466-32010 |
| 35466F | Compression spring (for second gear lock valve) | 90501-06047 |
| 35466G | Straight key (for second gear lock valve) | 90282-03002 |
| 35466J | Plunger (for second gear lock valve) | 90339-04028 |
| 35468C | Secondary regulator valve | 35468-12030 · 35468-32031 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-13035 · 90501-14115 |
| 35468E | Straight key (for secondary regulator valve) | 90282-03003 · 90282-03015 |
| 35468F | Plunger (for secondary regulator valve) | 90339-04025 · 90339-05020 |
| 35468J | Straight key (for B-1 throttle control valve) | 90282-03001 |
| 35468K | Plunger (for B-1 throttle control valve) | 90339-04022 |
| 35468L | Compression spring (for B-1 throttle control valve) | 90501-08100 |
| 35468M | B-1 Throttle Control Valve | 35468-32020 |
| 35469D | Spacer (for C-0 accumulator piston) | 35469-32020 |
| 35469E | Snap ring (for C-0 accumulator piston spacer) | 96151-03700 |
| 35471A | Upper valve body cover | 35471-32020 |
| 35472A | Lower valve body cover | 35472-12030 · 35472-32060 |
| 35474A | Accumulator cover | 35474-32030 |
| 35477 | Valve body cover gasket | 35477-12030 · 35477-32043 · 35477-32044 |
| 35478 | Accumulator cover gasket | 35478-32020 |
| 35486B | Pressure reducing valve spring seat | 35486-50010 |
| 35486C | Compression spring (for pressure reducing valve) | 90501-10143 |
| 35486D | Ball (for pressure reducing valve) | 90360-08003 |
| 35491A | No. 1 accumulator control valve | 35491-12020 · 35491-32020 |
| 35491B | Compression spring (for No. 1 accumulator control valve) | 90501-08138 · 90501-10047 · 90501-10172 |
| 35491C | Straight key (for No. 1 accumulator control valve) | 90282-03011 |
| 35491D | Plunger (for No. 1 accumulator control valve) | 90339-04025 |
| 35493A | Main regulator valve plunger seat | 35493-12030 |
| 35493Q | No. 1 accumulator control valve plunger seat | 35493-50030 |
| 35493U | No. 1 one-way valve seat | 90282-03002 |
| 35493W | Valve body seat | 35493-50040 |
| 35495B | One-way ball No. 1 | 35495-22020 |
| 35495C | One-way ball No. 1 | 35495-22020 |
| 35496 | No. 2 one-way ball | 35496-22030 |
| 35497 | 3rd-4th gear shift valve | 35497-12020 · 35497-32030 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-08135 · 90501-09083 |
| 35497C | Plunger (for 3-4 gear shift valve) | 90339-04025 · 90339-05019 |
| 35497F | Straight key (for 3-4 gear shift valve) | 90282-03002 · 90282-03011 |
| 35521 | throttle cam | 35521-12030 · 35521-32040 · 35521-42010 |
| 35521A | Spring (for throttle cam return) | 90508-11003 · 90508-12094 · 90949-03004 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35521C | Bolt (for throttle cam assembly) | 90101-06026 · 90105-06076 |
| 35522 | Throttle valve cam pin | 35522-12010 · 35522-22010 |
| 35599 | Manual locking spring cover | 35599-12020 · 35599-32020 |
| 35843A | Transfer case lubricating oil supply pipe | 35843-32011 · 35843-33020 |
| 35844A | No. 1 accumulator back pressure pipe | 35844-32030 |
| 35845 | Rear clutch accumulator tube | 35845-32020 |
| 35846 | brake accumulator pipe | 35846-32030 |
| 35847 | Transmission lubricant supply pipe | 35847-12030 |
| 35848 | Forward clutch accumulator tube | 35848-32020 |
| 35862 | Accumulator fuel supply pipe bracket | 35862-32020 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-12020 |
| 35882B | Rear servo oil supply pipe | 35882-32010 |
| 35894 | Accumulator tube bracket | 35894-32010 |
| 35897A | No. 1 first and reverse brake pipe | 35897-32010 |
| 35898A | No. 2 accumulator back pressure pipe | 35898-32010 |
| 35899 | Governor pressure oil pipe | 35899-12040 |
