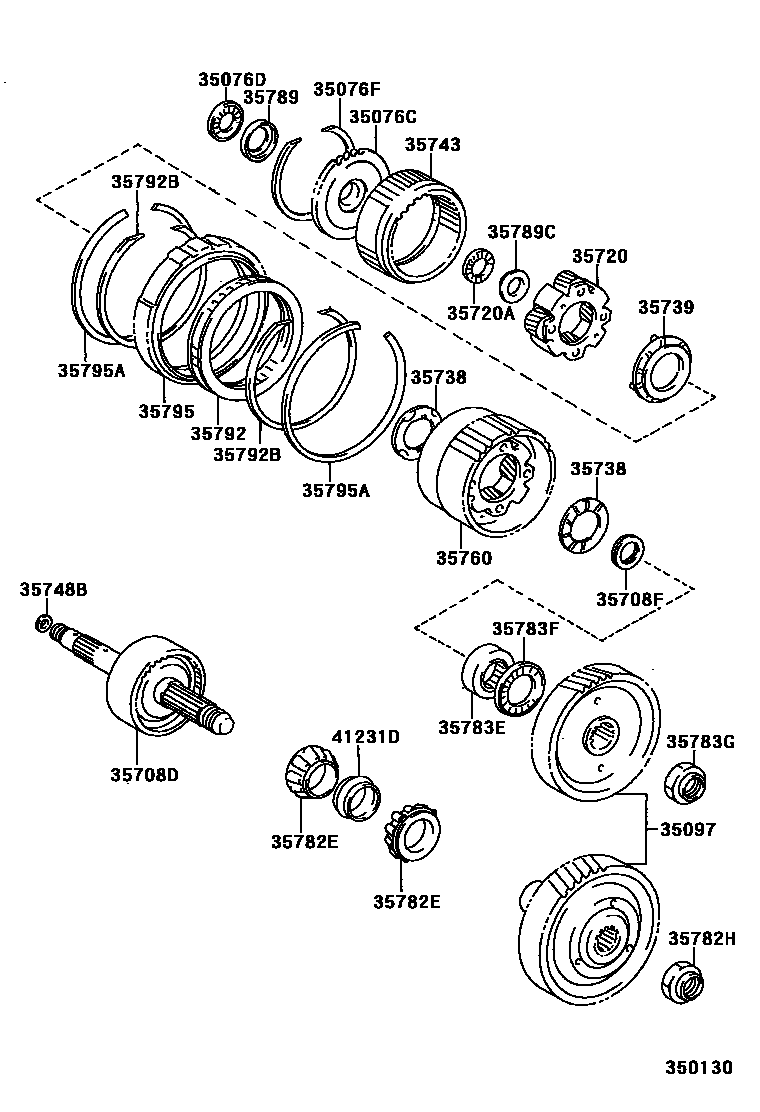

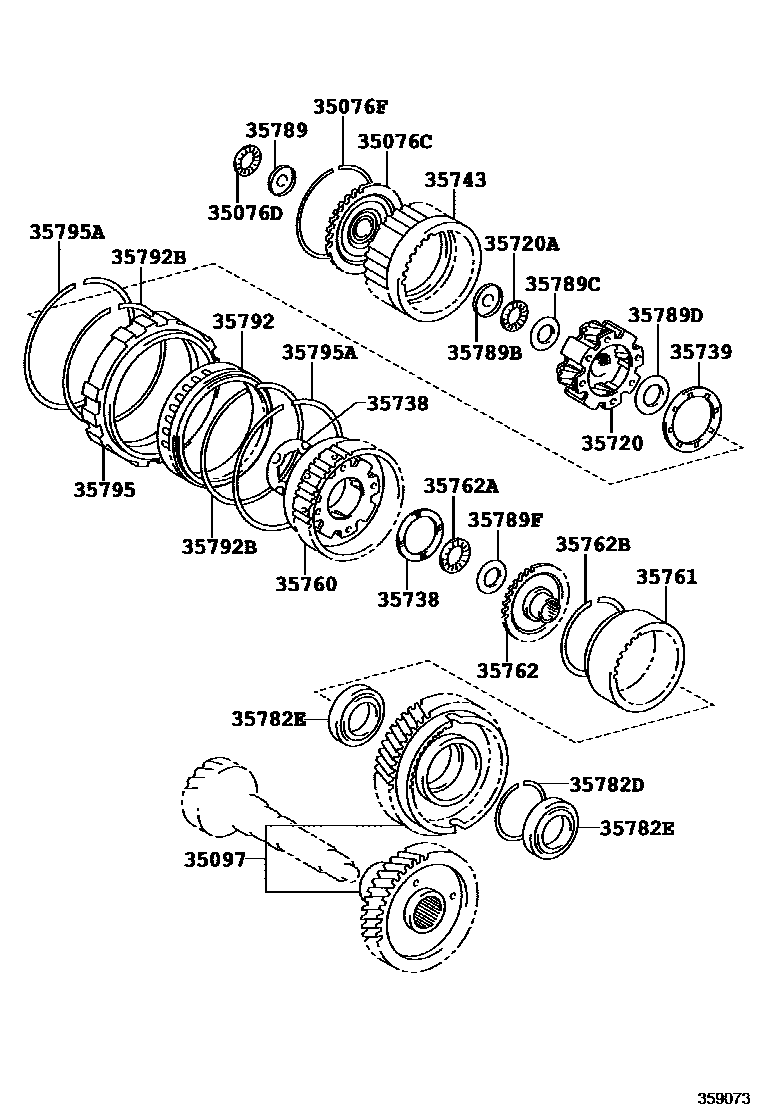

Toyota RAV4 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota RAV4 EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35076C | Front planetary ring gear flange sub-assembly | 35076-12020 · 35076-32011 · 35076-32030 |
| 35076D | Thrust needle roller bearing (for front planetary gear flange) | 90374-22001 · 90374-25007 · 90374-25009 |
| 35076F | Hole snap ring (for front planetary gear flange) | 90521-99014 |
| 35097 | Automatic transmission axle countershaft gear assembly | 35097-12050 · 35097-32020 |
| 35708D | Intermediate shaft sub-assembly | 35708-12070 |
| 35708F | Thrust needle roller bearing (for intermediate shaft) | 90374-22003 |
| 35720 | Front planetary gear assembly | 35720-17010 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90374-22001 · 90374-22004 · 90374-22009 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-32010 · 35738-32030 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-32011 |
| 35743 | Front planetary ring gear | 35743-32040 |
| 35748B | Intermediate shaft oil ring | 35748-32010 |
| 35760 | Rear planetary gear assembly | 35760-32010 · 35760-32030 |
| 35761 | Rear planetary ring gear | 35761-32010 |
| 35762 | Rear planetary gear flange | 35762-32030 |
| 35762A | Thrust needle roller bearing (for rear planetary gear flange) | 90374-24002 |
| 35762B | Hole snap ring (for rear planetary ring gear flange) | 90521-90001 |
| 35782D | Hole snap ring (for countershaft drive gear) | 90521-67001 |
| 35782E | Bearings (for countershaft drive gear) | 90366-40077 · 90369-40006 |
| 35782H | Nut (for countershaft drive gear) | 90179-22021 |
| 35783E | Roller bearings (for countershaft driven gear) | 90365-37001 |
| 35783F | Thrust needle roller bearing (for countershaft driven gear) | 90374-41001 |
| 35783G | Nut (for countershaft driven gear) | 90179-22021 |
| 35789 | Front thrust bearing race (for front planetary gear flange) | 35789-12040 · 35789-32050 |
| 35789B | Rear thrust bearing race (for front planetary gear flange) | 35789-32040 |
| 35789C | Front thrust bearing race (for front planetary gear) | 35789-32060 |
| 35789D | Rear thrust bearing race (for front planetary gear) | 35789-32070 |
| 35789F | Thrust bearing race (for rear planetary gear flange) | 35789-32080 |
| 35792 | No. 2 one-way clutch | 35792-20020 · 35792-32011 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90521-99010 |
| 35795 | One-way clutch outer race | 35795-12020 · 35795-32010 |
| 35795A | Hole snap ring (for one-way clutch outer race) | 90521-99011 |
| 41231D | Drive pinion bearing spacer | 41231-12050 |
