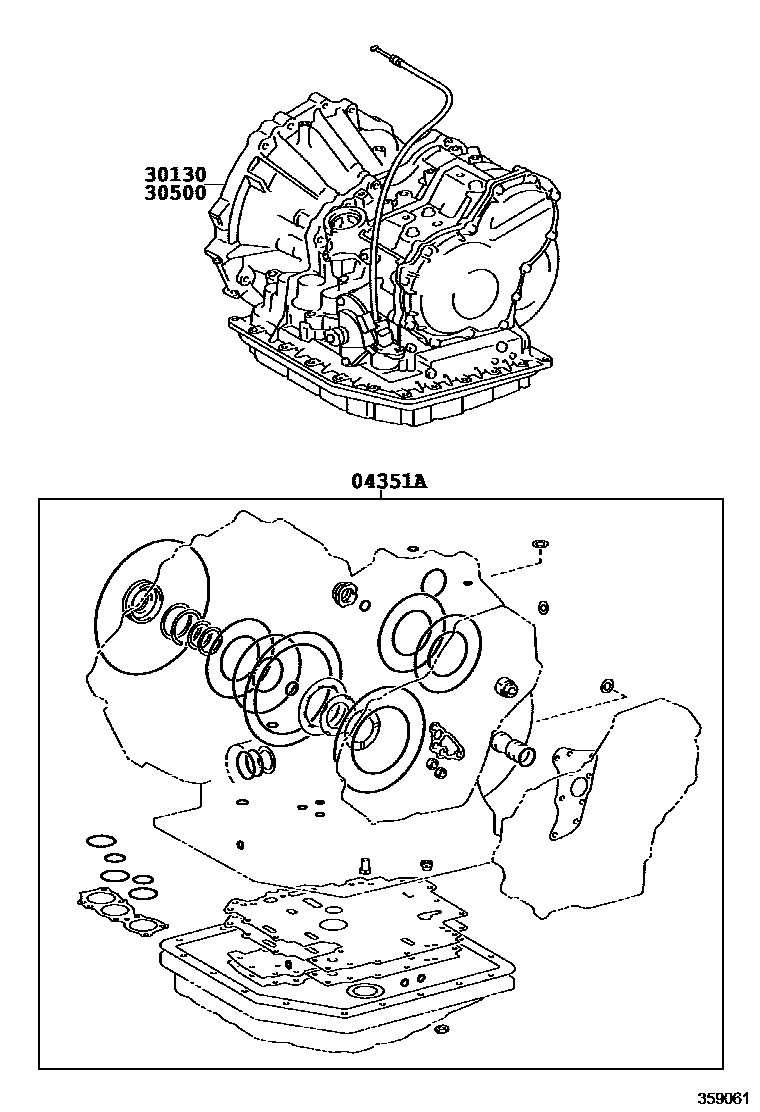

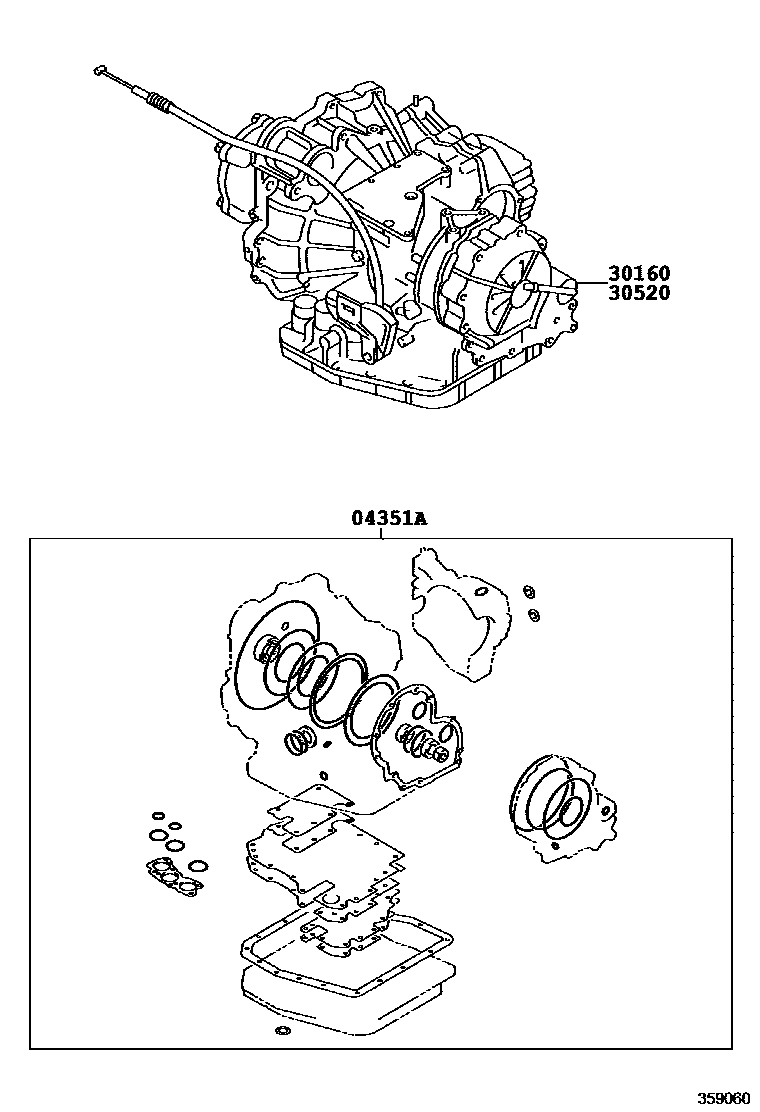

Toyota RAV4 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota RAV4 EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-42010 · 04351-42020 |
| 30130 | Refurbished transmission axle assembly | 30130-42060 |
| 30160 | Refurbished automatic transaxle assembly with transfer case | 30160-42010 · 30160-42011 · 30160-42012 · 30160-42013 · 30160-42020 · 30160-42040 · 30160-42050 · 30160-42900 · 30160-42901 |
| 30500 | Automatic transmission axle assembly | 30500-42060 |
| 30520 | Automatic transmission axle assembly with transfer case | 30520-42010 · 30520-42011 · 30520-42012 · 30520-42013 · 30520-42020 · 30520-42030 · 30520-42040 · 30520-42050 |
