Toyota RAV4 Shift Lever & Retainer — Figure 3312

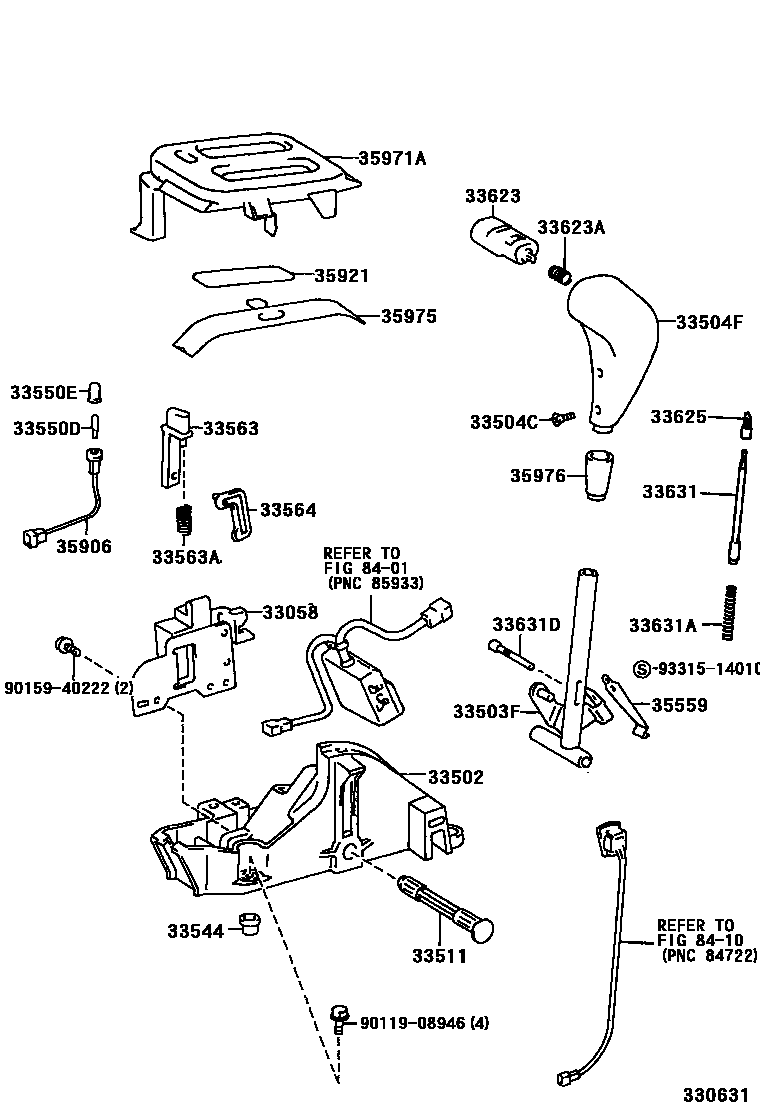

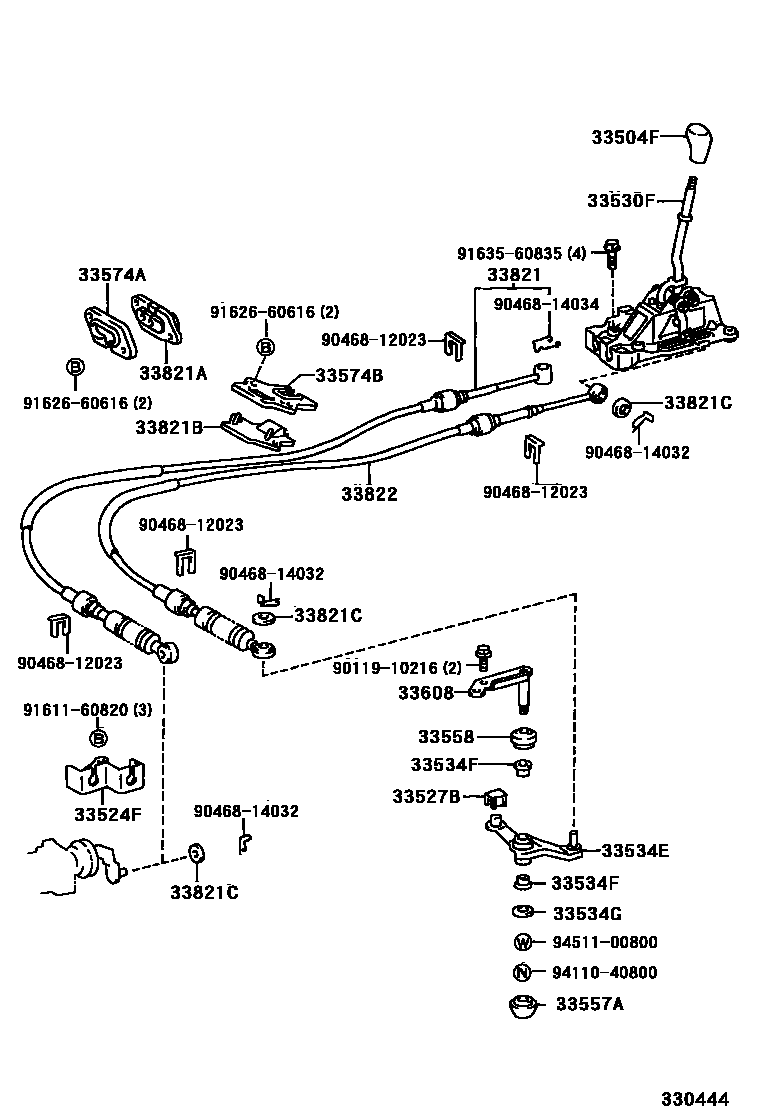

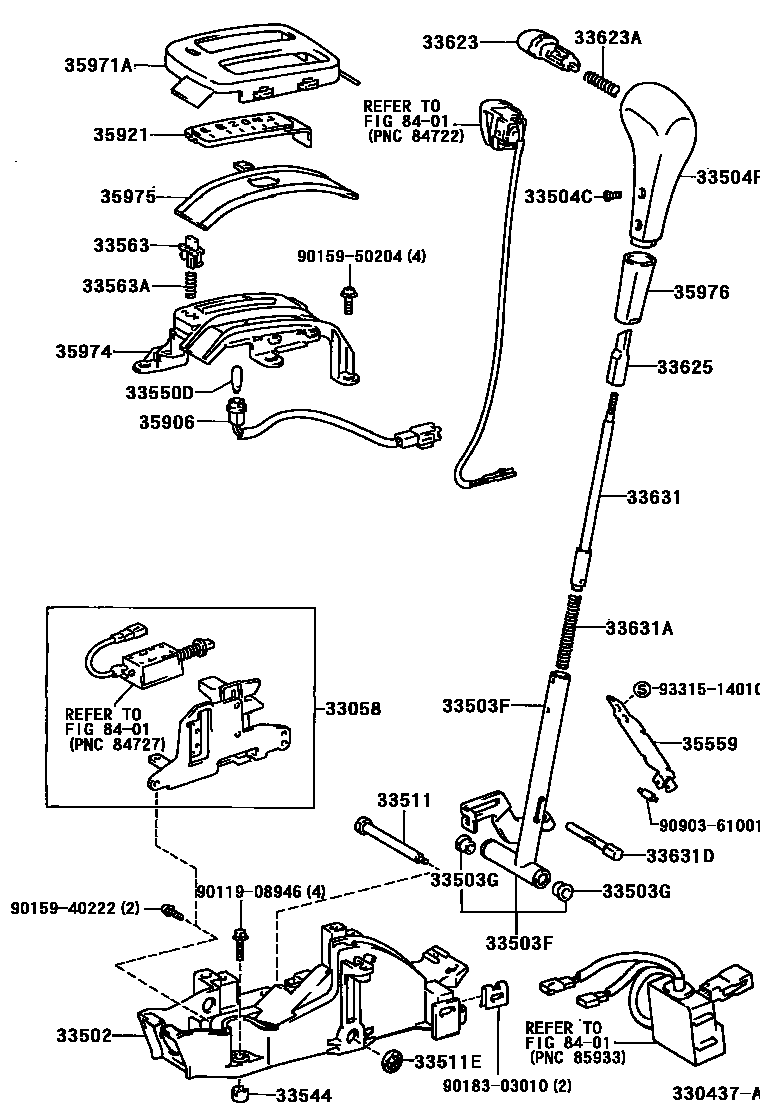

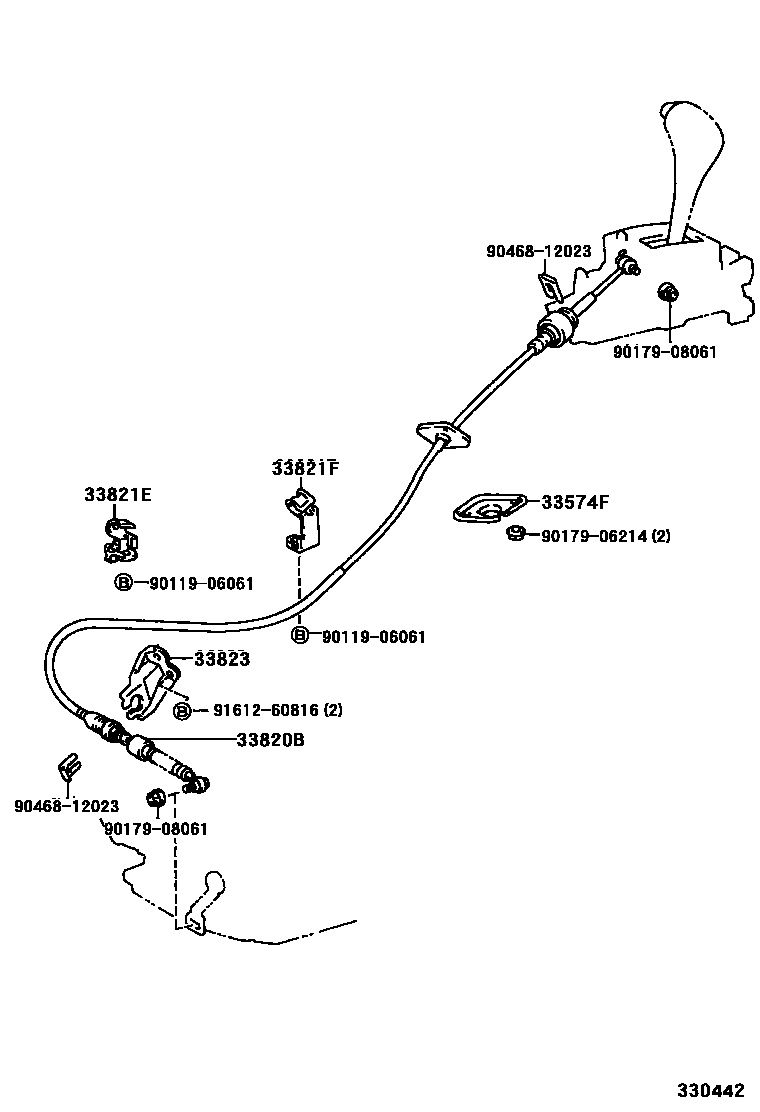

Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 4 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-12040 · 33058-12060 · 33058-42010 |
| 33502 | Shift lever base plate sub-assembly | 33521-12221 · 33521-12250 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-42030 · 33503-42010 |
| 33503G | Bushing (for shift lever) | 90386-09024 |
| 33504C | Screw (for securing shift lever knob) | 90159-40238 · 90159-40244 |
| 33511 | Control shaft (for floor shifting) | 33511-12100 · 33511-12110 |
| 33511E | Snap ring (for floor mounted shift control shaft) | 90520-08001 |
| 33524F | Lever housing bracket (for floor shift) | 33524-20010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12570 · 33530-42010 |
| 33534E | No. 2 gear selection right-angle lever | 33534-12091 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33550D | position indicator light bulb | 90981-11036 |
| 33550E | position indicator cover | 90339-09001 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33563 | Shift lock release button | 33563-12050 · 33563-12070 |
| 33563A | Compression spring (for shift lock release button) | 90501-05041 · 90501-06076 |
| 33564 | No. 1 shift lock release link | 33564-12070 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12080 |
| 33574B | No. 2 shift cable seal | 33574-12060 |
| 33574F | Dust seal retainer (for floor shift) | 33574-42010 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07037 · 90501-07110 |
| 33625 | Shift lever handle sleeve | 33625-12020 · 33625-12030 |
| 33631 | Locking lever | 33631-12120 · 33631-33020 |
| 33631A | Compression spring (for locking lever) | 90501-07074 · 90501-07117 |
| 33631D | Grooved pin (for locking lever) | 90245-04009 · 90256-04008 |
| 33820B | Transmission control cable assembly | 33820-42011 · 33820-42100 · 33820-42120 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-42040 · 33821-42070 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01400 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 33577-42020 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90949-01681 · 90949-01A93 |
| 33821F | Clamp No. 2 (for transmission control cable) | 90949-01955 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-42020 · 33822-42030 |
| 33823 | No. 1 transmission control cable bracket | 33823-20220 · 33823-32031 |
| 35559 | Manual locking spring | 35559-12040 · 35559-33010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12140 · 35906-42010 |
| 35921 | control position indicator board | 35921-12330 · 35921-12400 |
| 35974 | Position indicator light lower shell | 35974-12130 |
