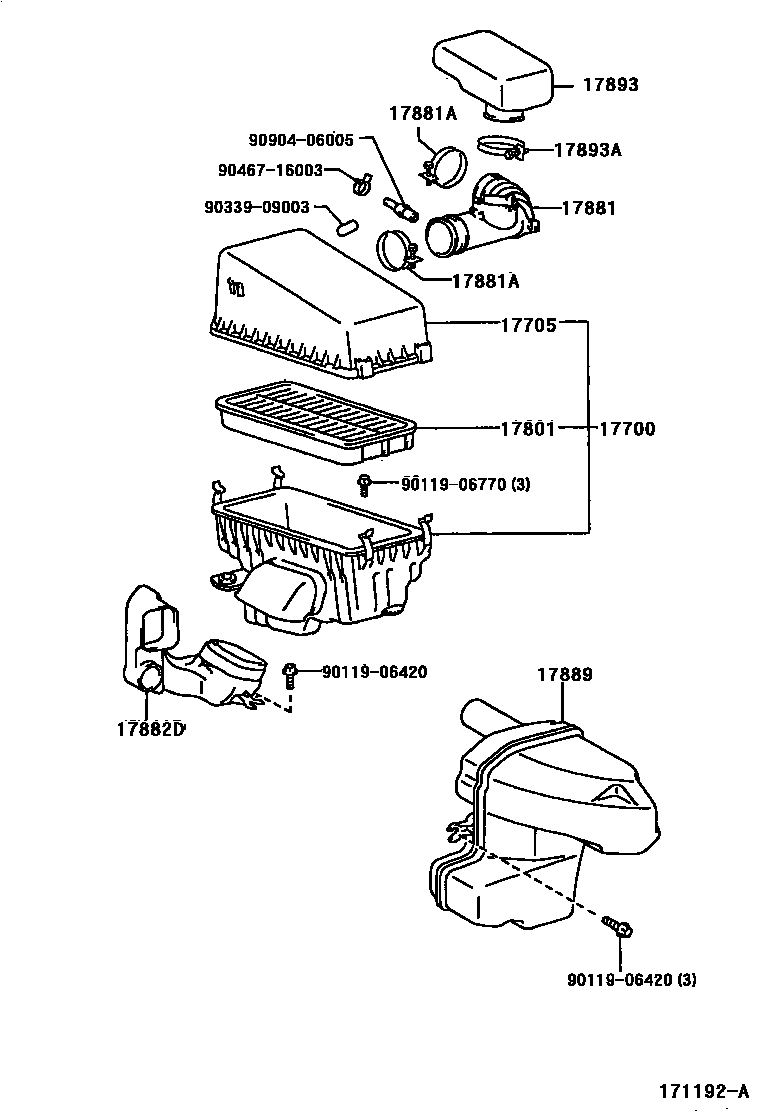

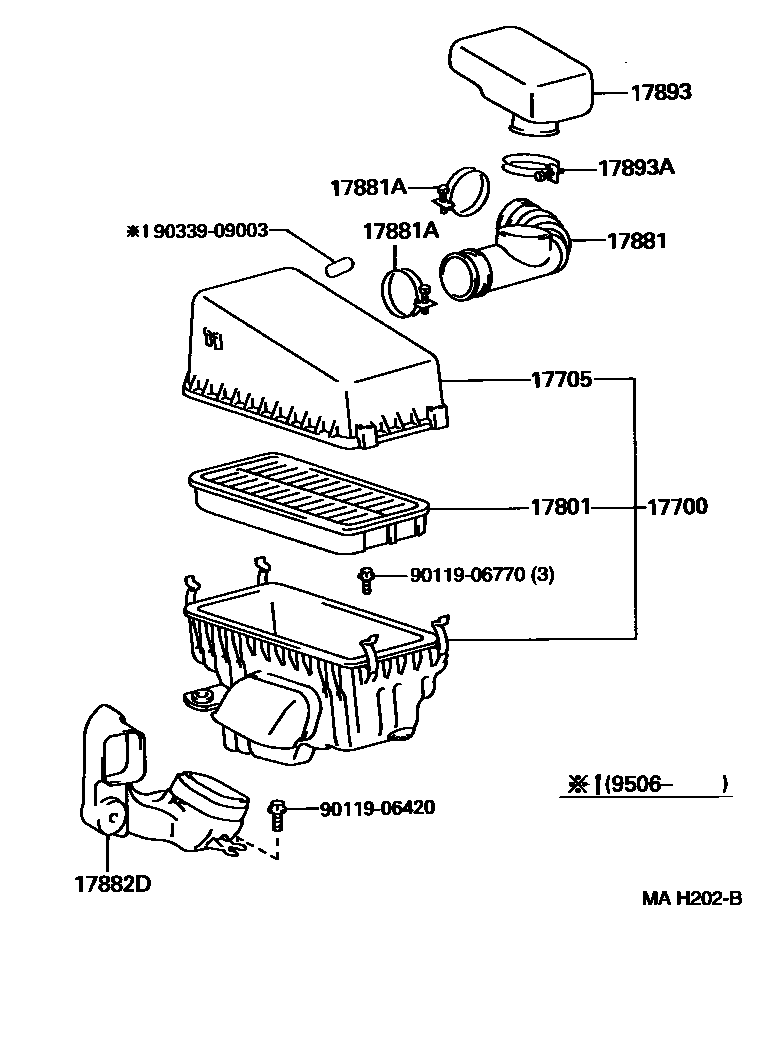

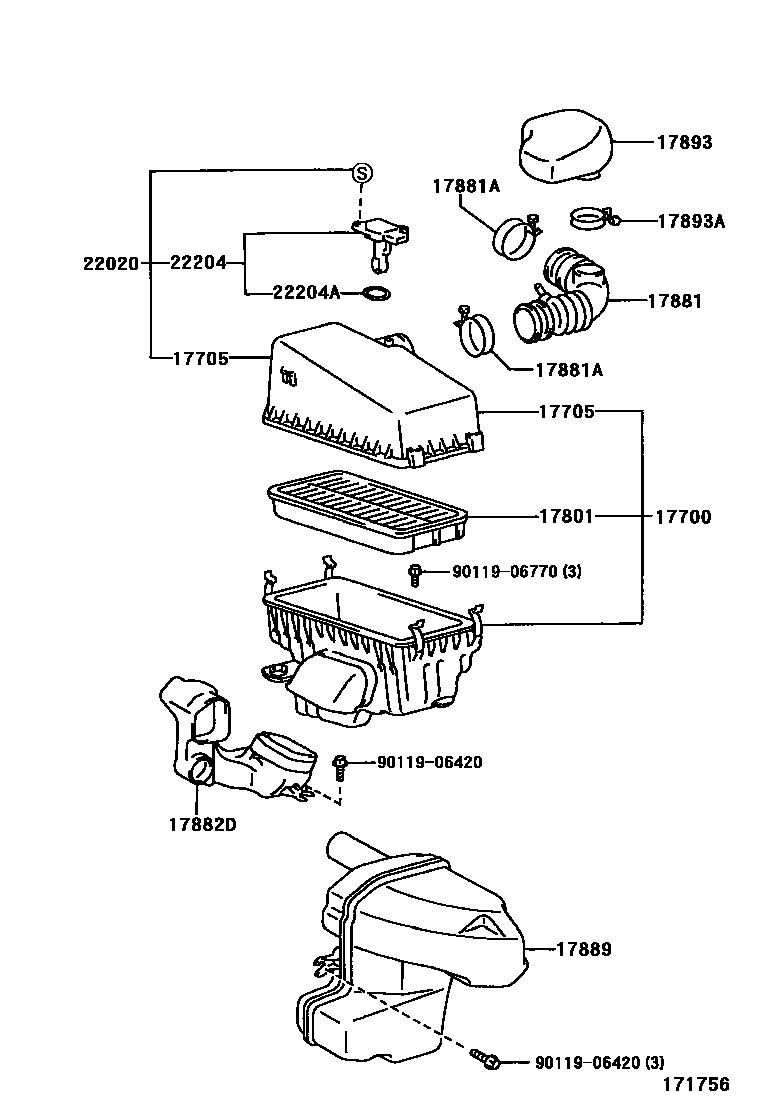

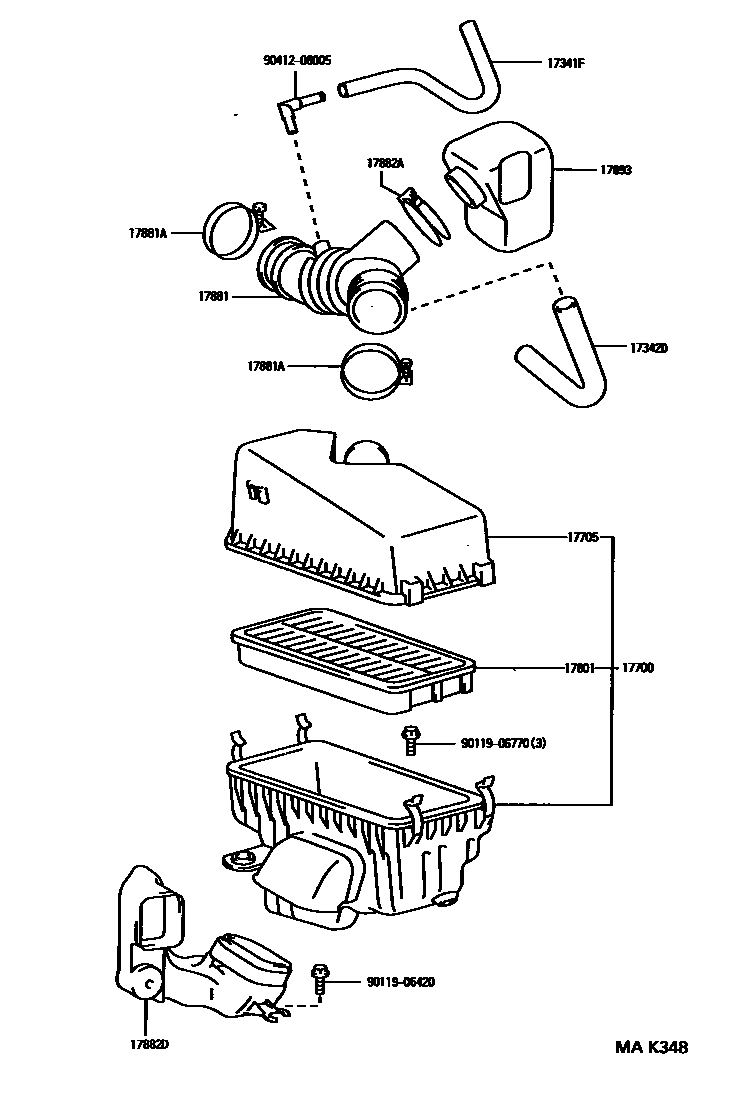

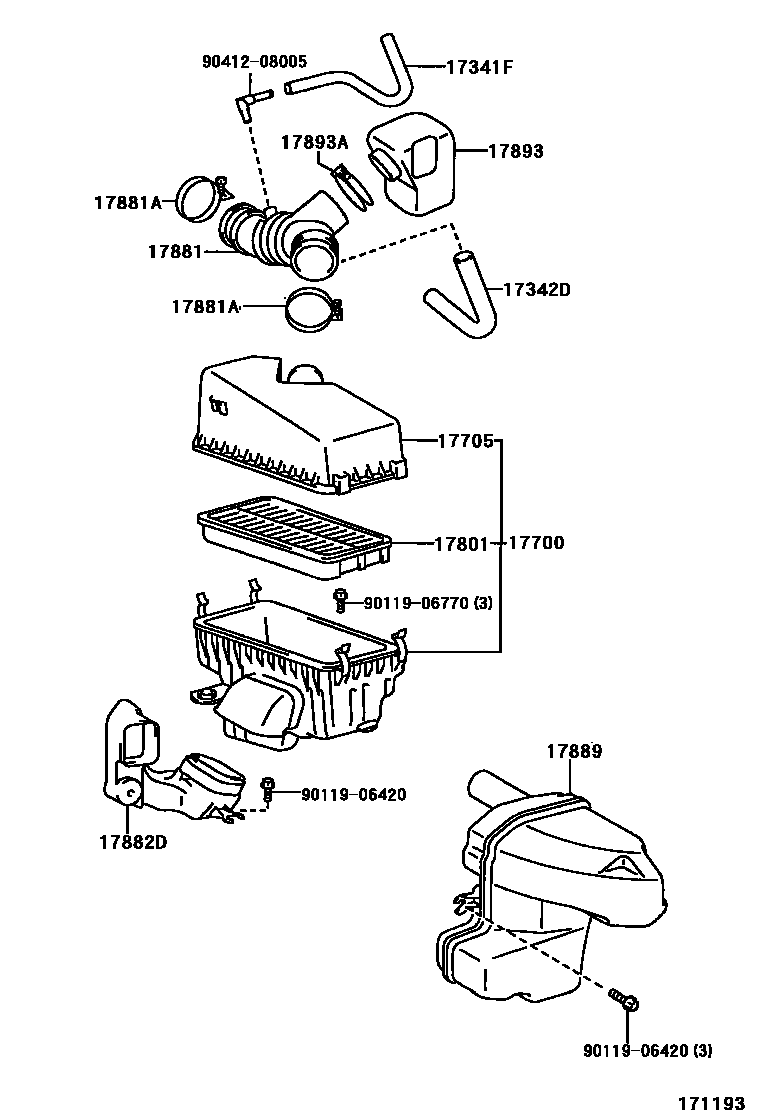

Toyota RAV4 Air Cleaner — Figure 1703
Toyota RAV4 EPC diagram 1703, Air Cleaner, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341F | Air hose No. 1 | 17341-74740 |
| 17342D | Air hose No. 2 | 17342-74250 |
| 17700 | air filter assembly | 17700-74540 · 17700-74541 · 17700-74542 · 17700-74543 · 17700-74620 · 17700-74621 · 17700-74730 |
| 17705 | Air filter cover sub-assembly | 17705-74380 · 17705-74381 · 17705-74382 · 17705-74450 · 17705-74530 |
| 17801 | Air filter element sub-assembly | 17801-74020 |
| 17881 | No. 1 air cleaner hose | 17881-74600 · 17881-74790 · 17881-74801 · 17881-7A070 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10710 · 96111-10800 · 96111-10880 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10800 |
| 17882D | Cold air intake hose | 17882-74290 · 17882-74300 · 17882-74320 |
| 17889 | No. 2 air cleaner hose housing | 17889-74050 |
| 17893 | Intake resonator | 17893-74330 · 17893-74400 · 17893-74470 |
| 17893A | hose clamp | 96111-10670 · 96111-10800 · 96111-10830 |
| 22020 | Air flow meter assembly with air filter | 22020-74310 |
| 22204 | Intake air flow meter assembly | 22204-22010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
