Toyota RAV4 Exhaust Pipe — Figure 1702

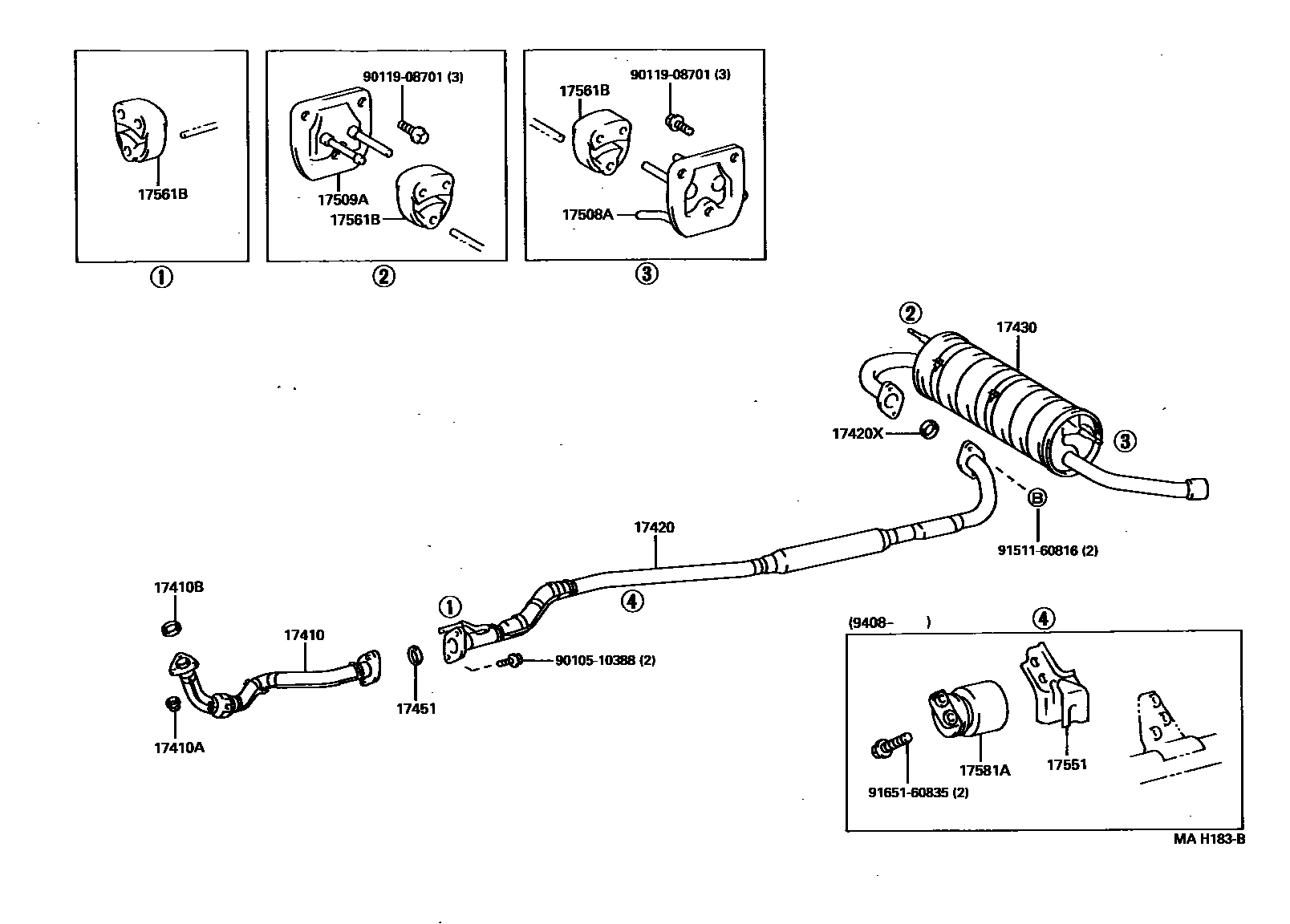

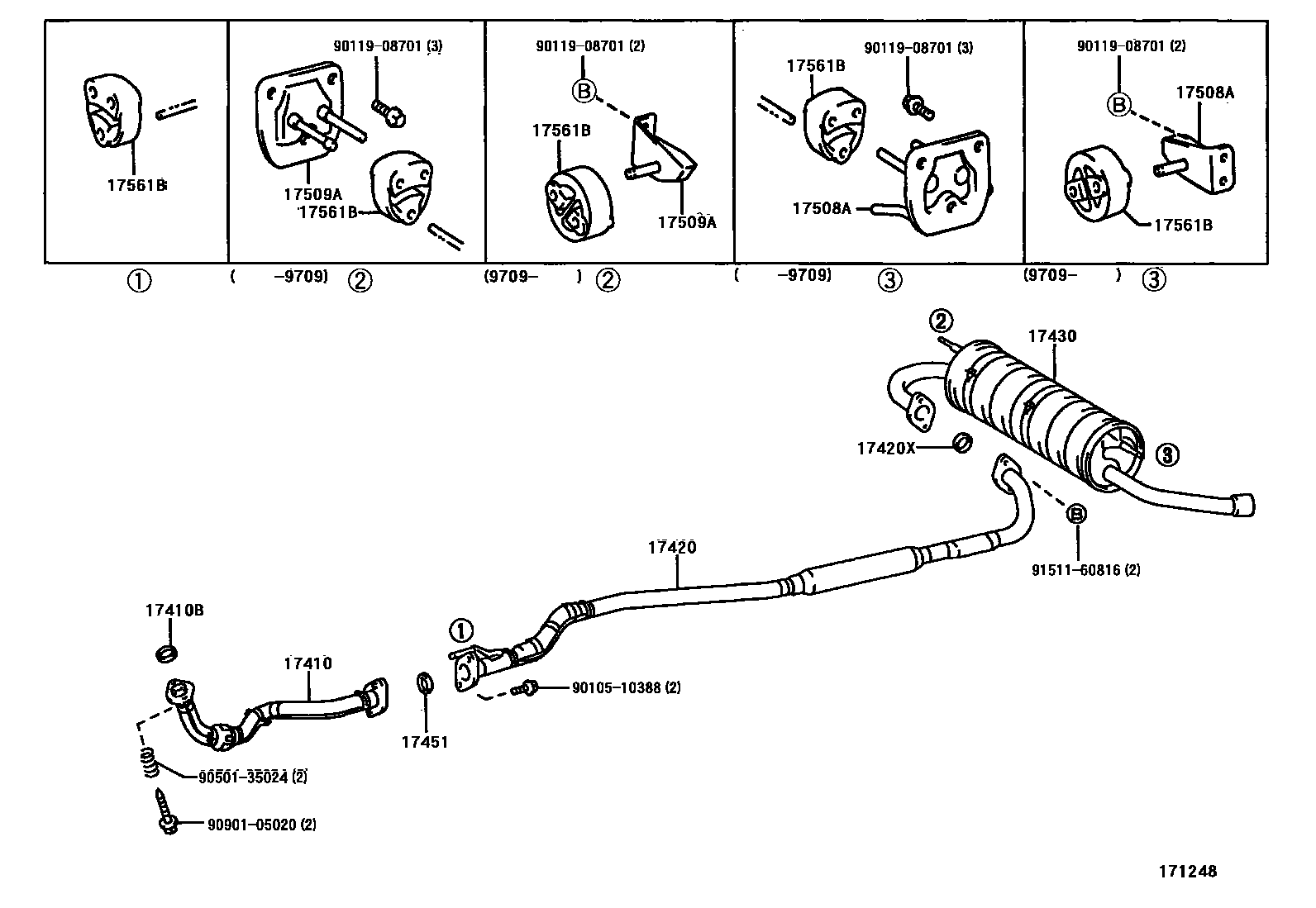

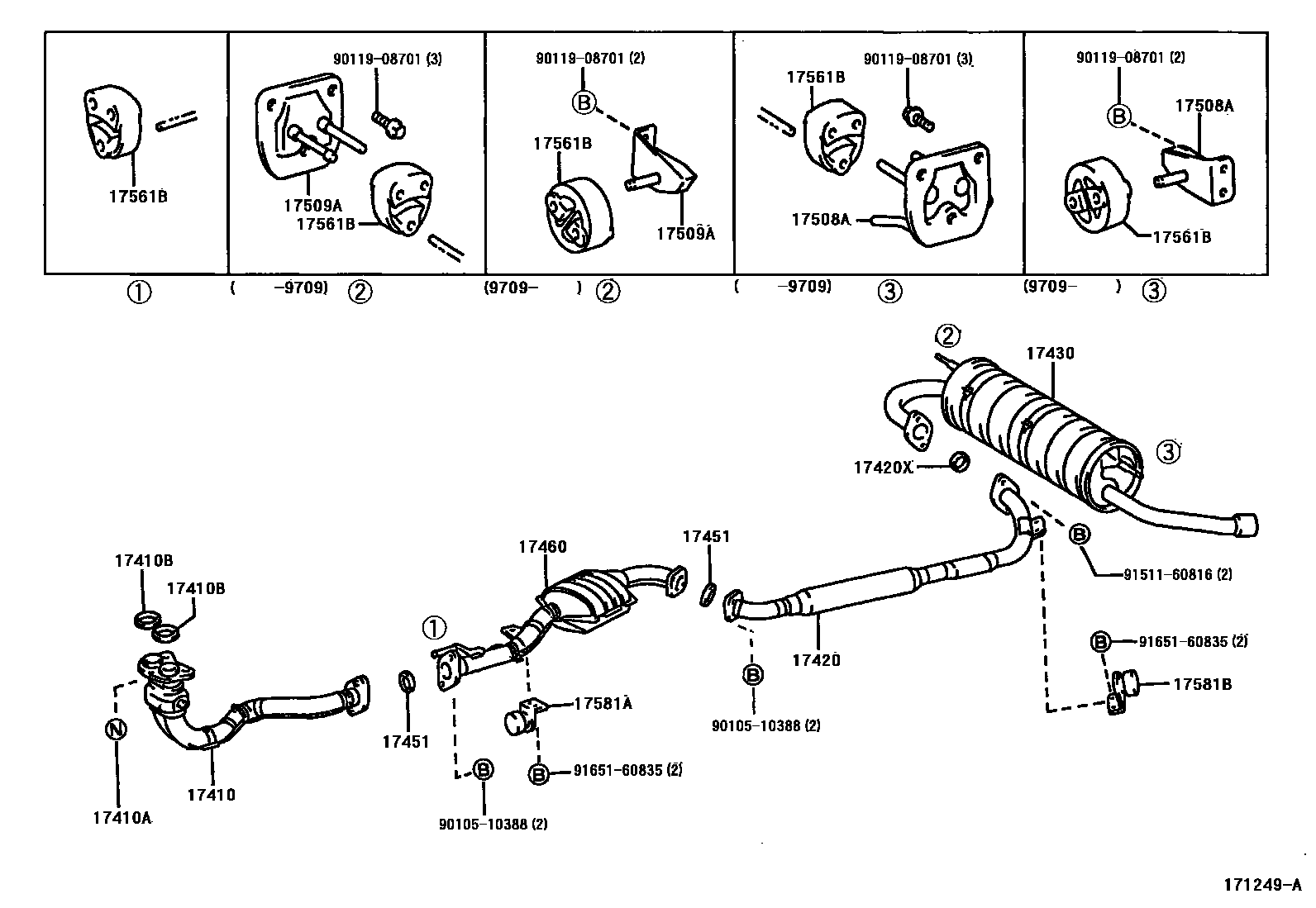

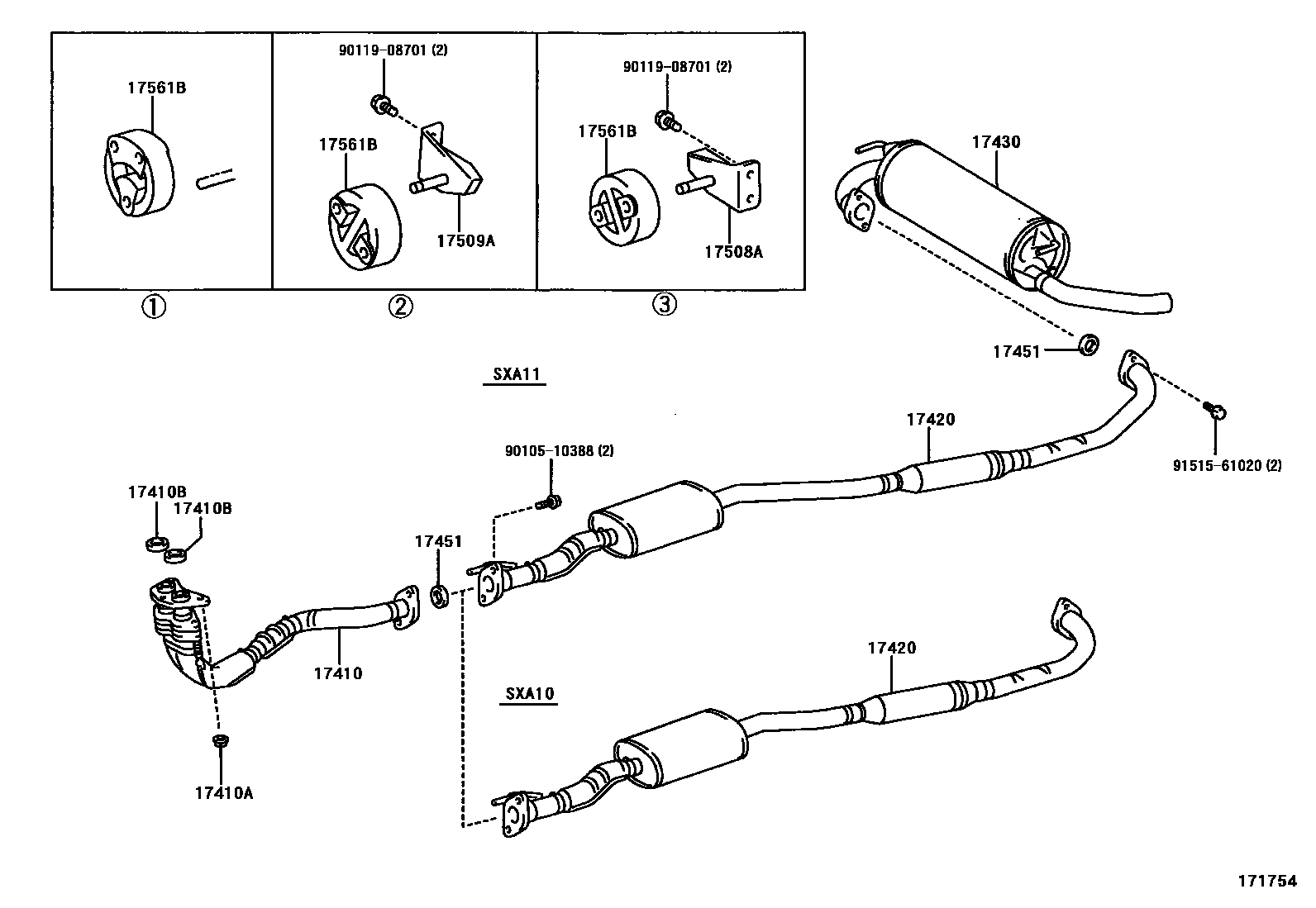

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-7A020 · 17410-7A330 · 17410-7A331 · 17410-7A620 · 17410-7A830 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 17451-74050 · 17451-74051 · 90917-06066 · 90917-06075 |
| 17420 | Central exhaust pipe assembly | 17420-74810 · 17420-74811 · 17420-74870 · 17420-7A090 · 17420-7A100 · 17420-7A120 · 17420-7A130 · 17420-7A200 · 17420-7A210 |
| 17420X | Center exhaust pipe liner | 90917-06062 |
| 17430 | Exhaust tailpipe assembly | 17430-7A530 · 17430-7A780 · 17430-7A820 · 17430-7B040 · 17430-7B050 · 17430-7B140 |
| 17451 | Exhaust pipe gasket | 90917-06062 · 90917-06073 |
| 17460 | Three-way catalytic converter assembly with tube | 17460-74140 · 17460-74141 |
| 17508A | No. 3 exhaust pipe bracket sub-assembly | 17508-74100 · 17508-74110 · 17508-74120 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-74160 · 17509-74180 · 17509-74210 |
| 17551 | No. 1 exhaust pipe insulation pad | 17551-74170 |
| 17561B | No. 1 exhaust pipe lifting lug | 17561-74110 · 17565-46010 · 17565-74420 |
| 17581A | Exhaust pipe damper | 17581-50060 · 17581-74080 |
| 17581B | No. 2 exhaust pipe damper | 17581-74080 |
