Toyota RAV4 Manifold — Figure 1701

Toyota RAV4 EPC diagram 1701, Manifold, with 3 images and 27 PNC and OE references.

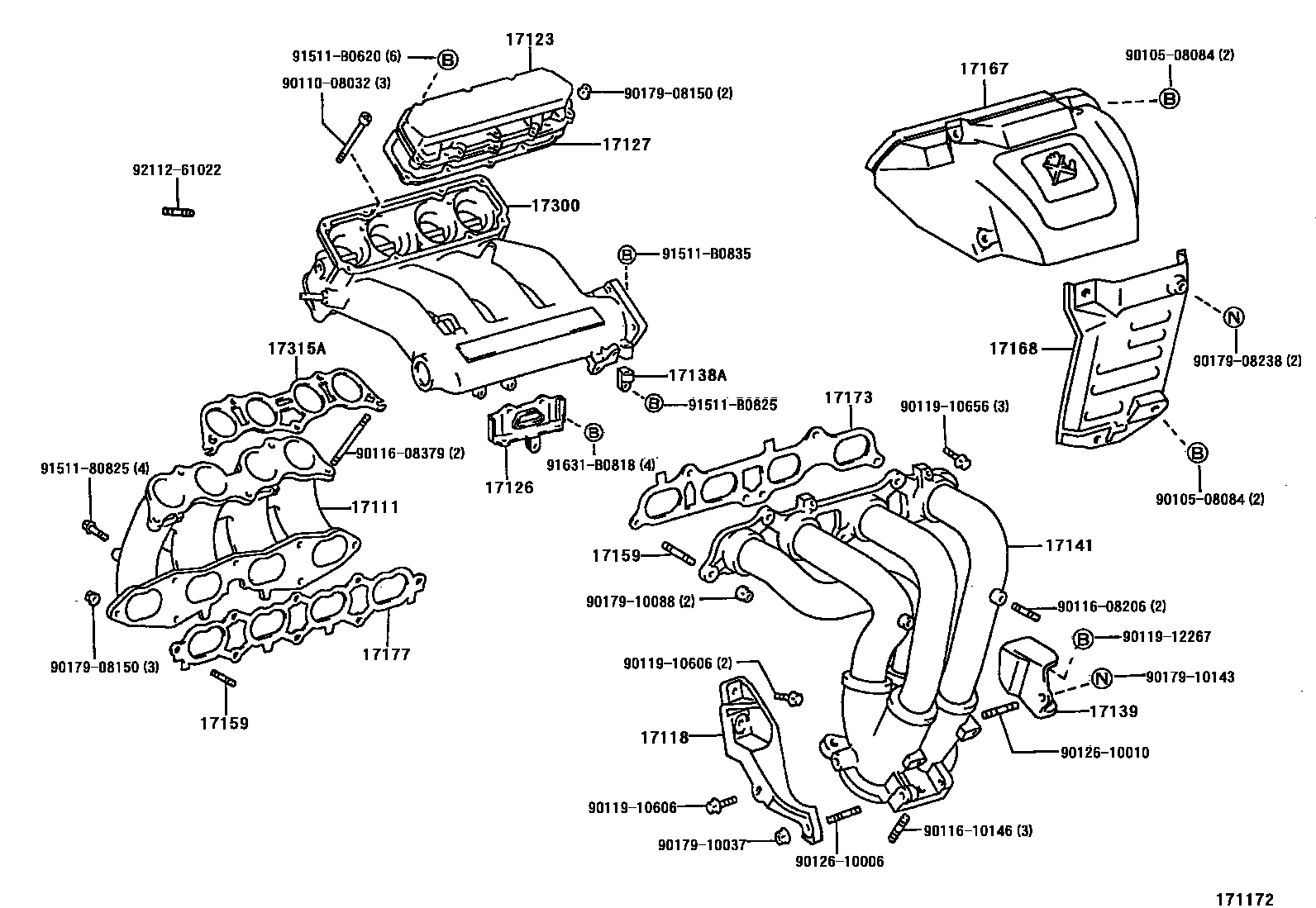

Toyota RAV4 Manifold EPC diagram — 171172
Manifold — 171172 (199608 – 199808)

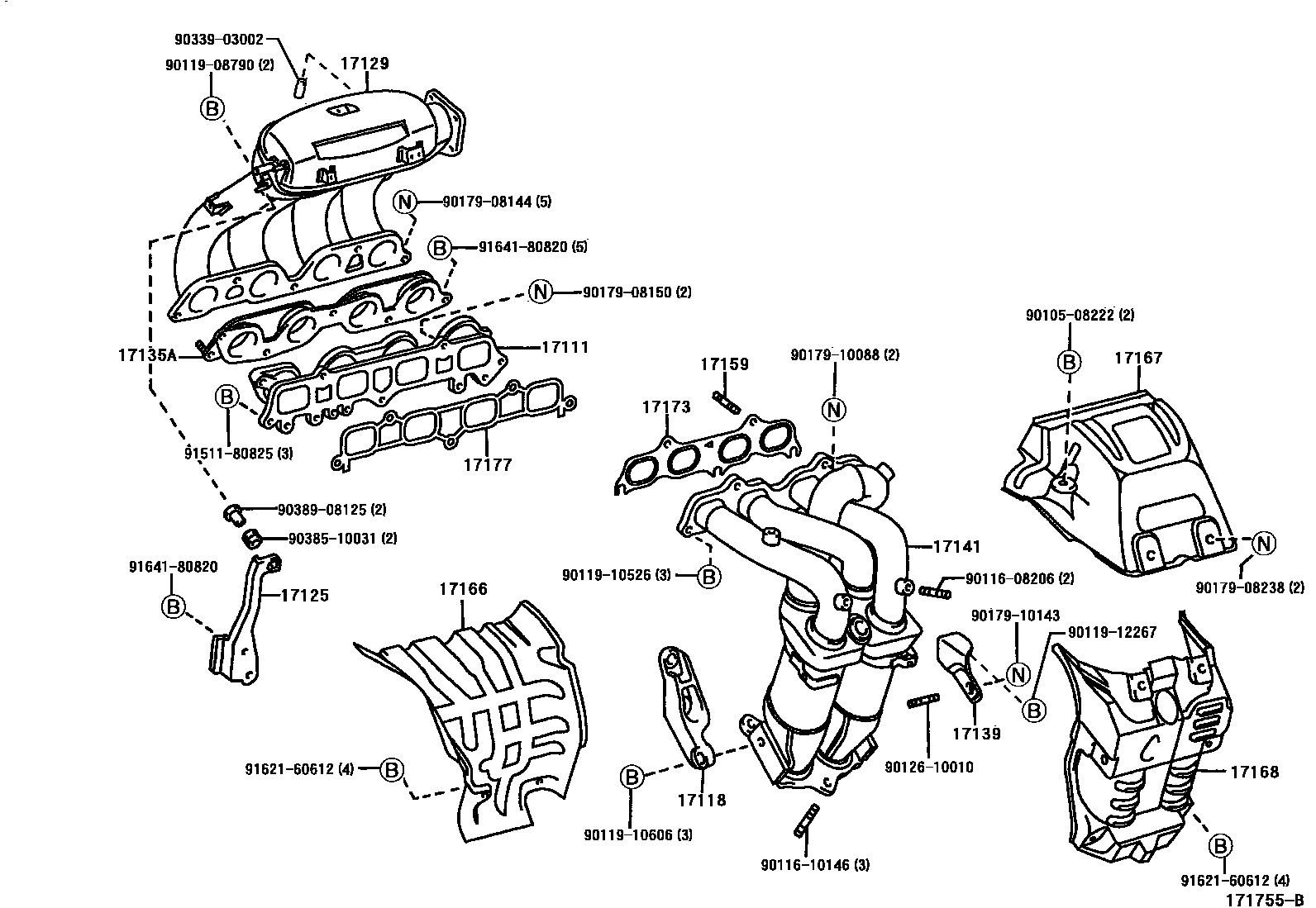

Toyota RAV4 Manifold EPC diagram — 171755B
Manifold — 171755B (199808 – 999999)

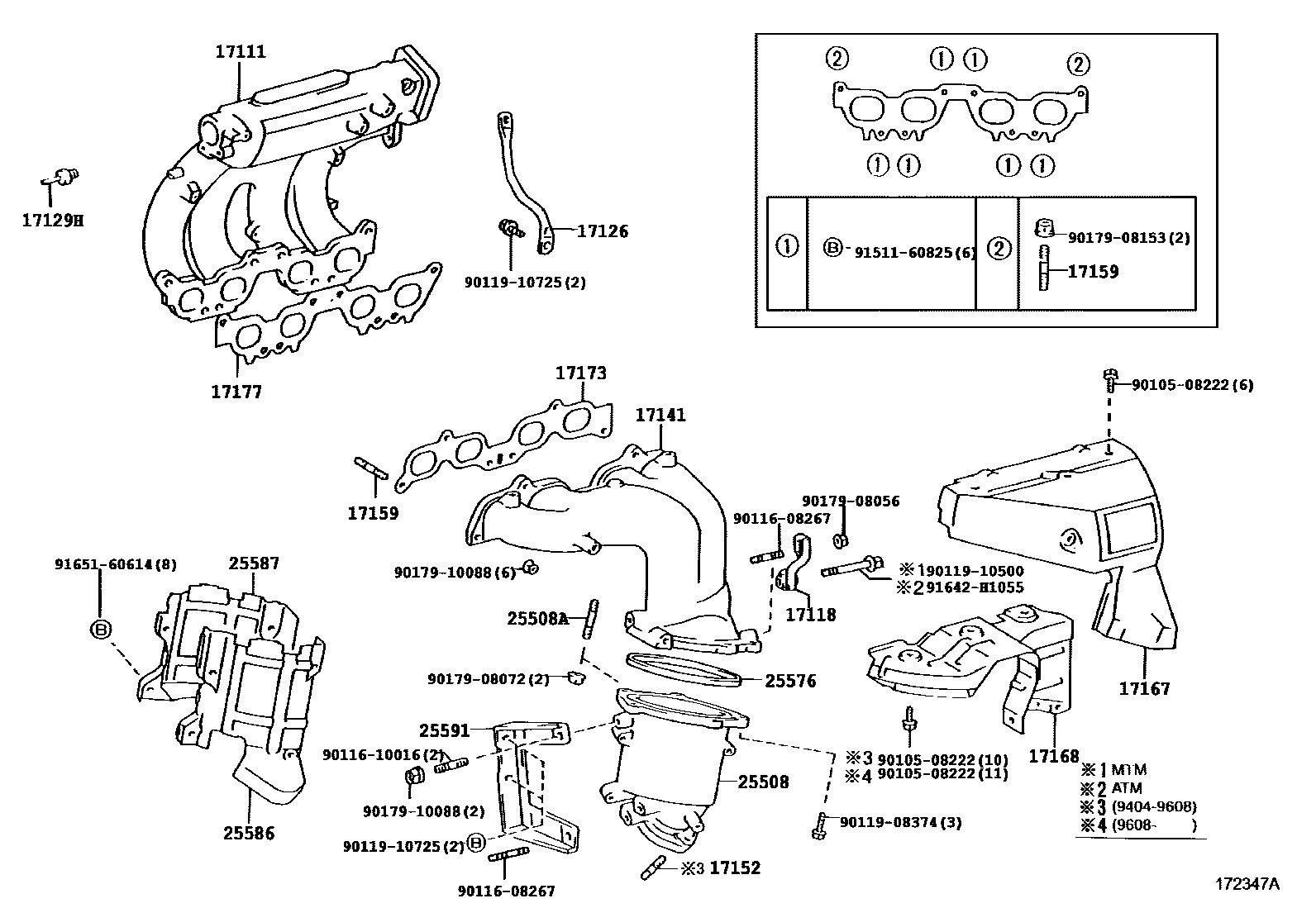

Toyota RAV4 Manifold EPC diagram — 172347A
Manifold — 172347A (199404 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17101-74220 · 17101-74320 · 17101-88460 · 17111-88560
17118Manifold stays17118-74300 · 17118-88463 · 17118-88560
17123Pressure tank cover17123-88461
17125No. 1 pressure tank stay17125-88560
17126No. 2 pressure tank stay17126-74060 · 17126-74070 · 17126-88460
17127Pressure tank cover gasket17127-88462
17129Intake pressure tank17129-88562
17129HConnector No. 490404-51026
17135AIntake manifold No. 1 heat shield17135-88560
17138AIntake pipe stay17138-88461
17139No. 2 manifold stay17139-88463 · 17139-88560
17141exhaust manifold17140-88560 · 17141-74031 · 17141-88463
17152Studs (for manifold to exhaust)90116-10058
17159Studs (for manifold to cylinder head)90116-08242 · 90116-10063 · 90116-10169 · 92122-60822
17166Exhaust manifold No. 4 heat shield17166-88560
17167Exhaust manifold No. 1 heat shield17167-74141 · 17167-88463 · 17167-88560
17168Exhaust manifold No.2 insulation pad17168-74020 · 17168-88464 · 17168-88561
17173Gasket (exhaust manifold to cylinder head)17173-74040 · 17173-88461 · 17173-88560
17177No. 1 gasket (intake manifold to cylinder head)17177-74070 · 17177-88460 · 17177-88560
17300Intake control valve assembly17300-88468
17315AIntake control valve gasket17315-88460
25508Manifold three-way catalytic converter sub-assembly25508-74170 · 25508-74220 · 25508-74250
25508AStud bolts (for manifold three-way catalytic converter)90116-08171
25576Manifold three-way catalytic converter gasket25576-74030
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-74011 · 25586-74060
25587No. 2 manifold three-way catalytic converter vibration isolation pad25587-74011 · 25587-74060
25591Manifold bracket25591-74011
