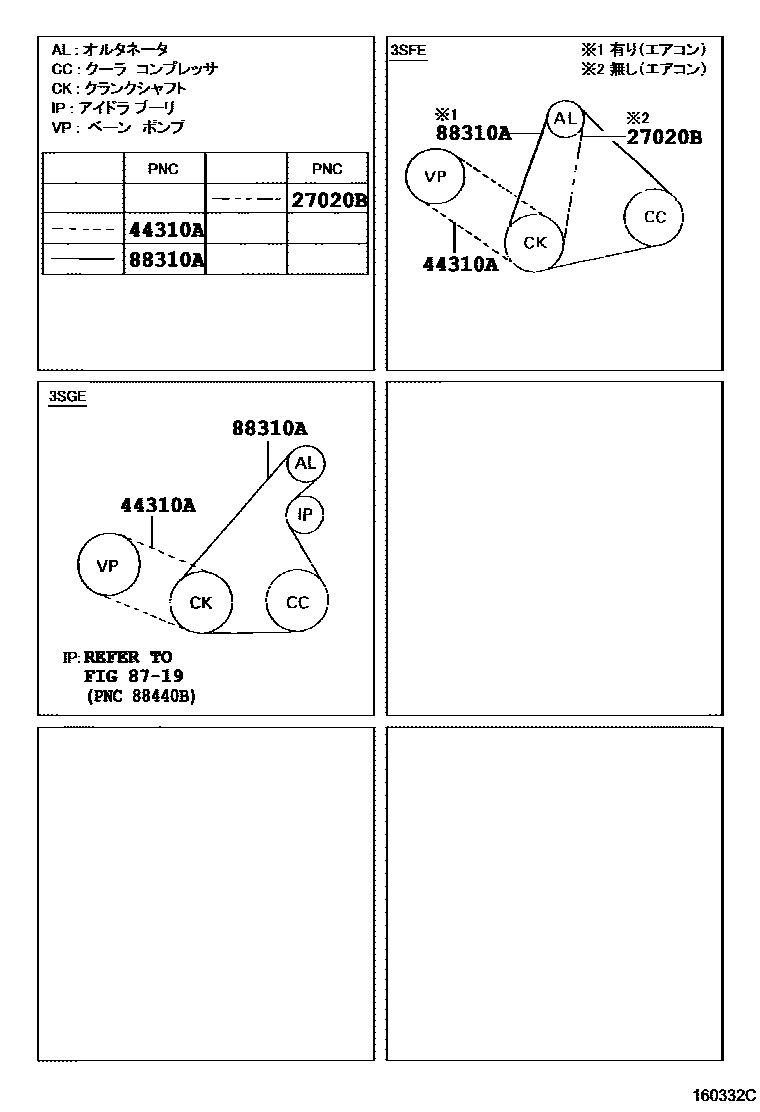

Toyota RAV4 V-Belt — Figure 1605
Toyota RAV4 EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020B | V-belt (for generator) | 90916-02355 |
| 44310A | V-belt (for vane pump) | 99363-30760 · 99363-70760 · 99363-80760 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90080-91099 · 99365-31090 · 99365-81110 · 99365-91090 |
