Toyota RAV4 Engine Oil Cooler — Figure 1503

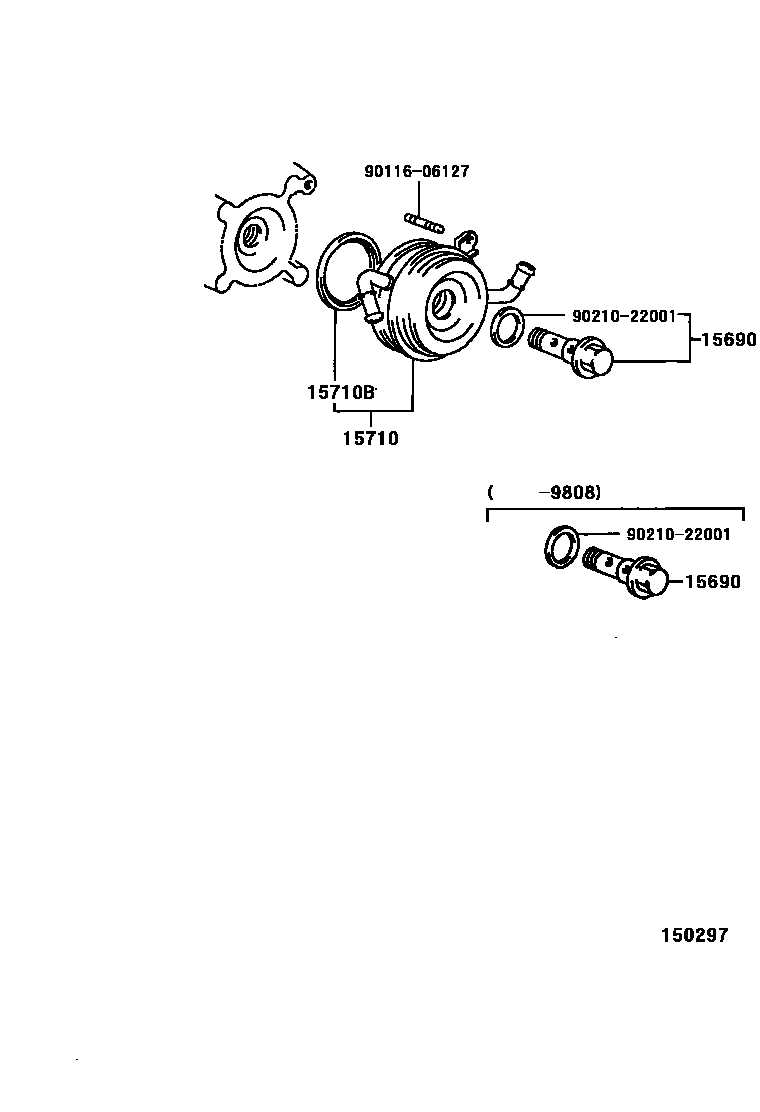

Toyota RAV4 EPC diagram 1503, Engine Oil Cooler, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 15695-62010 · 15695-88500 |
| 15710 | Oil cooler assembly | 15710-88471 |
| 15710B | O-ring (for oil cooler) | 90301-56005 · 90301-58002 |
