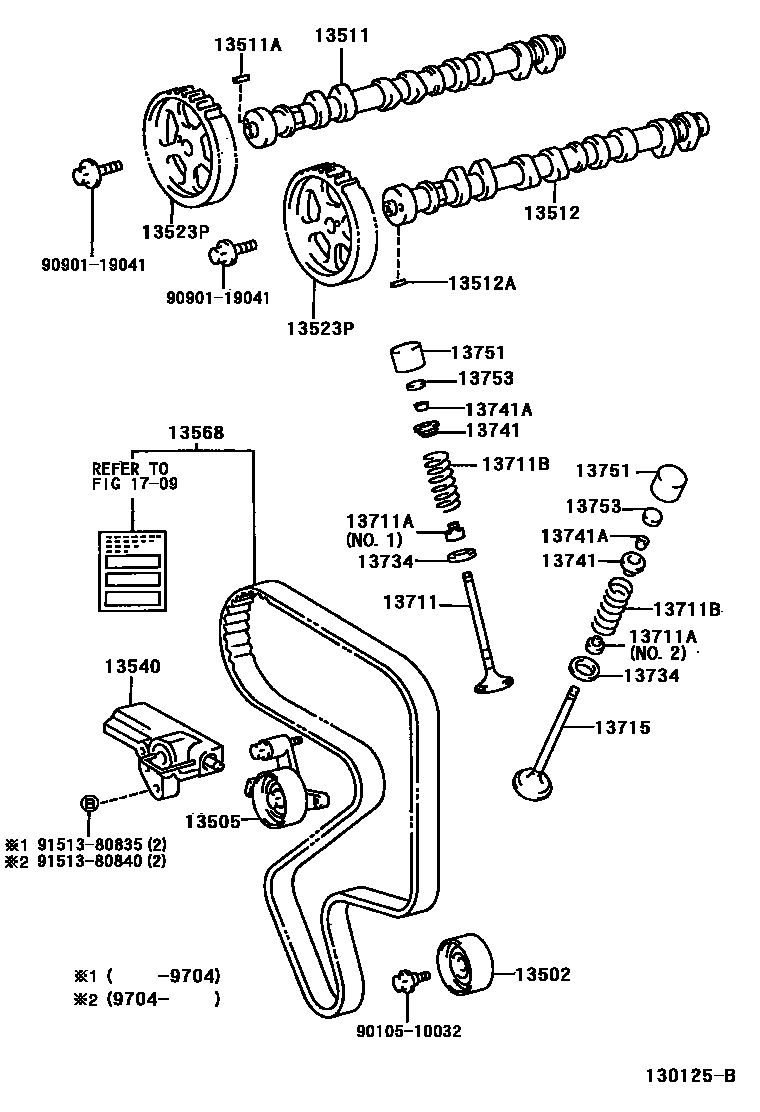

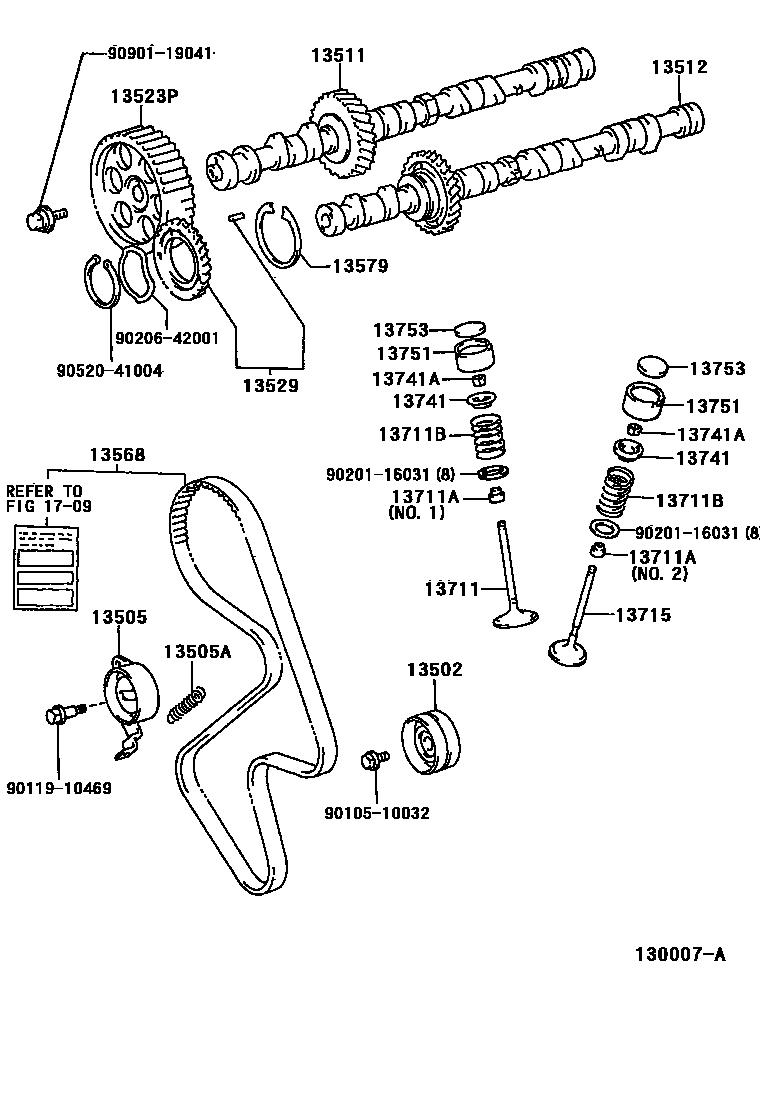

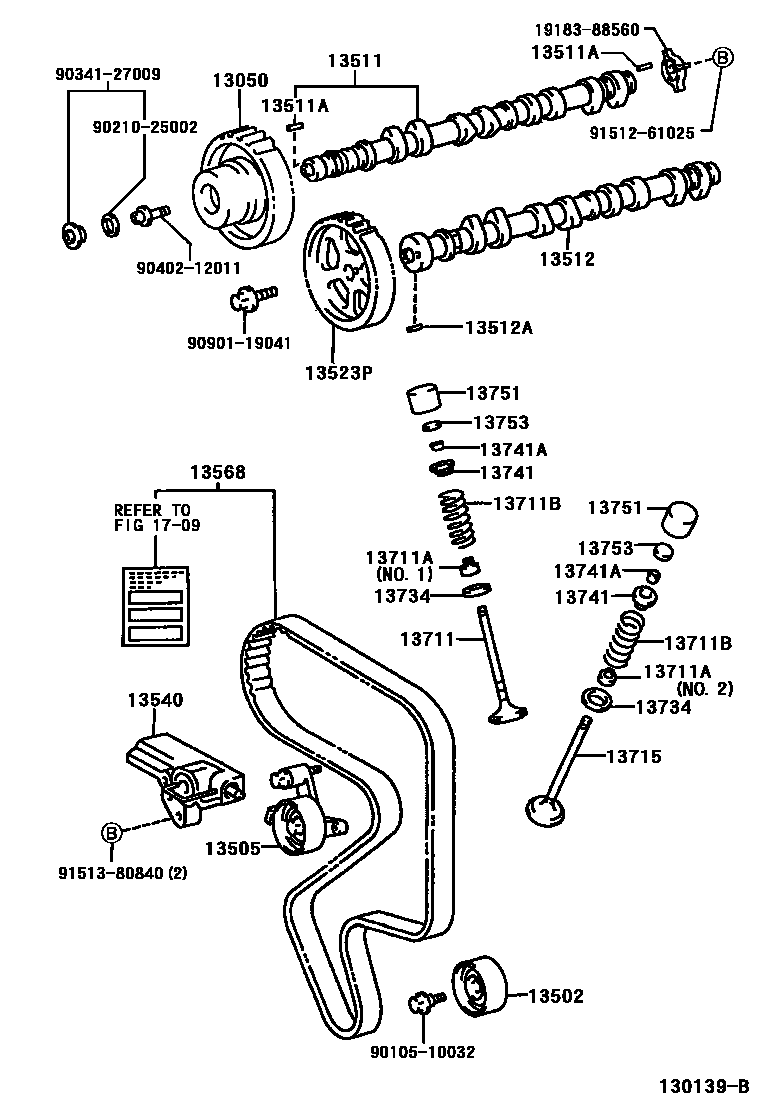

Toyota RAV4 Camshaft & Valve — Figure 1302
Toyota RAV4 EPC diagram 1302, Camshaft & Valve, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-74020 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-63011 · 13503-88560 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-74011 · 13505-88480 · 13505-88560 |
| 13505A | Tension spring (for idler pulley) | 90507-17003 · 90507-18030 |
| 13511 | camshaft | 13501-74050 · 13501-88480 · 13501-88560 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-04015 · 90250-05021 |
| 13512 | Camshaft No. 2 | 13502-74030 · 13502-88460 · 13502-88560 |
| 13512A | No. 2 direct pin (for camshaft lock pin) | 90250-05021 |
| 13523P | Camshaft timing pulley | 13523-74020 · 13523-74040 · 13523-74050 · 13523-88301 |
| 13529 | Camshaft counter gear | 13529-74900 |
| 13540 | No. 1 chain tensioner assembly | 13540-88480 · 13540-88561 |
| 13568 | timing belt | 13568-79095 · 13568-79105 · 13568-79225 · 13568-80015 |
| 13579 | Camshaft timing gear bolt washer | 13579-74010 |
| 13711 | intake valve | 13711-74080 · 13711-88461 · 13711-88560 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02066 · 90913-02088 · 90913-02090 · 90913-02104 · 90913-02114 · 90913-02115 |
| 13711B | Compression spring (for inner side) | 90501-35022 · 90501-36004 · 90501-37010 · 90504-37002 |
| 13715 | exhaust valve | 13715-74080 · 13715-88460 · 13715-88560 |
| 13734 | Valve spring seat | 13734-88460 · 13734-88560 |
| 13741 | Valve spring seat ring | 13741-50020 · 13741-88460 · 13741-88560 |
| 13741A | Valve spring seat lock plate | 90913-03021 · 90913-03030 |
| 13751 | valve lifter | 13751-74020 · 13751-88460 |
| 13753 | valve adjustment gasket | 13753-74010 · 13753-74030 · 13753-74050 · 13753-74070 · 13753-74090 · 13753-74110 · 13753-74130 · 13753-74150 · 13753-74170 · 13753-74190 · 13753-74210 · 13753-74230 · 13753-74250 · 13753-74270 · 13753-74290 · 13753-74310 · 13753-74330 · 13753-88003 · 13753-88053 · 13753-88103 · 13753-88153 · 13753-88203 · 13753-88253 · 13753-88303 · 13753-88353 · 13753-88403 · 13753-88453 · 13753-88503 · 13753-88553 · 13753-88603 · 13753-88653 · 13753-88703 · 13753-88753 · 13753-88803 · 13753-88853 · 13753-88893 |
