Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 4 images and 11 PNC and OE references.

Toyota RAV4 Ventilation Hose EPC diagram — 120050
Ventilation Hose — 120050 (199709 – 999999)

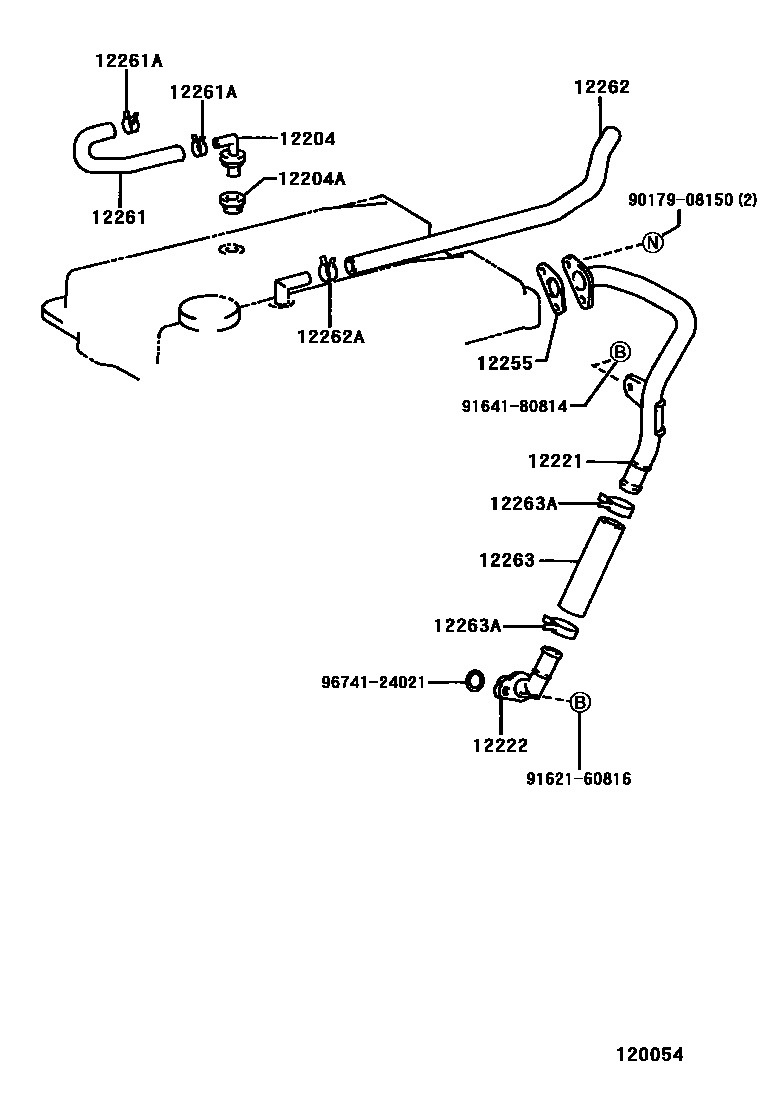

Toyota RAV4 Ventilation Hose EPC diagram — 120054
Ventilation Hose — 120054 (199808 – 999999)

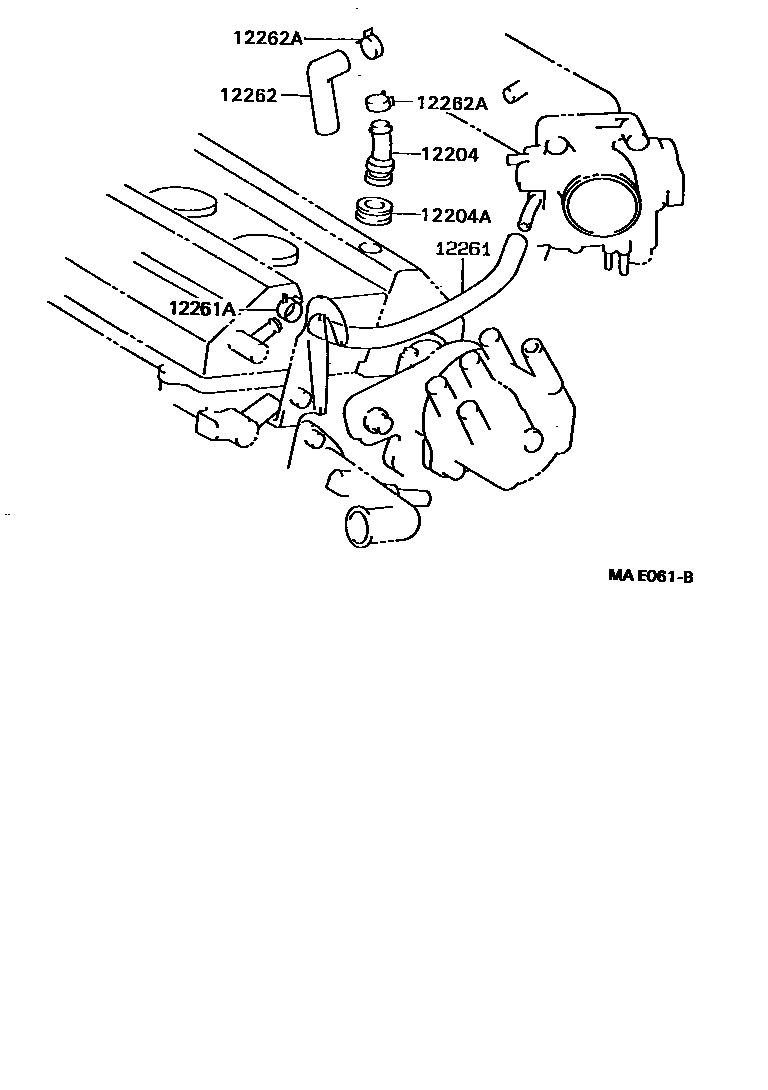

Toyota RAV4 Ventilation Hose EPC diagram — MAE061B
Ventilation Hose — MAE061B (199404 – 199709)

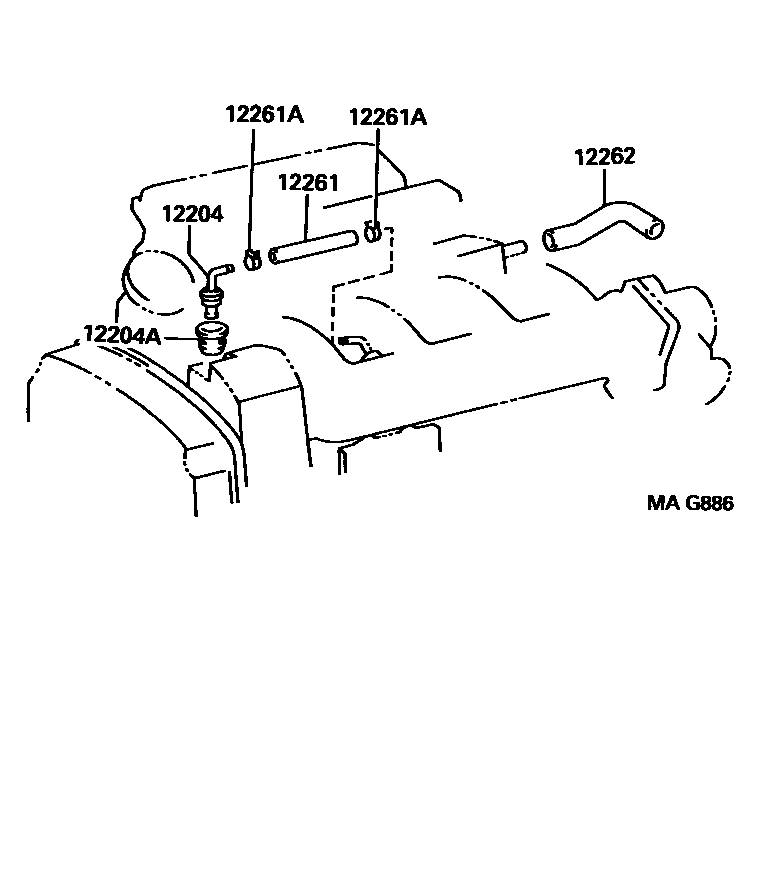

Toyota RAV4 Ventilation Hose EPC diagram — MAG886
Ventilation Hose — MAG886 (199608 – 199808)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-74020 · 12204-74030 · 12204-88460
12204AGasket (for ventilation system)90480-18001 · 90480-18008
12221Ventilation duct No. 112221-88560
12222Ventilation duct No. 212222-88560
12255Ventilation padding12255-88560
12261Ventilation Hose12260-74050 · 12261-74020 · 12261-74141 · 12261-88461 · 12261-88560
12261AClip or clip (for vent hose)90467-14037 · 90467-14043 · 90467-15016 · 90467-15022
12262Ventilation hose No. 212262-74050 · 12262-74100 · 12262-88461 · 12262-88563
12262AClamp (for vent hose No. 2)90467-13103 · 90467-14043 · 90467-15016 · 90467-15022 · 90467-19012
12263No. 3 ventilation hose12263-88560
12263AClip (for ventilation hose)90467-26007
