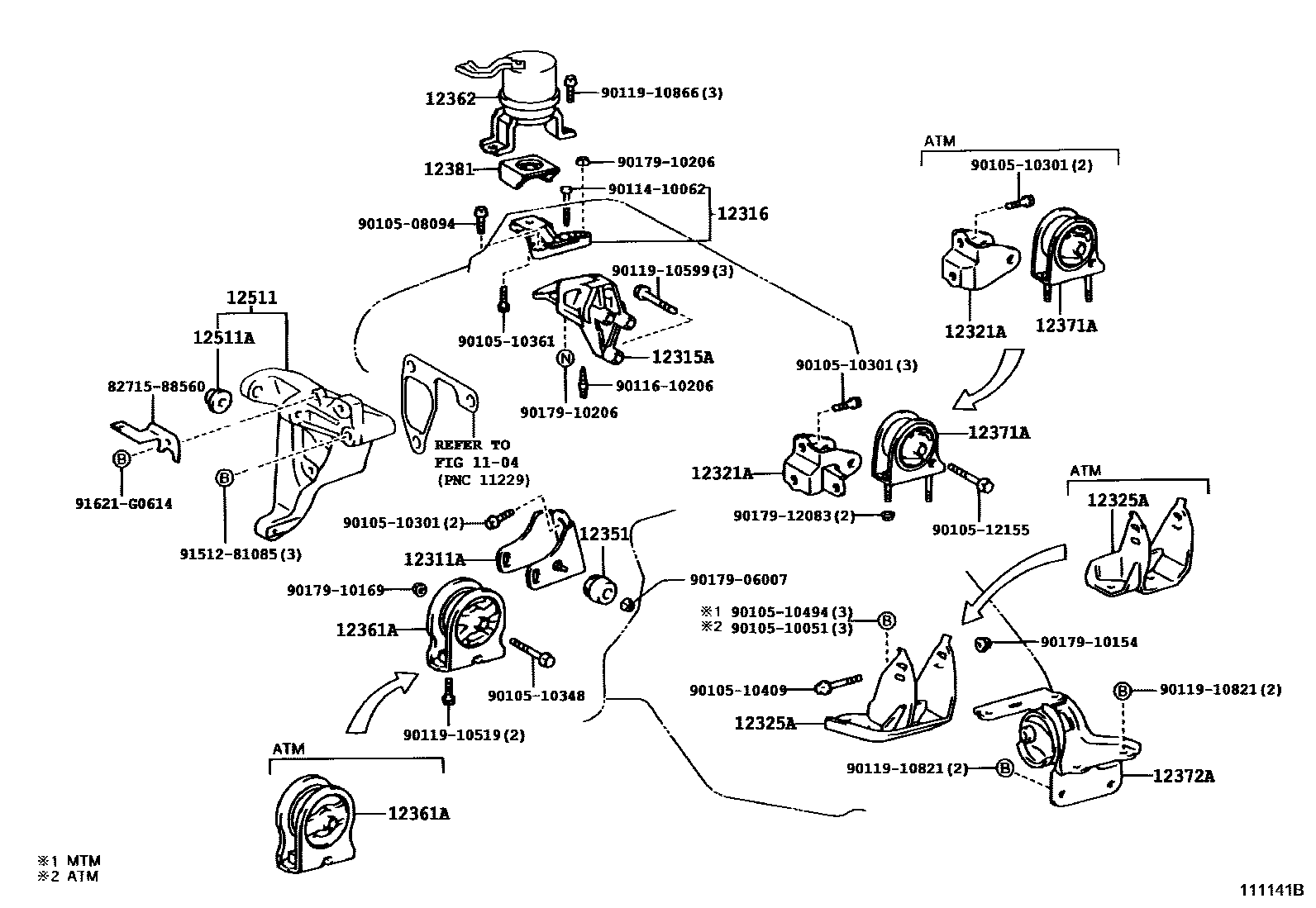

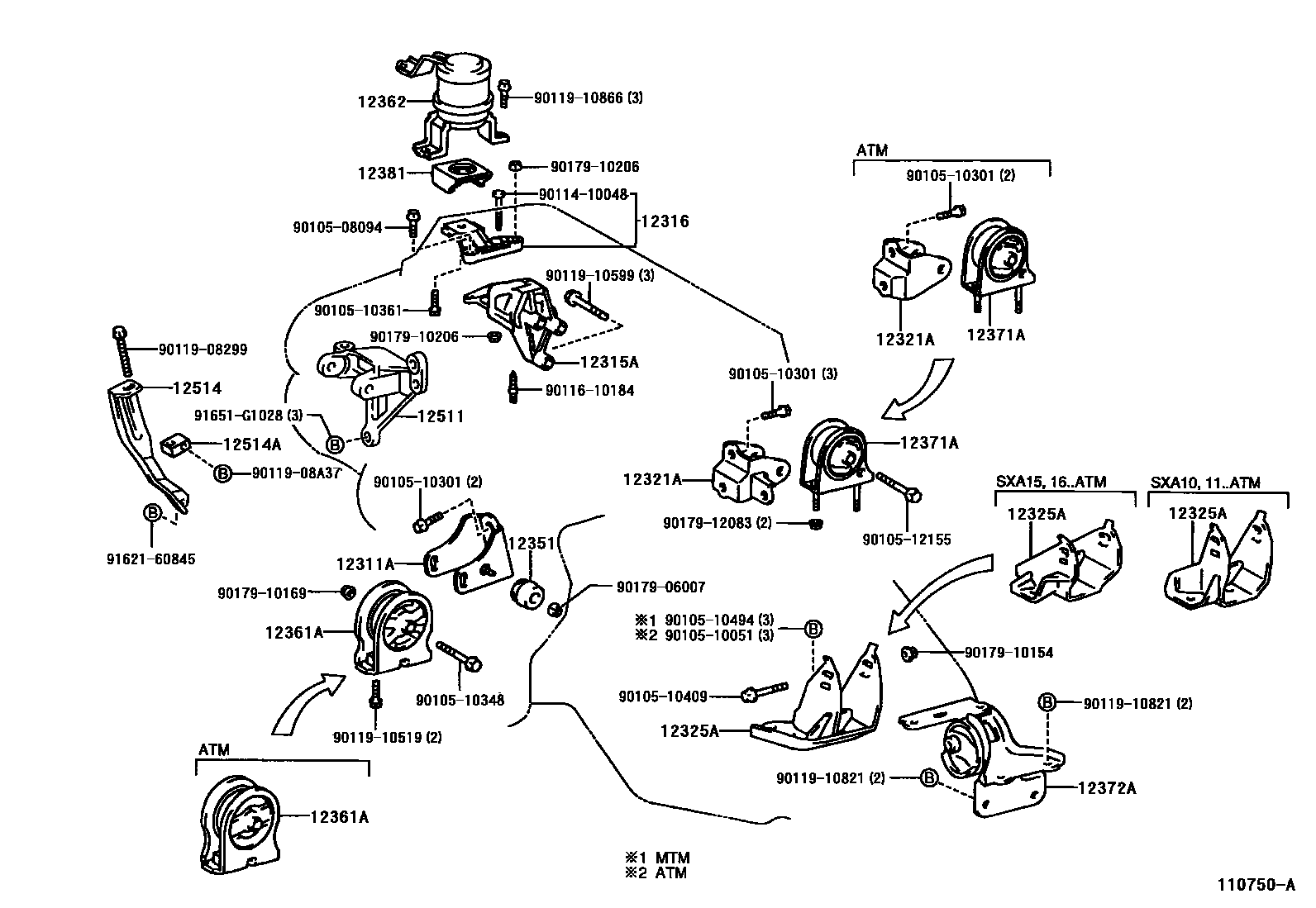

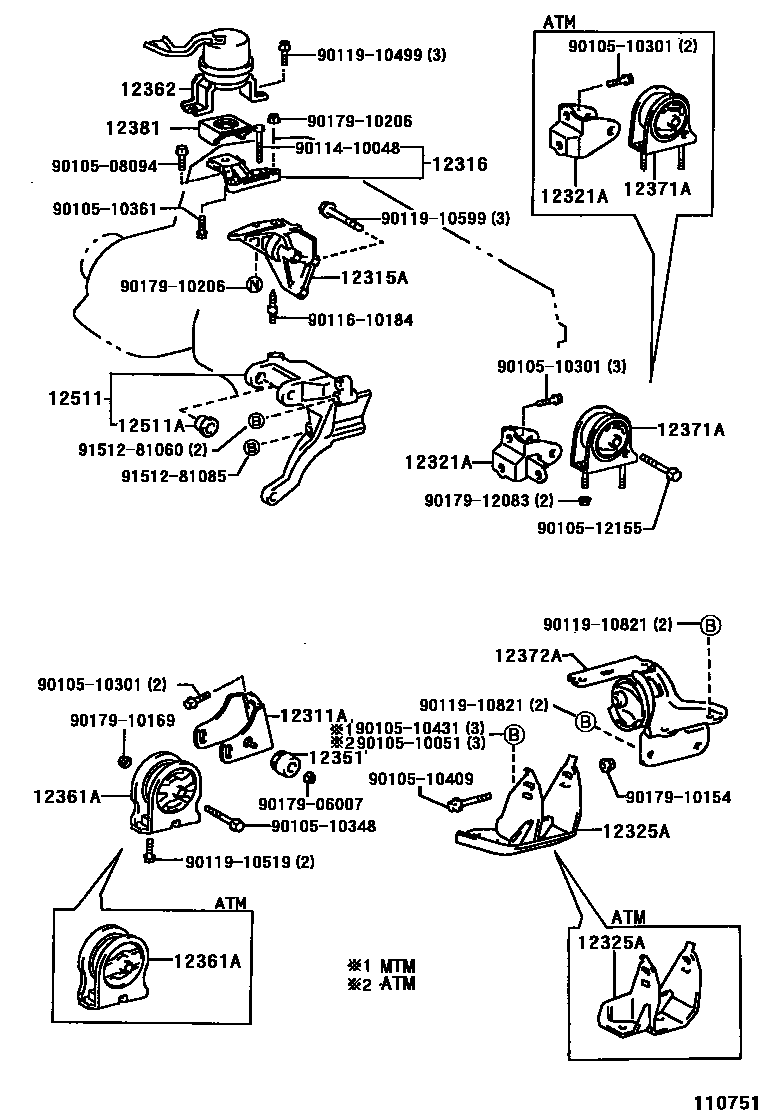

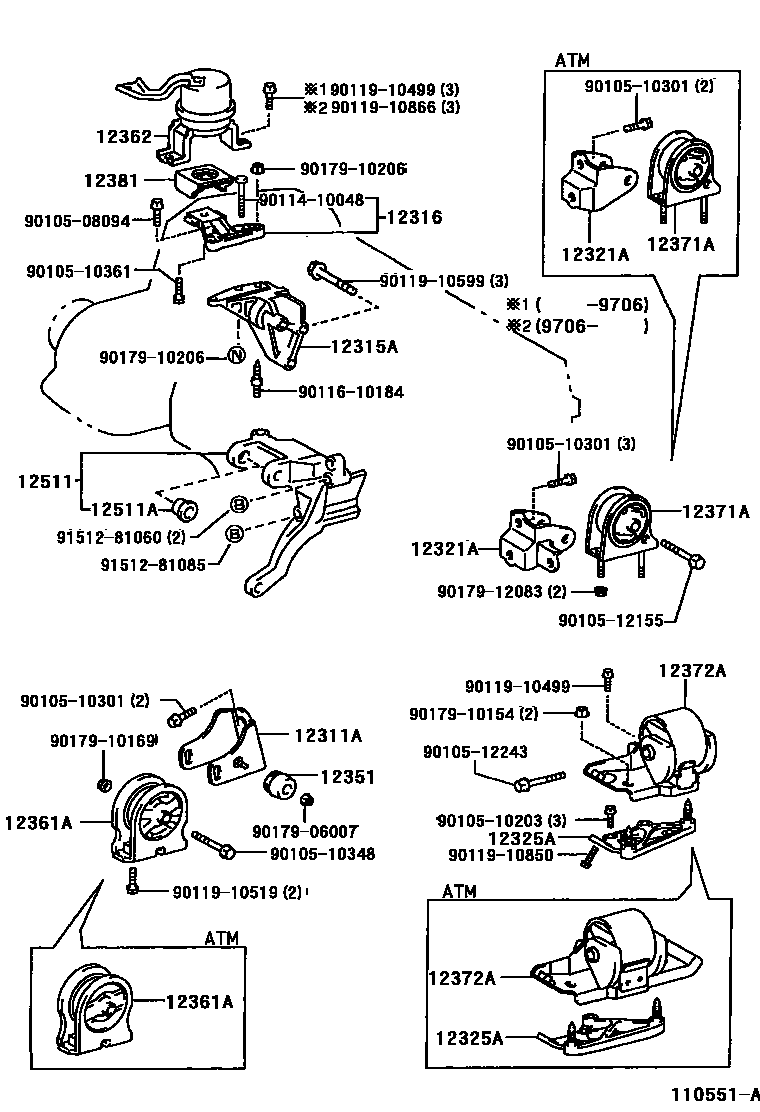

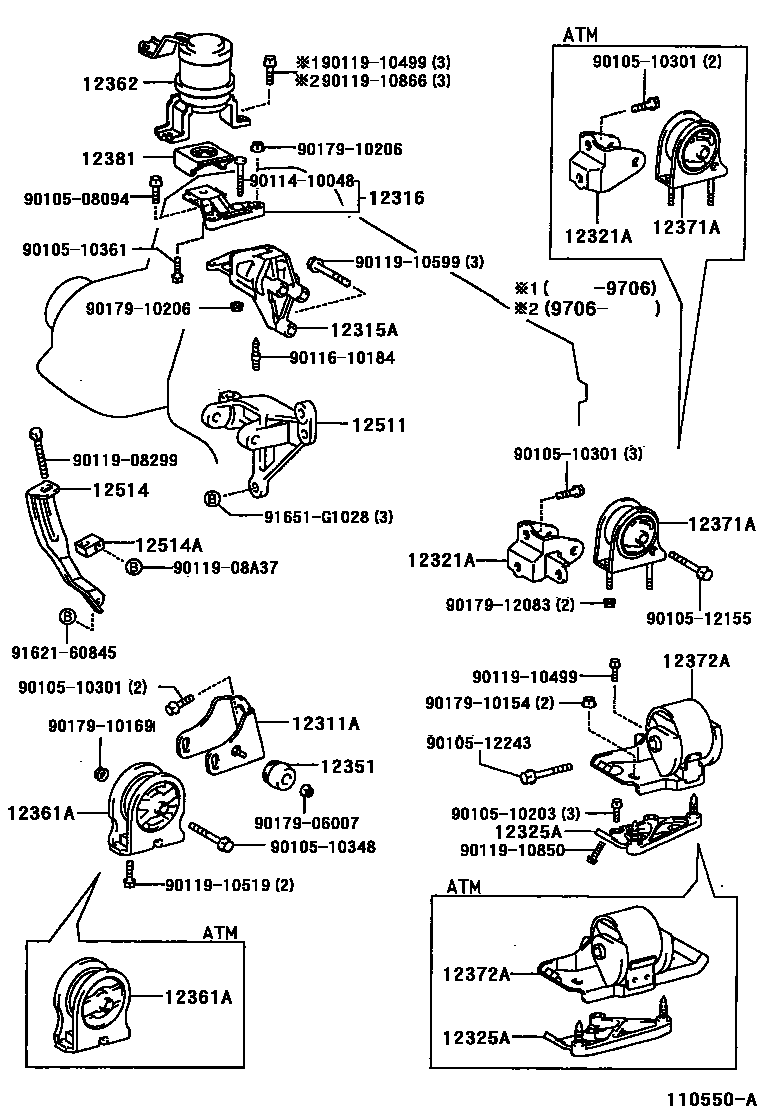

Toyota RAV4 Engine Mounting — Figure 1107
Toyota RAV4 EPC diagram 1107, Engine Mounting, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-74190 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-74120 · 12315-74130 · 12315-74140 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-74100 · 12316-74190 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-74280 · 12321-74290 · 12321-74370 · 12321-74390 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-74200 · 12325-74210 · 12325-74380 · 12325-74390 · 12325-74400 |
| 12351 | engine mount shock absorber | 12351-63010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-74340 · 12361-74370 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-74390 · 12362-74391 · 12362-74530 |
| 12371A | Engine rear mount vibration isolation pad | 12371-74460 · 12371-74461 · 12371-74470 · 12371-74471 · 12371-74630 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-74400 · 12372-74520 · 12372-74610 · 12372-74620 |
| 12381 | engine mount stabilizer bar | 12381-74050 |
| 12511 | No. 1 generator bracket | 12511-74051 · 12511-88481 · 12511-88560 |
| 12511A | Generator bracket bushing | 27351-70010 |
| 12514 | Generator belt adjustment lever | 12514-74011 · 12514-74012 · 12514-74051 |
| 12514A | Fan belt adjustment slider | 16385-64011 |
