Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

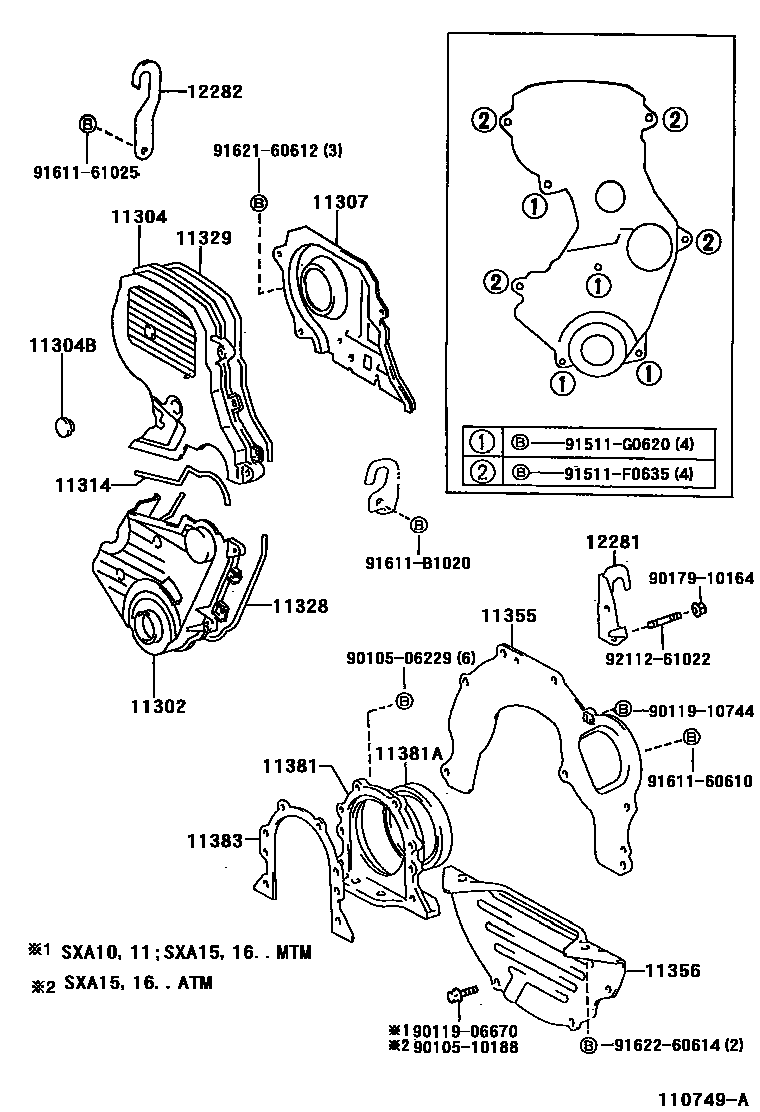

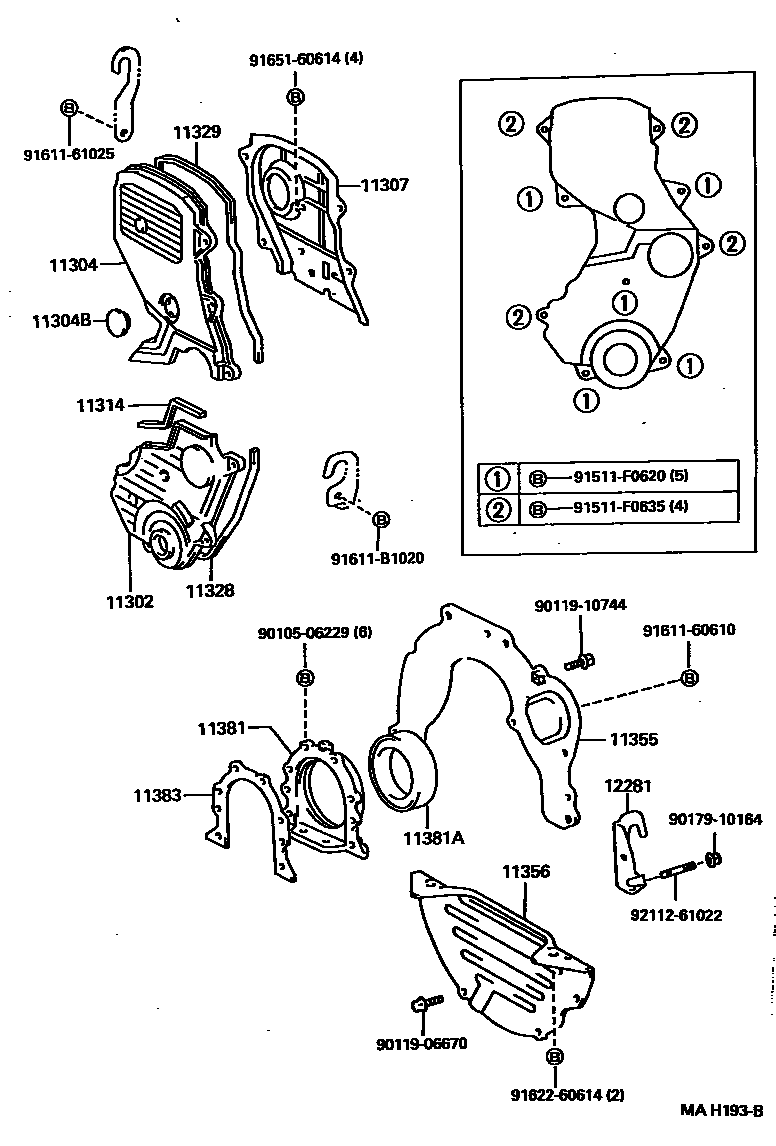

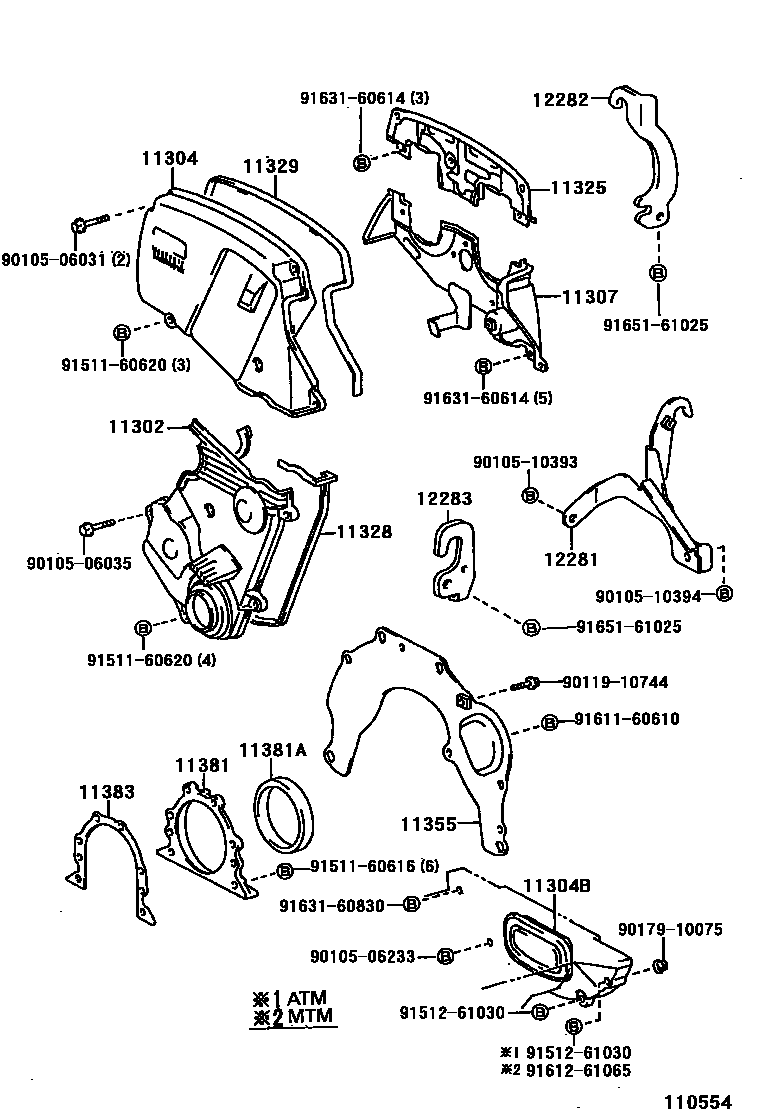

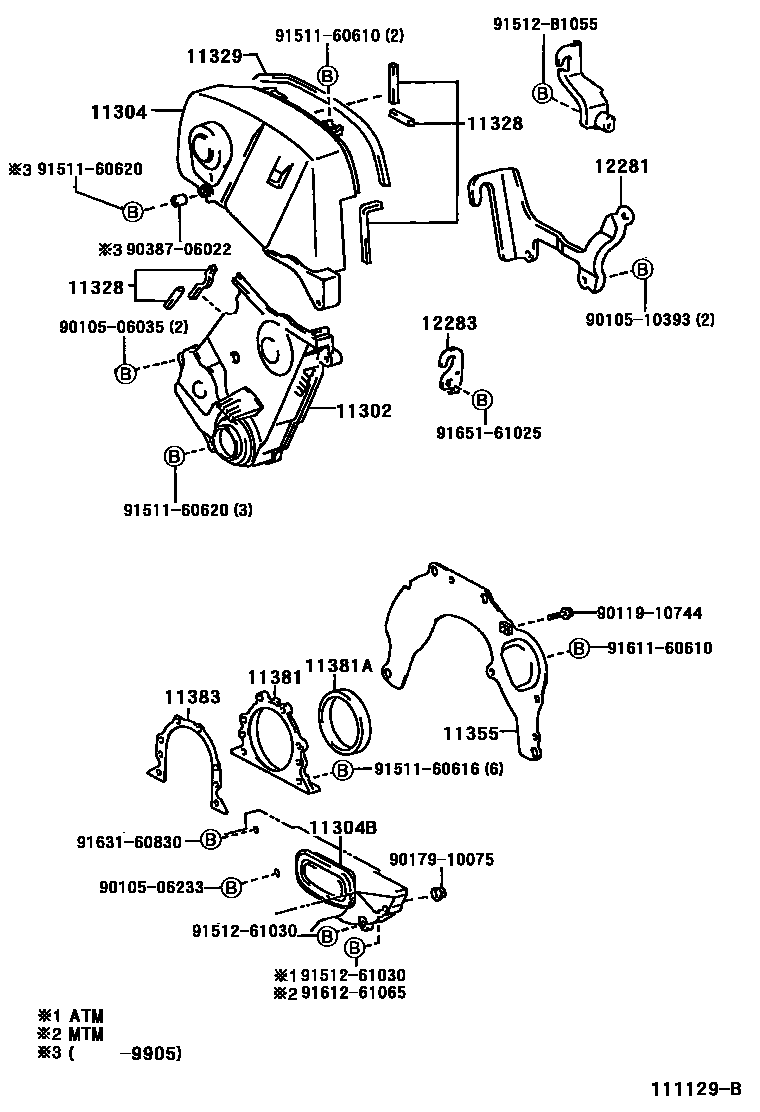

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-74030 · 11302-74040 · 11321-88460 · 11321-88560 |
| 11304 | No. 2 timing chain or timing belt cover | 11303-74040 · 11303-74050 · 11322-88460 · 11322-88560 |
| 11304B | Half-round plug (for No. 2 timing chain cover) | 90950-01489 · 90950-01809 |
| 11307 | No. 3 timing belt cover sub-assembly | 11304-74030 · 11304-74040 · 11323-88460 |
| 11314 | No. 2 timing chain cover gasket | 11319-74020 · 11319-74030 |
| 11325 | No. 4 timing belt cover | 11325-88460 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-74040 · 11328-74060 · 11328-88460 · 11328-88560 · 11328-88561 |
| 11329 | Timing gear rear cover gasket | 11329-74070 · 11329-74080 · 11329-88460 · 11329-88560 |
| 11355 | rear end plate | 11355-74010 · 11355-74040 |
| 11356 | No. 2 rear end plate | 11356-74030 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-63012 · 11381-74010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-85006 · 90311-85009 · 90311-89001 · 90311-89002 |
| 11383 | Engine rear oil seal seat gasket | 11383-74021 · 11383-88460 |
| 12281 | Engine No. 1 hanger | 12281-74060 · 12281-88461 · 12281-88560 |
| 12282 | ENGINE HANGER, NO.2 | 12282-74030 · 12282-88460 |
| 12283 | Engine No. 3 hanger | 12283-74010 · 12283-74060 |
