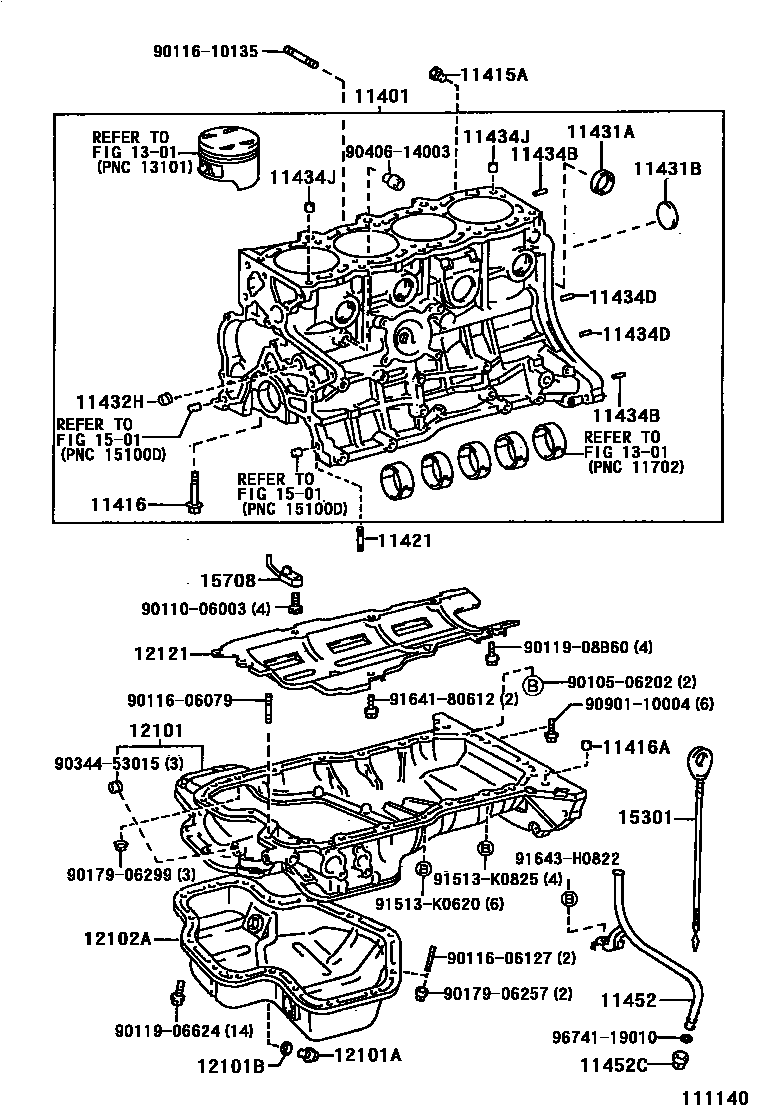

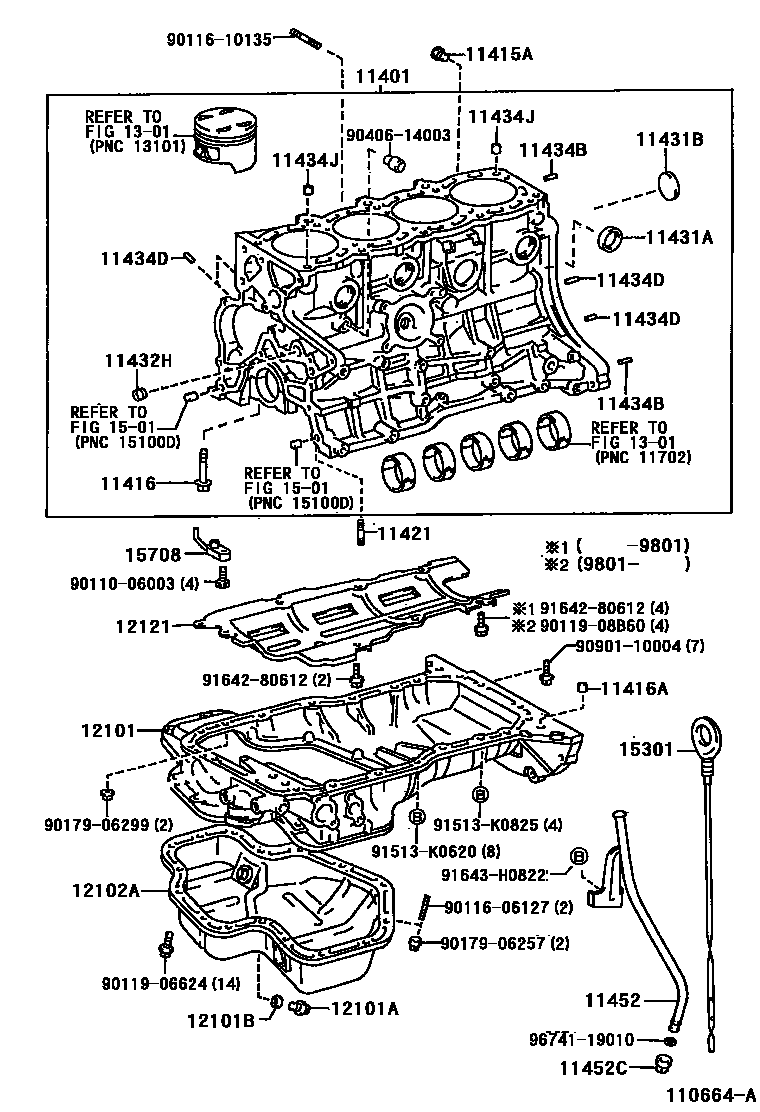

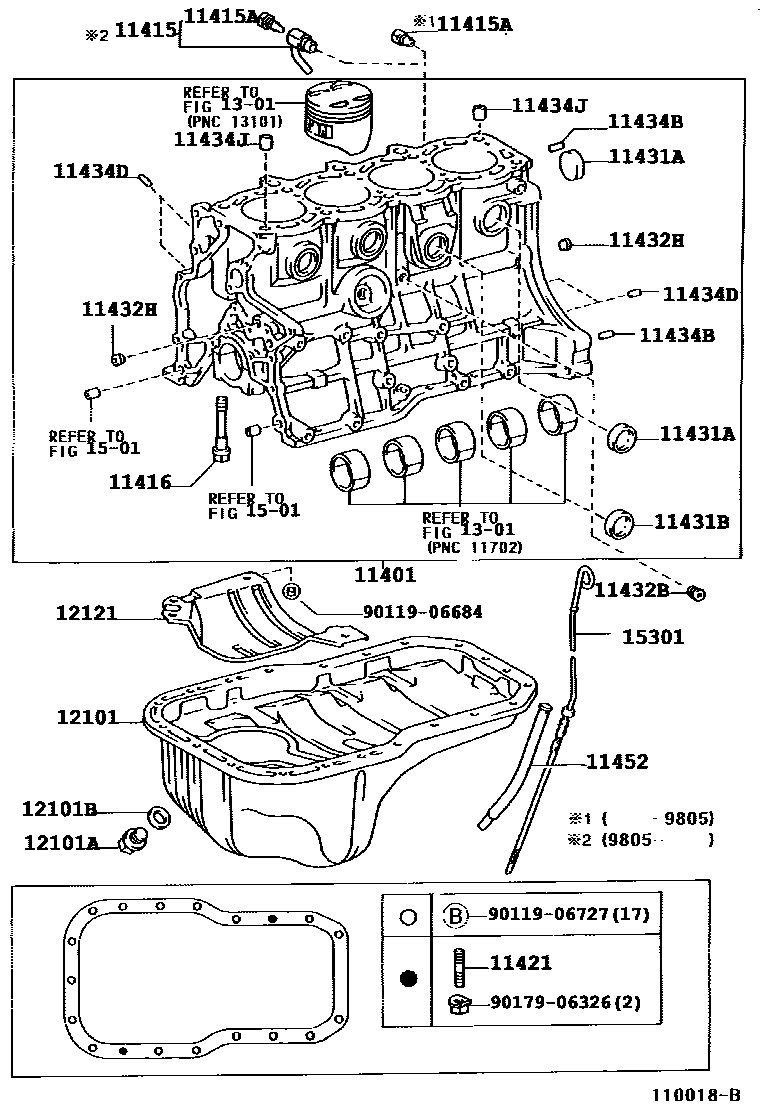

Toyota RAV4 Cylinder Block — Figure 1105
Toyota RAV4 EPC diagram 1105, Cylinder Block, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-79515 · 11401-79516 · 11401-79517 · 11401-79655 · 11401-79656 · 11401-79875 · 11401-79886 · 11401-80015 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52001 · 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10028 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-13004 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 · 90116-06048 · 92122-60610 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-44000 |
| 11432B | No. 2 headed tapered thread plug | 90344-52003 · 90345-52001 |
| 11432H | No. 5 headed tapered thread plug | 90344-53006 · 90344-53015 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06015 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11452 | Engine oil level gauge guide | 11452-74031 · 11452-74050 · 11452-88463 · 11452-88561 |
| 11452C | Connector (for oil level gauge tube) | 90405-10034 |
| 12101 | Oil pan sub-assembly | 12101-74050 · 12101-74150 · 12101-88460 · 12101-88560 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-88460 · 12102-88560 |
| 12121 | No. 1 oil pan baffle | 12121-88461 · 12121-88463 · 12121-88563 · 12123-74040 |
| 15301 | Engine oil level scoring assembly | 15301-74010 · 15301-74100 · 15301-88462 · 15301-88561 |
| 15708 | No. 1 oil nozzle sub-assembly | 15790-88460 |
