Toyota RAV4 Cylinder Head — Figure 1104

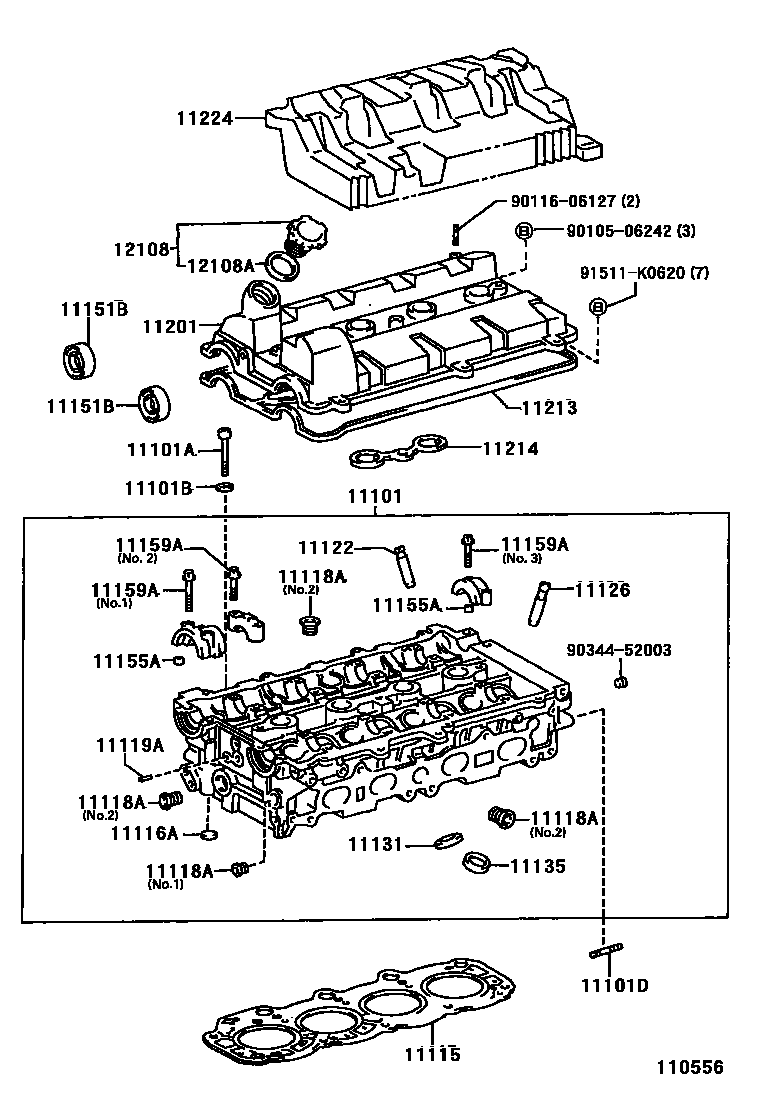

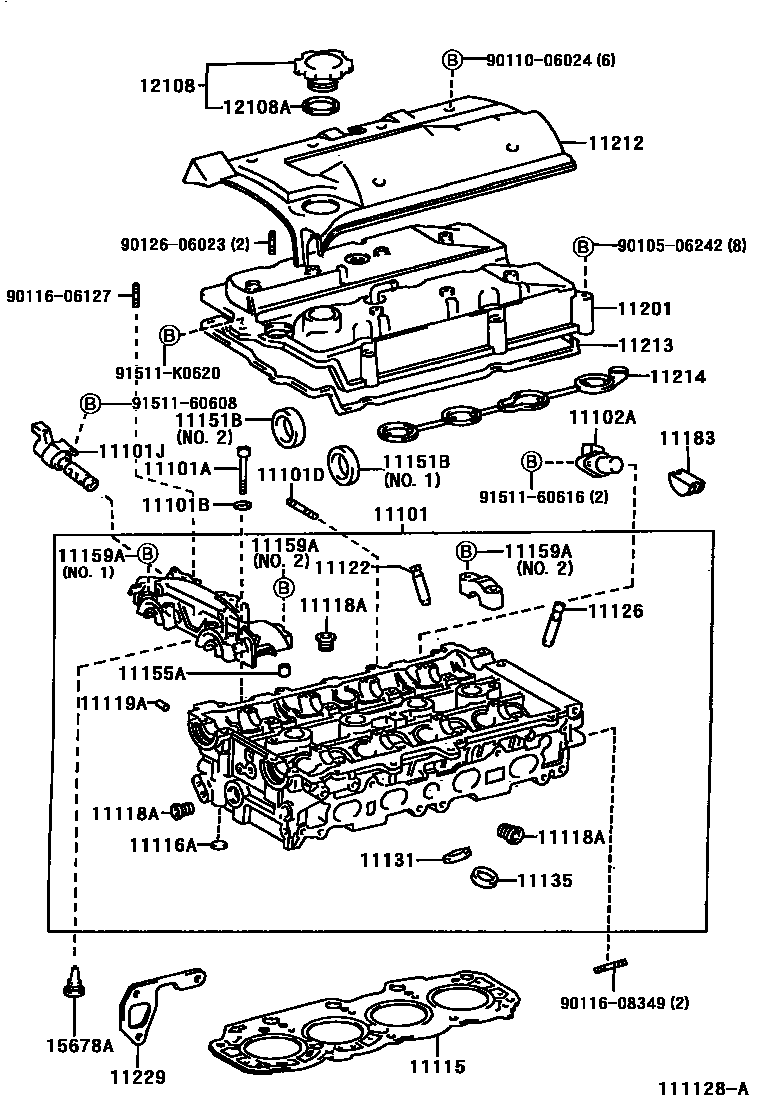

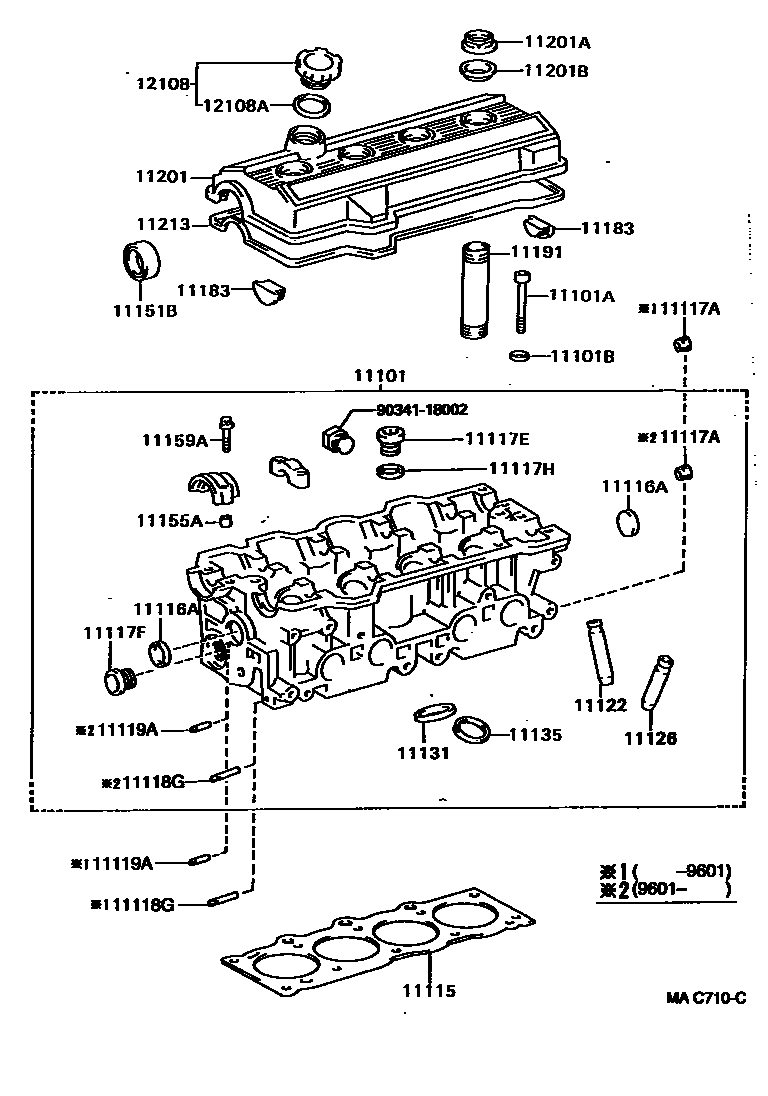

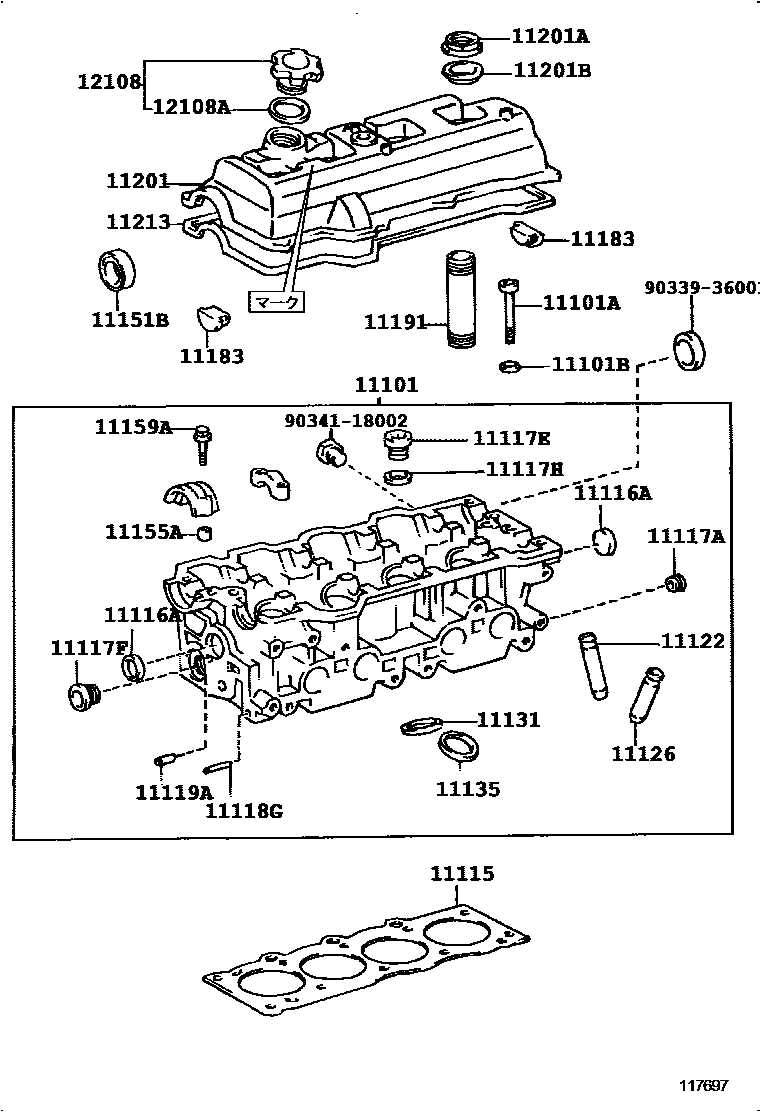

Toyota RAV4 EPC diagram 1104, Cylinder Head, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-79156 · 11101-79165 · 11101-88460 · 11101-88462 · 11101-88560 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90109-10132 · 90910-02094 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10060 · 90201-11026 |
| 11101D | Stud bolts (for water outlet) | 90126-08008 |
| 11101J | Camshaft timing oil control valve assembly | 15330-74020 |
| 11102A | Camshaft position sensor | 90919-05007 |
| 11115 | GASKET, CYLINDER HEAD | 11115-74070 · 11115-74110 · 11115-88460 · 11115-88560 |
| 11116A | No. 1 sealing plug | 96411-41800 · 96411-42800 |
| 11117A | No. 1 headed tapered thread plug | 90344-53011 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-24090 |
| 11117F | No. 2 headed straight thread plug | 90341-32031 |
| 11117H | Gasket (for coolant hole) | 90430-24246 |
| 11118A | No. 1 straight screw plug | 90341-18010 · 90341-27003 |
| 11118G | Slotted Spring Pin No. 1 | 90249-06084 |
| 11119A | No. 1 direct sales | 90250-05021 · 90250-06003 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-74030 · 11122-88460 · 11122-88561 · 11123-74030 · 11123-88460 · 11123-88561 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-16010 · 11122-88460 · 11122-88561 · 11123-16010 · 11123-88460 · 11123-88561 |
| 11131 | intake valve seat | 11131-74010 · 11131-74020 · 11131-88460 · 11131-88560 · 11132-74010 · 11132-74020 · 11132-88560 |
| 11135 | Exhaust valve seat | 11135-74010 · 11135-74030 · 11135-74070 · 11136-74010 · 11136-74030 · 11136-74070 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-35022 · 90311-35035 · 90311-35041 · 90311-38046 · 90311-38060 · 90311-38067 · 90311-46004 |
| 11155A | PIN, RING W/HEAD | 90253-10004 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-07001 · 90119-07002 · 90119-07003 · 90119-07006 · 90119-07009 |
| 11183 | PLUG, SEMICIRCULAR | 11183-74010 · 11183-88560 |
| 11191 | spark plug sleeve | 11191-74030 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-74050 · 11201-74070 · 11201-74071 · 11201-88460 · 11201-88560 |
| 11201A | Cap nut (for cylinder head cover) | 90179-28004 |
| 11201B | Gasket (for cylinder head cover) | 90480-30025 |
| 11212 | No. 2 cylinder head cover | 11212-88560 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-74020 · 11213-88460 · 11213-88560 |
| 11214 | No. 2 cylinder head cover gasket | 11214-88460 · 11214-88560 |
| 11224 | Cylinder head cover silencer | 11224-88461 |
| 11229 | GASKET, CYLINDER HEAD COVER, NO.3 | 11229-88560 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-55010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
| 15678A | Oil control valve filter | 15678-74010 |
