Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103

Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

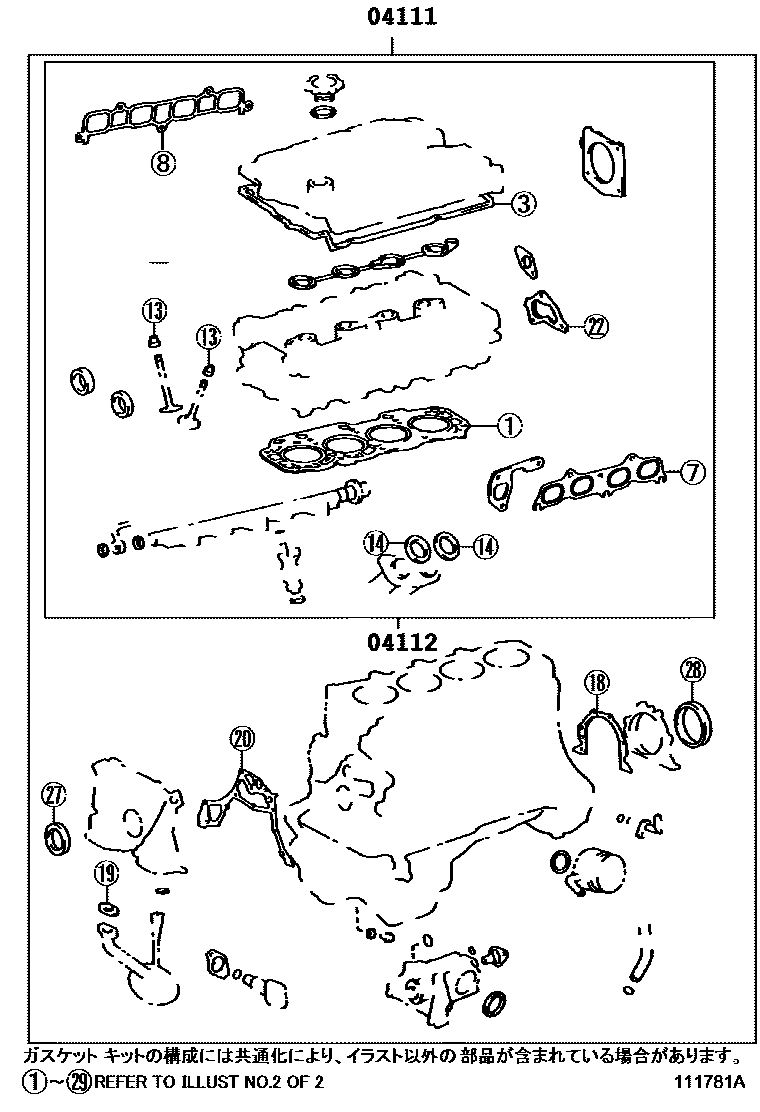

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 111781A
Engine Overhaul Gasket Kit — 111781A (199808 – 999999)

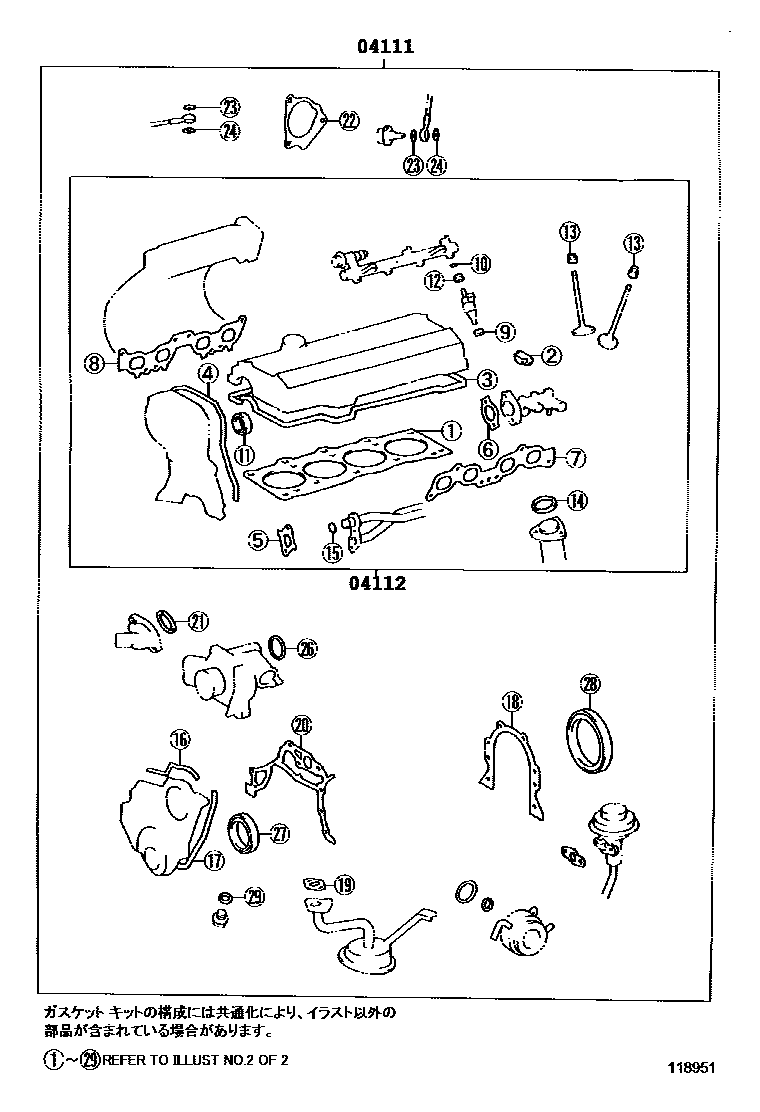

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118951
Engine Overhaul Gasket Kit — 118951 (199608 – 999999)
Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118953
Engine Overhaul Gasket Kit — 118953 (199404 – 199608)
Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118954
Engine Overhaul Gasket Kit — 118954 (199608 – 999999)
Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118955
Engine Overhaul Gasket Kit — 118955 (199608 – 199808)

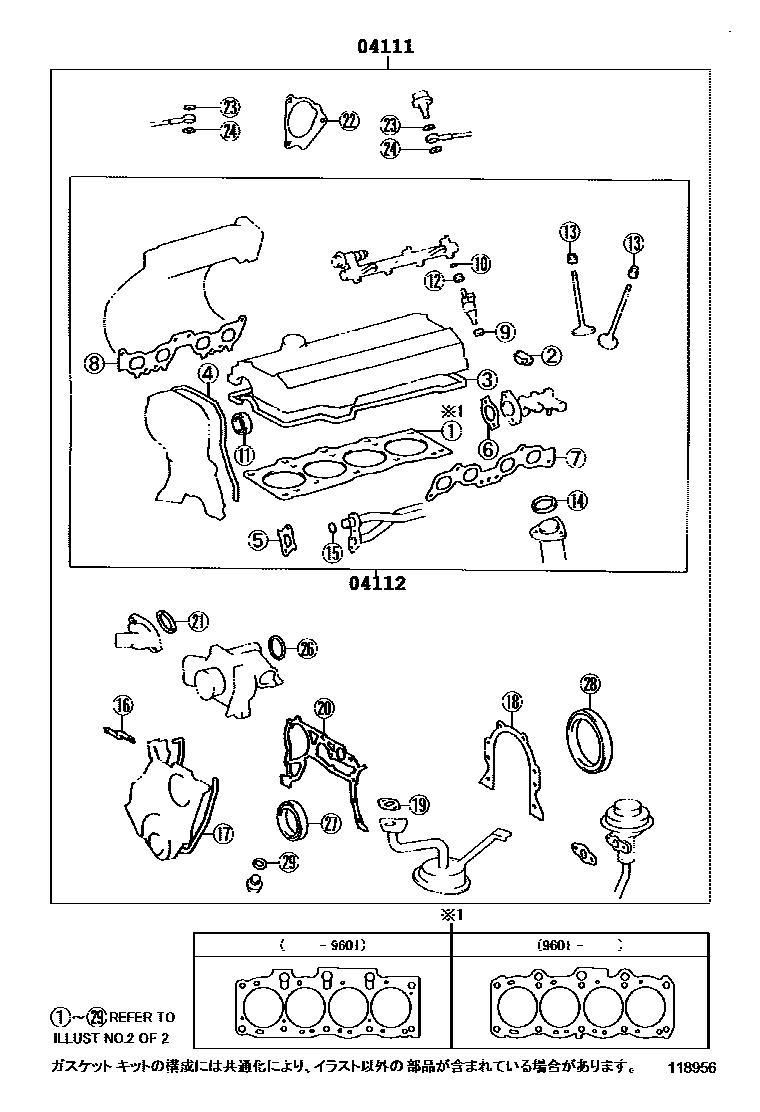

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118956
Engine Overhaul Gasket Kit — 118956 (199404 – 199608)

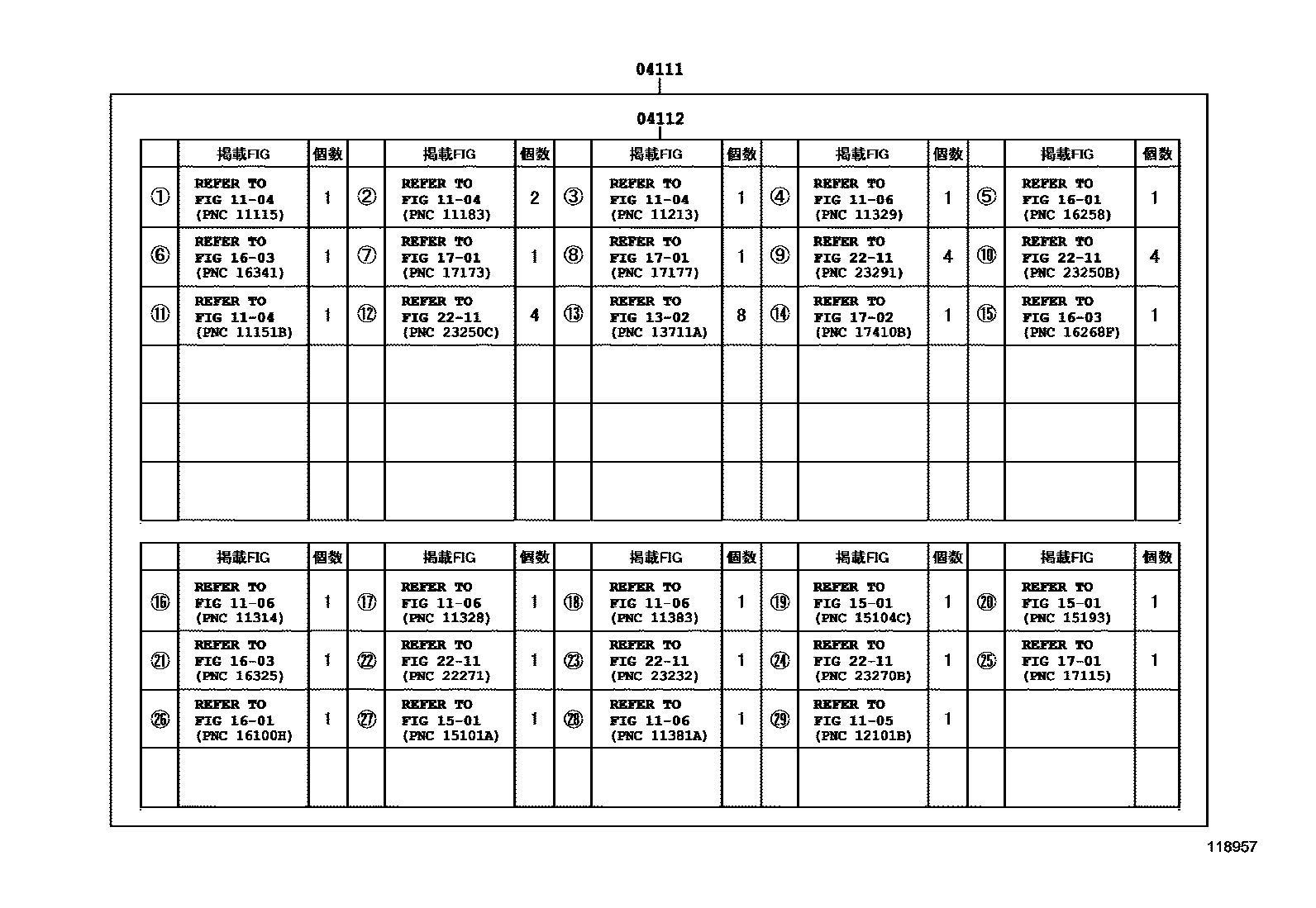

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118957
Engine Overhaul Gasket Kit — 118957 (199808 – 999999)

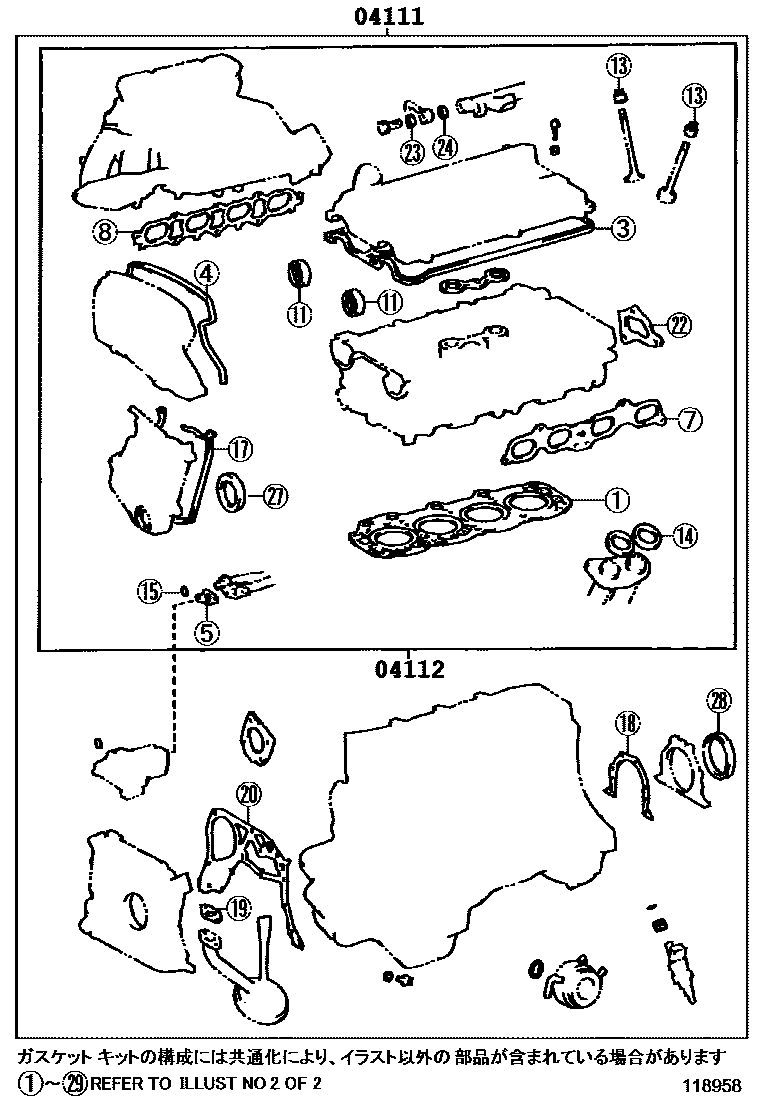

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118958A
Engine Overhaul Gasket Kit — 118958A (199608 – 199808)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-74490 · 04111-74491 · 04111-74492 · 04111-74520 · 04111-74521 · 04111-74590 · 04111-74591 · 04111-74592 · 04111-74710
04112Engine valve grinding pad assembly04112-74490 · 04112-74491 · 04112-74512 · 04112-74513 · 04112-74560 · 04112-74561 · 04112-74562 · 04112-74710
