Toyota RAV4 Short Block Assembly — Figure 1102

Toyota RAV4 EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

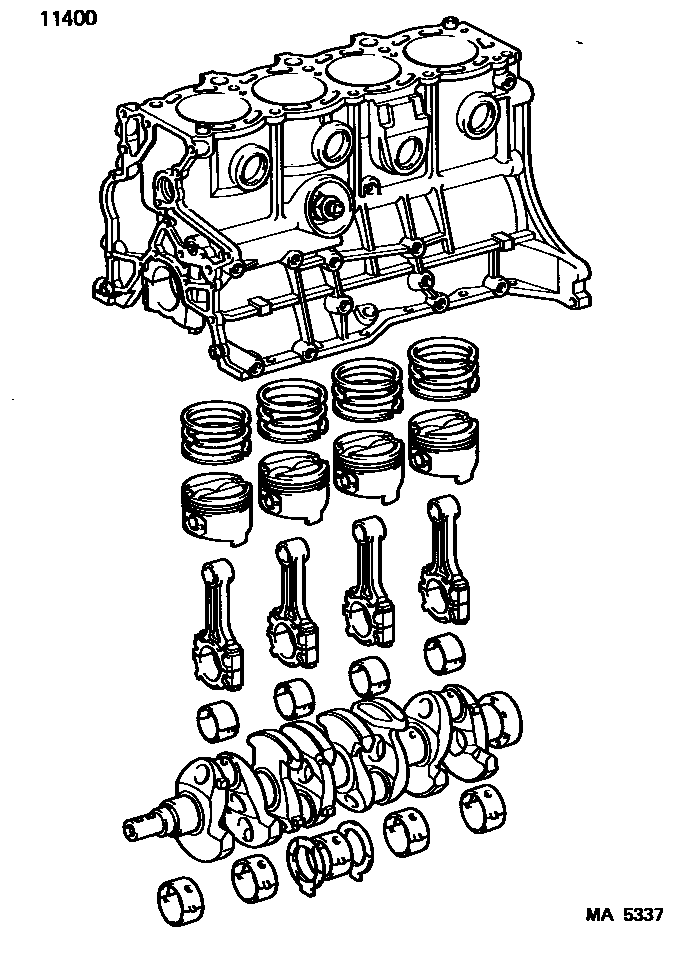

Toyota RAV4 Short Block Assembly EPC diagram — MA5337
Short Block Assembly — MA5337 (199404 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-74160 · 11400-74161 · 11400-74162 · 11400-74360 · 11400-74370 · 11400-88394 · 11400-88398 · 11400-88399
