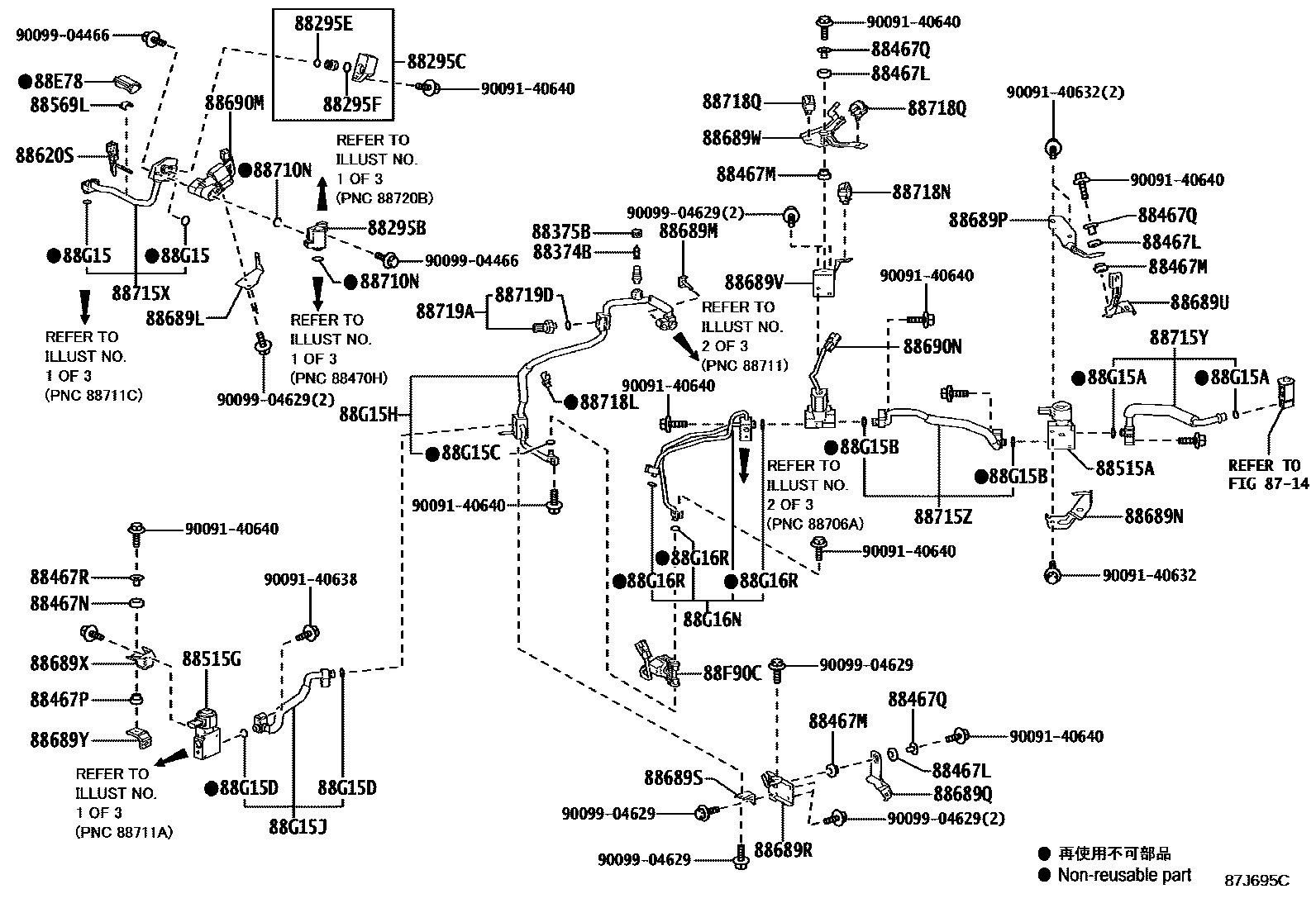

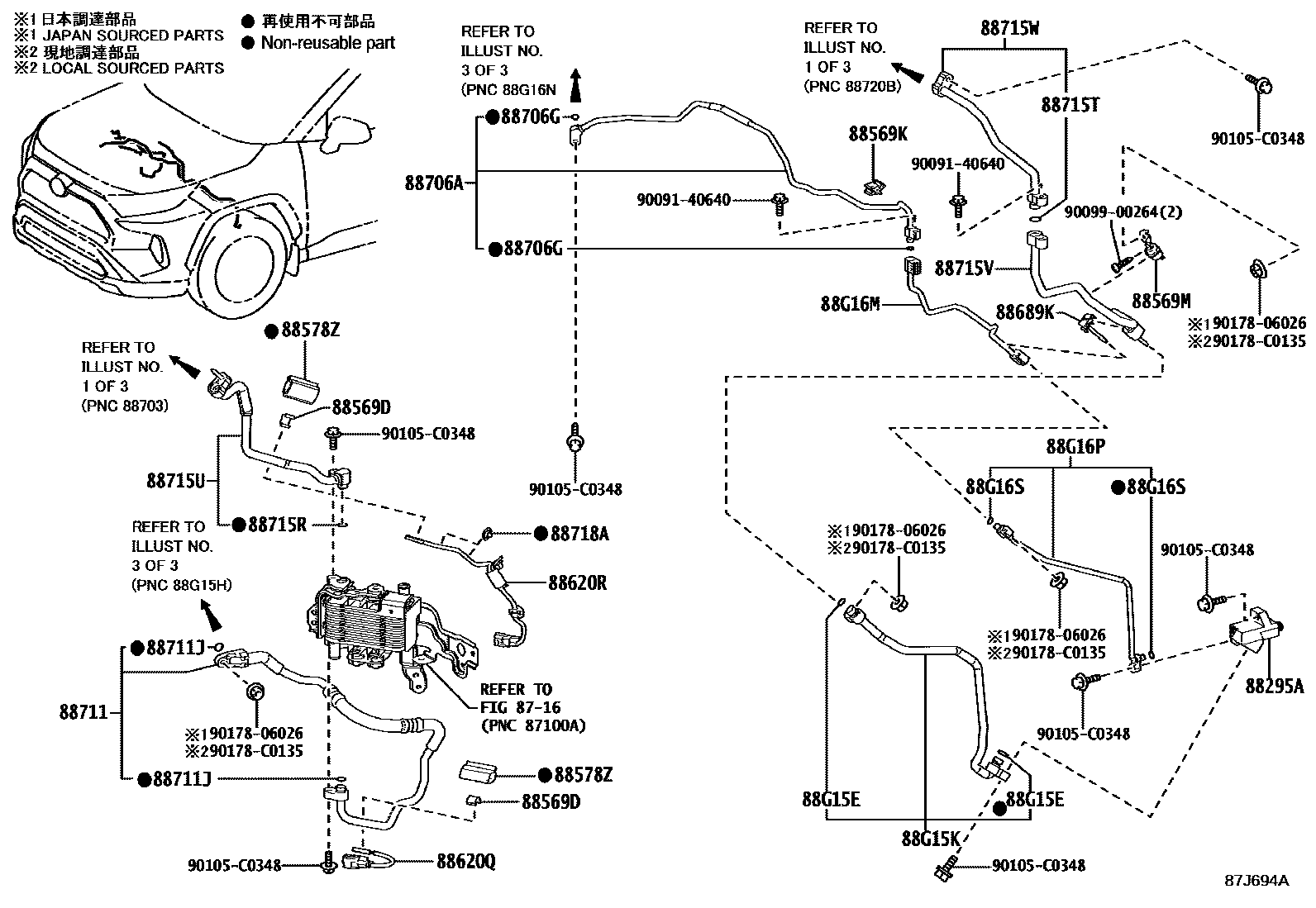

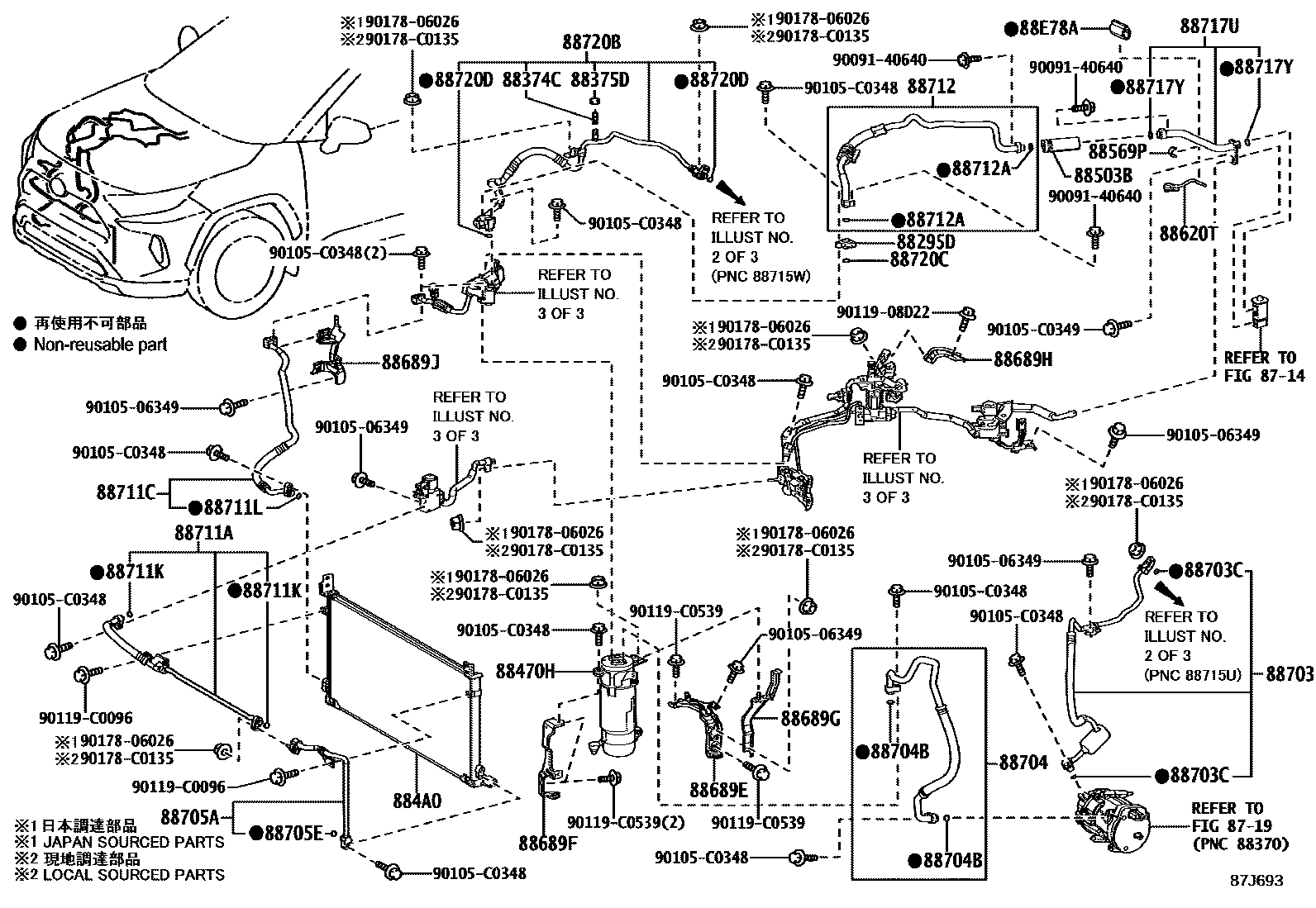

Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 104 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88295A | valve to connector tube | 88295-0R010 |
| 88295B | Valve No. 2 to Connector Tube | 88295-0R030 |
| 88295C | Valve No. 3 to Connector Tube | 88295-0R040 |
| 88295D | Valve No. 4 to Connector Tube | 88295-0R050 |
| 88295E | No. 1 O-ring (for pipe, valve to regulator) | 90099-14157 |
| 88295F | No. 2 O-ring (for pipe, valve to regulator) | 90099-14169 |
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-74010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-74010 |
| 88467L | Cooler Cushion No. 1 | 88467-47020 |
| 88467M | Cooler Cushion No. 2 | 88467-47030 |
| 88467N | Cooler Cushion No. 3 | 88467-47020 |
| 88467P | Cooler Cushion No. 4 | 88467-47030 |
| 88467Q | Bushing No. 1 | 88467-14050 |
| 88467R | Bushing No. 2 | 88467-14050 |
| 88470H | Accumulator assembly | 88470-42100 |
| 884A0 | Air conditioning condenser assembly | 884A0-42050 |
| 88503B | Pressure regulator sub-assembly | 88503-0R010 · 88503-0R030 |
| 88515A | Cooler expansion valve | 88515-0R050 |
| 88515G | No. 2 cooler expansion valve | 88515-0R060 |
| 88569D | No. 1 cooler clip | 88569-74090 |
| 88569K | Cooler clip No. 2 | 88718-50330 |
| 88569L | No. 3 cooler clip | 88569-74090 |
| 88569M | No. 1 pipe clamp | 88718-0R030 |
| 88569P | No. 4 cooler clip | 88569-47020 |
| 88578Z | Cooler seal No. 1 | 88578-47070 |
| 88620Q | No. 1 air conditioning thermistor assembly | 88620-0R050 |
| 88620R | No. 2 air conditioner thermistor assembly | 88620-0R060 |
| 88620S | No. 3 air conditioner thermistor assembly | 88620-0R070 |
| 88620T | No. 4 air conditioner thermistor assembly | 88620-0R080 |
| 88689E | Cooler Bracket No. 1 | 88688-0R170 |
| 88689F | Cooler bracket No. 2 | 88688-0R190 |
| 88689G | Cooler bracket No. 3 | 88688-0R200 |
| 88689H | No. 4 cooler bracket | 88688-0R210 |
| 88689J | No. 5 cooler bracket | 88688-0R220 |
| 88689K | No. 6 cooler bracket | 88688-0R300 |
| 88689L | No. 7 cooler bracket | 88688-0R310 |
| 88689M | Cooler Bracket No. 8 | 88688-0R030 · 88688-33240 |
| 88689N | Cooler Bracket No. 9 | 88688-0R320 |
| 88689P | Cooler Bracket No. 10 | 88688-0R330 |
| 88689Q | Cooler Bracket No. 11 | 88688-0R340 |
| 88689R | Cooler Bracket No. 12 | 88688-0R710 |
| 88689S | Cooler Bracket No. 13 | 88688-0R360 |
| 88689U | No. 15 cooler bracket | 88688-0R380 |
| 88689V | No. 16 cooler bracket | 88688-0R390 |
| 88689W | No. 17 cooler bracket | 88688-0R400 |
| 88689X | No. 18 cooler bracket | 88688-0R410 |
| 88689Y | No. 19 cooler bracket | 88688-0R420 |
| 88690M | No. 1 solenoid valve assembly | 88690-0R010 |
| 88690N | No. 2 solenoid valve assembly | 88690-0R020 |
| 88703 | Discharge hose sub-assembly | 88703-0R090 |
| 88703C | O-ring (for drain hose) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-0R150 |
| 88704B | O-ring (for suction hose) | 90099-14157 |
| 88705A | Discharge pipe sub-assembly | 88705-0R020 |
| 88705E | No. 1 O-ring (for drain pipe) | 90099-14155 |
| 88706A | Liquid pipe A sub-assembly | 88706-0R100 |
| 88706G | O-ring (for liquid pipe) | 90099-14119 |
| 88710N | No. 1 O-ring (for air conditioning pipe and accessory assembly) | 90099-14157 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0R140 |
| 88711A | Cooler No. 2 refrigerant drain hose | 88711-0R070 |
| 88711C | Cooler No. 3 refrigerant drain hose | 88711-0R080 |
| 88711J | No. 1 O-ring (for drain hose) | 90099-14120 |
| 88711K | No. 2 O-ring (for drain hose) | 90099-14155 |
| 88711L | No. 3 O-ring (for drain hose) | 90099-14155 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-0R010 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 90099-14157 |
| 88715R | O-ring (for discharge pipe) | 90099-14120 |
| 88715T | No. 3 O-ring (for drain pipe) | 90099-14155 |
| 88715U | No. 1 discharge pipe | 88715-0R030 |
| 88715V | No. 2 discharge pipe | 88715-0R040 |
| 88715W | No. 3 discharge pipe | 88715-0R050 |
| 88715X | No. 4 discharge pipe | 88715-0R060 |
| 88715Y | No. 5 discharge pipe | 88715-0R070 |
| 88715Z | No. 6 discharge pipe | 88715-0R080 |
| 88717U | No. 1 suction pipe | 88717-0R030 |
| 88717Y | No. 1 O-ring (for suction pipe) | 90099-14121 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-42150 |
| 88718L | Pipe clamp | 88718-2J230 |
| 88718N | Pipe clamp | 88718-07110 · 88718-42110 |
| 88718Q | Pipe clamp | 88718-0R040 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88719D | O-ring (for air conditioning pressure sensor) | 90099-14122 |
| 88720B | Air conditioning hoses and accessories | 88720-0R020 |
| 88720C | No. 1 O-ring (for air conditioning hose and accessory assembly) | 90099-14157 |
| 88720D | No. 2 O-ring (for air conditioning hose and accessory assembly) | 90099-14155 · 90099-14157 |
| 88E78 | No. 2 cooler seal | 88578-47070 |
| 88E78A | Cooler seal No. 3 | 88578-47060 |
| 88F90C | No. 3 solenoid valve assembly | 88690-0R030 |
| 88G15 | No. 4 O-ring (for drain pipe) | 90099-14155 · 90099-14157 |
| 88G15A | No. 5 O-ring (for drain pipe) | 90099-14120 |
| 88G15B | No. 6 O-ring (for drain pipe) | 90099-14120 |
| 88G15C | No. 7 O-ring (for drain pipe) | 90099-14119 |
| 88G15D | No. 8 O-ring (for drain pipe) | 90099-14120 |
| 88G15E | No. 9 O-ring (for drain pipe) | 90099-14155 |
| 88G15H | No. 7 discharge pipe | 88715-0R090 |
| 88G15J | No. 8 discharge pipe | 88715-0R100 |
| 88G15K | No. 9 exhaust pipe | 88715-0R010 |
| 88G16M | Liquid tube No. 1 | 88716-0R130 |
| 88G16N | Liquid tube No. 2 | 88716-0R140 |
| 88G16P | Liquid tube No. 3 | 88716-0R110 |
| 88G16R | No. 2 O-ring (for liquid pipe) | 90099-14155 · 90099-14158 |
| 88G16S | No. 3 O-ring (for liquid pipe) | 90099-14119 |
