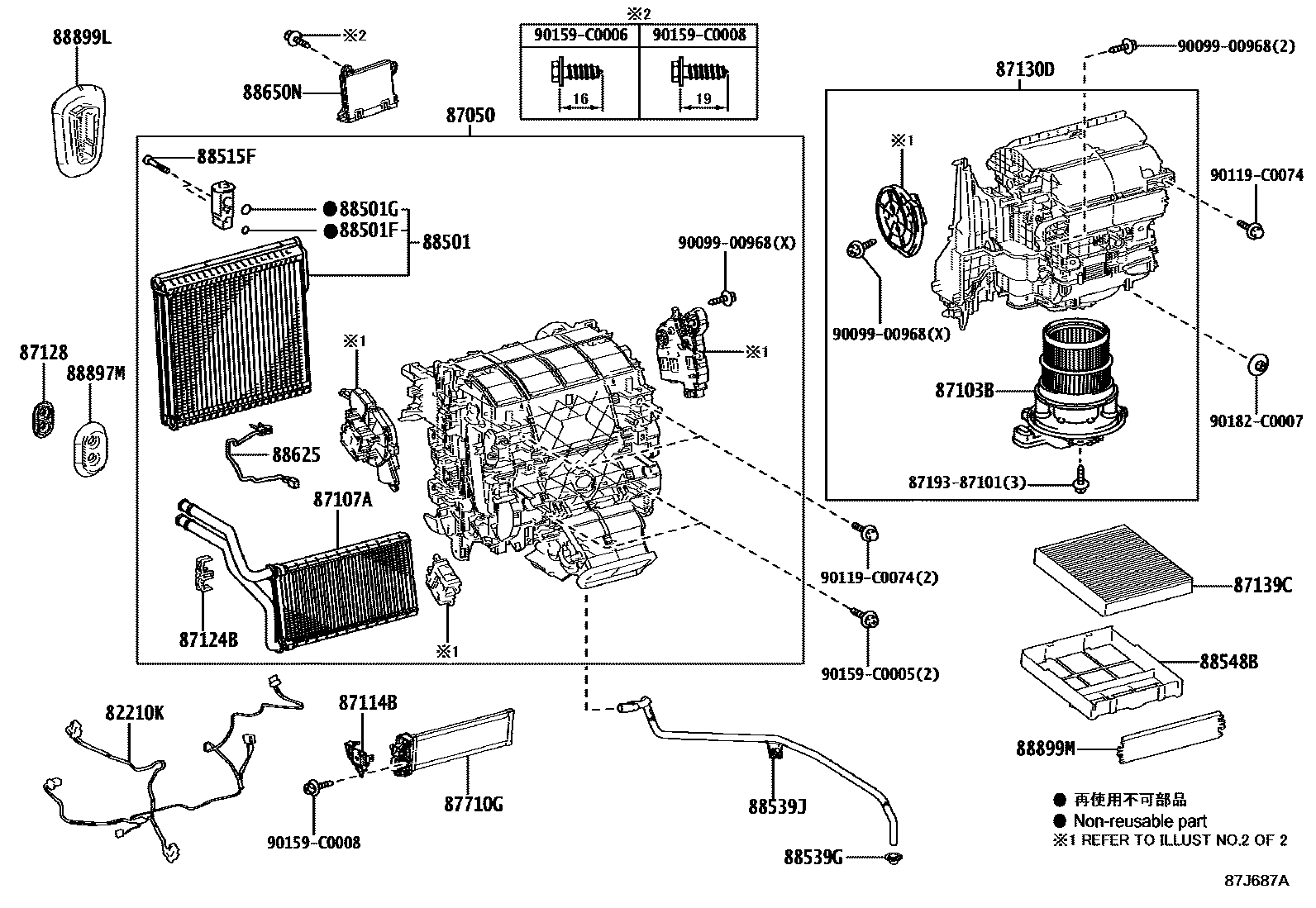

Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0R060 |
| 87050 | Air conditioning radiator assembly | 87050-0R210 |

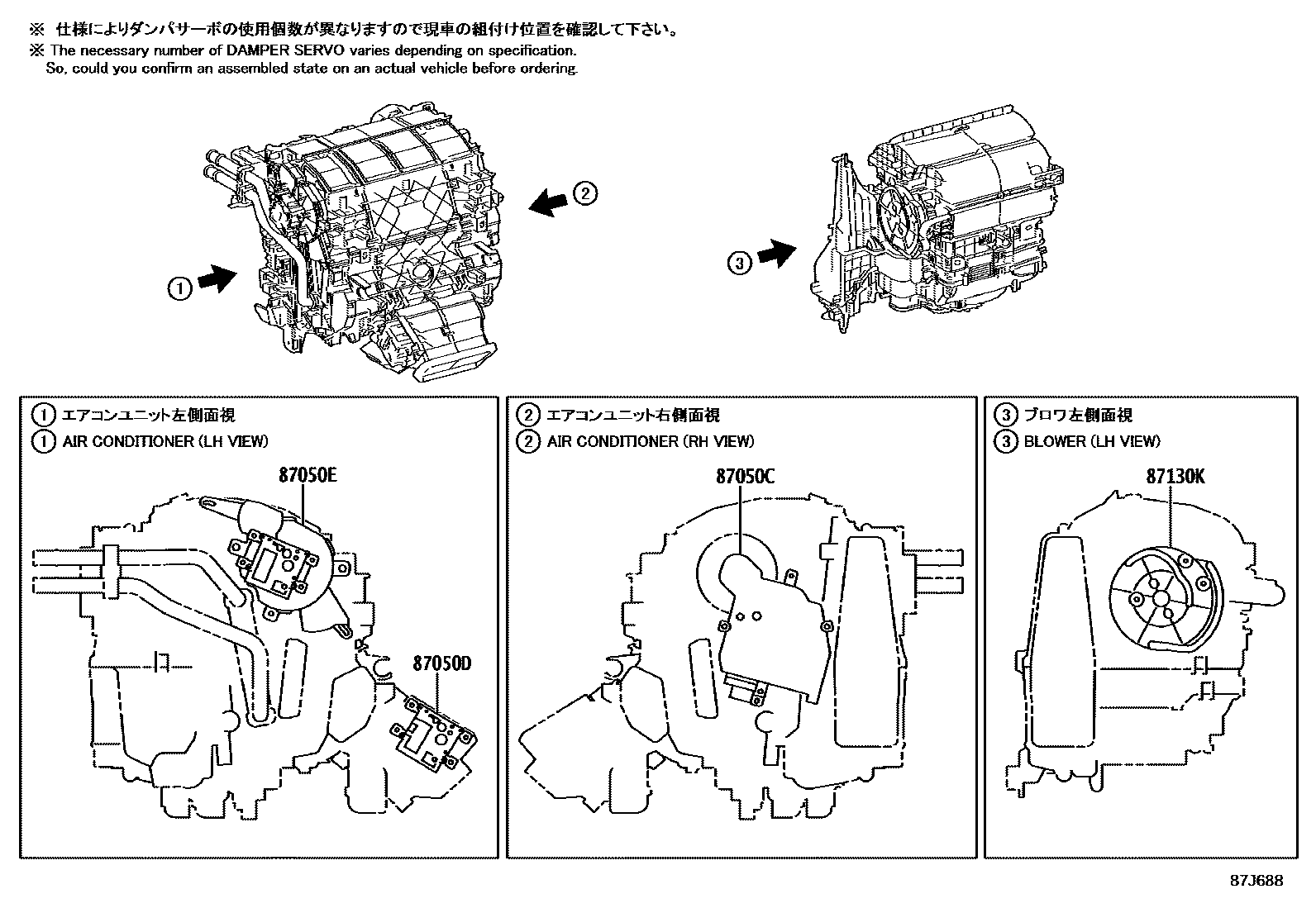

| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-F4080 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-07160 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-07180 |
| 87103B | Blower motor sub-assembly with fan | 87103-0R040 |
| 87107A | Heater radiator device sub-assembly | 87107-07040 |
| 87114B | heater cover | 87114-F4100 |
| 87124B | heater clip | 87124-F4060 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-0R060 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-F4090 |
| 87139C | air purification filter | 87139-02260 · 87139-02290 · 87139-58010 |
| 87710G | Rapid heater assembly | 87710-0R010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-07090 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04542 |
| 88539G | Seal (for cooler unit drain hose) | 90480-26030 |
| 88539J | Cooler drain hose | 88539-0R080 |
| 88548B | air filter housing | 88899-02260 · 88899-02261 |
| 88625 | Cooler No. 1 Thermistor | 88620-07020 |
| 88650N | Air conditioning amplifier assembly | 88650-0R270 · 88650-0R271 · 88650-0R370 · 88650-0R371 · 88650-0R550 |
| 88897M | Seals (for heater tubes) | 87128-07010 |
| 88899L | Cooling unit parts | 88899-0R020 |
| 88899M | cover (for air cleaner) | 88899-F4290 |
