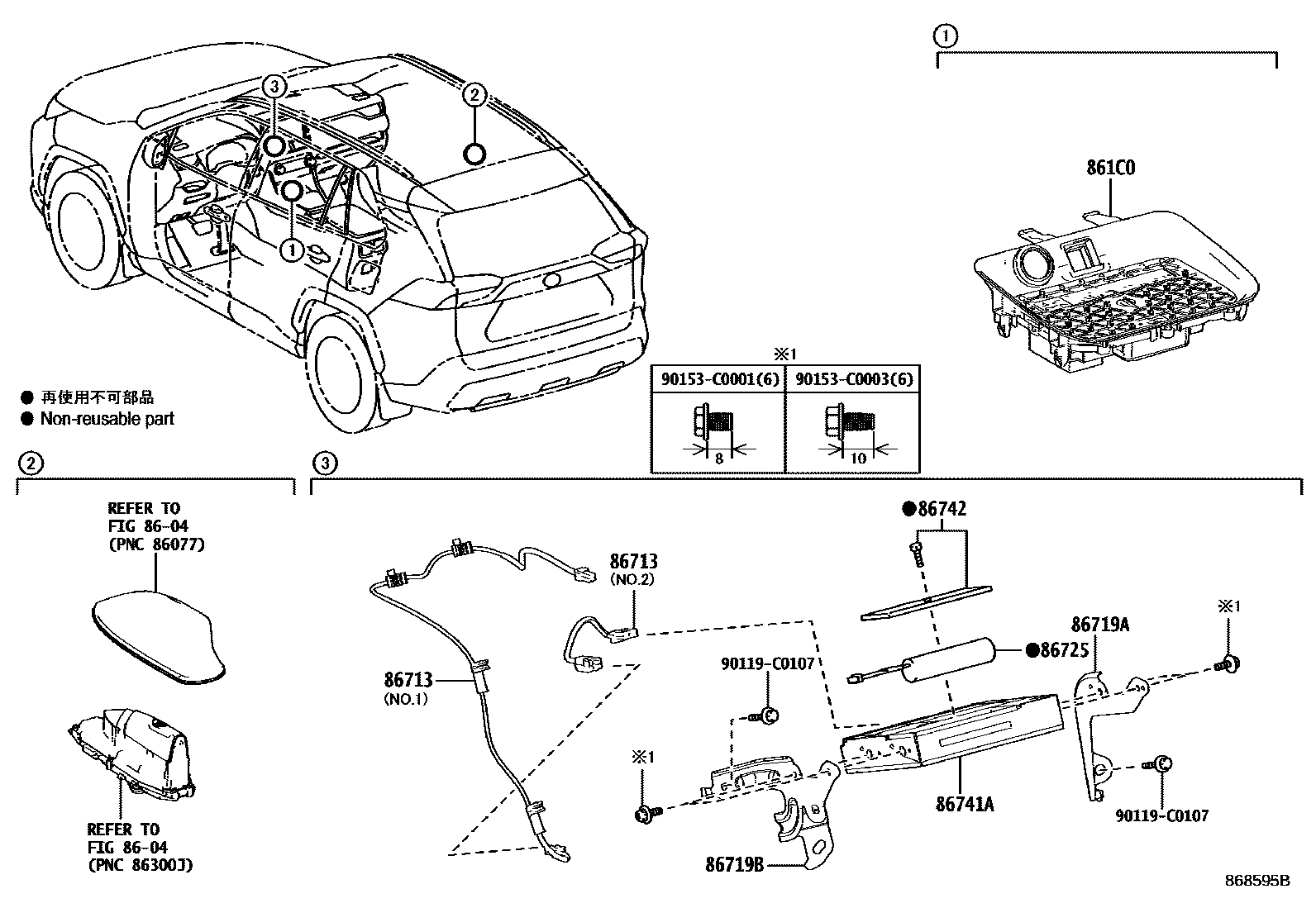

Toyota RAV4 车载电话和呼救装置 — Figure 8615
Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86203W | Radio wiring harness sub-assembly | 86203-0R190 |
| 86713 | Telephone ECU wiring harness | 86713-0R020 · 86713-0R070 · 86713-0R100 |
| 86719A | Phone holder No. 1 | 86719-0R020 |
| 86719B | Phone holder No. 2 | 86719-0R010 |
| 86725 | mobile phone battery | 86725-F4010 |
| 86741A | Telecommunications transceiver | 86741-0R070 · 86741-F4040 · 86741-F4060 |
| 86742 | transceiver cover | 86742-F4010 |
