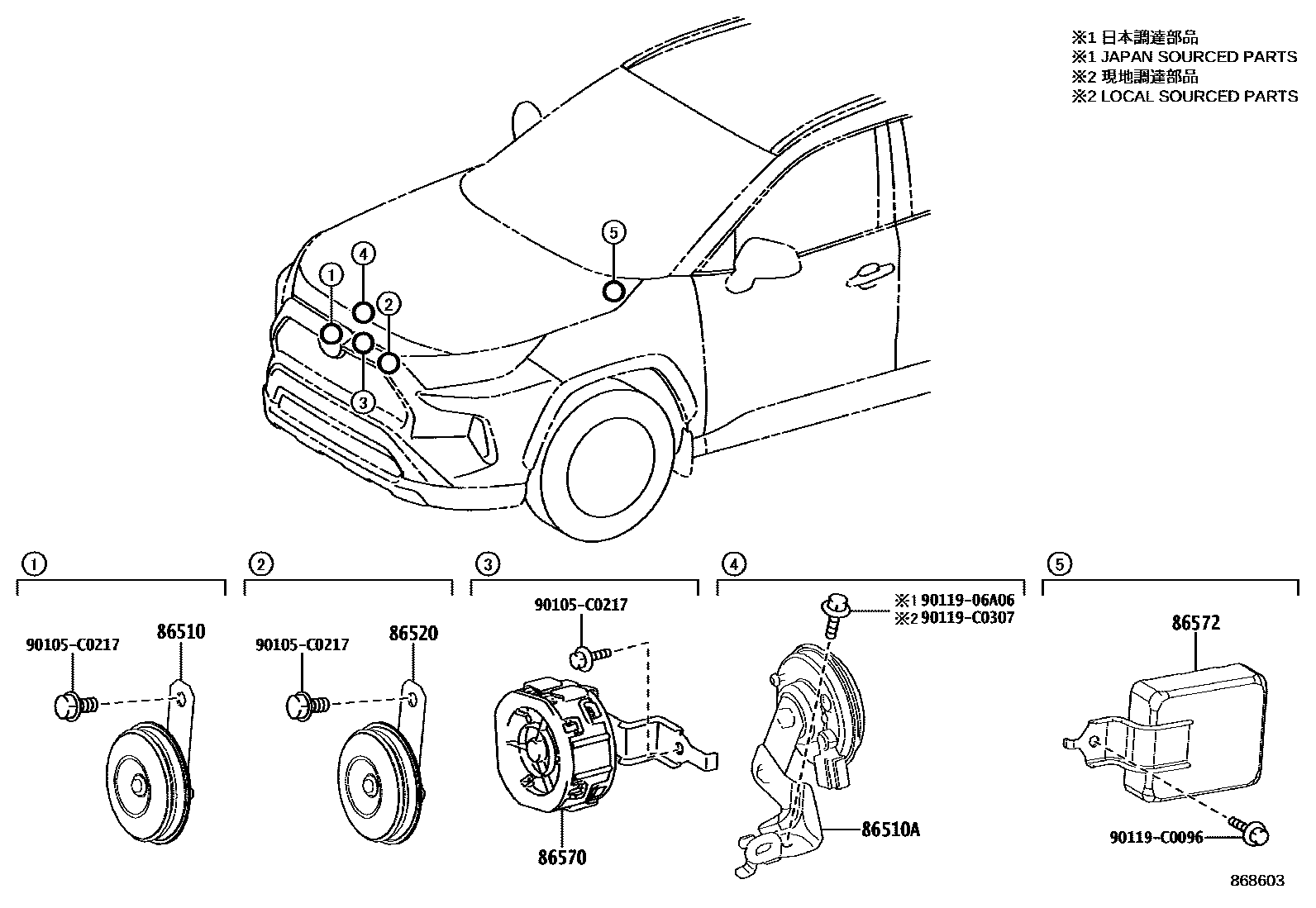

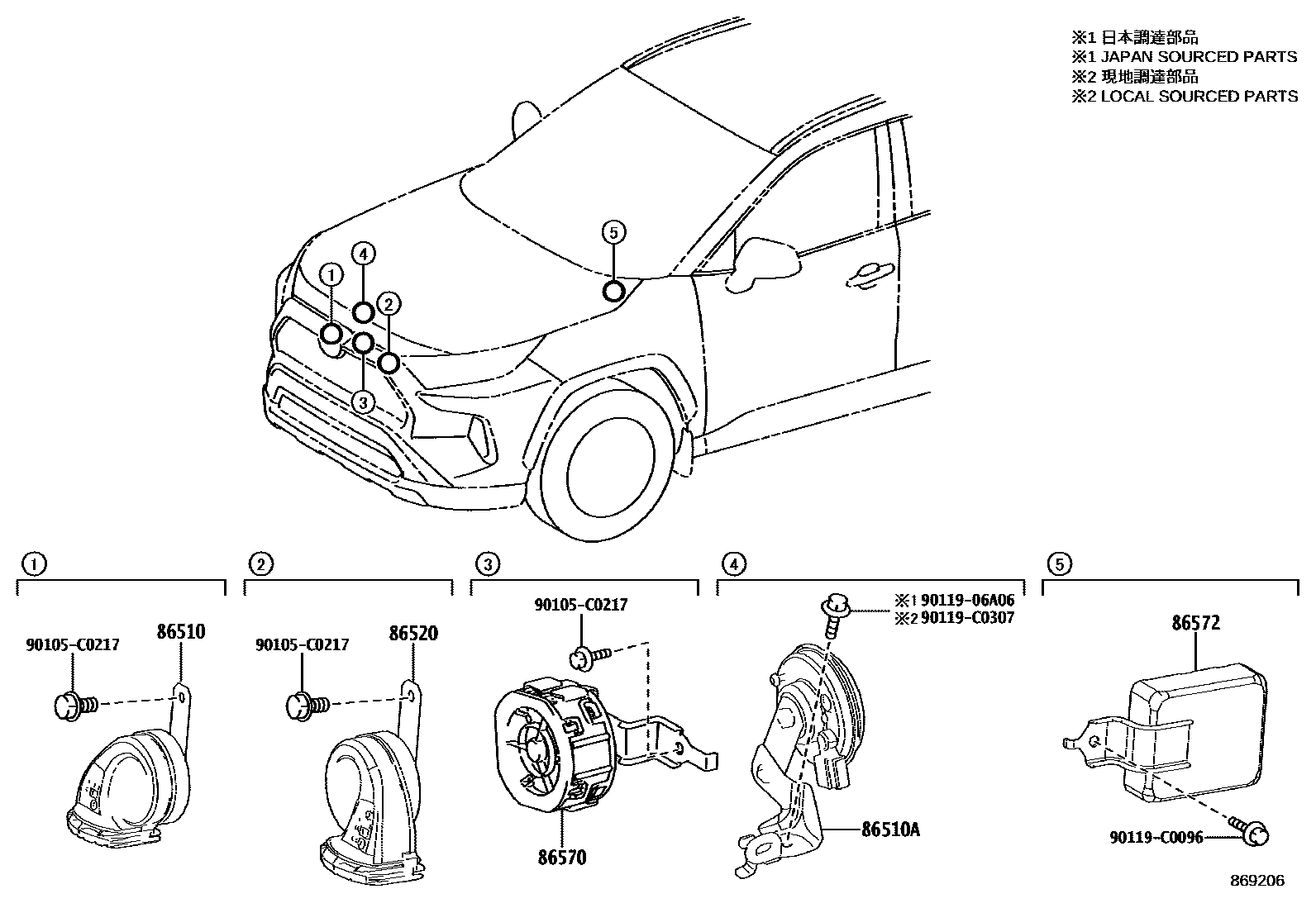

Toyota RAV4 喇叭 — Figure 8611
Toyota RAV4 EPC diagram 8611, 喇叭, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-0R041 · 86510-78020 |
| 86510A | Alarm horn assembly | 86560-07030 |
| 86520 | Subwoofer assembly | 86520-0R041 · 86520-78020 |
| 86570 | Vehicle intrusion speaker assembly | 86570-0R010 |
| 86572 | vehicle hacking speaker controller | 86572-0R030 · 86572-0R110 · 86572-0R150 · 86572-0R210 |
