Toyota RAV4 antenna — Figure 8604

Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.

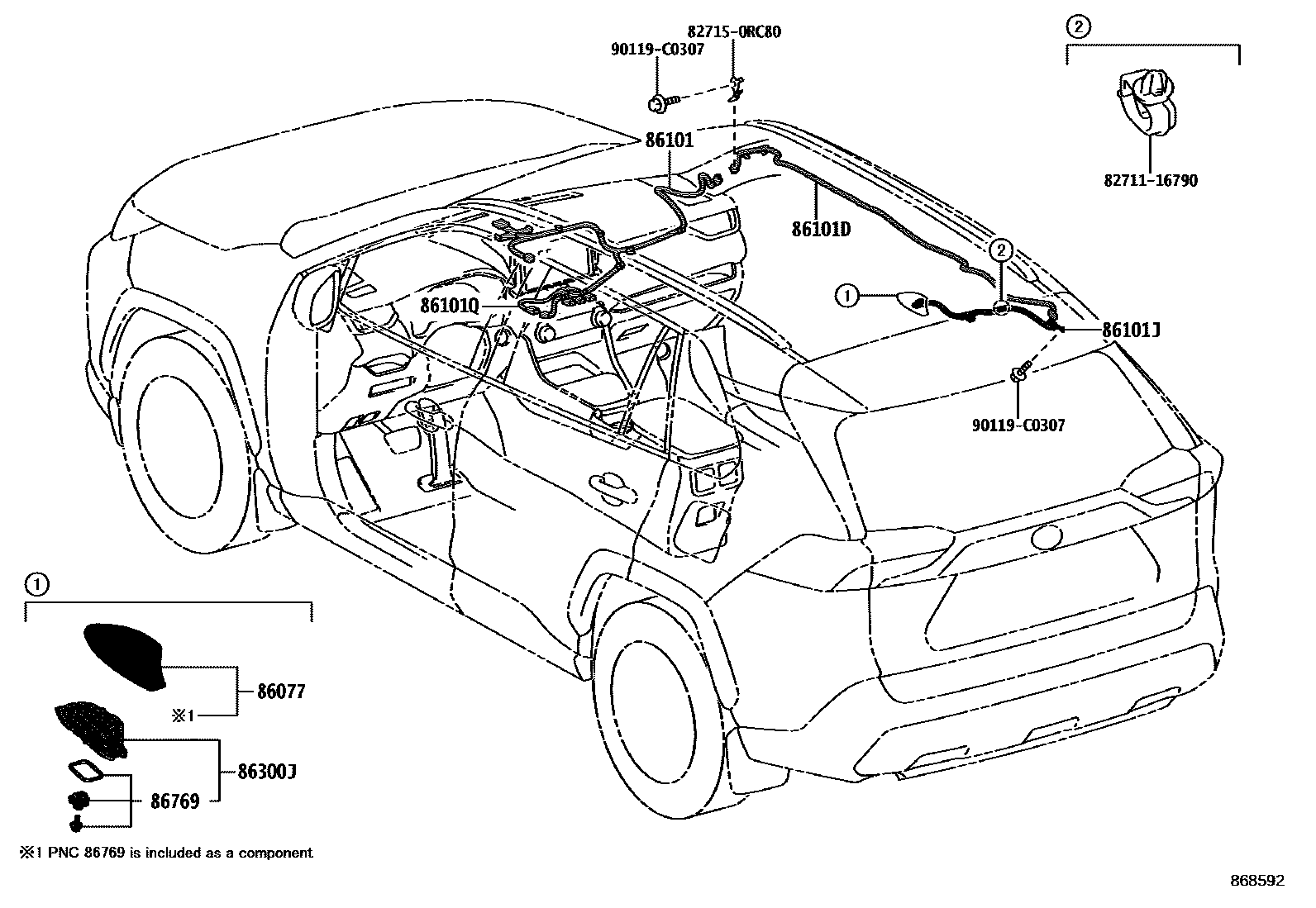

Toyota RAV4 antenna EPC diagram — 868592
antenna — 868592 (202104 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0R600 · 86101-0RB00
86101DNo. 3 antenna wire sub-assembly86101-0R590 · 86101-0RB20
86101JAntenna No. 2 wire sub-assembly86101-0R580 · 86101-0RB10
86101QNo. 4 antenna wire sub-assembly86101-0R730
86300JRoof antenna assembly86300-02470 · 86300-0A070
86769roof radome86769-0E030 · 86769-12010
