Toyota RAV4 导航和前监视器显示屏 — Figure 8603

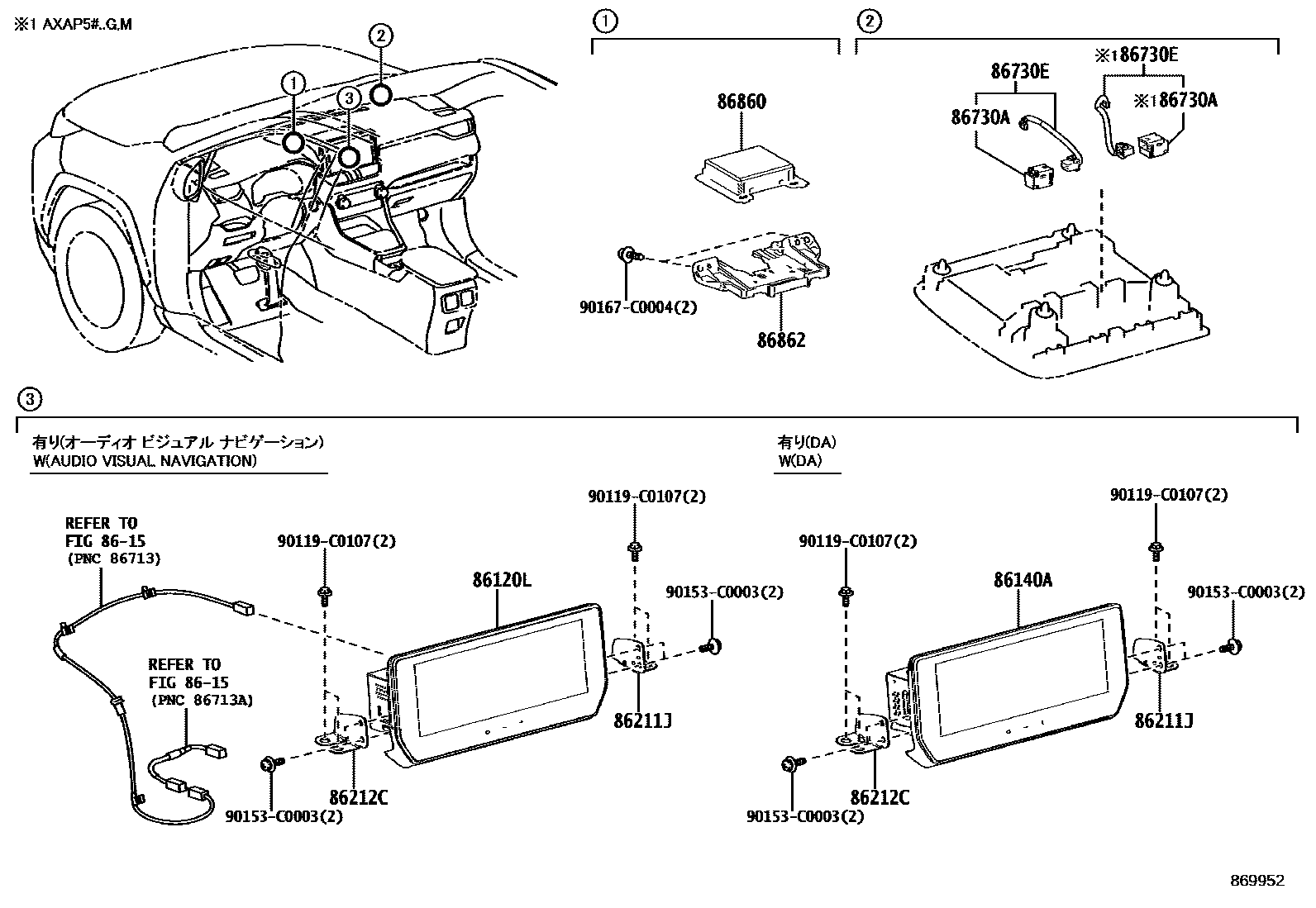

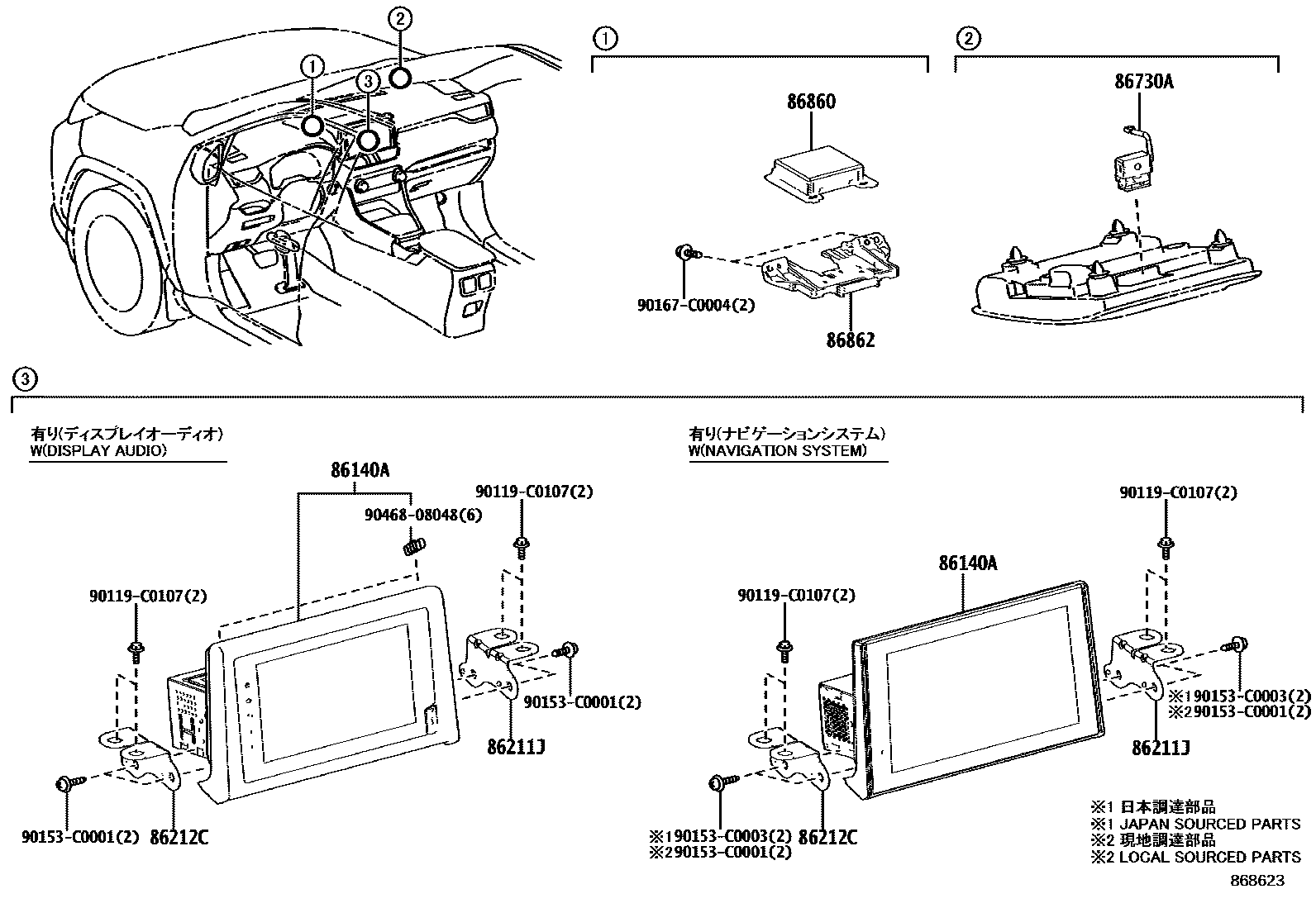

Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86100-0R190 · 86100-0R191 · 86100-0R192 |
| 86140A | Radio and display receiver assembly | 86140-0R510 · 86140-0R511 · 86140-0R520 · 86140-0R521 · 86140-0R522 · 86140-0R523 · 86140-0R524 · 86140-0R670 · 86140-0R671 |
| 86211J | No. 1 radio bracket | 86211-0R100 · 86211-0R160 |
| 86212C | No. 2 radio bracket | 86212-0R100 · 86212-0R160 |
| 86730A | Telephone amplifier assembly | 86730-06060 · 86730-0R050 |
| 86730E | Amplifier assembly | 86730-0E080 |
| 86860 | Navigation antenna assembly | 86880-02050 · 86880-02100 |
| 86862 | Navigation antenna bracket | 86862-0E030 · 86862-42010 |
