Toyota RAV4 挡风玻璃清洗器 — Figure 8503

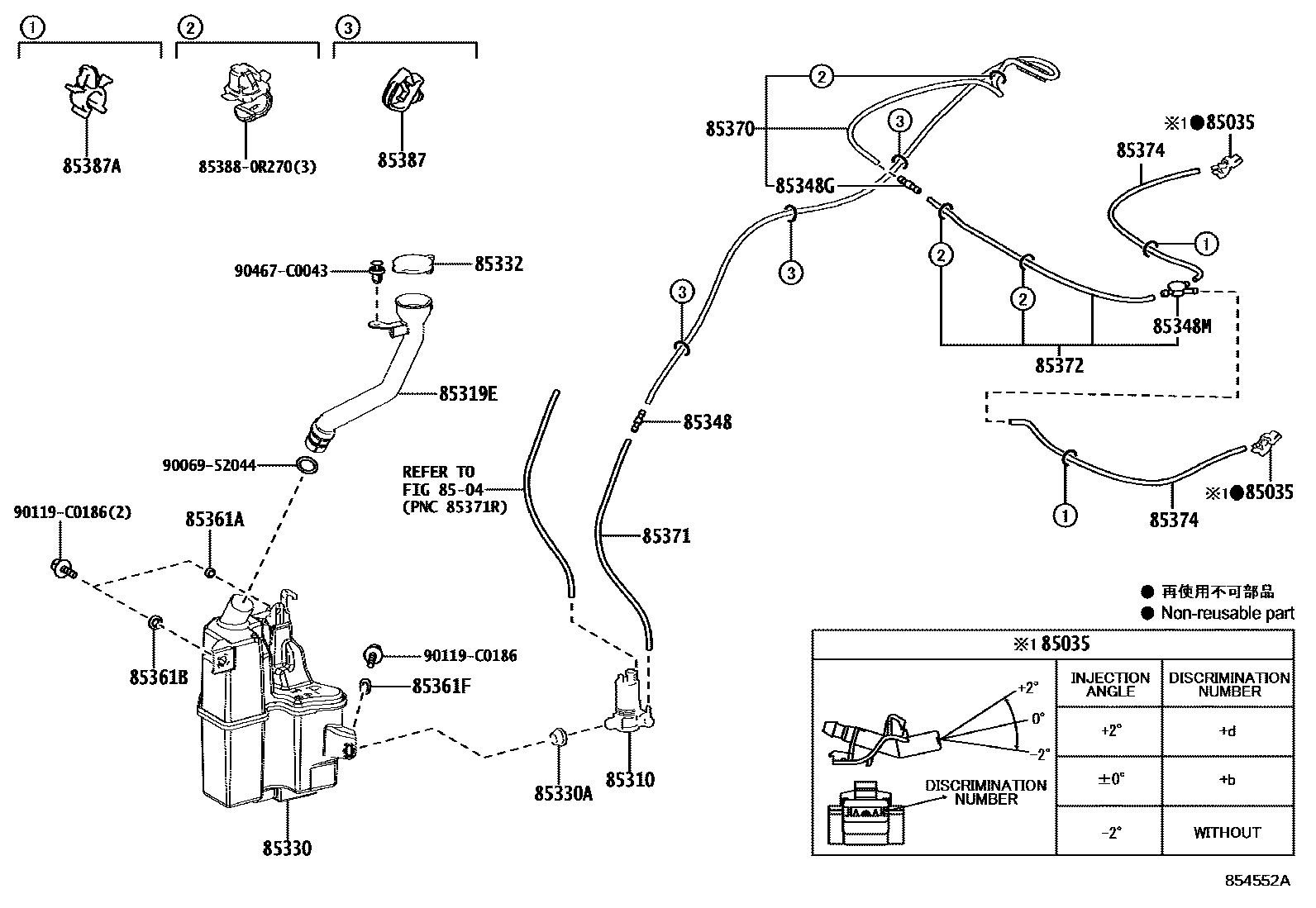

Toyota RAV4 EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30220 · 85381-30230 · 85381-30240 |
| 85310 | Windshield washer motor and pump assembly | 85330-0R050 |
| 85319E | Cleaner water inlet | 85319-0R100 |
| 85330 | Windshield washer fluid tank assembly | 85315-0R100 |
| 85330A | Windshield washer fluid tank bushing | 85336-02840 |
| 85332 | Windshield washer fluid tank cap | 85316-02840 |
| 85348 | Windshield washer hose connector No. 1 | 85375-05050 |
| 85348G | Windshield washer hose connector No. 2 | 85375-05050 |
| 85348M | No. 3 windshield washer hose connector | 85377-0R280 |
| 85361A | Windshield washer bracket No. 1 | 85337-02840 |
| 85361B | Windshield washer bracket No. 2 | 85338-02840 |
| 85361F | No. 3 windshield washer bracket | 85339-02840 |
| 85370 | Windshield washer hose assembly | 85370-0R270 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-46102 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-46100 |
| 85374 | Windshield washer hose (nozzle to nozzle) | 90068-33361 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-16790 |
| 85387A | Cleaner clip No. 2 | 90469-07011 |
