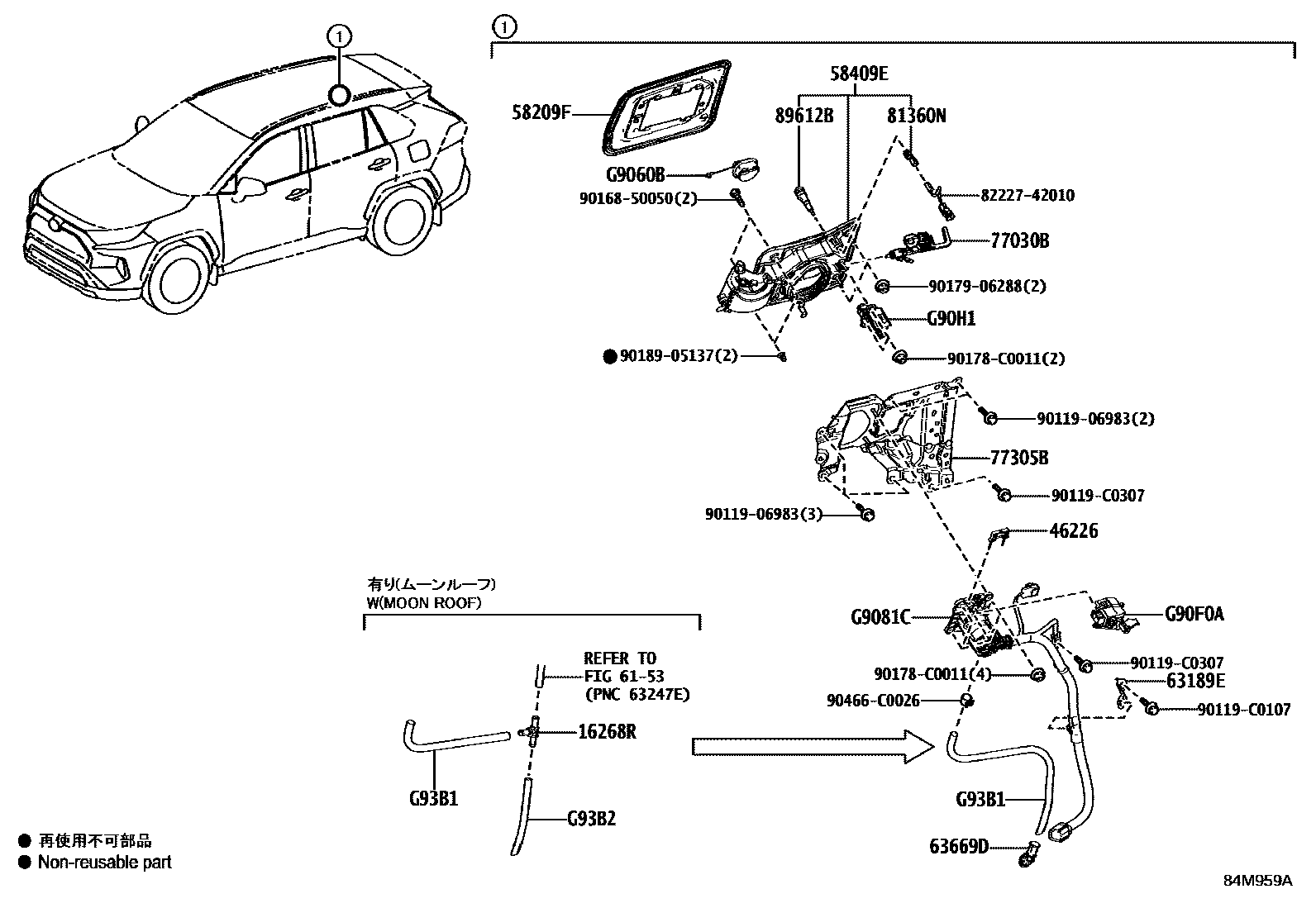

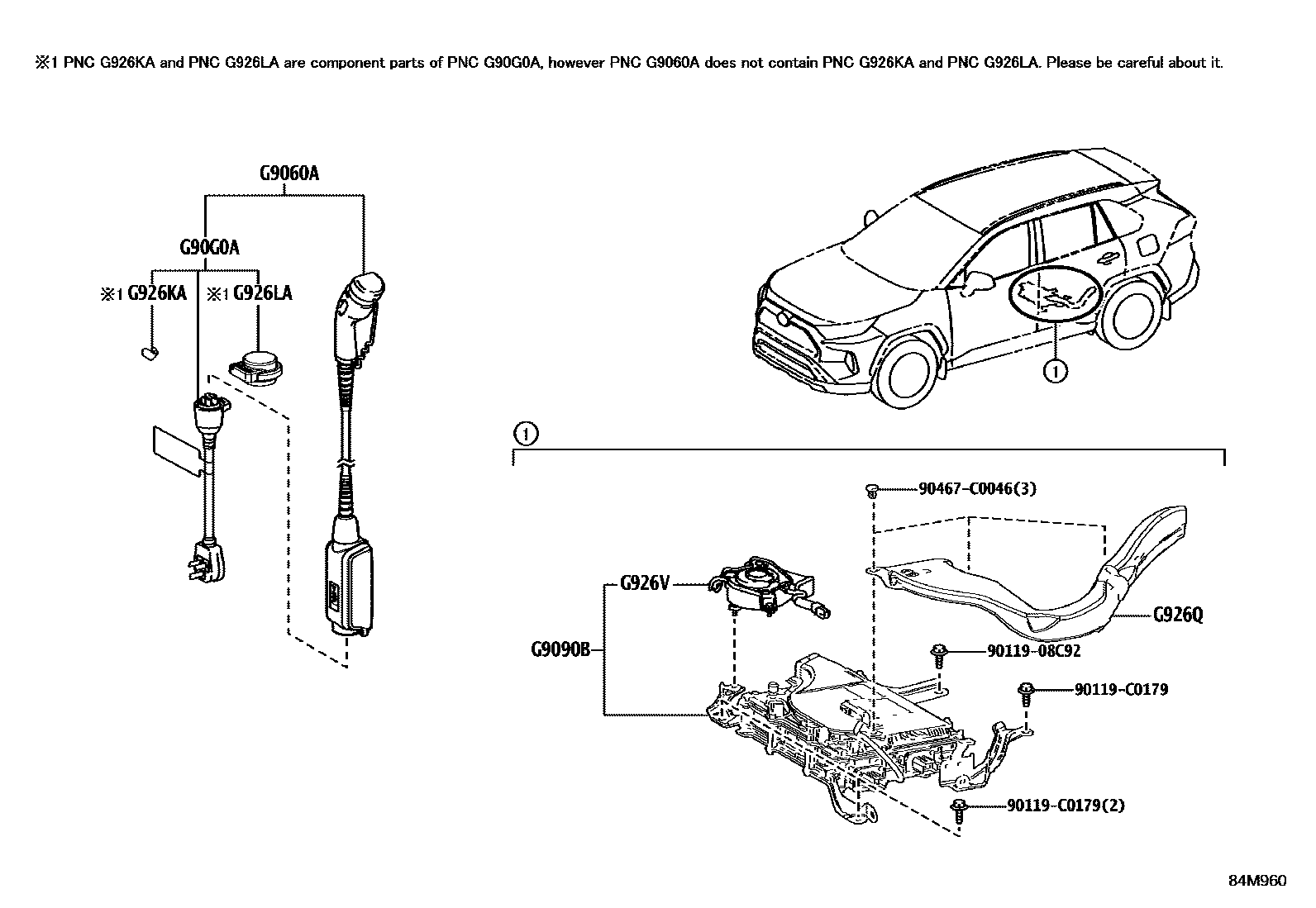

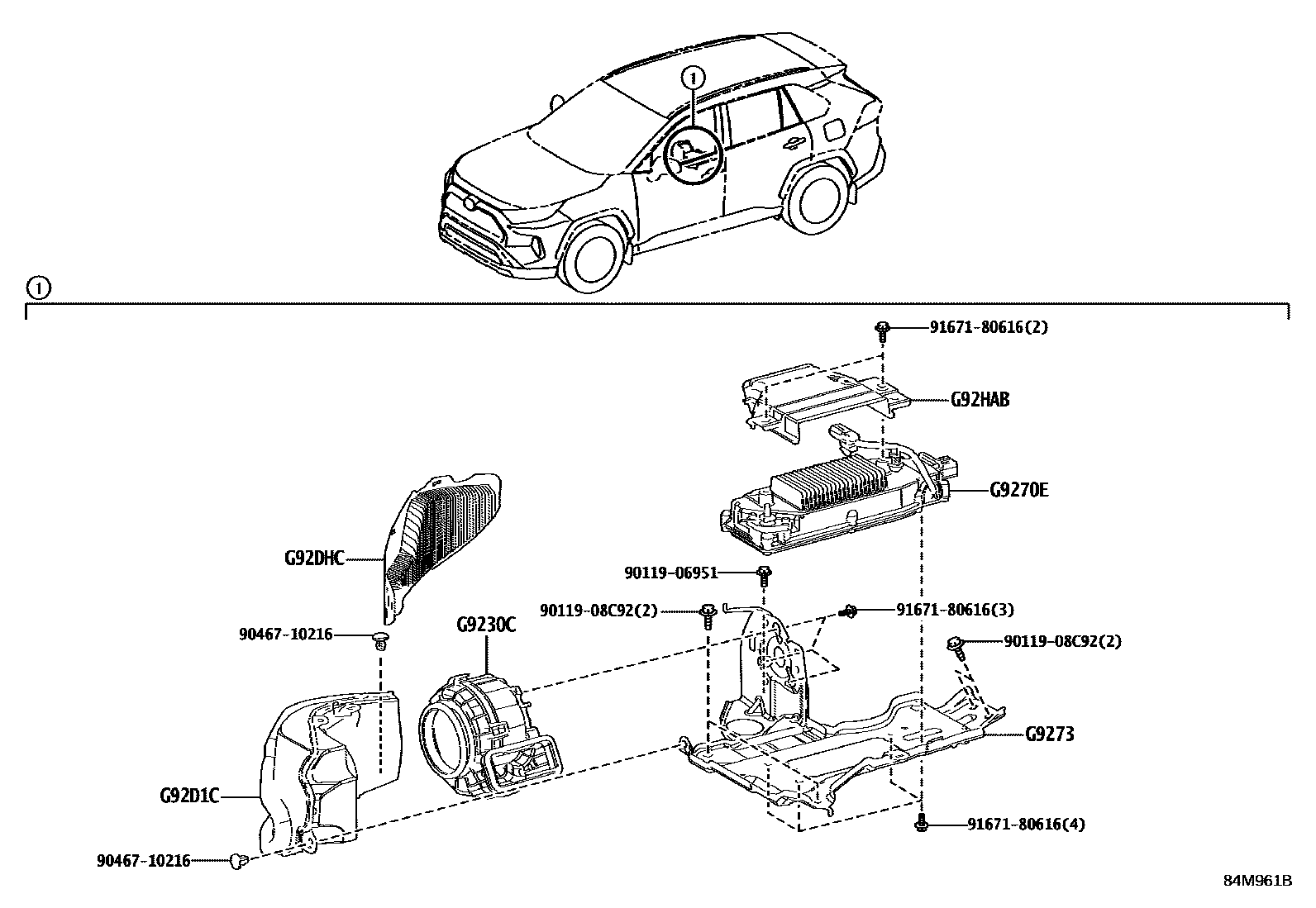

Toyota RAV4 DC/DC转换器 &充电器(BEV 或 FCEV) — Figure 8442
Toyota RAV4 EPC diagram 8442, DC/DC转换器 &充电器(BEV 或 FCEV), with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16268R | PIPE, WATER BY-PASS | 16268-37100 |
| 46226 | connector pin | 46226-47010 |
| 58209F | Battery access opening cover sub-assembly | 58209-0R040 |
| 58409E | Battery charger connector opening cover sub-assembly | 58409-0R010 |
| 63189E | Wire harness connector bracket | 63189-0R010 |
| 63669D | Drain hose seal | 63669-30040 |
| 77030B | Charger cover lock sub-assembly with motor | 77030-0R030 |
| 77305B | EV charger cover sub-assembly | 77305-0R010 |
| 81360N | Spotlight assembly | 81360-0R010 |
| 89612B | push tappet | 89612-42010 |
| G9060A | Electric vehicle charger cable assembly | G9060-0R020 |
| G9060B | Connector cover | 82821-0R150 |
| G9081C | AC charger port cable | G9081-0R020 |
| G9090B | Electric vehicle charger assembly | G9099-0R010 · G9099-0R020 · G9099-0R040 · G9099-0R050 |
| G90F0A | EV charger cable lock assembly | G90F0-0R010 |
| G90G0A | EV charger cable plug assembly | G90G0-12010 |
| G90H1 | EV charger cover indicator light | G90H1-0R010 |
| G9230C | DC/DC converter cooling blower assembly | G9230-06010 · G9230-06040 |
| G926KA | EV charger plug cable key | G926K-47020 |
| G926LA | EV charger plug cable cover | G926L-47020 |
| G926Q | EV charger tube | G926Z-0R010 |
| G926V | Boost cooling blower | G926V-0R010 |
| G9270E | DC/DC converter assembly | G9270-40010 · G9270-42060 |
| G9273 | DC/DC converter bracket | G9273-42010 |
| G92D1C | DC/DC converter No. 1 inlet duct | G92D1-0R020 |
| G92DHC | DC/DC converter No. 1 air intake filter | G92DH-42010 |
| G92HAB | DC/DC converter cooling exhaust duct | G92HA-0R010 |
| G93B1 | No. 1 EV charging connector drain pipe | G93B1-0R010 · G93B1-0R020 |
| G93B2 | No. 2 EV charging connector drain pipe | G93B2-0R010 |
