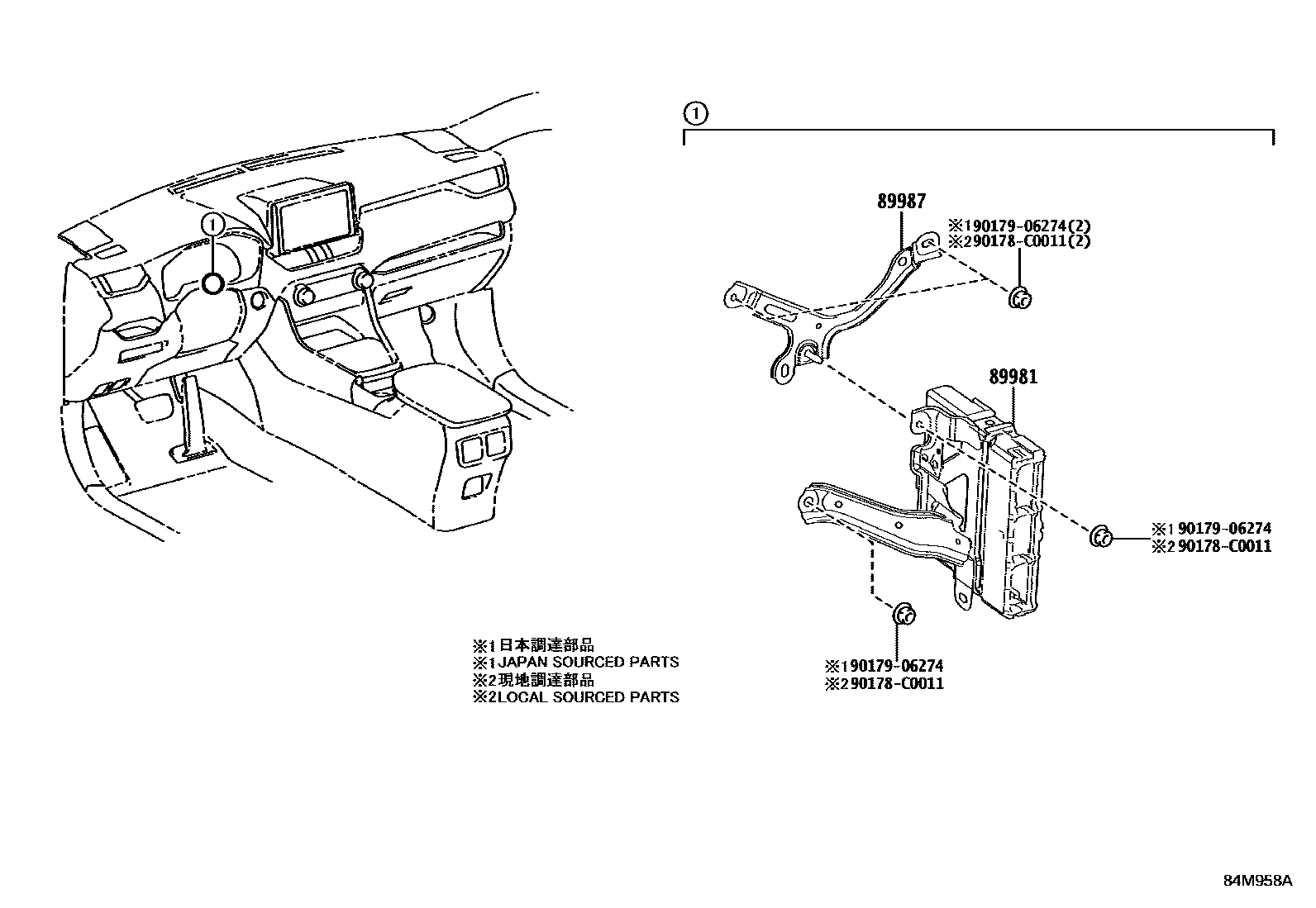

Toyota RAV4 HEV 控制ECU — Figure 8433
Toyota RAV4 EPC diagram 8433, HEV 控制ECU, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89981 | Hybrid vehicle control ECU | 89980-0R070 · 89980-0R080 · 89980-0R330 · 89980-0R340 · 89980-0R450 · 89980-0R460 · 89980-0R590 · 89980-0R600 |
| 89987 | No.1 ECU bracket | 89987-0R020 |
