Toyota RAV4 HEV 逆变器 — Figure 8431

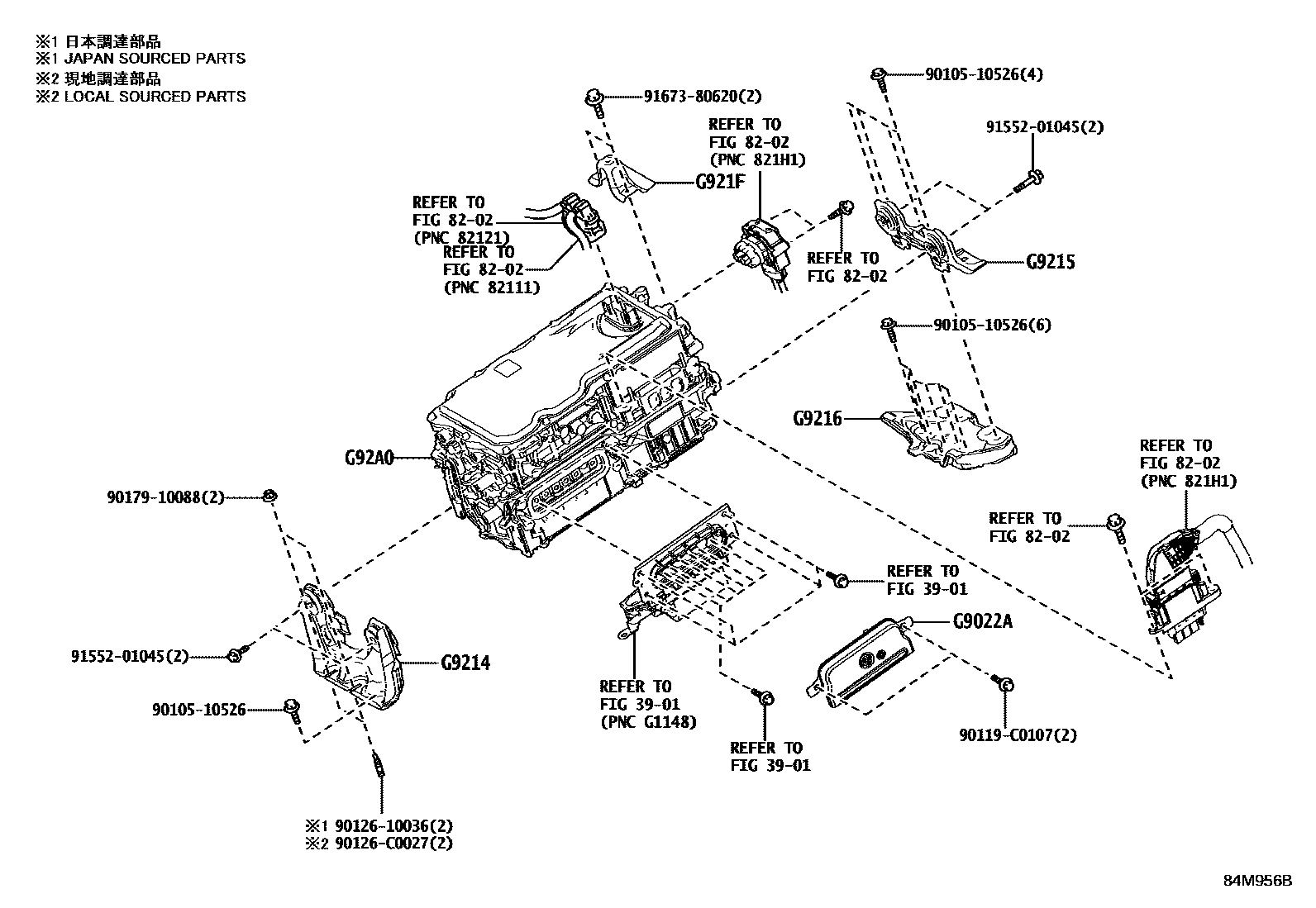

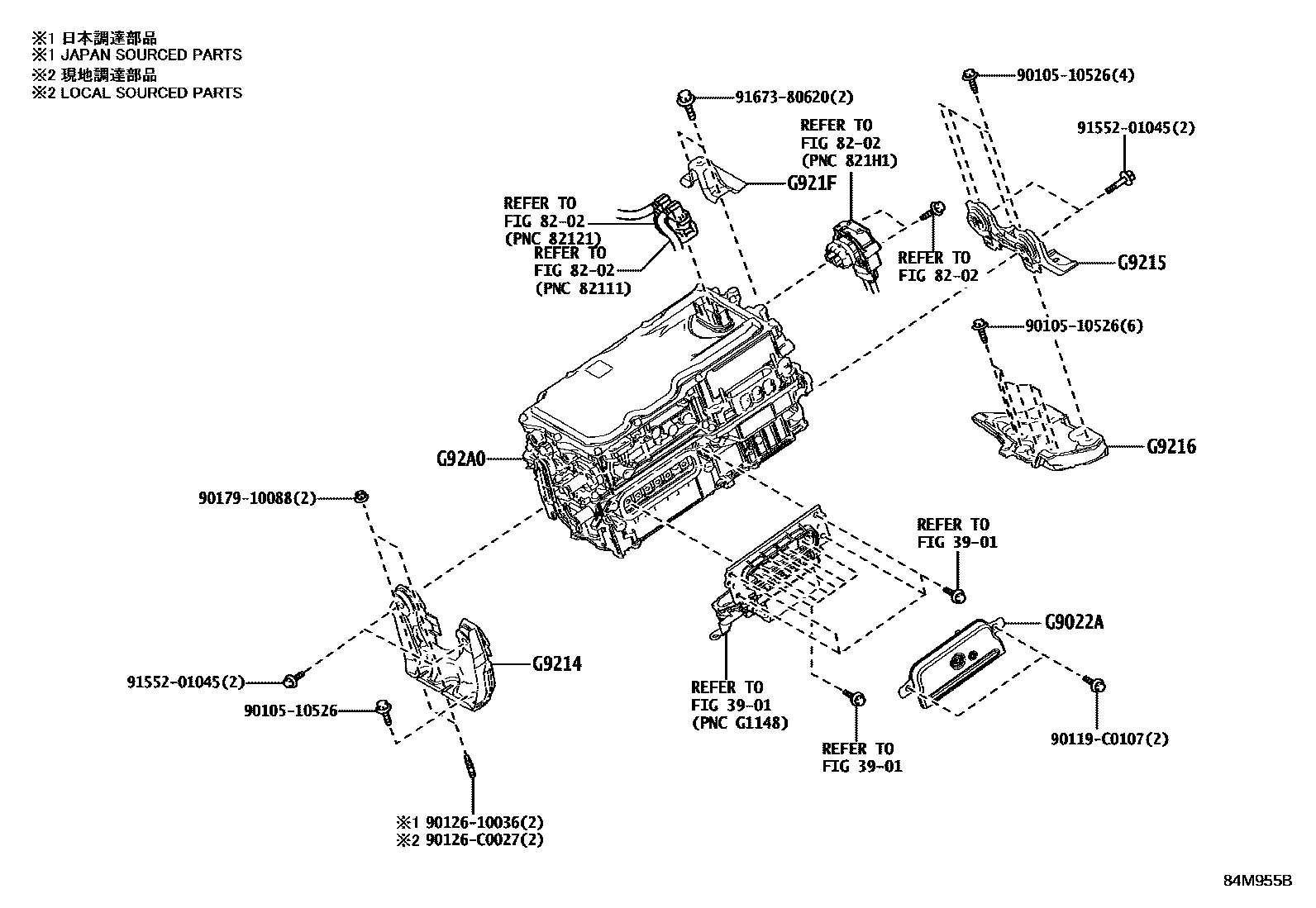

Toyota RAV4 EPC diagram 8431, HEV 逆变器, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

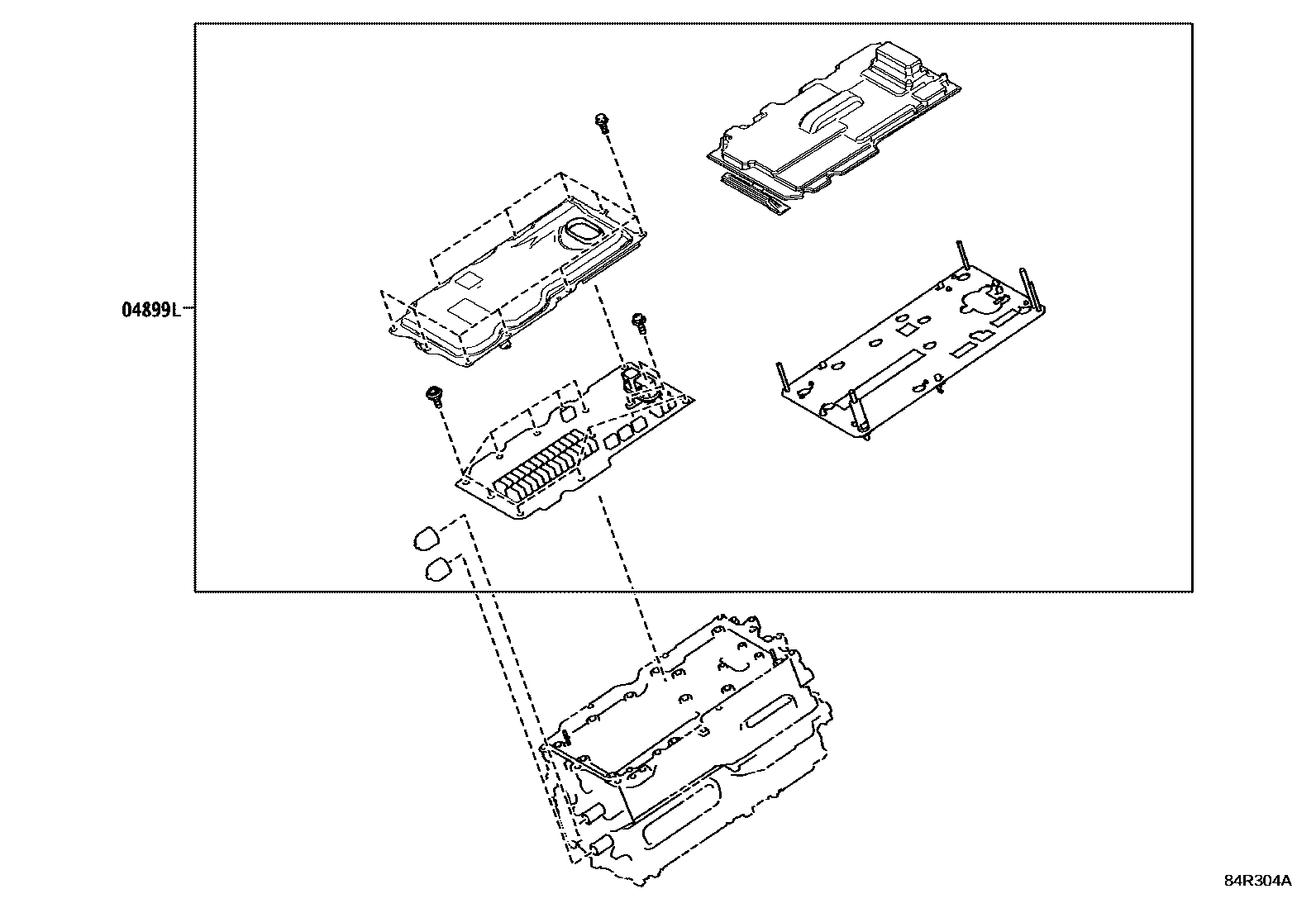

| 04899L | Motor generator control ECU component | 04899-42031 · 04899-42032 · 04899-42041 · 04899-42042 |
| G9022A | Inverter upper cover sub-assembly | G9022-47050 |
| G9214 | No. 1 inverter bracket | G9214-42010 |
| G9215 | No. 2 inverter bracket | G9215-42020 |
| G9216 | No. 3 inverter bracket | G9216-0R020 |
| G921F | No. 2 inverter protection device | G921F-42010 |
| G92A0 | Hybrid motor control inverter assembly | G92A0-42110 · G92A0-42111 · G92A0-42112 · G92A0-42113 · G92A0-42120 · G92A0-42121 · G92A0-42122 · G92A0-42123 |
