Toyota RAV4 测距雷达和倒车雷达 — Figure 8417

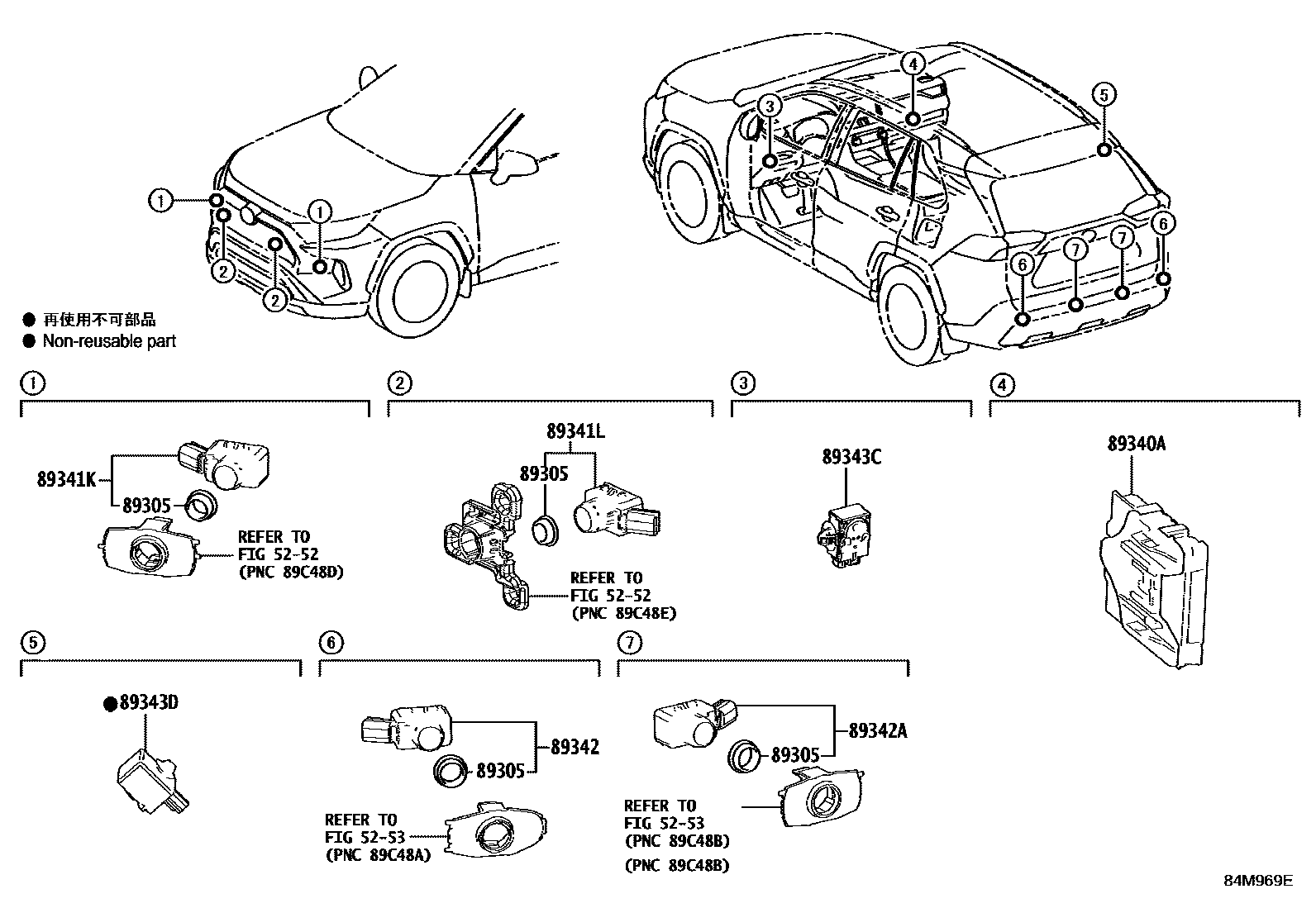

Toyota RAV4 EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Ultrasonic sensor pad assembly | 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-0R110 · 89340-0R190 · 89340-0R191 |
| 89343C | No. 1 distance warning buzzer | 89343-02010 |
| 89343D | No. 2 vehicle distance warning buzzer | 89747-30040 |
