Toyota RAV4 开关和继电器和ECU — Figure 8401

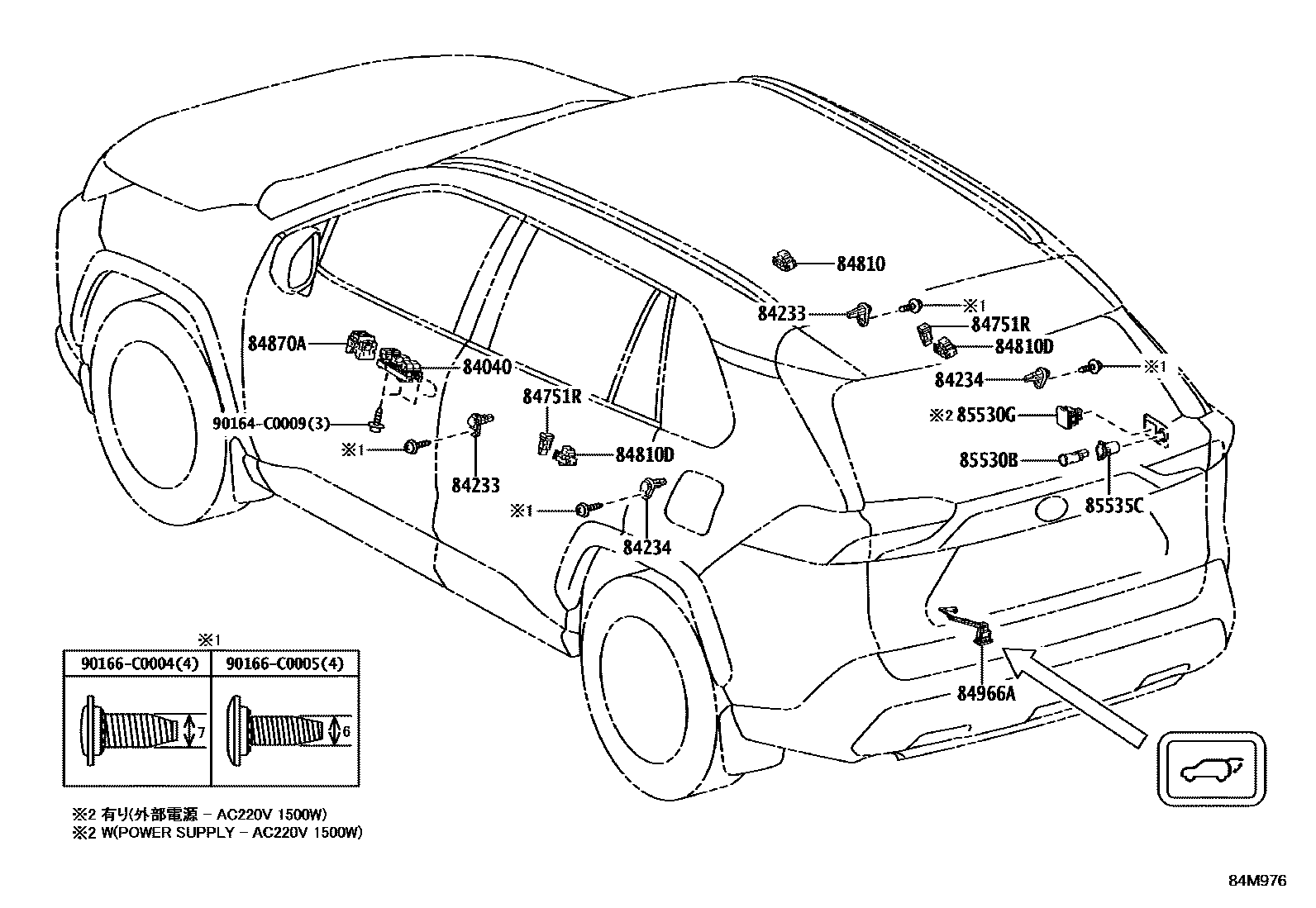

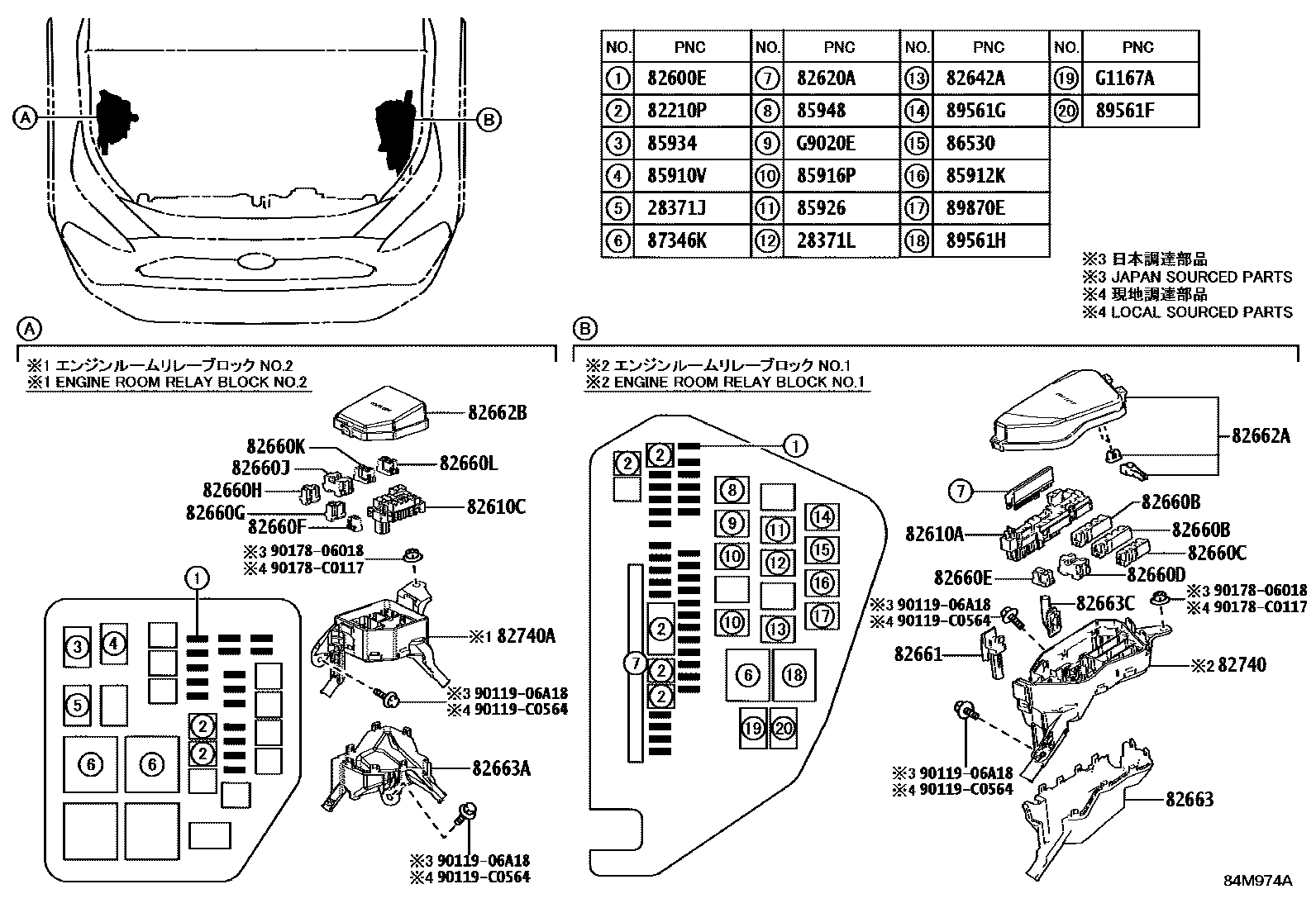

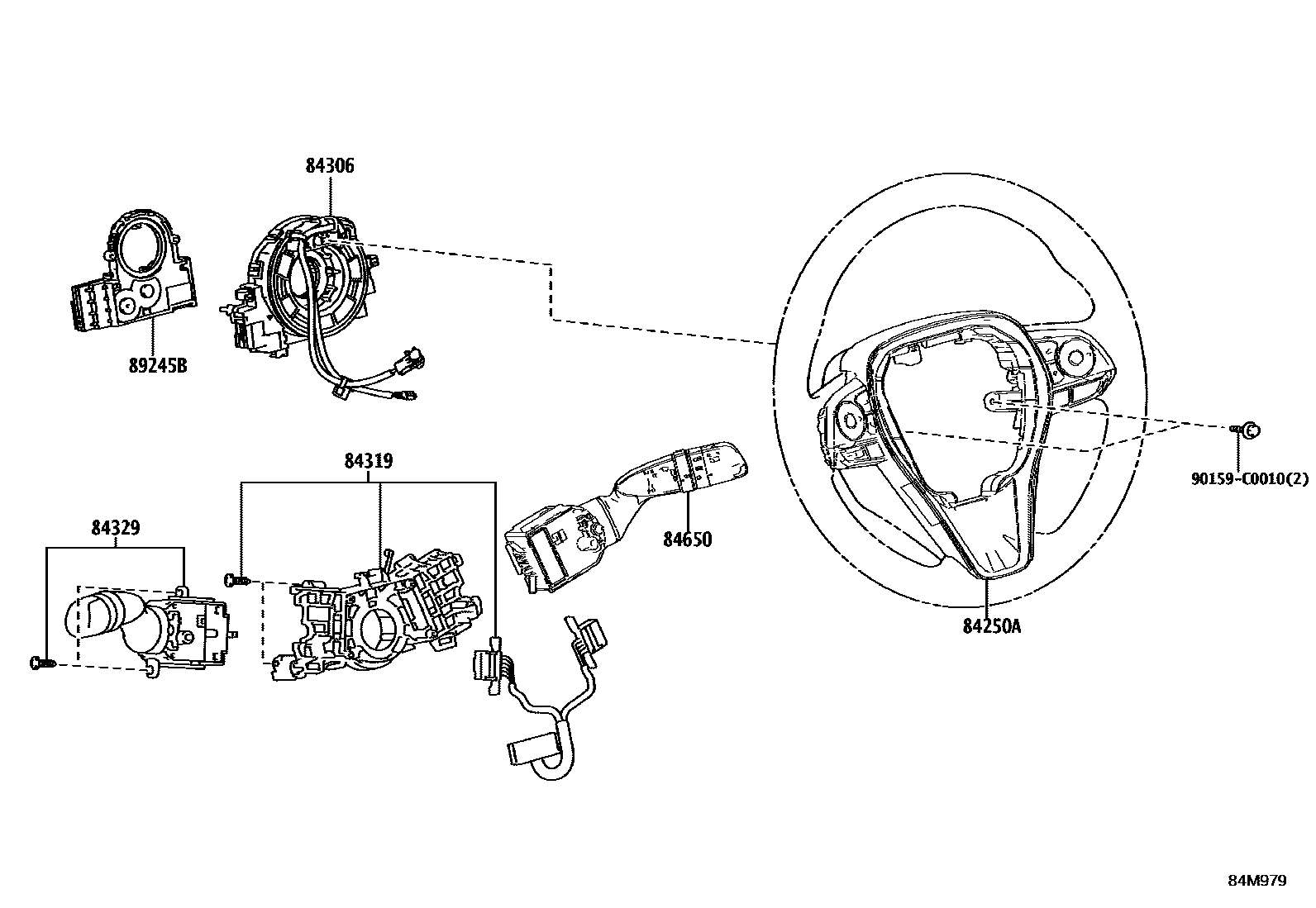

Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 11 images and 141 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28371J | IGB relay | 90987-02027 · 90987-T2005 |
| 28371L | IGP relay | 90987-T2005 |
| 28850C | Battery status sensor assembly | 28850-K0010 |
| 28859A | Battery current sensor mount | 28859-F0170 |
| 82210M | fuse | 90982-08298 · 90982-08310 · 90982-08311 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08298 · 90982-08311 · 90982-08312 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600L | luggage fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-42150 |
| 82610C | Fuse box assembly | 82610-42090 |
| 82610D | Fuse box assembly | 82610-42160 |
| 82610E | Fuse box assembly | 82610-42170 |
| 82620A | Fuse box assembly | 82620-42090 |
| 82620B | Fuse box assembly | 82620-0E050 |
| 82642A | driving light relay | 90987-T2005 |
| 82660B | Relay assembly | 82660-0E060 |
| 82660C | Relay assembly | 82660-0E050 |
| 82660D | Relay assembly | 82660-33040 |
| 82660E | Relay assembly | 82660-48020 |
| 82660F | Relay assembly | 82660-0E010 |
| 82660G | Relay assembly | 82660-52100 |
| 82660H | Relay assembly | 82660-48030 |
| 82660J | Relay assembly | 82660-33040 |
| 82660K | Relay assembly | 82660-48020 |
| 82660L | Relay assembly | 82660-48040 |
| 82660M | Relay assembly | 82660-28350 |
| 82660N | Relay assembly | 82660-48030 |
| 82661 | No. 1 relay box cover | 82661-42090 |
| 82661A | No. 2 relay box cover | 82661-42100 |
| 82662A | No. 1 relay box upper cover | 82662-0R550 |
| 82662B | No. 2 relay box upper cover | 82662-0R560 |
| 82662C | No. 3 relay box upper cover | 82662-42740 |
| 82662D | No. 4 relay box upper cover | 82662-42750 |
| 82663 | Relay box lower cover | 82663-42240 |
| 82663A | No. 2 relay box lower cover | 82663-0R120 · 82663-42170 |
| 82663B | No. 3 relay box lower cover | 82663-42270 |
| 82663C | No. 4 relay box lower cover | 82663-42260 |
| 82670A | No. 1 junction box assembly | 82670-42020 · 82670-42030 |
| 82672A | Junction box cover | 82672-42210 |
| 82672K | Electric power distribution box cover | 82672-0R100 |
| 82673A | Junction box bracket | 82673-0R100 |
| 82715 | Wire harness clamp bracket | 82715-07160 · 8946A-0E030 |
| 82715W | Wire harness clamp bracket | 82715-48V40 |
| 82715X | No. 2 wire harness clip bracket | 8946A-0R090 |

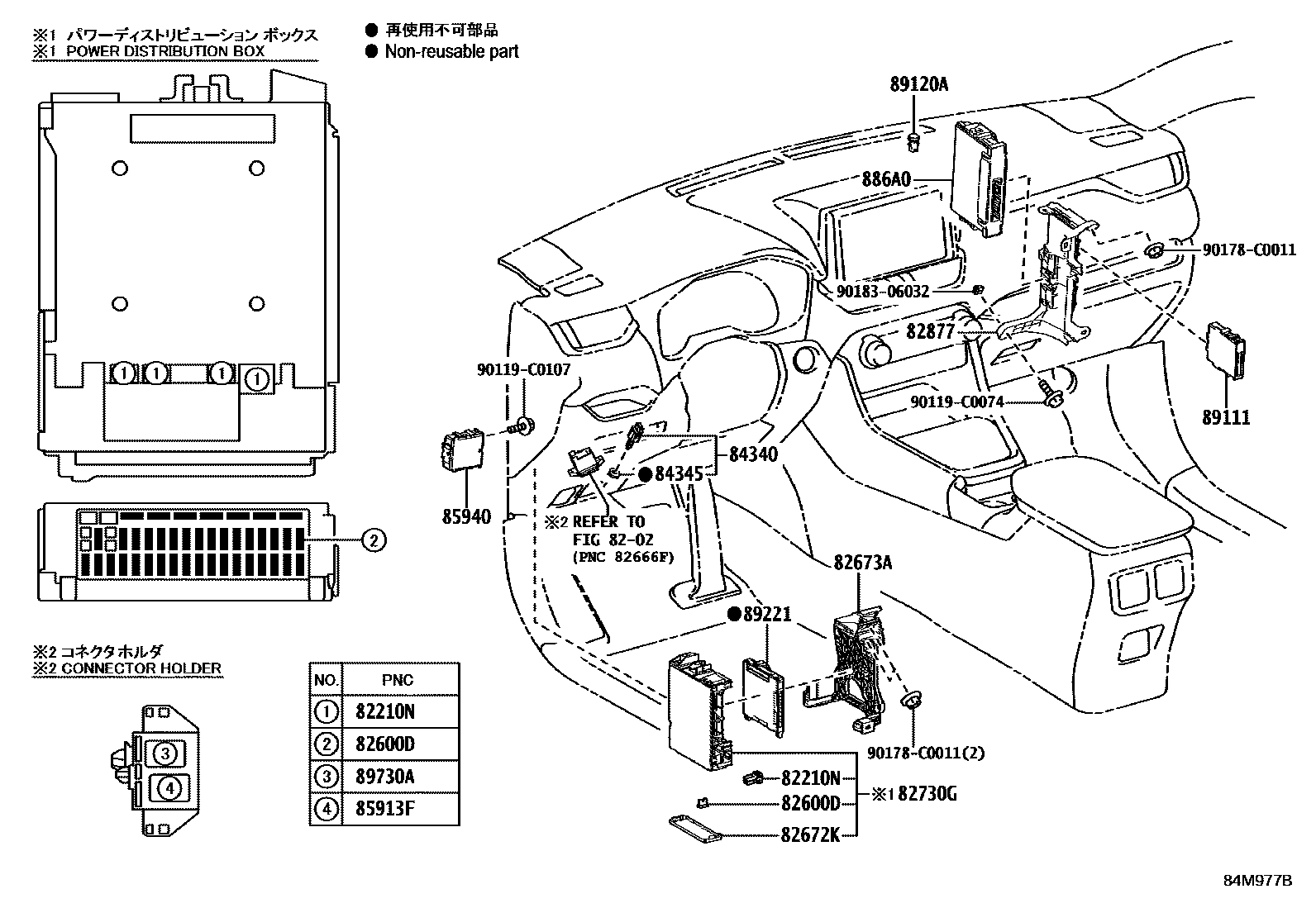

| 82730G | Distribution box assembly | 82730-0R300 · 82730-0R301 · 82730-0R310 · 82730-0R311 |
| 82740 | Engine room relay box assembly | 82740-42140 |
| 82740A | Engine room No. 2 relay box assembly | 82740-42060 |

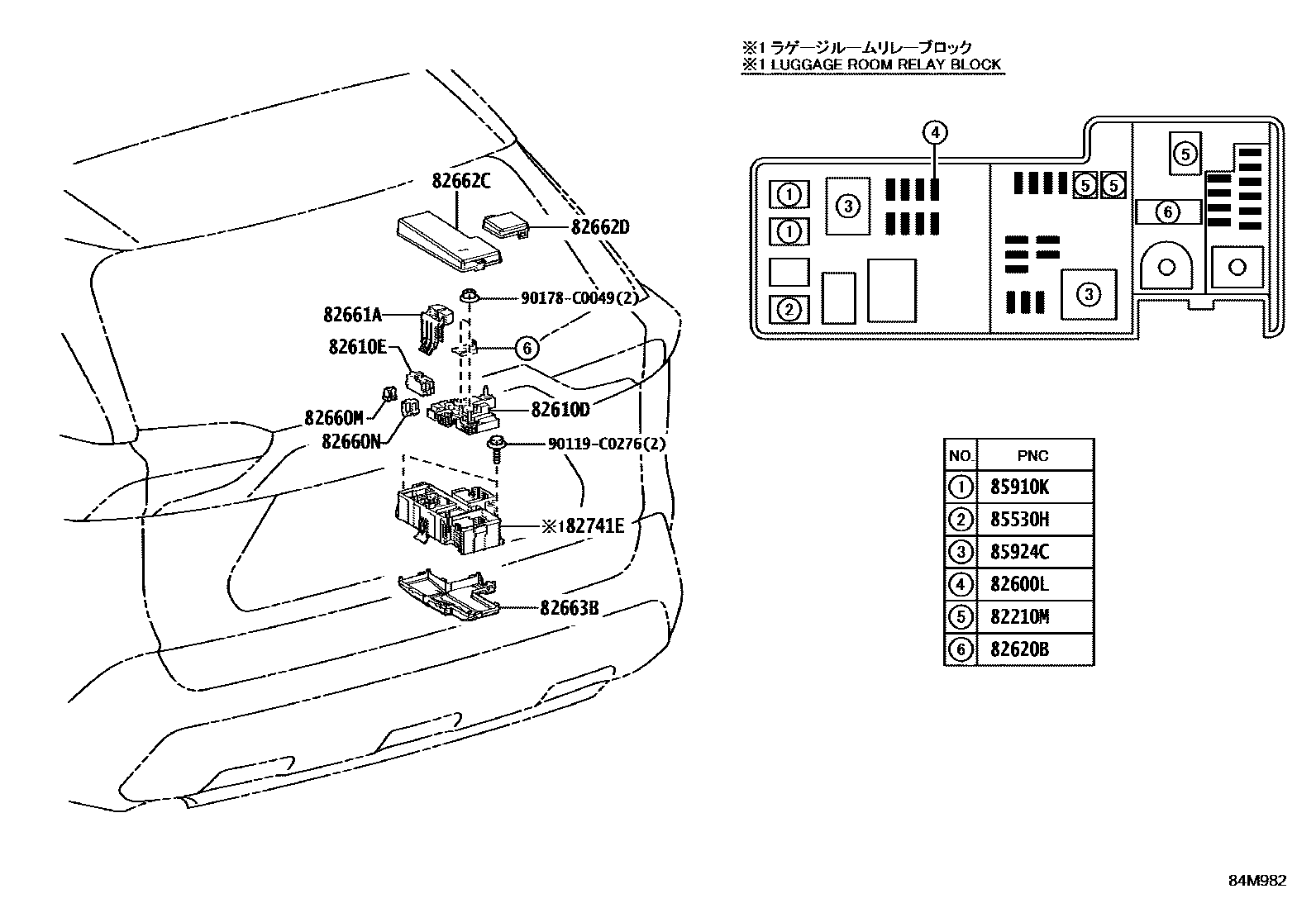

| 82741E | Trunk No. 1 relay box | 82740-42150 |
| 82877 | Right ECU integrated box | 82877-0R020 |
| 83320 | Fuel gauge sensor assembly | 83320-0R120 |
| 83950M | Warning light assembly | 83950-0R200 |
| 84010D | Integrated control and panel assembly | 84010-0R160 · 84010-0R170 · 84010-0R350 · 84010-0R360 · 84010-0R370 · 84010-0R410 |
| 84040 | Multi-channel network main switch assembly | 84040-0R010 · 84040-0R020 · 84040-0R140 · 84040-0R180 |

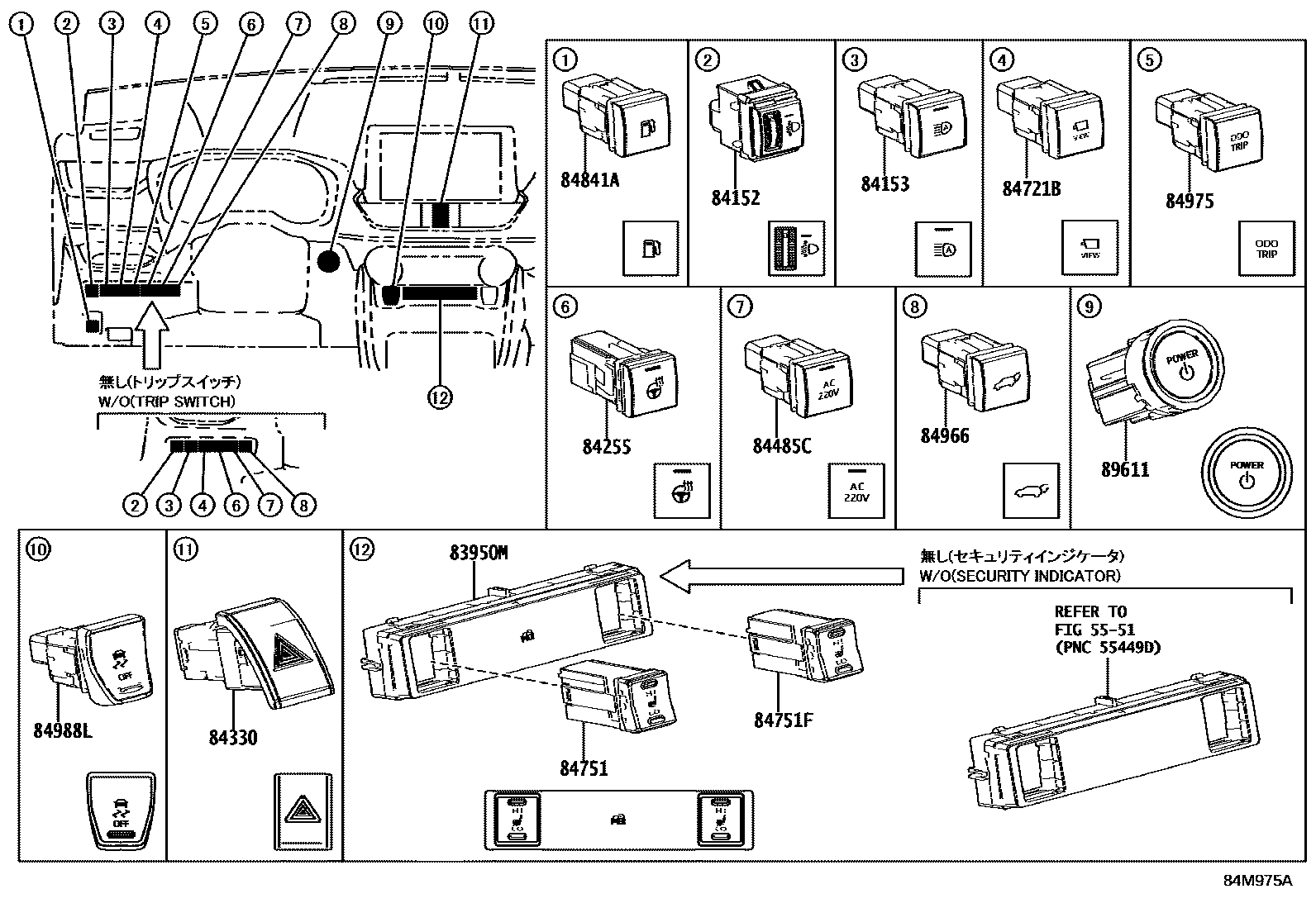

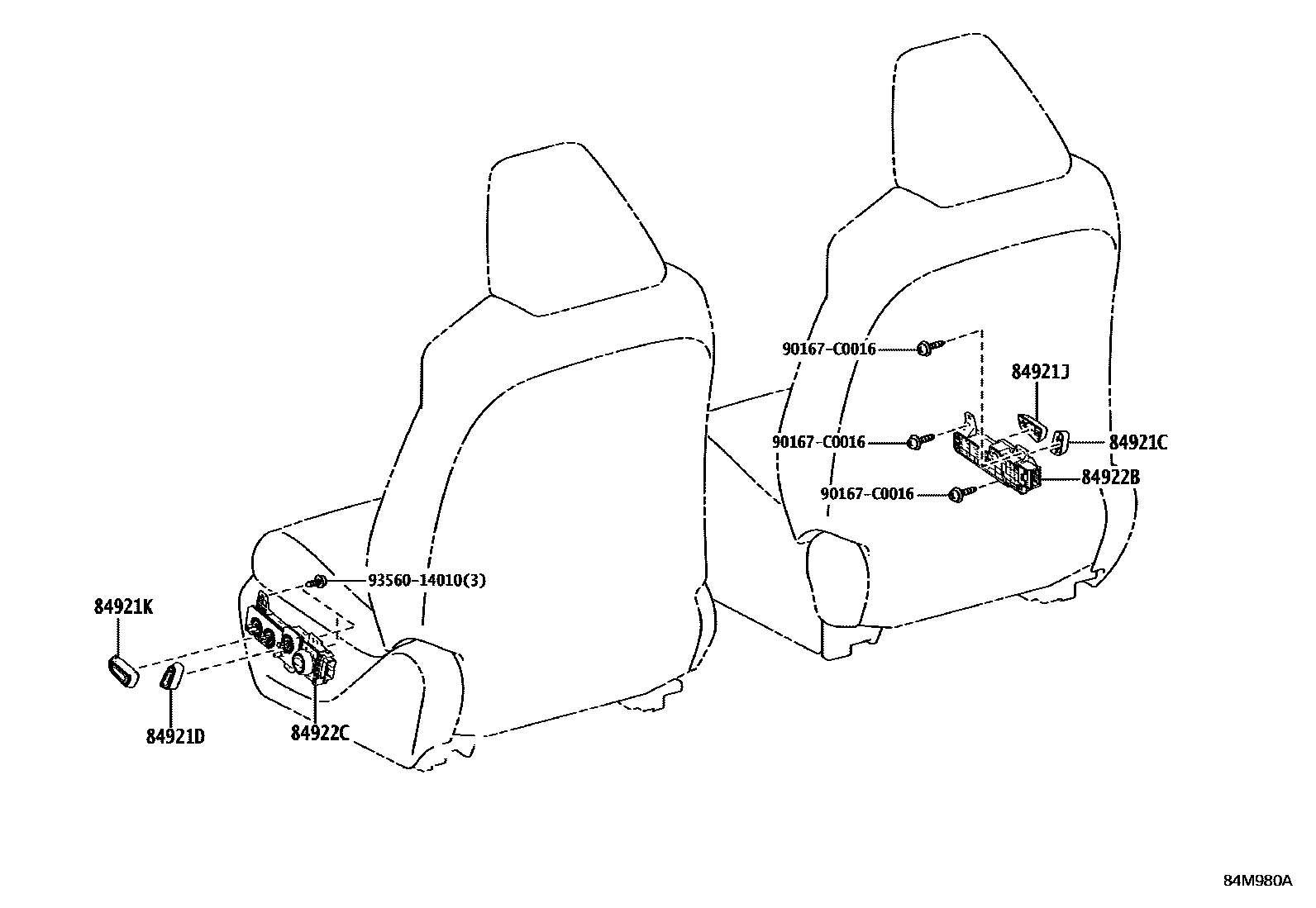

| 84152 | Headlight beam height adjustment switch | 84152-0R040 · 84152-0R110 |
| 84153 | Automatic high beam switch | 84153-0R020 · 84153-0R040 |
| 84233 | Door control light switch assembly (for front door) | 84231-0R010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0R010 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02E90 · 84250-0R320 · 84250-0R420 |
| 84255 | Steering heater switch | 84255-0R030 · 84255-0R050 |
| 84306 | Spiral cable sub-assembly | 84308-0R060 |
| 84319 | Steering wheel switch housing | 84319-07010 |
| 84329 | turn signal switch | 84329-0R060 |
| 84330 | Hazard warning signal switch assembly | 84332-0R050 |
| 84340 | brake light switch assembly | 84340-09340 |
| 84345 | Brake light switch base adjuster | 84345-0R010 |
| 84485C | power outlet switch | 84485-0R010 · 84485-0R040 |
| 84650 | Windshield wiper switch assembly | 84652-0R140 |
| 84721B | Panoramic display switch | 84721-0A050 · 84721-0R030 |
| 84751 | Seat heater switch | 84751-0R100 · 84751-0R200 |
| 84751F | Seat heater switch | 84751-0R110 · 84751-0R210 |
| 84751R | Seat heater switch (rear) | 84751-0R130 · 84751-0R220 |
| 84810 | Electric window lift switch assembly | 84810-0R010 · 84810-0R020 · 84810-0R070 |
| 84810D | Rear electric window lift switch assembly | 84810-0R010 · 84810-0R020 · 84810-0R070 |
| 84840G | Back door opener switch assembly | 84840-F4060 |
| 84841A | Fuel filler cap opener switch | 84841-0R010 · 84841-0R040 |
| 84870A | Exterior rearview mirror switch assembly | 84872-0R010 · 84872-0R030 · 84872-0R130 · 84872-0R160 |
| 84966 | Automatic back door control switch | 84966-0R030 · 84966-0R090 |
| 84966A | No. 1 automatic back door control switch | 84966-0R040 |
| 84975 | trip odometer switch | 84975-0R010 · 84975-0R070 |
| 84988L | VSC off switch | 84988-0R060 · 84988-0R120 |

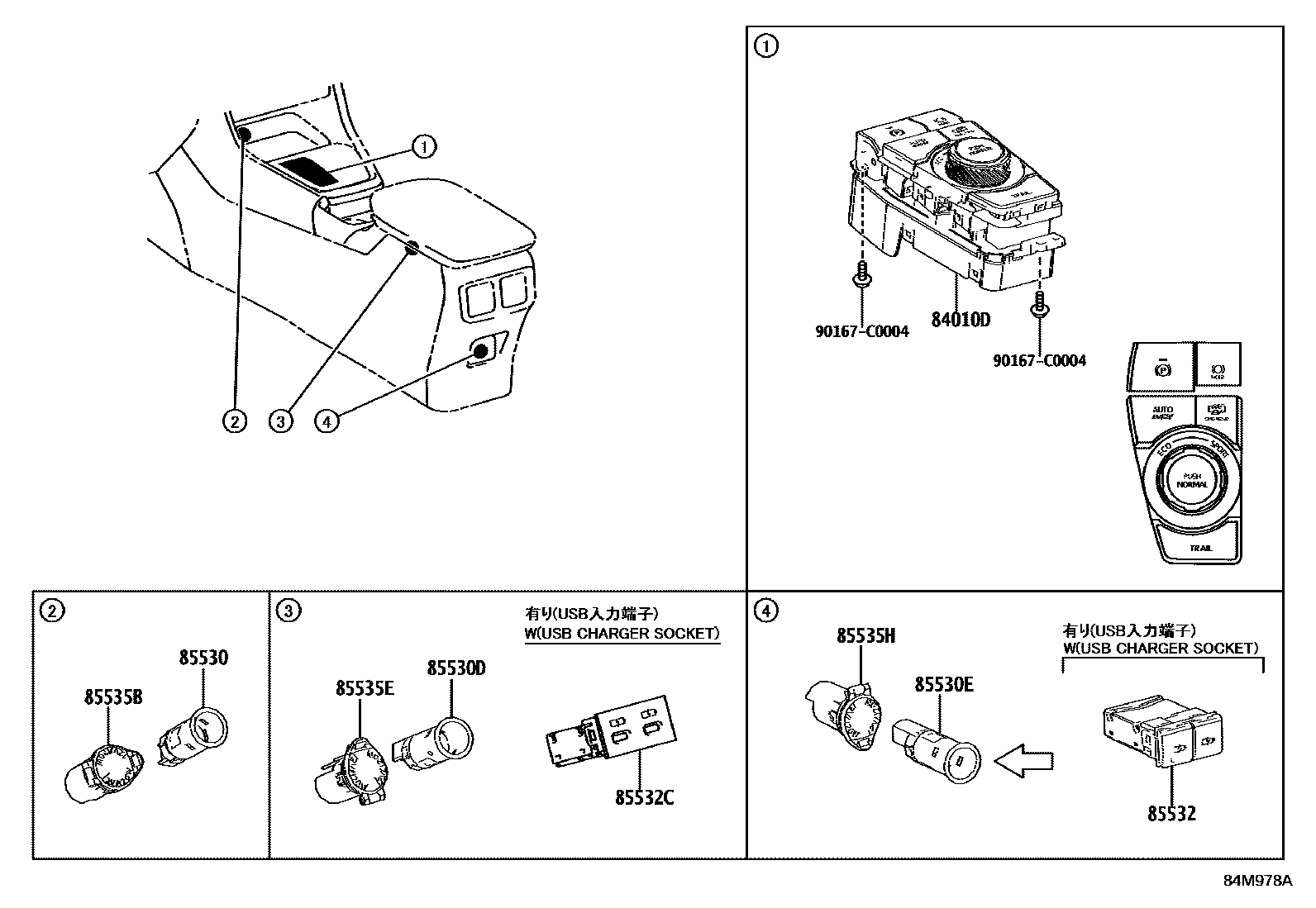

| 85530 | No. 1 power socket assembly | 85530-07020 |
| 85530B | No. 1 rear power socket assembly | 85530-07020 |
| 85530D | No. 2 power socket assembly | 85530-07020 |
| 85530E | No. 3 power socket assembly | 85530-07020 |
| 85530H | Power outlet relay No. 2 | 90987-02027 · 90987-T2005 |
| 85532 | USB charging socket | 85532-07010 · 85532-0R120 |
| 85532C | USB charging socket No. 2 | 85532-0R110 |
| 85535B | No. 1 power outlet cover | 85535-0R070 |
| 85535C | Rear power outlet cover | 85535-0R070 |
| 85535E | No. 2 power outlet cover | 85535-0R070 |
| 85535H | No. 3 power socket cover | 85535-0R070 |
| 85910K | Rear seat heater relay | 90987-T2005 |
| 85910V | seat heater relay | 90987-T2005 |
| 85912K | VVT relay | 90987-02027 · 90987-T2005 |
| 85913F | Steering heater relay | 90987-02027 · 90987-T2005 |
| 85916P | headlight relay | 90987-T2005 |
| 85924C | IGCT relay | 90987-02031 |
| 85926 | Headlight dimmer relay | 90987-T2005 |
| 85934 | Electromagnetic clutch relay | 90987-04004 · 90987-T4001 |
| 85940 | Windshield wiper relay assembly | 85940-0R010 |
| 85948 | windshield wiper relay | 90987-T2005 |
| 86247A | Voltage inverter bracket | 86247-0R020 |
| 86247C | Voltage inverter bracket No. 2 | 86247-0R010 |
| 8624A | voltage inverter | 8624A-0R010 |
| 86530 | Speaker relay assembly | 90987-T2005 |

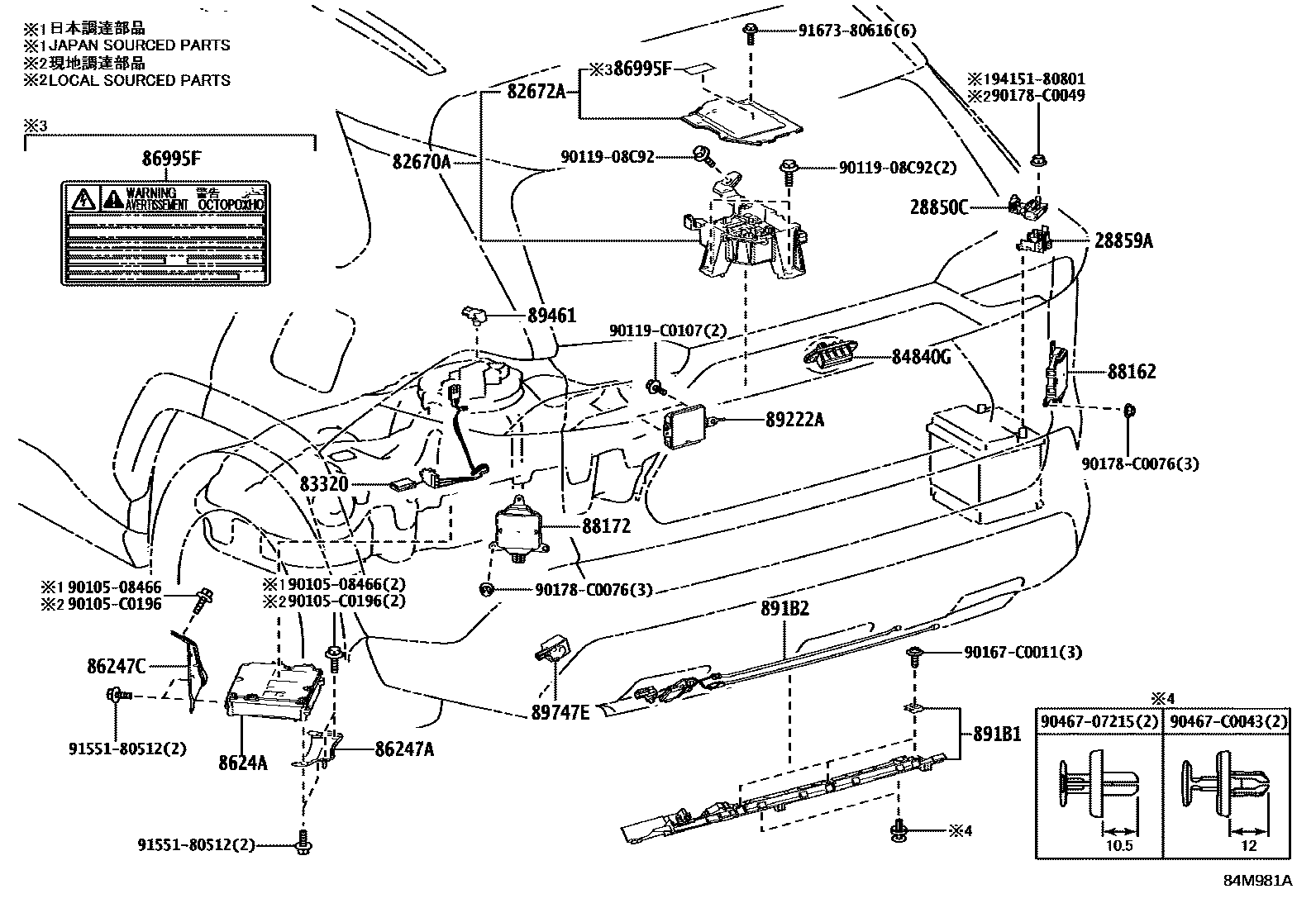

| 86995F | warning label | G9118-76010 |
| 87346K | PTC heater relay | 90987-02025 · 90987-T2004 |
| 88162 | Blind spot monitor right sensor | 88162-0R110 · 88162-42061 |
| 88172 | Blind spot monitor left sensor | 88162-0R110 · 88162-42061 |
| 886A0 | Heat pump ECU assembly | 886A0-0R010 · 886A0-0R020 |
| 89111 | Network gateway ECU | 89111-0R380 · 89111-0R381 · 89111-42122 · 89111-42170 |
| 89120A | Automatic light control sensor | 89121-0E040 |
| 891B1 | starter door control bracket | 891B1-0R090 |
| 891B2 | starter door control sensor | 891B2-0R100 |
| 89221 | Multi-channel network body ECU | 89220-0RD30 · 89220-0RD31 · 89220-0RD40 · 89220-0RD41 · 89220-0RD50 · 89220-0RD51 · 89220-0RM40 · 89220-0RM50 · 89220-0RM60 · 89221-0R590 · 89221-0R600 |
| 89222A | Multi-channel network door ECU | 89222-0R110 · 89222-0R150 · 89222-0R200 |
| 89245B | steering sensor | 8924B-0A020 · 8924B-0R050 |
| 89422A | water temperature sensor | 89422-33040 |
| 89422N | No. 2 water temperature sensor | 89422-33040 |

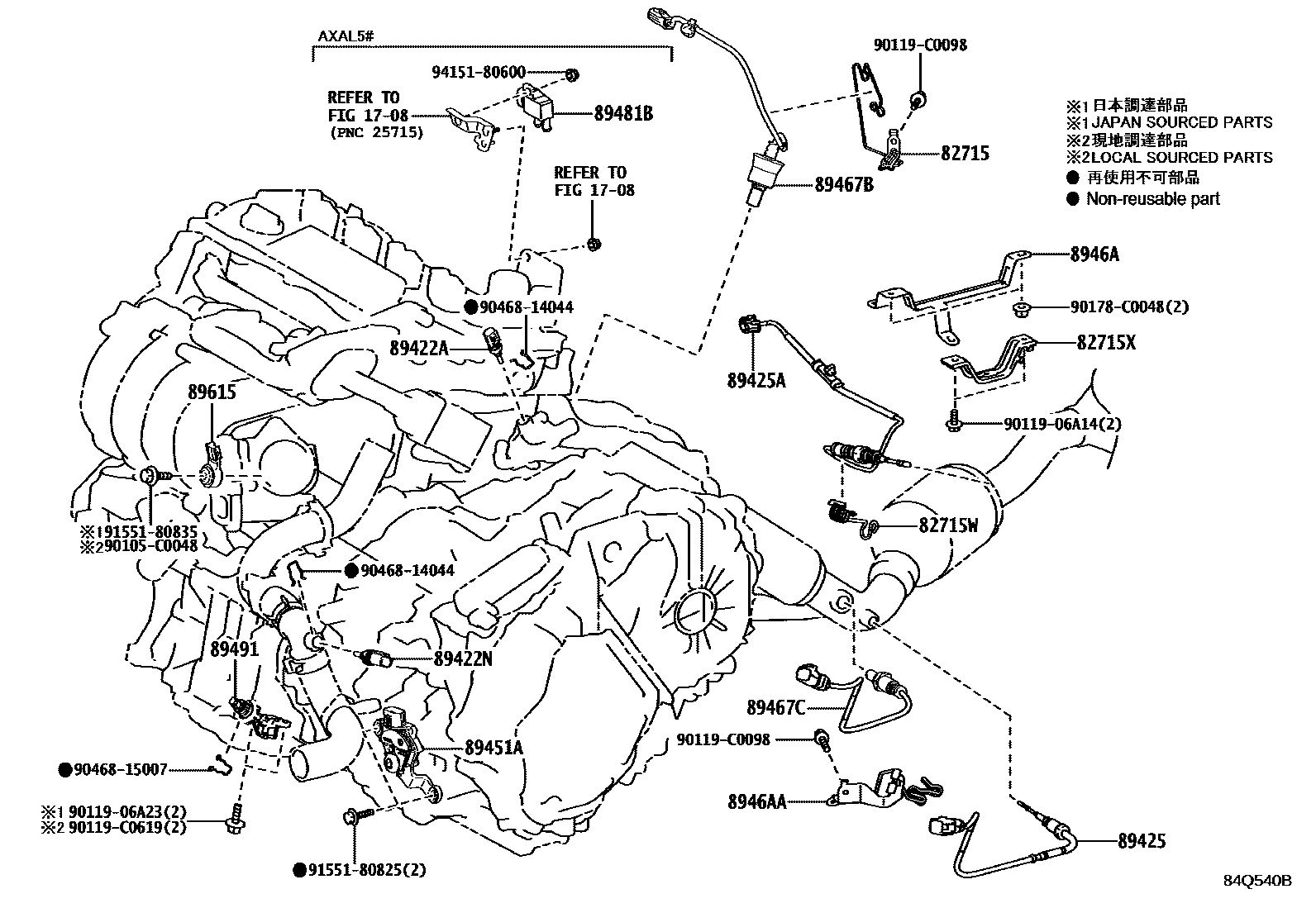

| 89425 | Exhaust gas temperature sensor | 89425-0E030 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-0E040 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89461 | steam pressure sensor | 89461-48020 |

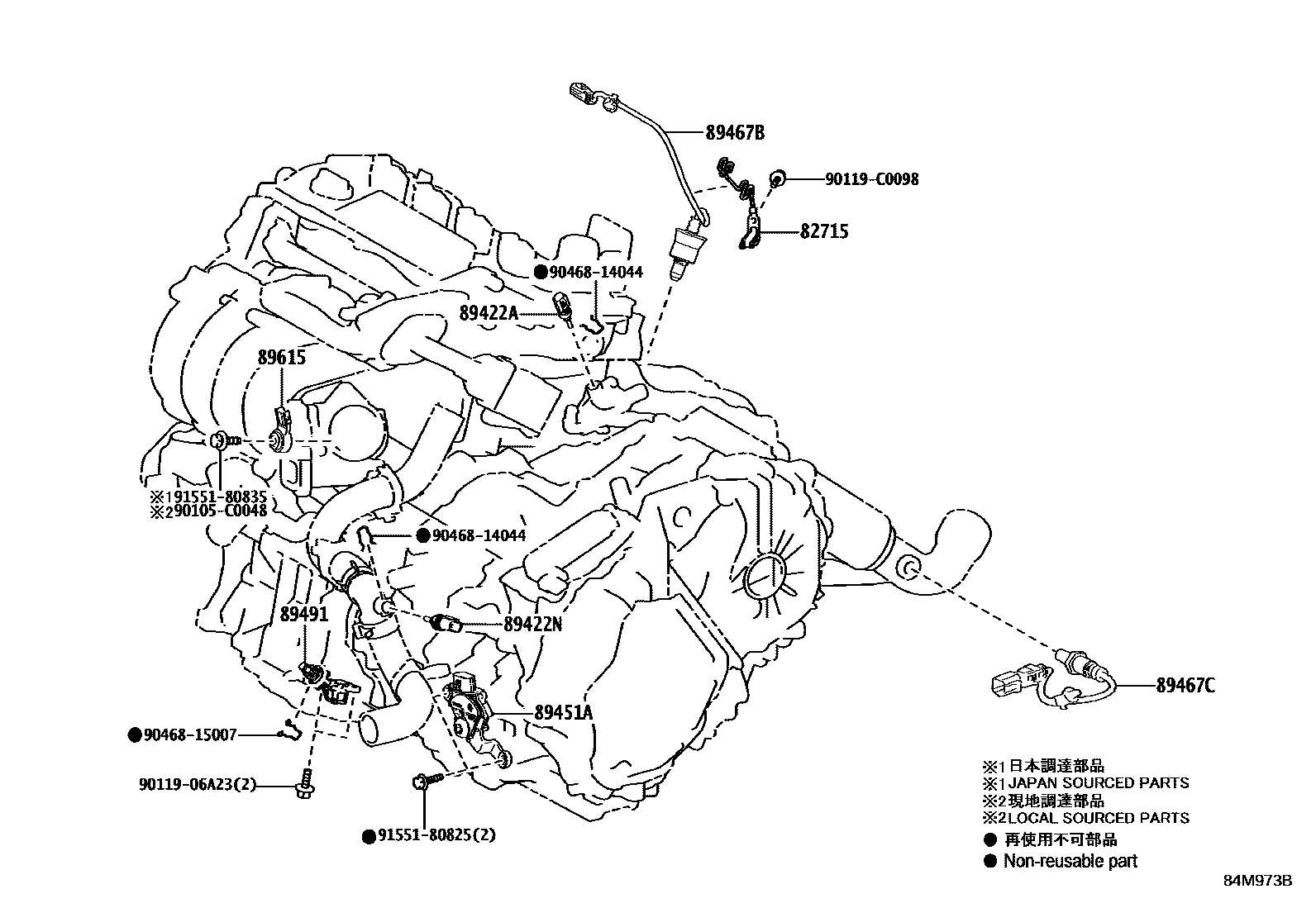

| 89467B | air fuel ratio sensor | 89467-0R110 · 89467-0R190 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-0R140 · 89467-0R170 |
| 8946A | Exhaust sensor clip bracket | 8946A-0E120 |
| 8946AA | No. 2 exhaust sensor clip bracket | 8946A-0R030 |
| 89481B | Differential pressure sensor | 89481-K0010 |
| 89491 | Engine oil level sensor | 89491-06010 · 89491-06011 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-02027 · 90987-T2005 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-02027 · 90987-T2005 |
| 89561H | Electronic fuel injection No. 3 main relay | 90987-02025 · 90987-T2004 |
| 89611 | One-button start switch | 89611-02250 · 89611-0R060 |
| 89615 | knock control sensor | 89615-0E010 · 89615-20090 |
| 89730A | Relay (for safety warnings) | 90987-02027 · 90987-T2005 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89870E | Electronic drive unit relay | 90987-02027 · 90987-T2005 |
| G1167A | Relay (for oil pump motor) | 90987-T2005 |
| G9020E | Hybrid water pump relay | 90987-02027 · 90987-T2005 |
