Toyota RAV4 仪表 — Figure 8301
Toyota RAV4 EPC diagram 8301, 仪表, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

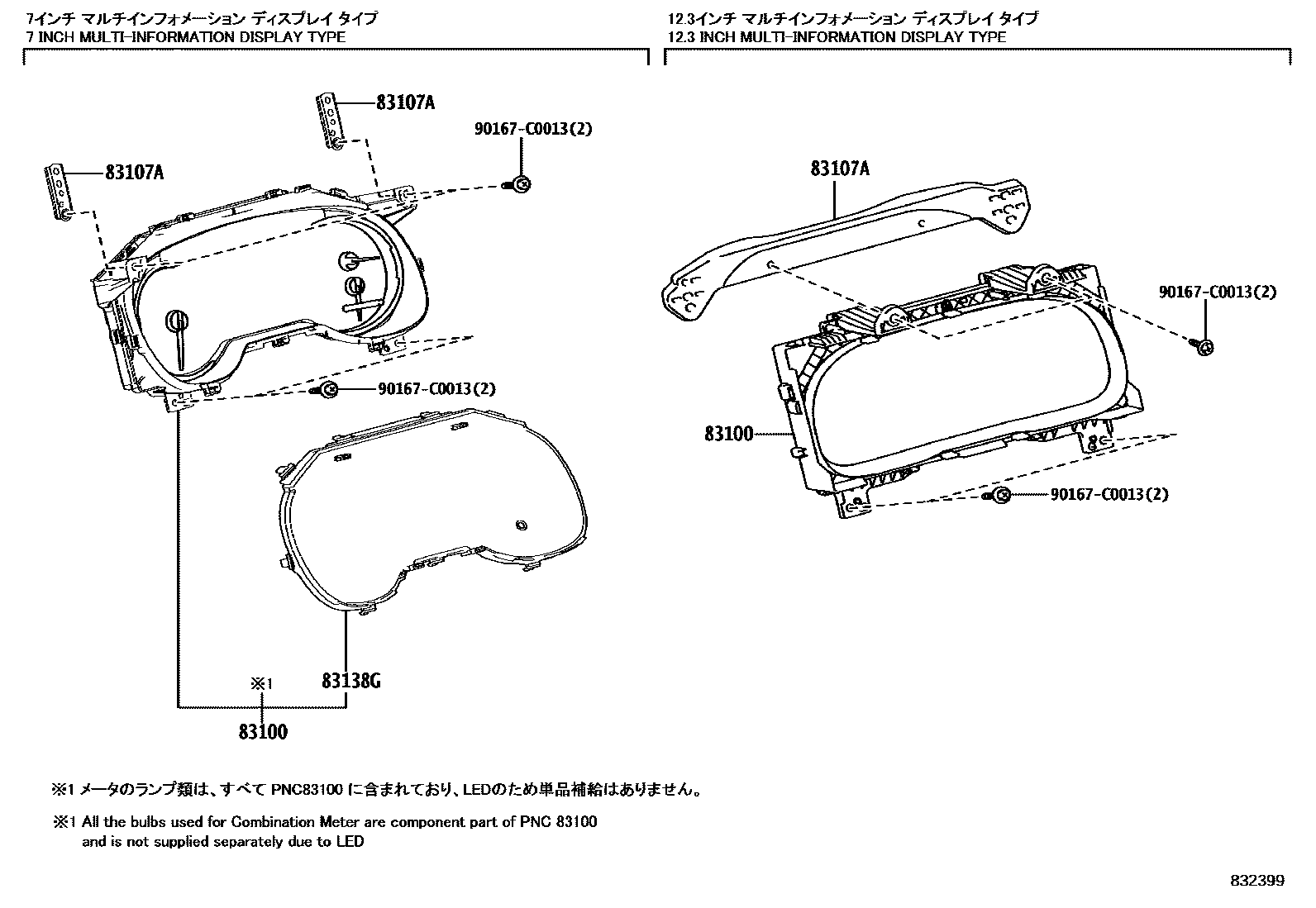

| 83100 | Combined instrument assembly | 83800-0R850 · 83800-0R851 · 83800-0R870 · 83800-0RD20 · 83800-0RD21 · 83800-0RD30 · 83800-0RD31 · 83800-0RD32 · 83800-0RD33 · 83800-0RK50 · 83800-0RK60 · 83800-0RK61 |
| 83107A | No. 1 instrument bracket sub-assembly | 83107-0R020 · 83107-0R030 |

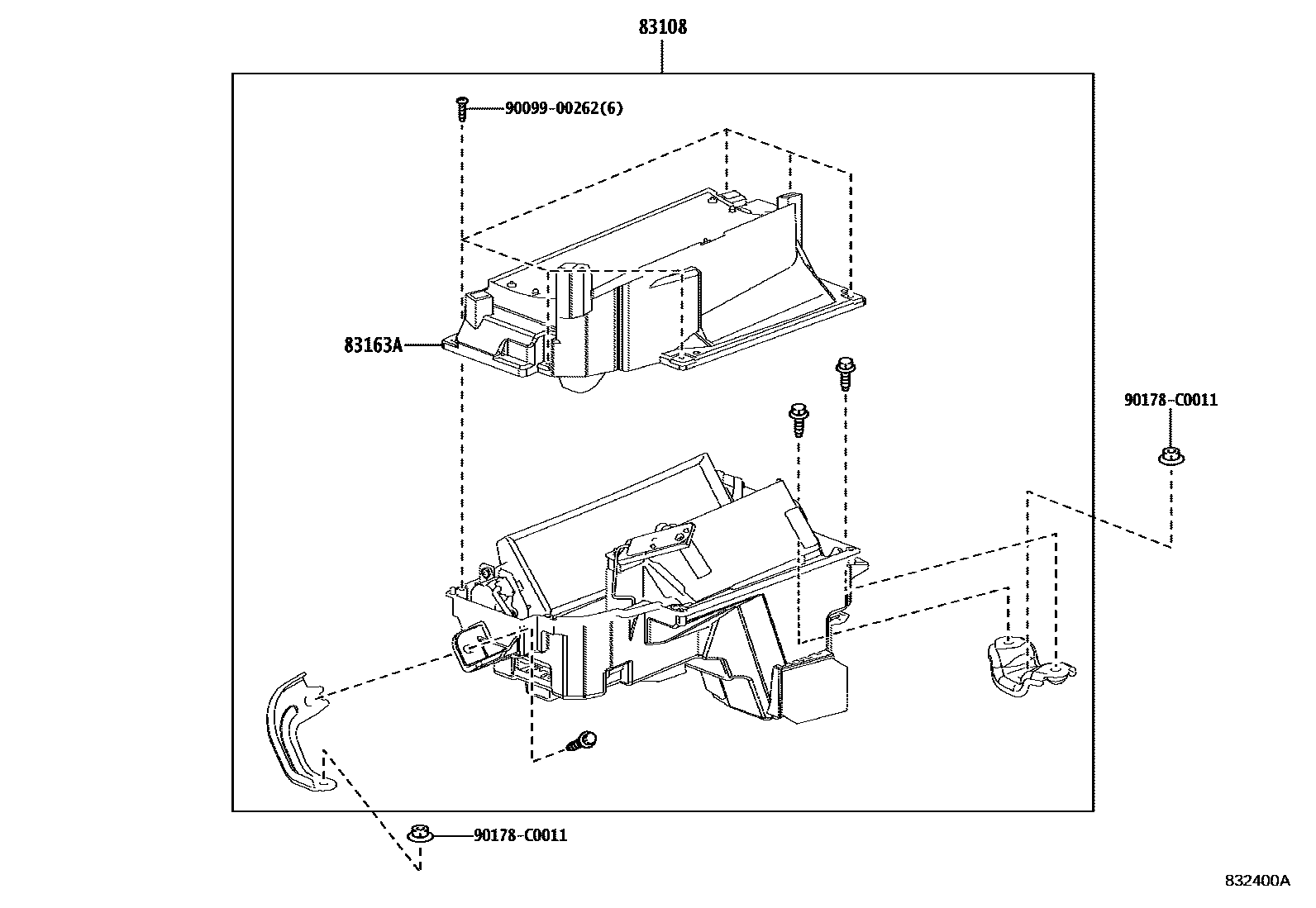

| 83108 | Instrument rearview mirror sub-assembly | 83108-0R030 · 83108-0R031 · 83108-0R060 · 83108-0R061 · 83108-0R062 · 83108-0R110 |
| 83138G | Instrument cluster glass | 83852-0R570 |
| 83163A | Combined instrument mirror panel | 83163-0R020 · 83163-0R021 · 83163-0R070 |
