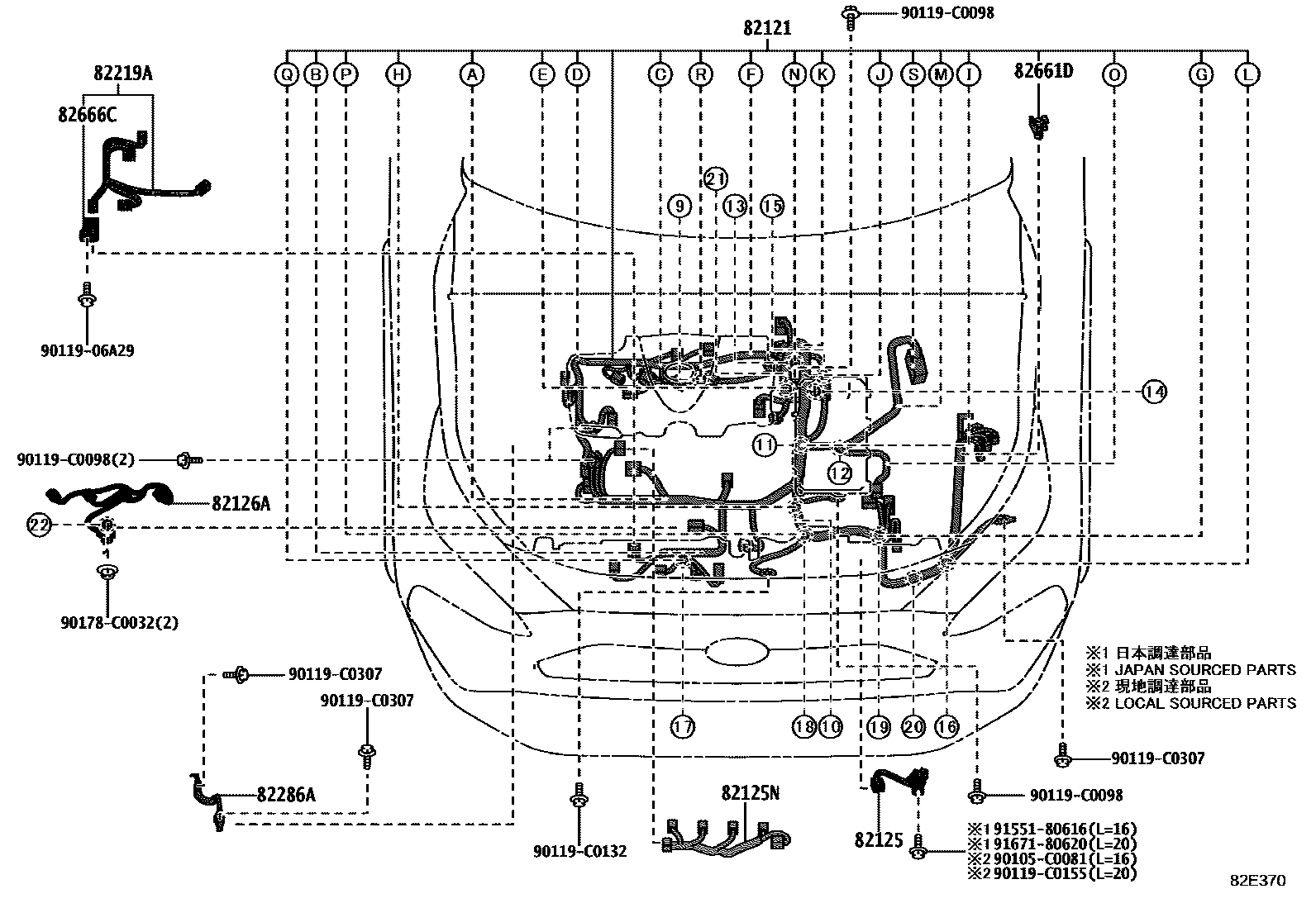

Toyota RAV4 线束和卡夹 — Figure 8202
Toyota RAV4 EPC diagram 8202, 线束和卡夹, with 15 images and 136 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81269B | fog light seal | 81269-42010 |

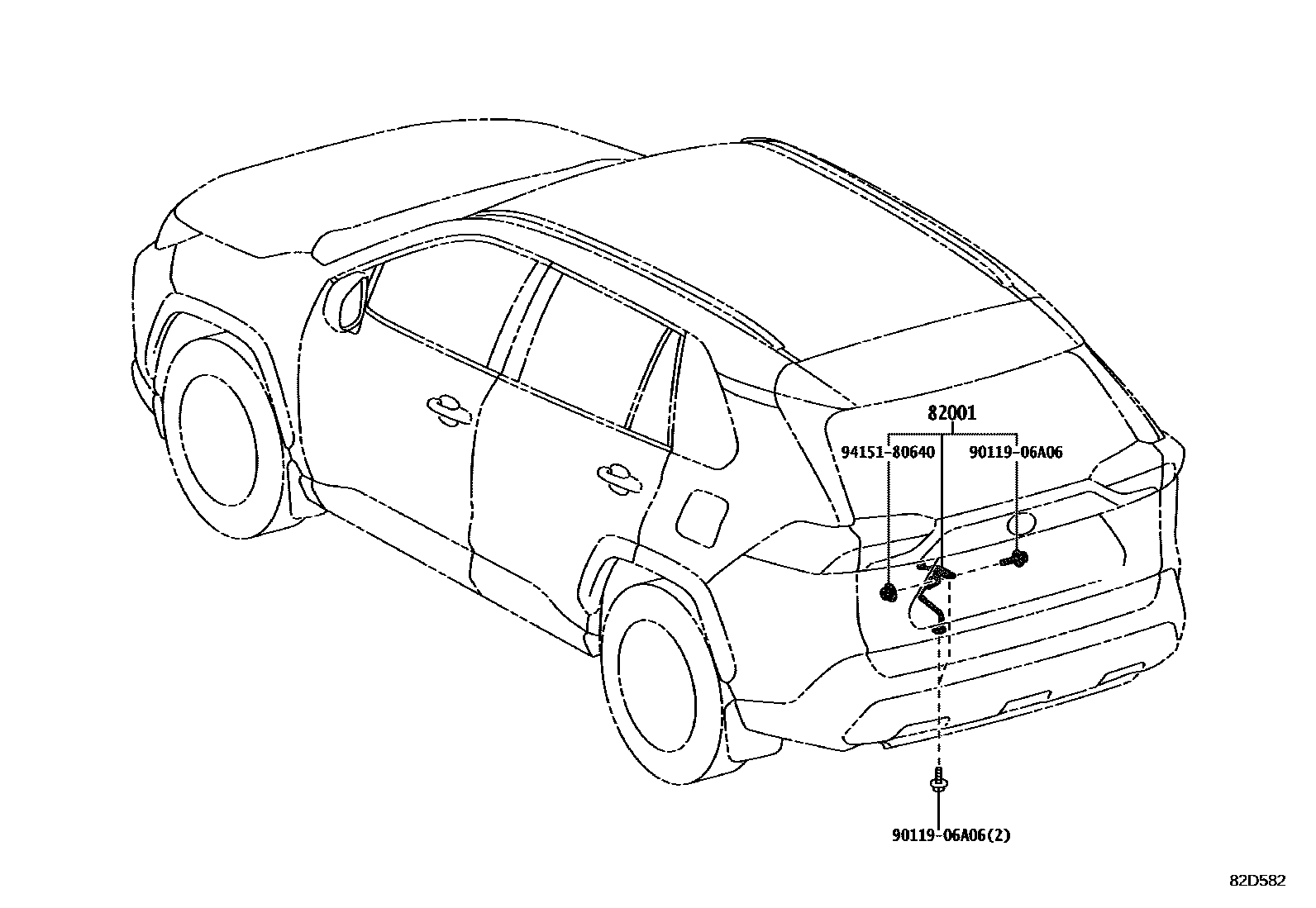

| 82001 | Connection cable No. 1 | G1570-42010 |

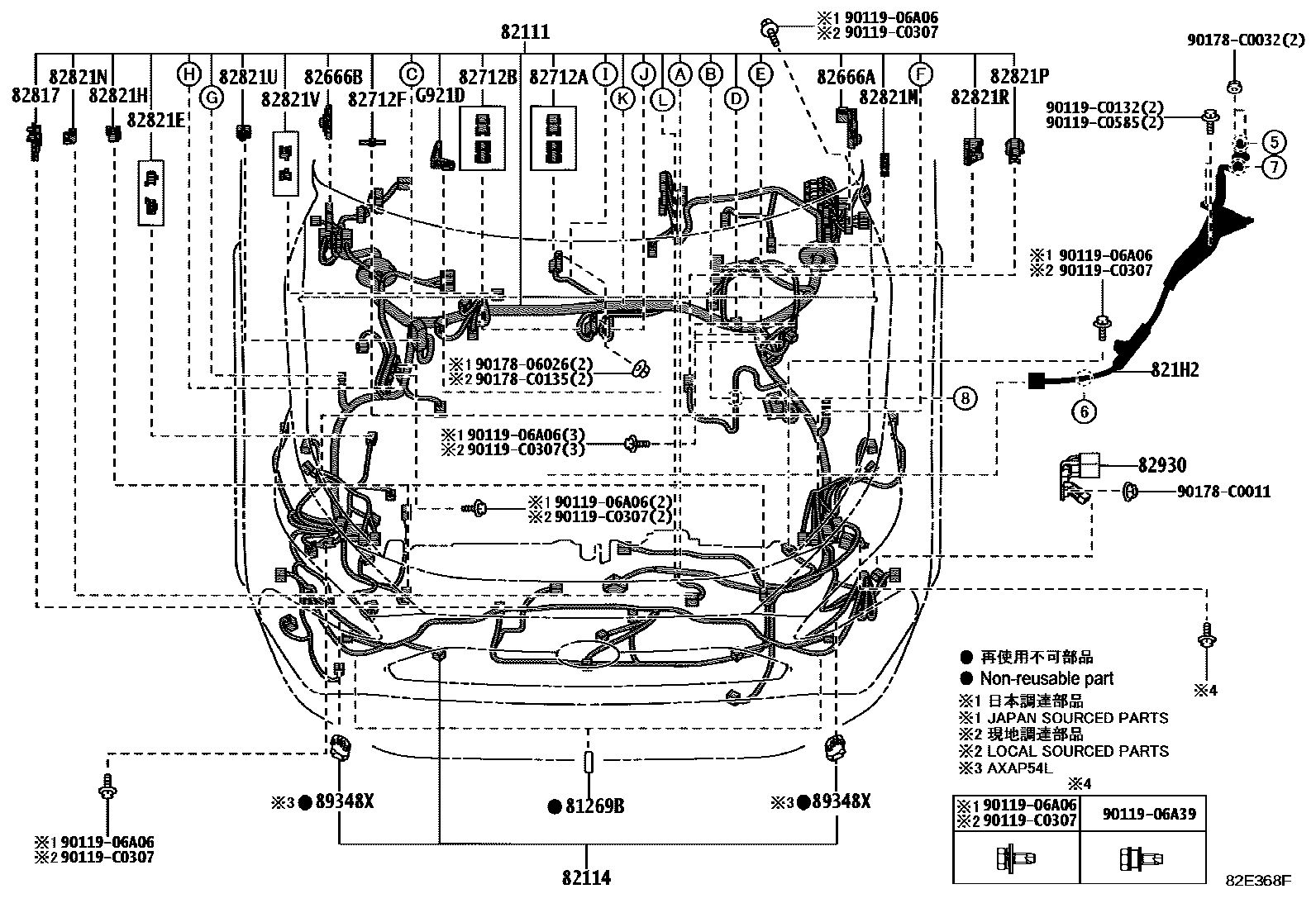

| 82111 | Engine room main wiring harness | 82111-0RA70 · 82111-0RA71 · 82111-0RA72 · 82111-0RA73 · 82111-0RA80 · 82111-0RA81 · 82111-0RA82 · 82111-0RA83 · 82111-0RA90 · 82111-0RA91 · 82111-0RA92 · 82111-0RA93 · 82111-0RA94 · 82111-0RL60 · 82111-0RL61 · 82111-0RL70 |
| 82114 | Engine room wiring harness No. 4 | 82114-0R270 · 82114-0R280 · 82114-0R290 · 82114-0R300 · 82114-0R310 |
| 82121 | Engine wiring harness | 82121-0R540 · 82121-0R541 |
| 82125 | Transmission wiring harness | 82125-0E090 |
| 82125N | Engine No. 5 wiring harness | 82125-0E070 |

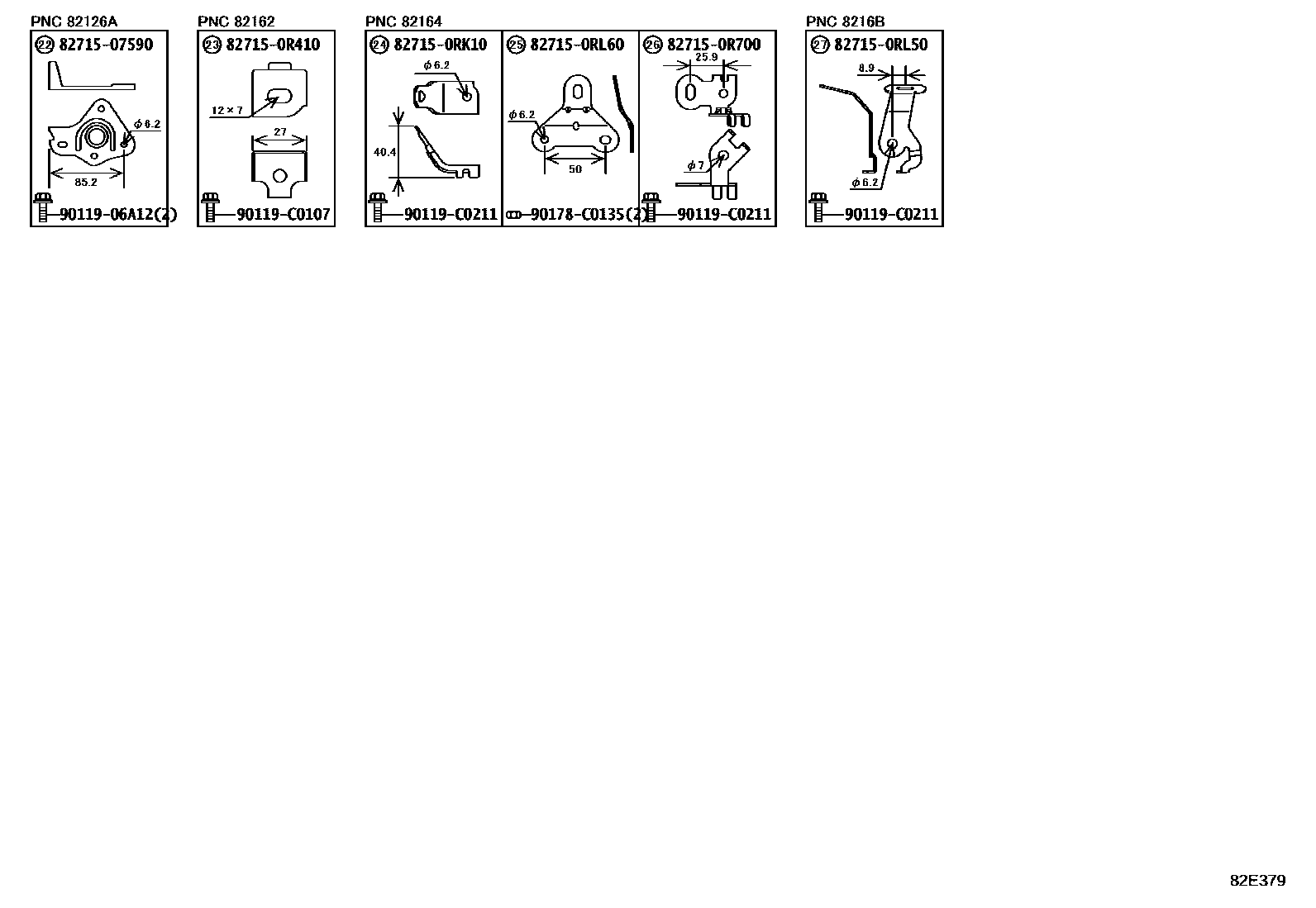

| 82126A | No. 6 engine wiring harness | 82126-0E040 |

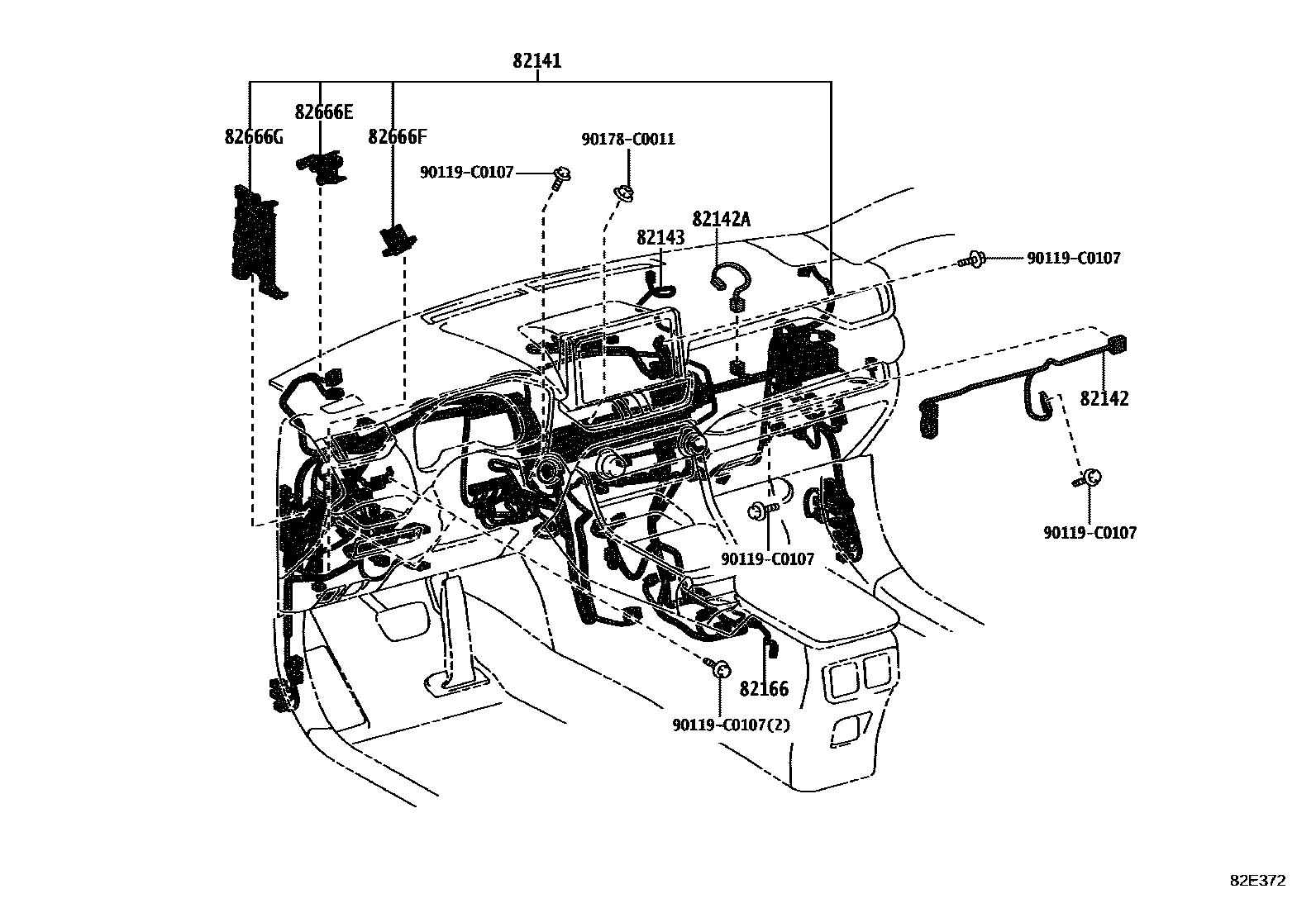

| 82141 | Dashboard wiring harness | 82141-0RB20 · 82141-0RB21 · 82141-0RL40 · 82141-0RL41 · 82141-0RL42 · 82141-0RL43 · 82141-0RL44 · 82141-0RL50 · 82141-0RL51 · 82141-0RL52 · 82141-0RL53 · 82141-0RL54 · 82141-0RL60 · 82141-0RL61 · 82141-0RL62 · 82141-0RL63 · 82141-0RL64 · 82141-0RP90 · 82141-0RP91 · 82141-0RP92 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-0R090 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-0R081 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-0R080 |

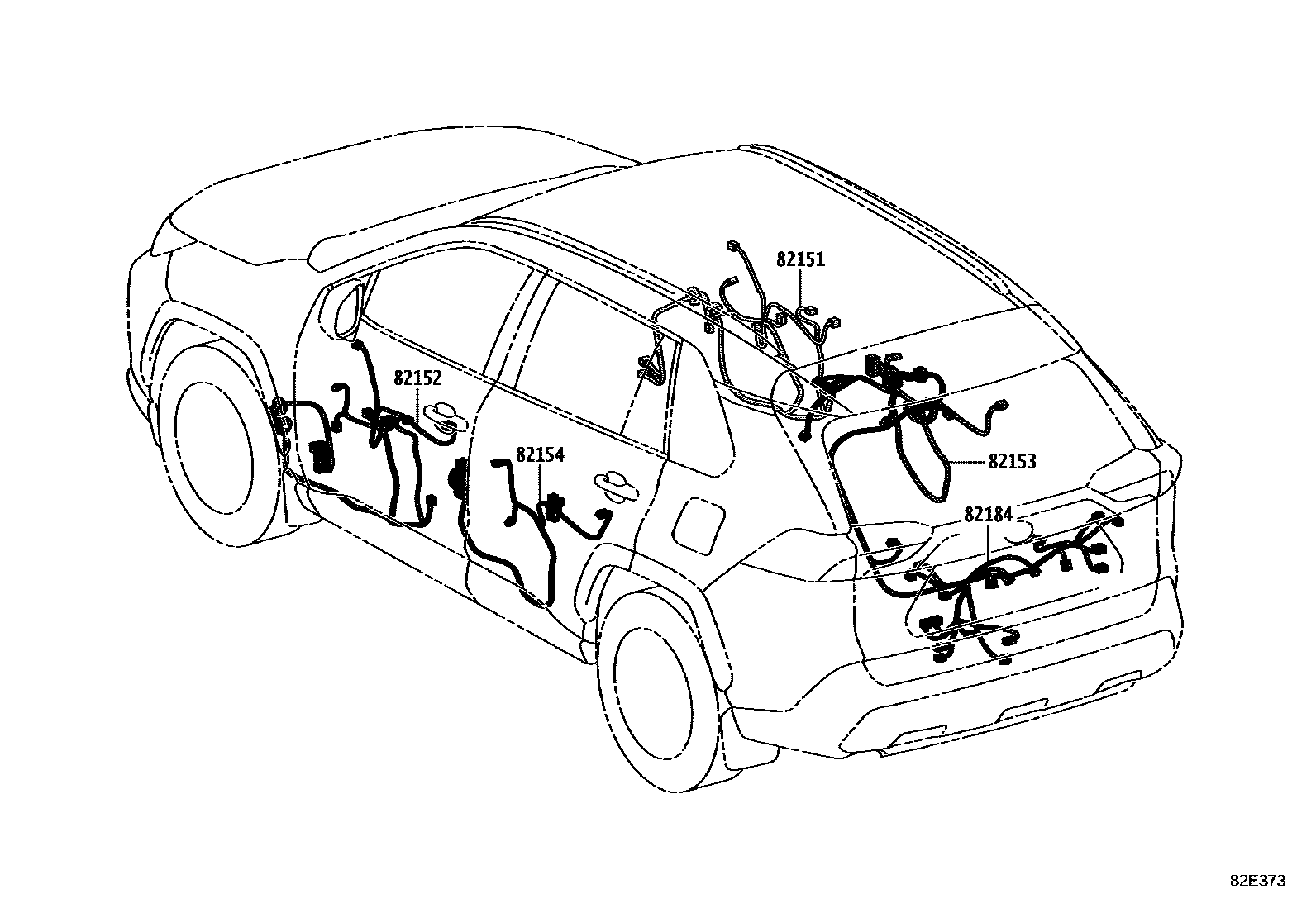

| 82151 | Right front door wiring harness | 82151-0R410 · 82151-0R411 · 82151-0R412 · 82151-0R420 · 82151-0R540 · 82151-0R541 · 82151-0R600 · 82151-0R601 · 82151-0R660 · 82151-0R870 |
| 82152 | Left front door wiring harness | 82152-0R460 · 82152-0R461 · 82152-0R462 · 82152-0R470 · 82152-0R600 · 82152-0R601 · 82152-0R650 · 82152-0R651 · 82152-0R730 · 82152-0RA60 |
| 82153 | Rear door wiring harness No. 1 | 82153-0R070 · 82153-0R071 |
| 82154 | Rear door wiring harness No. 2 | 82154-0R050 · 82154-0R051 |

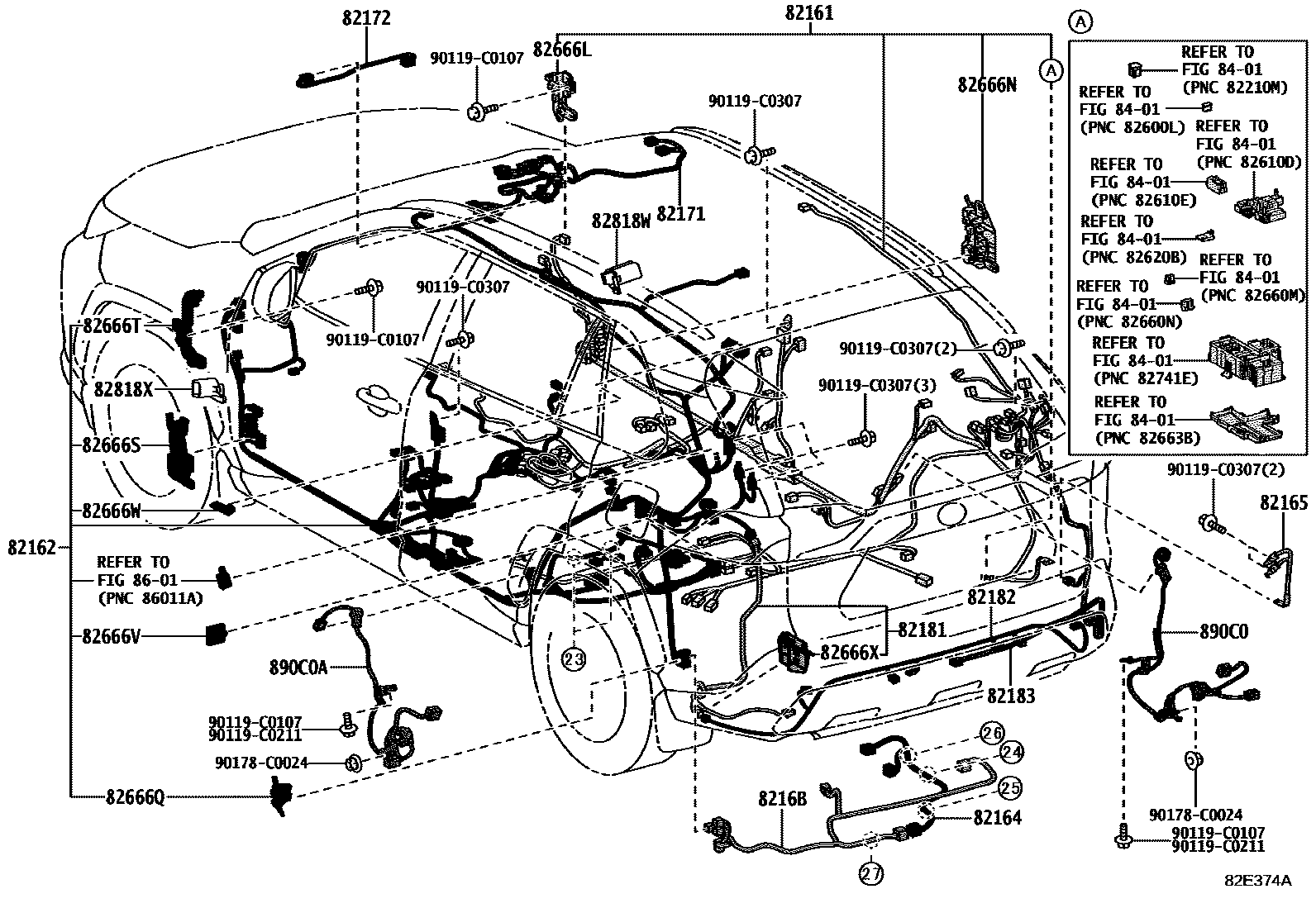

| 82161 | floor wiring harness | 82161-0R450 · 82161-0R451 · 82161-0R452 · 82161-0R860 · 82161-0R870 · 82161-0R871 · 82161-0RG40 · 82161-0RG41 |
| 82162 | Floor wiring harness No. 2 | 82162-0R460 · 82162-0R461 · 82162-0R462 · 82162-0R463 · 82162-0RB60 · 82162-0RB61 · 82162-0RB62 · 82162-0RB63 · 82162-0RB70 · 82162-0RB71 · 82162-0RB72 · 82162-0RB73 · 82162-0RB80 · 82162-0RB81 · 82162-0RB82 · 82162-0RB83 |
| 82164 | Frame wiring harness set | 82164-0R220 |
| 82165 | No. 2 frame wiring harness | 82165-0R060 · 82165-0R061 |
| 82166 | Armrest box wiring harness | 82166-0R020 |
| 8216B | No. 8 floor wiring harness | 8216B-0R060 · 8216B-0R080 · 8216B-0R081 |
| 82171 | Roof No. 1 wiring harness | 82171-0RA60 · 82171-0RA70 · 82171-0RA80 · 82171-0RA90 · 82171-0RB00 · 82171-0RB01 · 82171-0RE30 · 82171-0RE40 · 82171-0RE50 · 82171-0RE60 · 82171-0RE70 · 82171-0RE71 · 82171-0RK70 · 82171-0RK80 · 82171-0RK90 · 82171-0RL00 · 82171-0RM70 · 82171-0RM80 · 82171-0RN10 · 82171-0RN20 |
| 82172 | Roof No. 2 wiring harness | 82172-0R020 |
| 82181 | Luggage No. 1 wiring harness | 82181-0R271 · 82181-0R281 · 82181-0R400 |
| 82182 | Luggage No. 2 wiring harness | 82182-0R171 · 82182-0R220 · 82182-0R270 |
| 82183 | Luggage No. 3 wiring harness | 82183-0R100 · 82183-0R101 · 82183-0R440 · 82183-0R441 · 82183-0R480 |
| 82184 | Rear door No. 1 wiring harness | 82184-0R580 · 82184-0R581 · 82184-0R590 · 82184-0R591 · 82184-0R750 · 82184-0R751 |

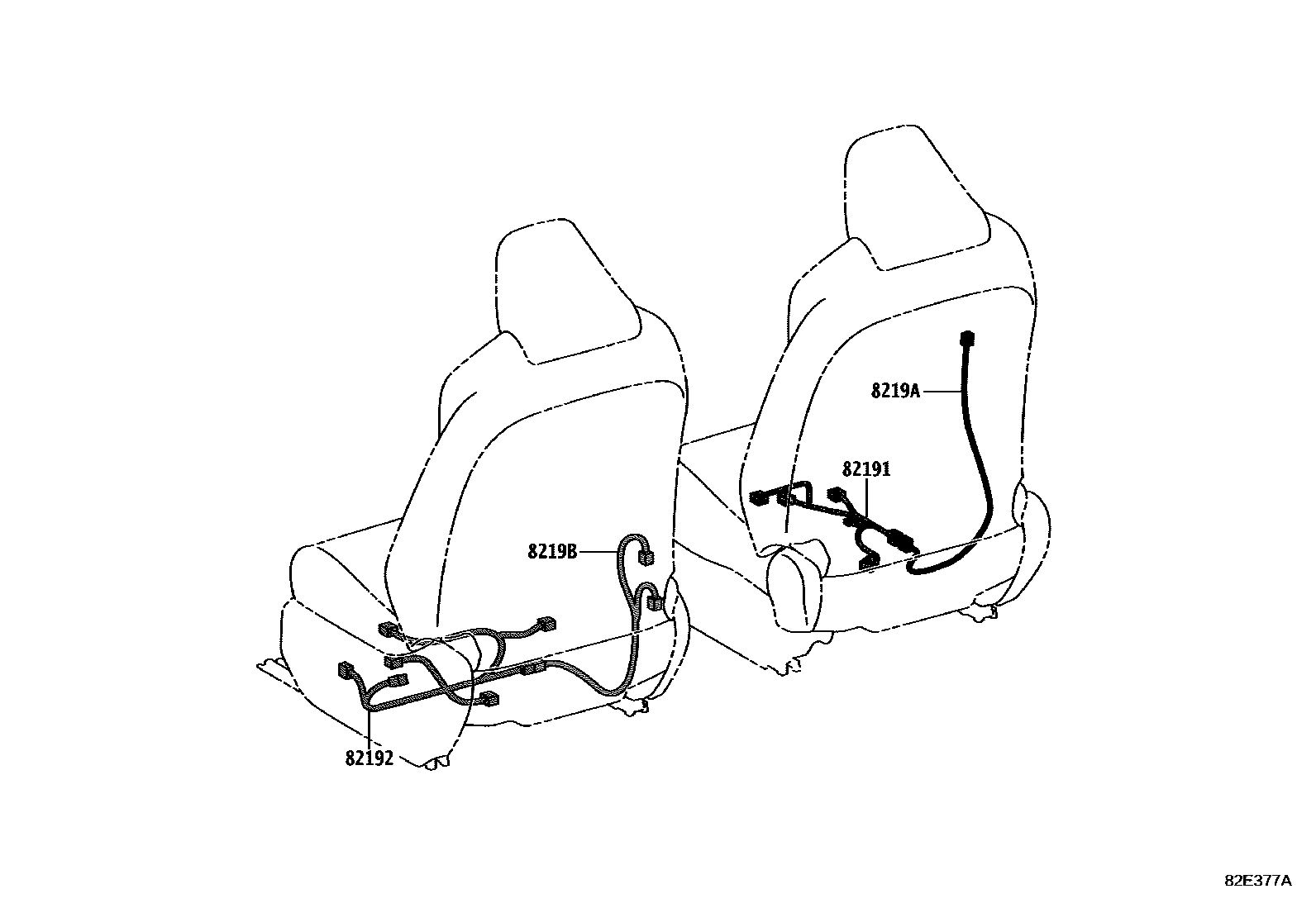

| 82191 | Front right seat wiring harness | 82191-0R200 |
| 82192 | Front left seat wiring harness | 82192-0R240 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0E220 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-0R100 |

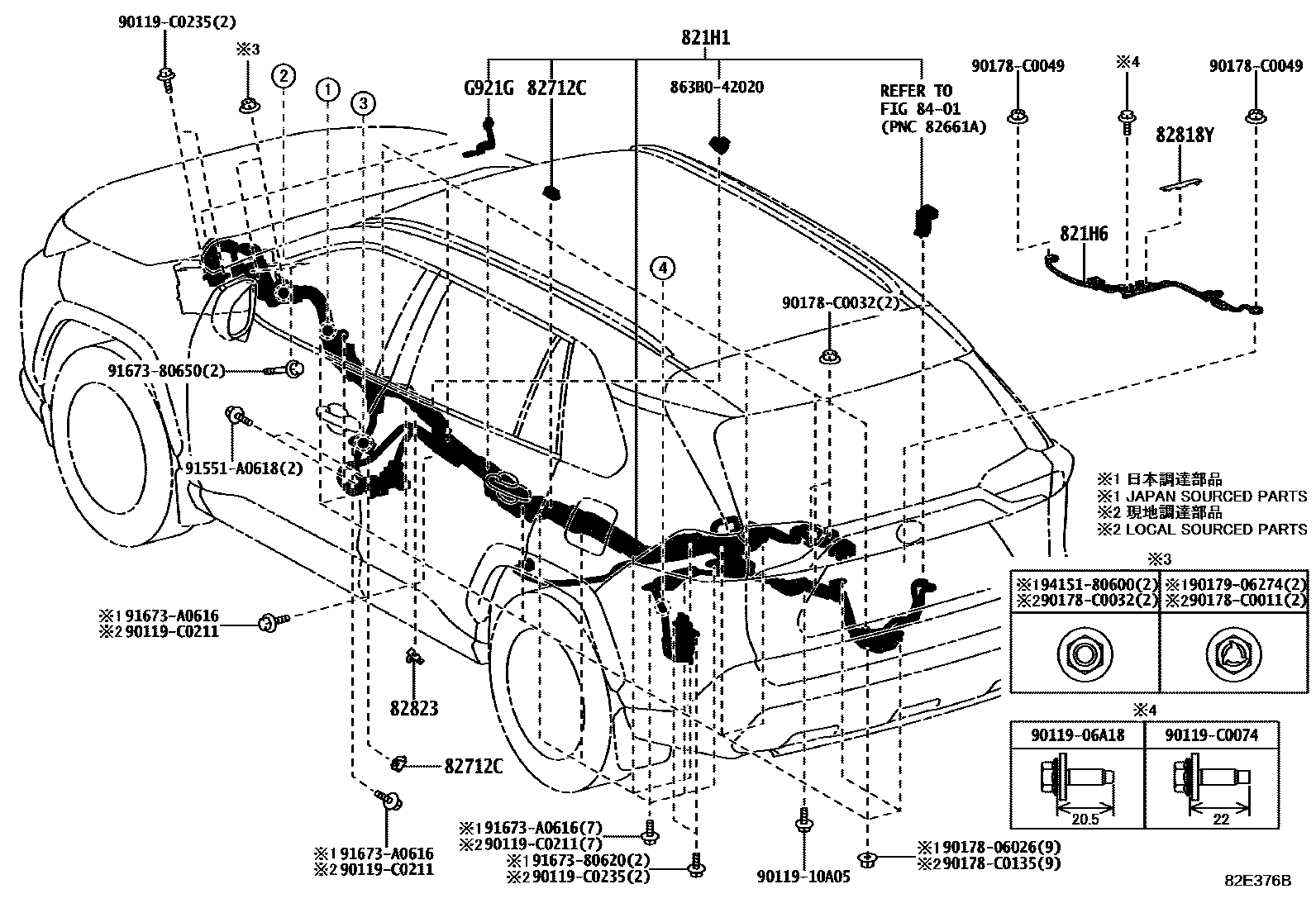

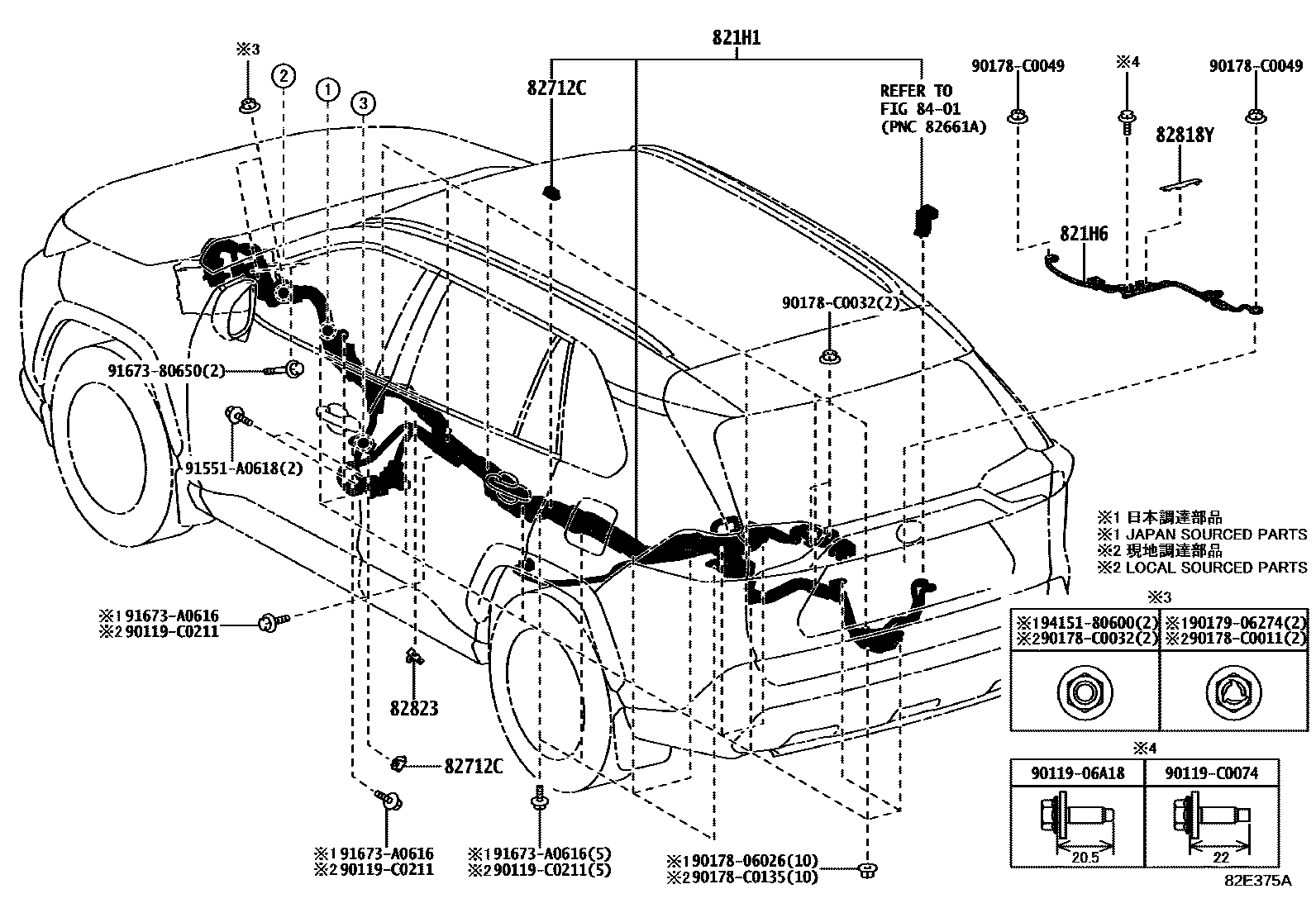

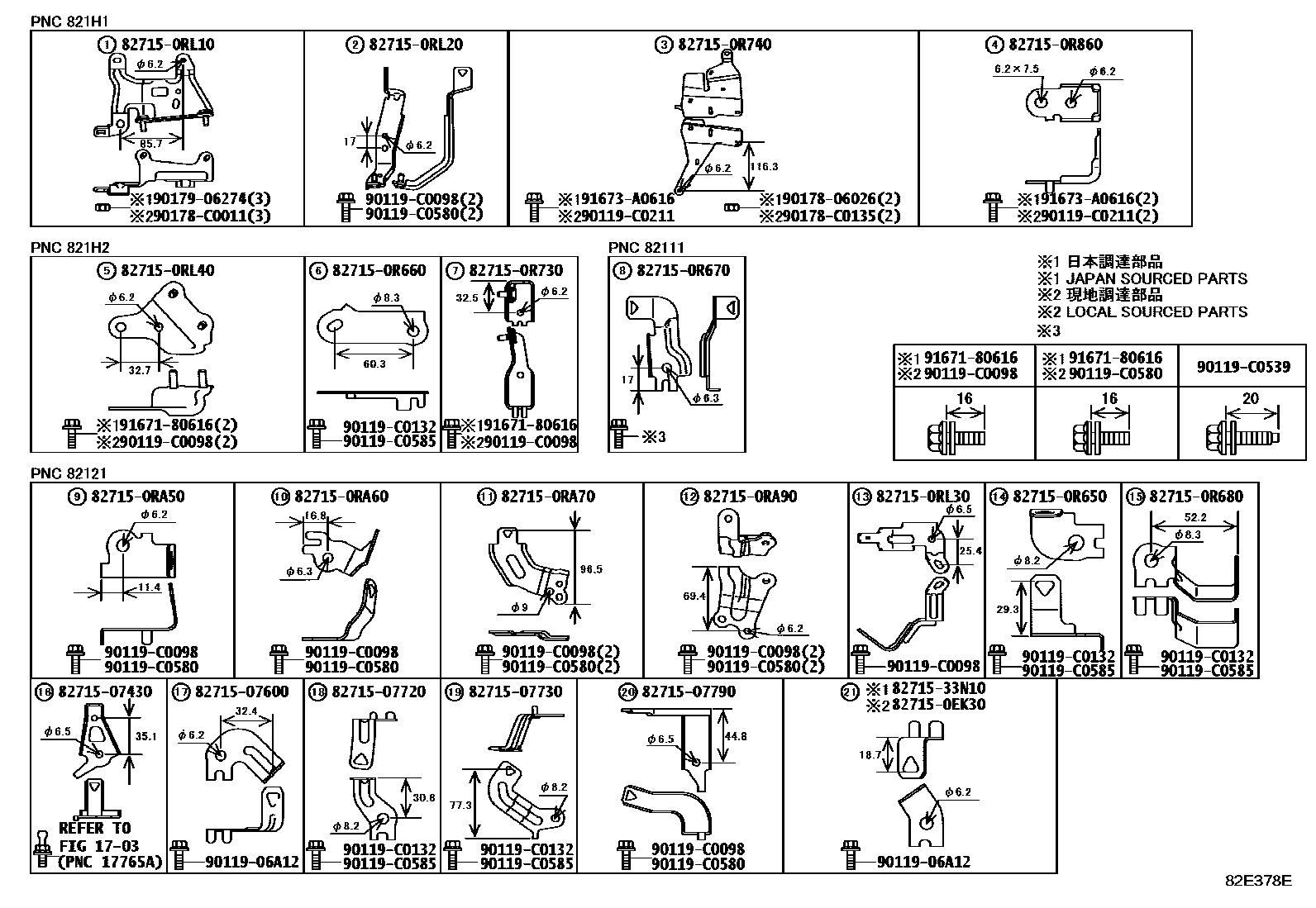

| 821H1 | Underfloor wiring harness | 821H1-0R060 · 821H1-0R070 · 821H1-0R071 · 821H1-0R072 · 821H1-0R073 |
| 821H2 | HV air conditioner wiring harness | 821H2-0R060 |
| 821H6 | No. 2 HV underfloor wiring harness | 821H6-0R010 |
| 82219A | sensor harness | 82219-0E080 · 82219-33140 · 82219-33141 |
| 82286A | Line 2 | 82286-0R100 |
| 82661D | No. 1 relay box side cover | 82661-42090 |
| 82666A | Connector holder No. 2 | 82666-42710 |
| 82666B | No. 3 connector holder | 82666-60220 |
| 82666C | No. 4 connector holder | 82666-33720 |
| 82666E | No. 6 connector holder | 82666-42490 |
| 82666F | No. 7 connector holder | 82666-42640 |
| 82666G | No. 8 connector holder | 82666-42690 |
| 82666L | No. 9 connector holder | 82666-42520 |
| 82666N | No. 10 connector holder | 82666-42550 |
| 82666Q | No. 12 connector holder | 82666-42570 |
| 82666S | No. 13 connector holder | 82666-42600 |
| 82666T | No. 14 connector socket | 82666-42610 |
| 82666V | No. 15 connector holder | 82666-48130 |
| 82666W | No. 16 connector socket | 82666-60310 |
| 82666X | No. 17 connector holder | 82666-0R410 |
| 82712A | Wire harness bracket | 82712-42150 |
| 82712B | Wire harness bracket | 82712-42180 |
| 82712C | No. 1 wiring harness bracket | 82712-33170 |
| 82712D | Wire harness bracket | 82712-33190 |
| 82712F | Wire harness bracket | 82712-44060 |

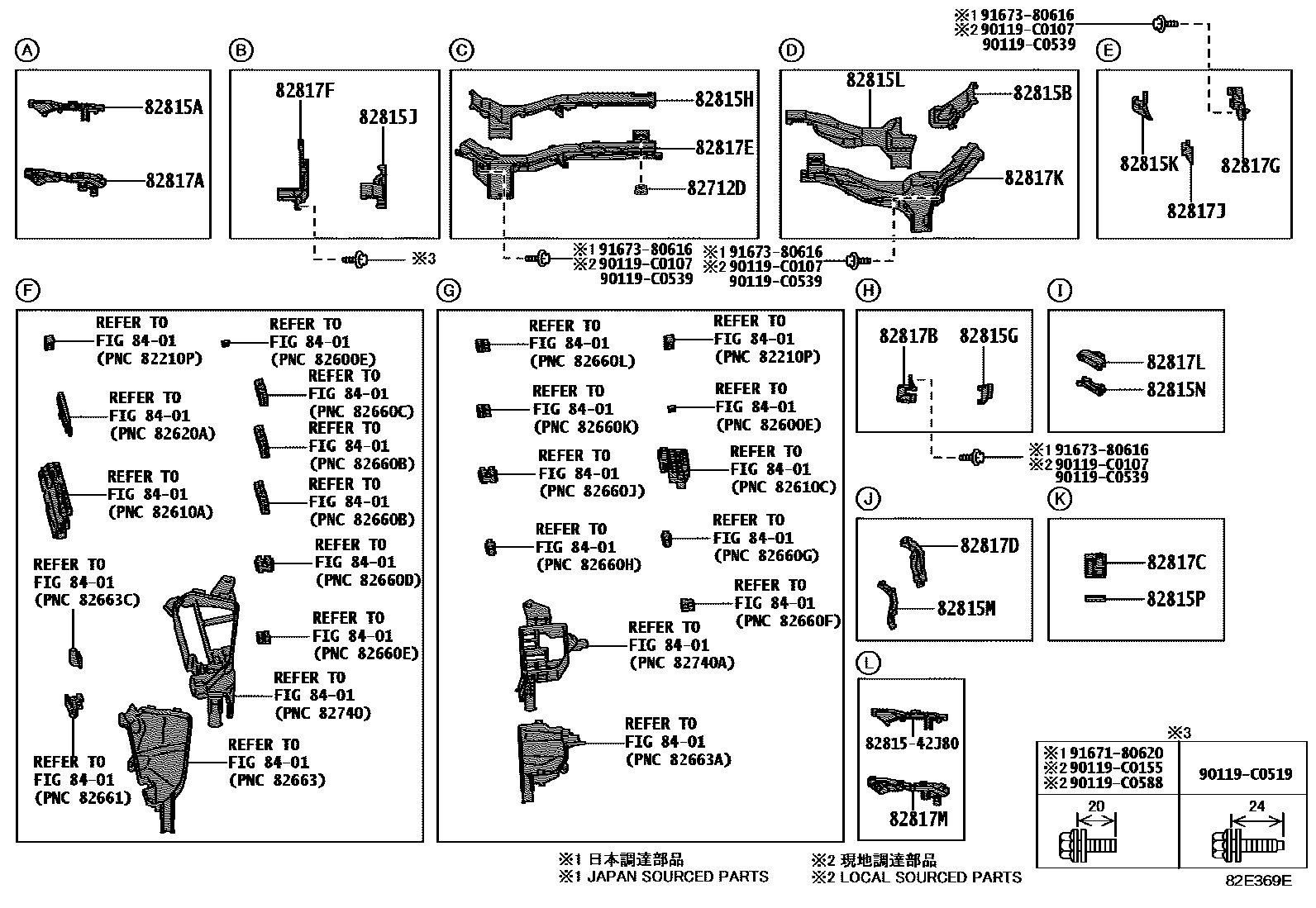

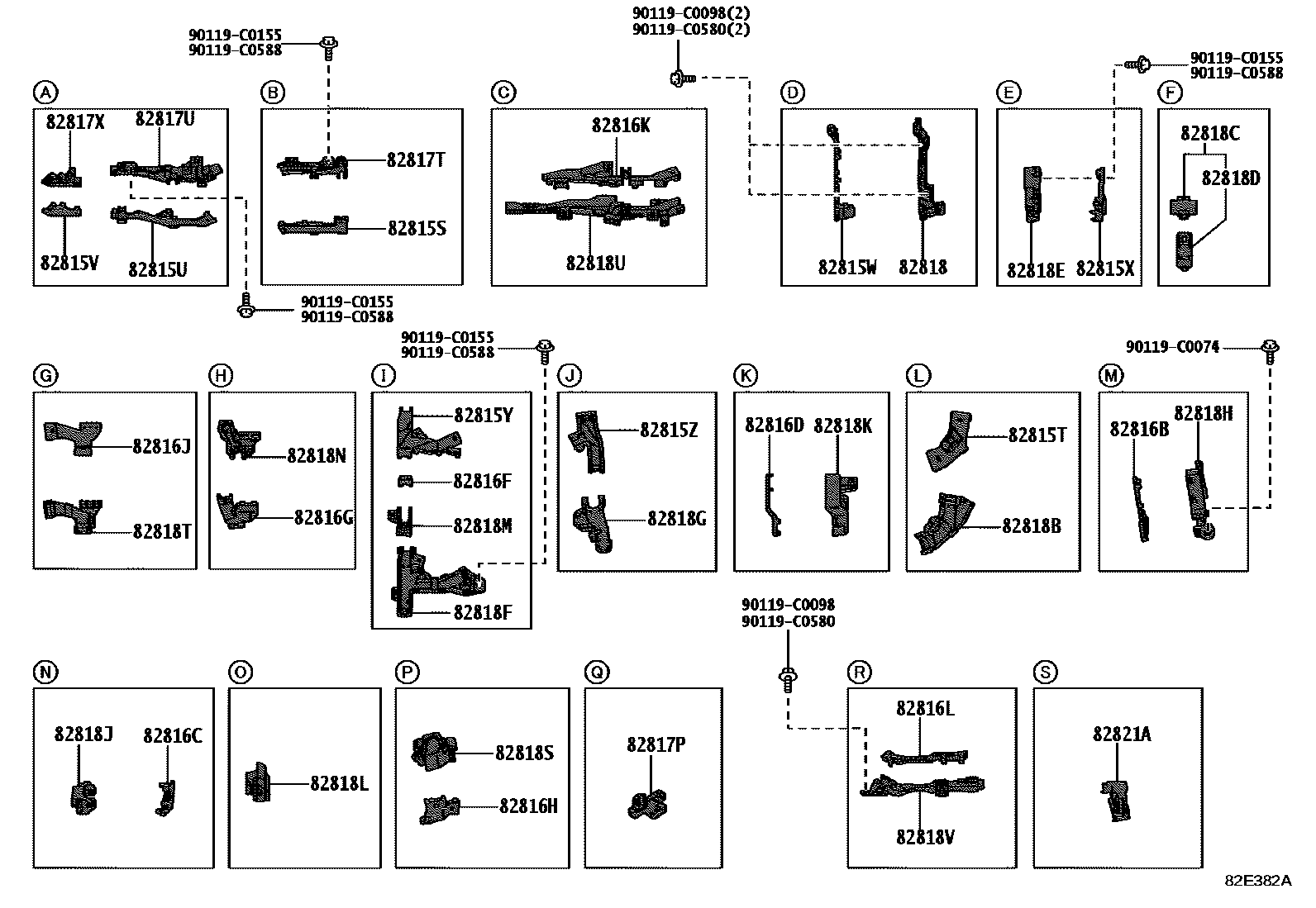

| 82815A | Wiring harness protector cover | 82815-42180 |
| 82815B | Wiring harness protector cover | 82815-42270 |
| 82815G | No. 5 wire harness protector cover | 82815-42570 |
| 82815H | No. 6 wire harness protector cover | 82815-42F00 |
| 82815J | No. 7 wire harness protector cover | 82815-42F30 |
| 82815K | No. 8 wire harness protector cover | 82815-42F40 |
| 82815L | No. 9 wire harness protector cover | 82815-42F60 |
| 82815M | No. 10 wire harness protector cover | 82815-42G50 |
| 82815N | No. 11 wire harness protector cover | 82815-42G60 |
| 82815P | No. 12 wire harness protector cover | 82815-42G70 |
| 82815S | No. 15 wire harness protector cover | 82815-0E800 |
| 82815T | No. 16 wire harness protector cover | 82815-0R340 |
| 82815U | No. 17 wire harness protector cover | 82815-0R290 |
| 82815V | No. 1 wire harness protector cover | 82815-0R110 |
| 82815W | No. 2 wire harness protector cover | 82815-33J00 |
| 82815X | No. 3 wire harness protector cover | 82815-0R120 |
| 82815Y | No. 4 wire harness protector cover | 82815-0R660 |
| 82815Z | No. 18 wire harness protector cover | 82815-0R650 |
| 82816B | No. 1 wire harness protector cover | 82815-0R640 |
| 82816C | No. 2 wire harness protector cover | 82815-0EG60 · 82815-0R200 · 82815-42C60 |
| 82816D | No. 3 wire harness protector cover | 82815-0R680 |
| 82816F | No. 4 wire harness protector cover | 82815-0R670 |
| 82816G | No. 5 wire harness protector cover | 82815-42G00 |
| 82816H | No. 6 wire harness protector cover | 82815-42G10 |
| 82816J | No. 7 wire harness protector cover | 82815-42G20 |
| 82816K | No. 8 wire harness protector cover | 82815-0EG50 · 82815-33G90 · 82815-48F90 |
| 82816L | No. 9 wire harness protector cover | 82815-42680 |
| 82817 | No. 1 wire harness protection device | 82817-42A90 |
| 82817A | No. 2 wire harness protection device | 82817-42B60 |
| 82817B | No. 3 wire harness protection device | 82817-42F90 |
| 82817C | No. 4 wire harness protection device | 82817-42R70 |
| 82817D | No. 5 wire harness protection device | 82817-42S00 |
| 82817E | No. 6 wire harness protection device | 82817-42S10 |
| 82817F | No. 7 wire harness protection device | 82817-42S20 |
| 82817G | No. 8 wire harness protection device | 82817-42S30 |
| 82817J | No. 9 wire harness protection device | 82817-42S40 |
| 82817K | No. 10 wire harness protection device | 82817-42S60 |
| 82817L | No. 11 wire harness protection device | 82817-42T40 |
| 82817M | No. 12 wire harness protection device | 82817-42L70 |
| 82817P | No. 14 wire harness protection device | 82817-0EB40 |
| 82817T | No. 15 wire harness protection device | 82817-0ED60 |
| 82817U | No. 16 wire harness protection device | 82817-0R790 |
| 82817X | No. 17 wire harness protection device | 82817-0R590 |
| 82818 | No. 2 wire harness protection device | 82817-33S60 |
| 82818B | No. 3 wire harness protection device | 82817-0R840 |
| 82818C | No. 4 wire harness protection device | 82817-0R580 |
| 82818D | No. 5 wire harness protection device | 82817-0R690 |
| 82818E | No. 6 wire harness protection device | 82817-0R600 |
| 82818F | No. 7 wire harness protection device | 82817-0RE00 |
| 82818G | No. 8 wire harness protection device | 82817-0RD90 |
| 82818H | No. 9 wire harness protection device | 82817-0RD80 |
| 82818J | No. 10 wire harness protection device | 82817-0EQ40 · 82817-0R670 · 82817-42P40 |
| 82818K | No. 11 wire harness protection device | 82817-0RE20 |
| 82818L | No. 12 wire harness protection device | 82817-0RD70 |
| 82818M | No. 13 wire harness protection device | 82817-0RE10 |
| 82818N | No. 14 wire harness protection device | 82817-42T00 |
| 82818S | No. 15 wire harness protection device | 82817-42T10 |
| 82818T | No. 16 wire harness protection device | 82817-42T20 |
| 82818U | No. 17 wire harness protection device | 82817-0EQ30 · 82817-33S50 · 82817-48W20 |
| 82818V | No. 18 wire harness protection device | 82817-42G70 |
| 82818W | No. 19 wire harness protection device | 82817-0RB50 |
| 82818X | No. 20 wire harness protection device | 82817-0RB40 |
| 82818Y | No. 21 wire harness protection device | 82817-42T70 |

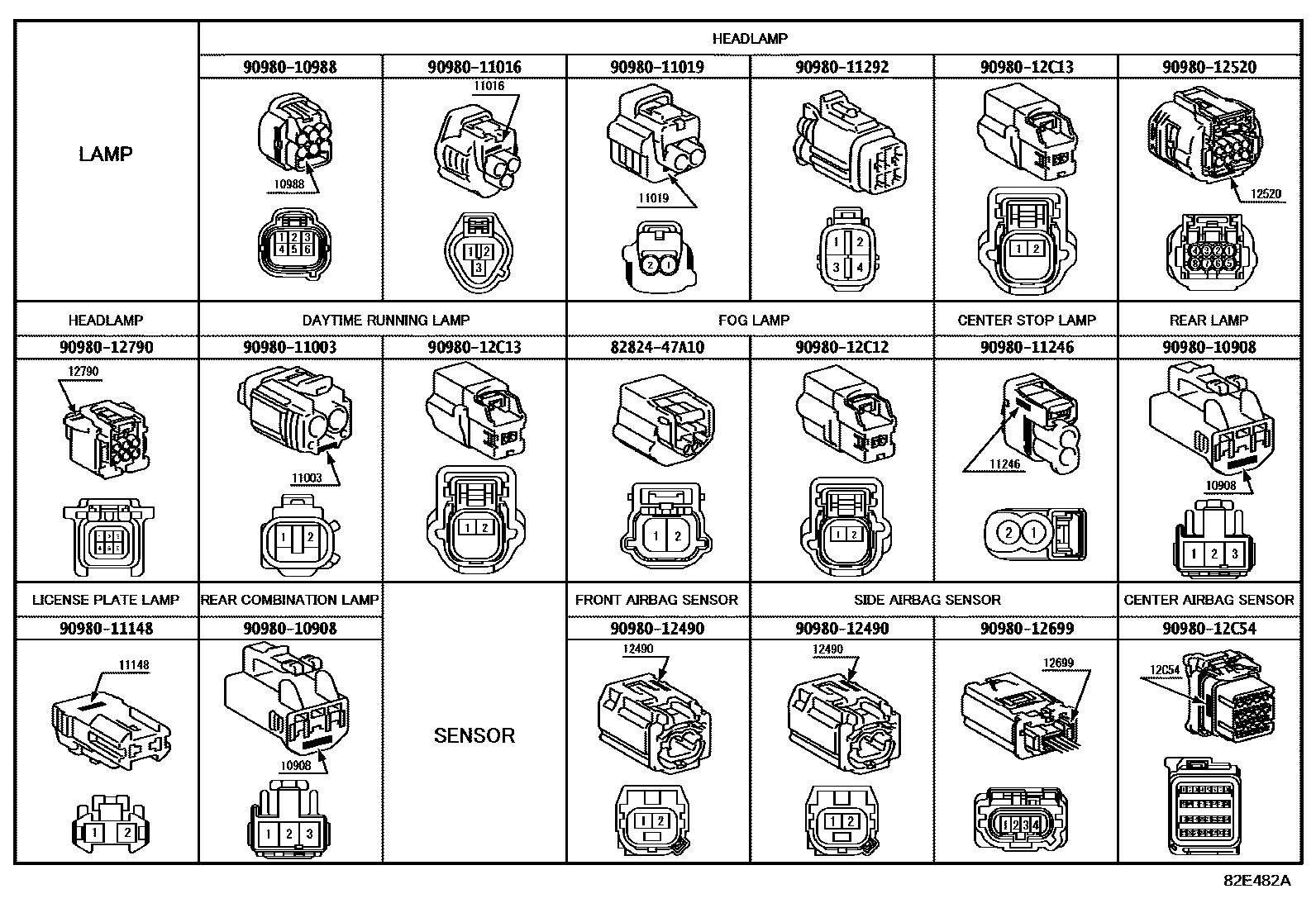

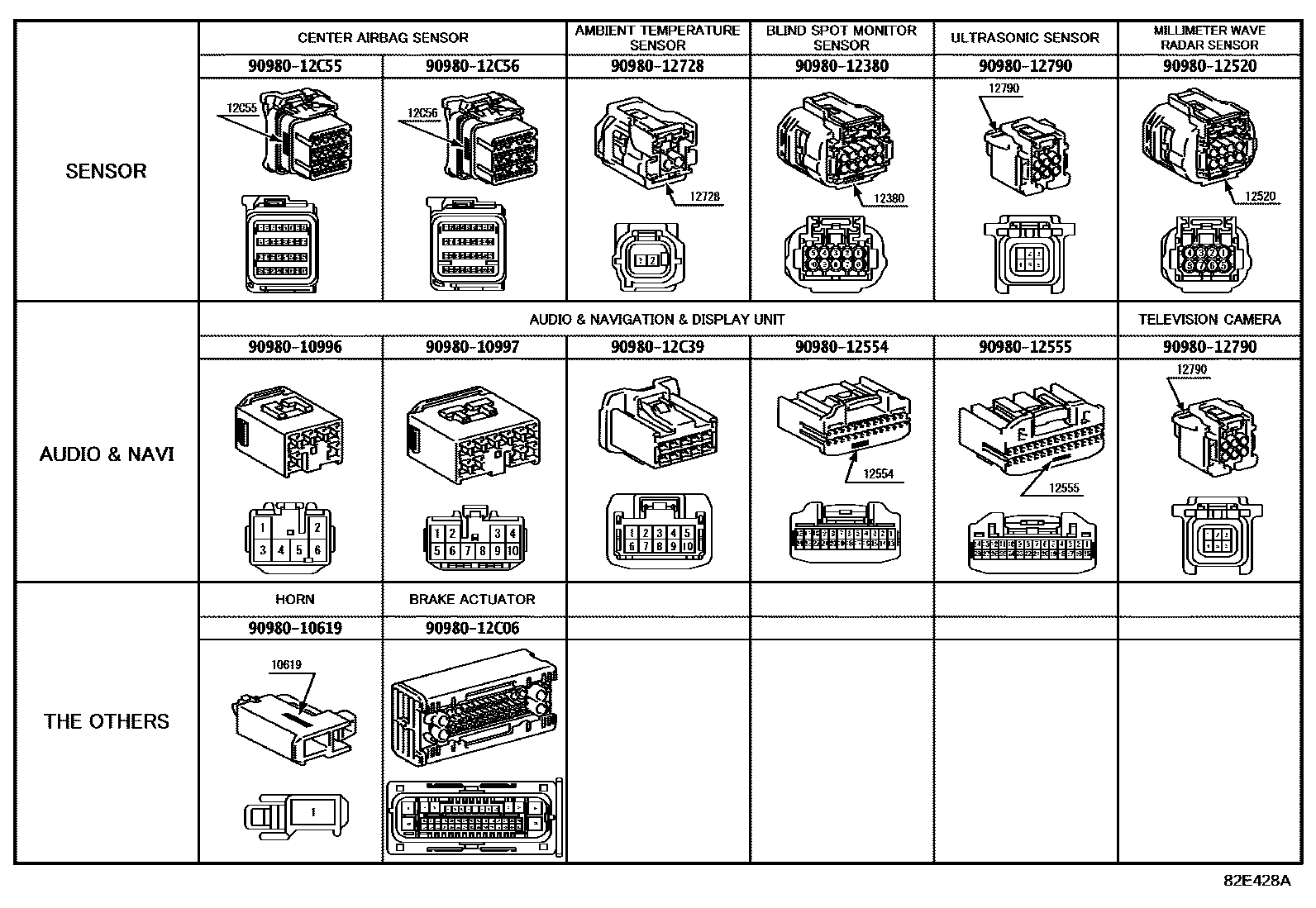

| 82821A | Connector cover | 82821-42190 |
| 82821E | Connector cover | 82821-30600 |
| 82821H | Connector cover | 82821-30650 |
| 82821M | Connector cover | 82821-33620 |
| 82821N | Connector cover | 82821-33820 |
| 82821P | Connector cover | 82821-42210 |
| 82821R | Connector cover | 82821-47190 |
| 82821U | Connector cover | 82821-47270 · 82821-48270 |
| 82821V | Connector cover | 82821-47600 |
| 82823 | No. 1 terminal cover | 82823-0R060 |
| 82930 | No. 1 condenser wire harness assembly | 82930-42020 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-0R070 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-0R080 |
| 89348X | Front corner ultrasonic sensor clip | 89348-58130 |
| G921D | Inverter Connector Cover Protector | G921D-42020 |
| G921G | Inverter protection device | G921G-42010 |
