Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201

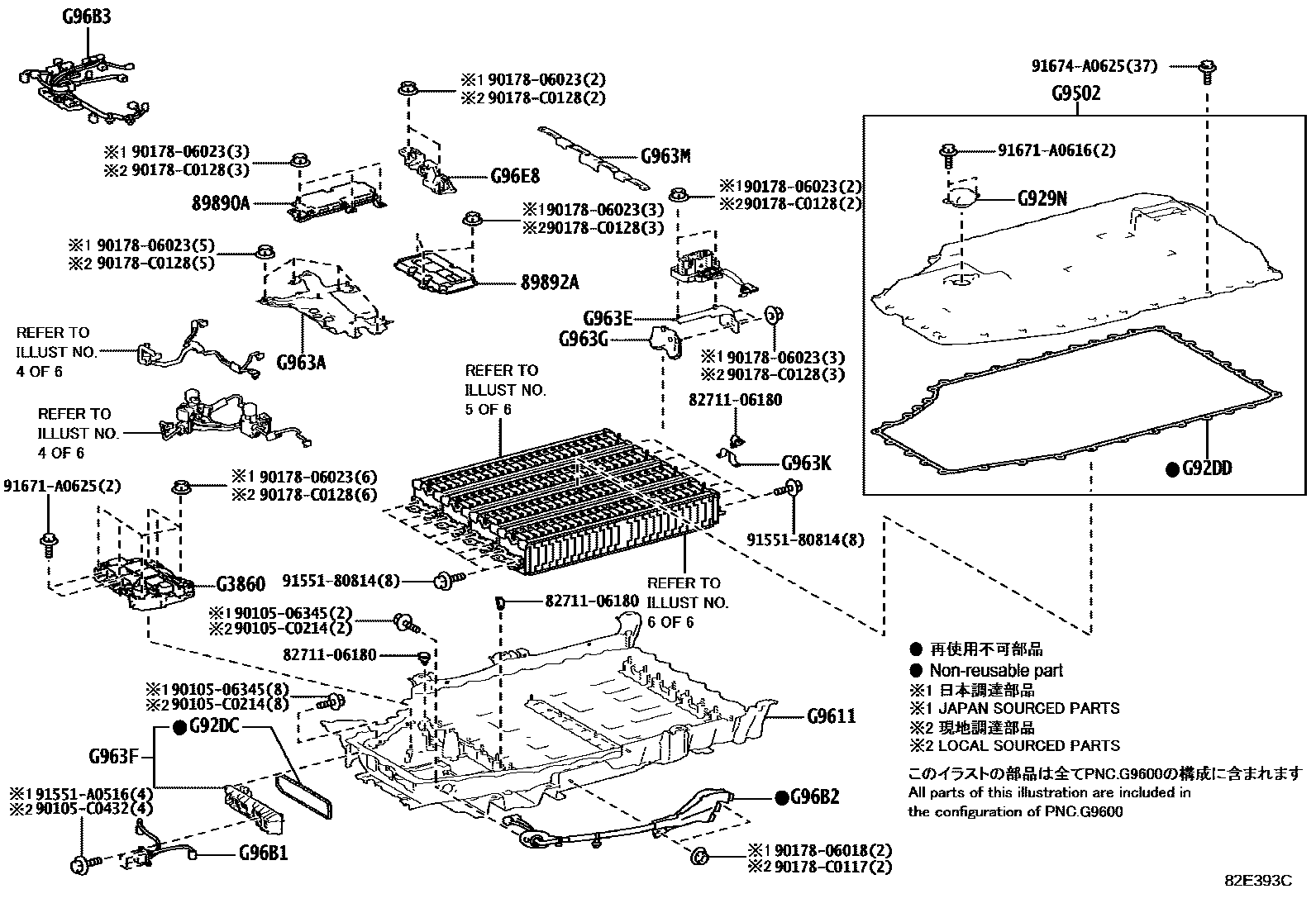

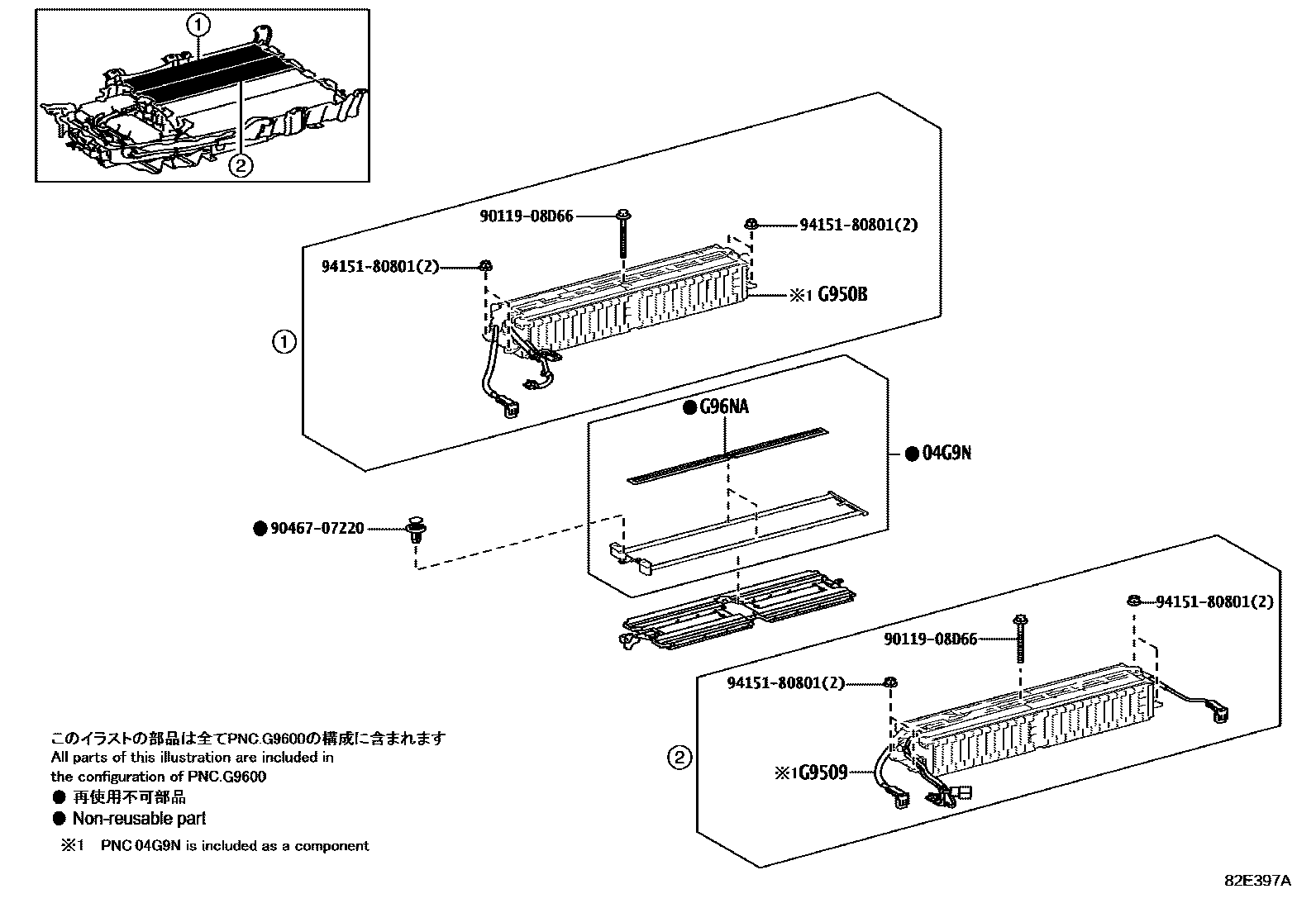

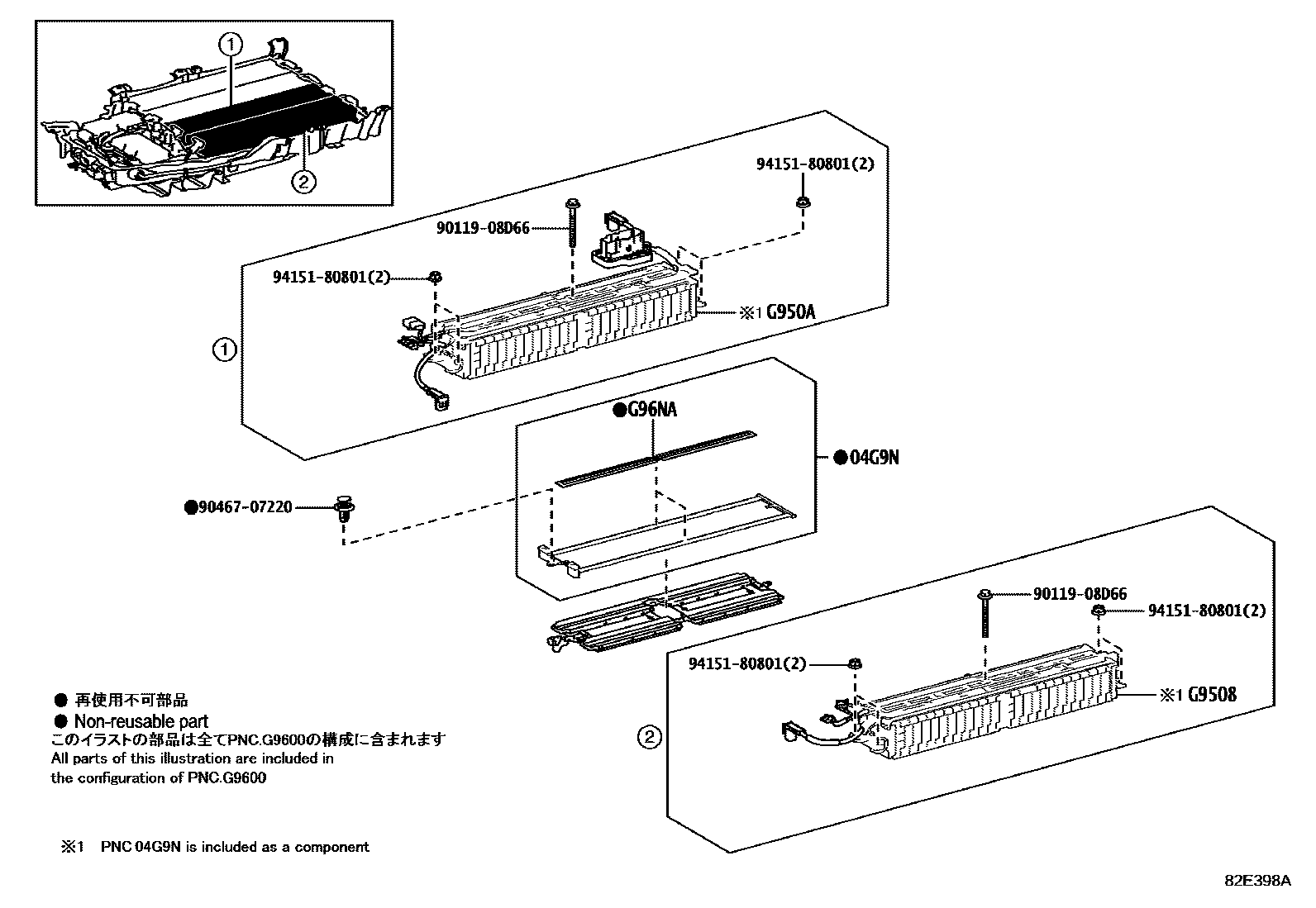

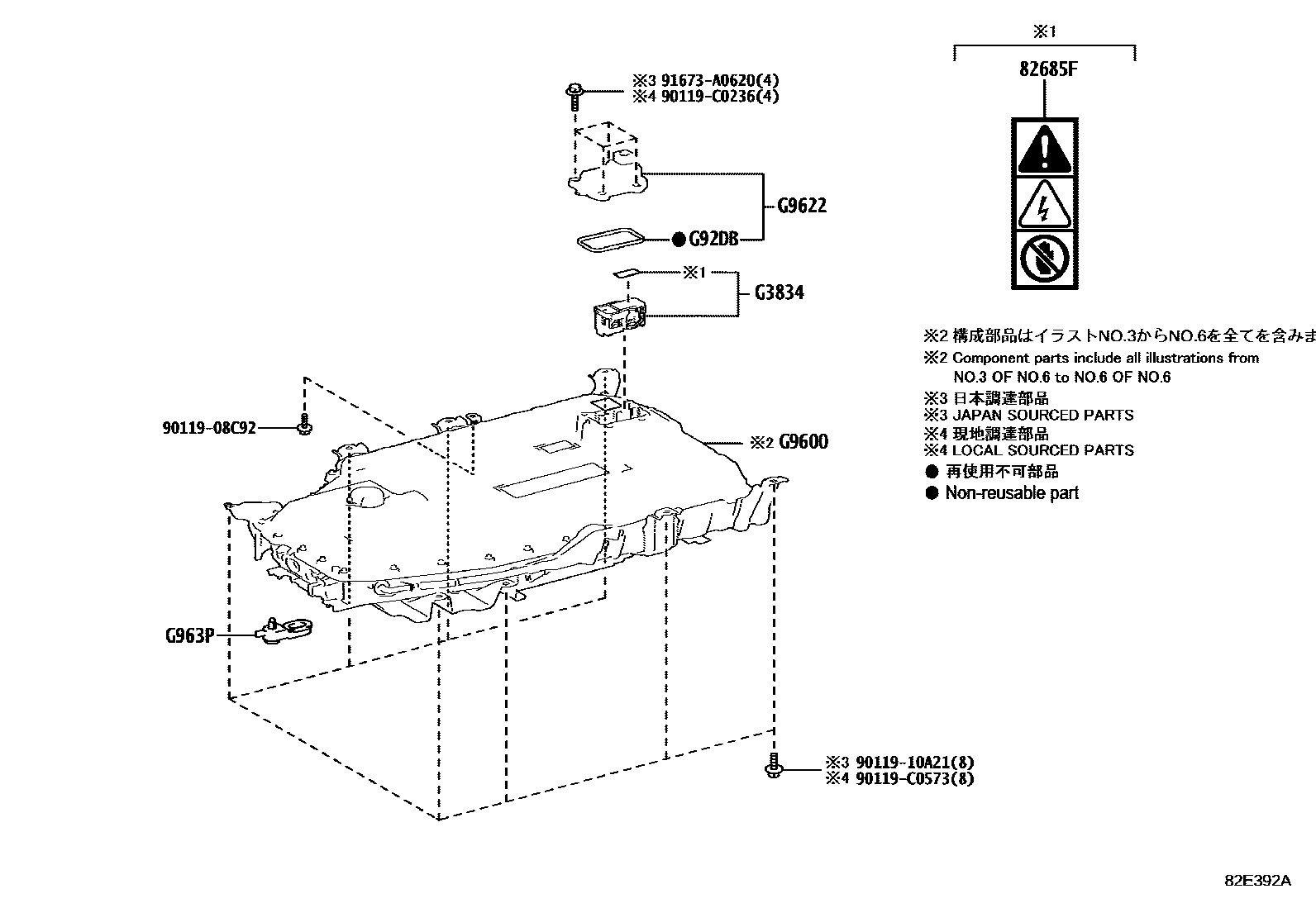

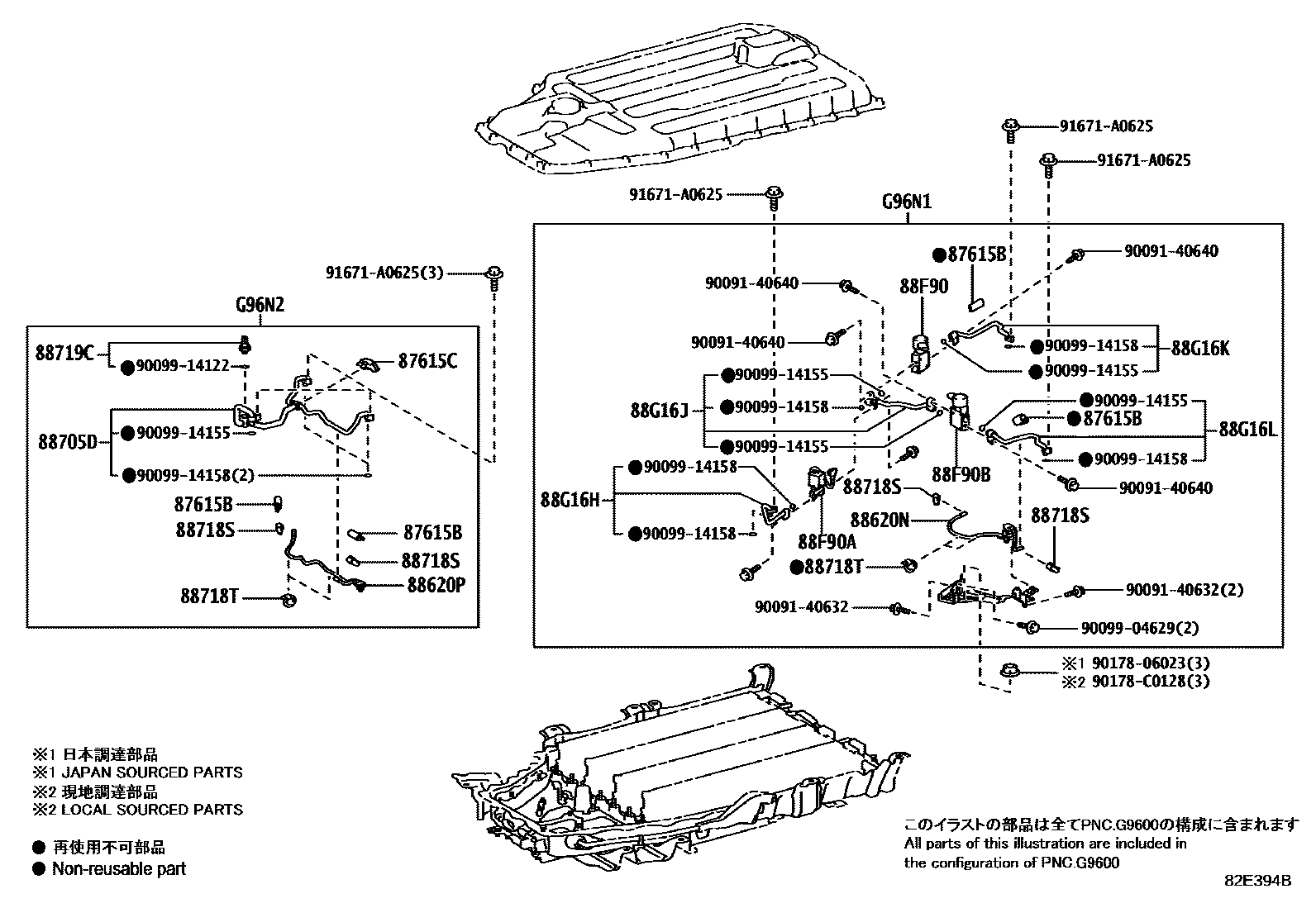

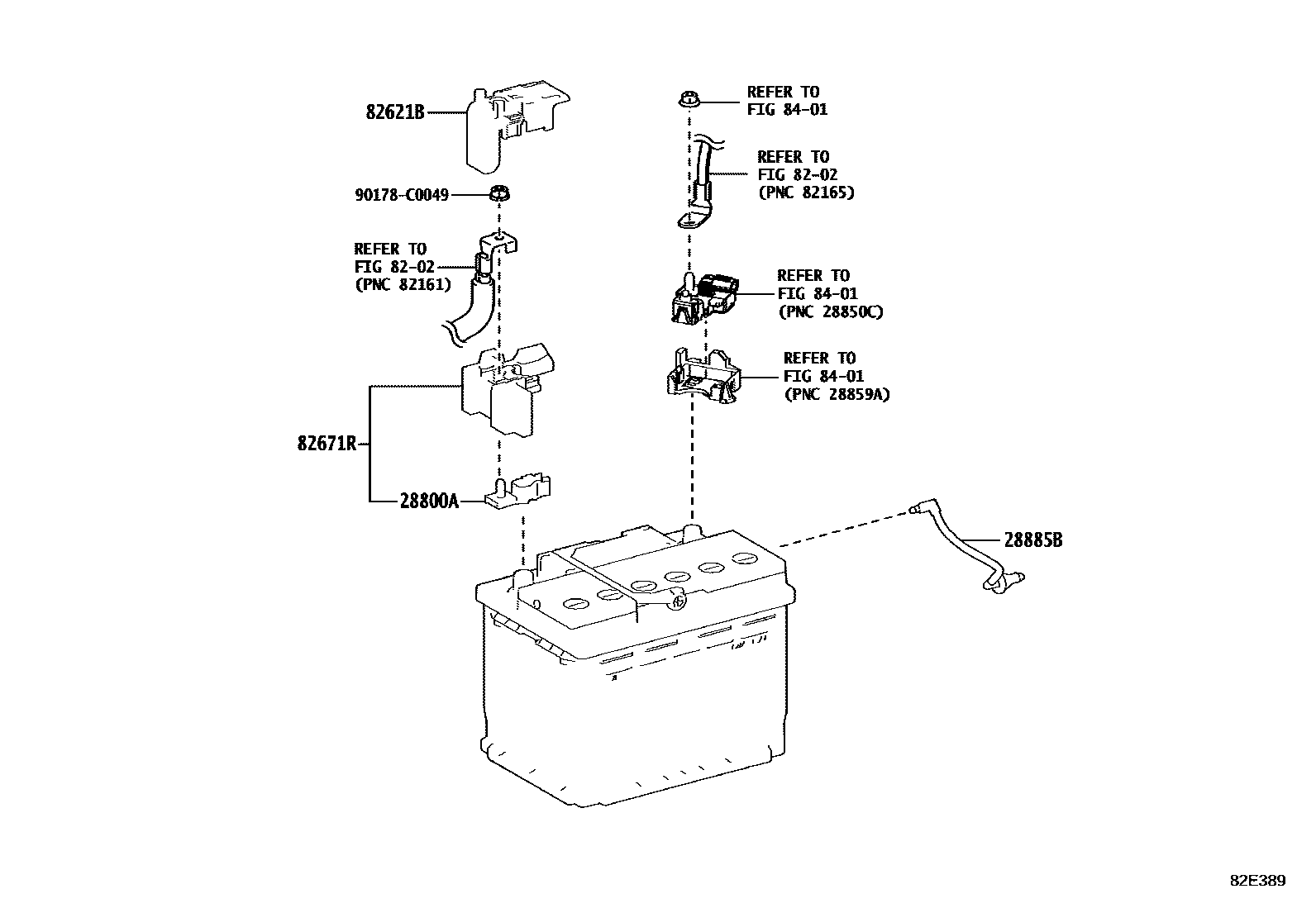

Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 6 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04G9N | Power battery cooling conductor assembly | 04G9N-0R010 |
| 28800A | battery positive terminal | 90982-05058 |
| 28885B | battery hose | 28885-F0050 |
| 82621B | Fuse cover | 82621-42020 |
| 82671R | battery terminal block | 82670-42010 |
| 82685F | Main battery No. 1 warning nameplate | 82685-76020 · 82685-76021 |
| 87615B | No. 1 vibration isolation pad fixing piece | 87615-42010 |
| 87615C | No. 2 vibration isolation pad fixing piece | 87615-42020 |
| 88620N | No. 1 air conditioning thermistor assembly | 88620-42060 |
| 88620P | No. 2 air conditioner thermistor assembly | 88620-42070 |
| 88705D | Discharge pipe sub-assembly | 88705-42190 |
| 88718S | No. 1 pipe clamp | 88718-42140 |
| 88718T | No. 2 pipe clamp | 88718-42150 |
| 88719C | Air conditioning pressure sensor | 88719-11010 |
| 88F90 | No. 1 solenoid valve assembly | 88690-42070 |
| 88F90A | No. 2 solenoid valve assembly | 88690-42080 |
| 88F90B | No. 3 solenoid valve assembly | 88690-47040 |
| 88G16H | Liquid tube No. 1 | 88716-42A40 |
| 88G16J | Liquid tube No. 2 | 88716-42A50 |
| 88G16K | Liquid tube No. 3 | 88716-42A60 |
| 88G16L | Liquid tube No. 4 | 88716-42A70 |
| 89890A | Battery ECU assembly | 89890-42080 · 89890-42081 · 89890-42082 |
| 89892A | battery voltage sensor | 89892-42040 |
| G3834 | Service plug handle | G3855-42010 |
| G3860 | Power battery No. 2 device box assembly | G3860-42010 |
| G929N | Battery drain plug | G929N-10010 |
| G92DB | No. 1 HV battery seal | G92DB-42010 |
| G92DC | HV Battery No. 2 Seal | G92DC-42010 |
| G92DD | HV battery upper cover seal | G92DD-42010 |
| G9502 | Upper EV power supply battery assembly | G9502-0R010 |
| G9508 | No. 1 HV power supply battery assembly | G9508-09015 |
| G9509 | No. 2 HV power supply battery assembly | G9509-09015 |
| G950A | No. 3 HV power supply battery assembly | G950A-09015 |
| G950B | No. 4 HV power supply battery assembly | G950B-09015 |
| G9600 | Power battery assembly | G9600-0R010 |
| G9611 | Power battery bracket No. 1 | G9611-0R010 |
| G9622 | Power battery cover No. 2 | G9622-42010 |
| G963A | No. 10 power battery holder | G963A-0R010 |
| G963E | No. 14 power battery bracket | G963E-0R010 |
| G963F | No. 15 power battery bracket | G963F-42010 |
| G963G | No. 16 power battery bracket | G963G-0R010 |
| G963K | No. 19 power battery bracket | G963K-0R010 |
| G963M | No. 21 power battery bracket | G963M-0R010 |
| G963P | No. 23 power battery bracket | G963P-42010 |
| G96B1 | No. 1 power battery wiring harness | G96B1-0R010 |
| G96B2 | No. 2 power battery wiring harness | G96B2-0R010 |
| G96B3 | No. 3 power battery wiring harness | G96B3-0R010 |
| G96E8 | Power battery No. 3 wiring harness cover | G96E8-42010 |
| G96N1 | No. 1 power battery cooling pipe | G96N1-42010 |
| G96N2 | No. 2 power battery cooling pipe | G96N2-42010 |
| G96NA | No. 1 power battery cloth pad | G96NA-0R030 |
