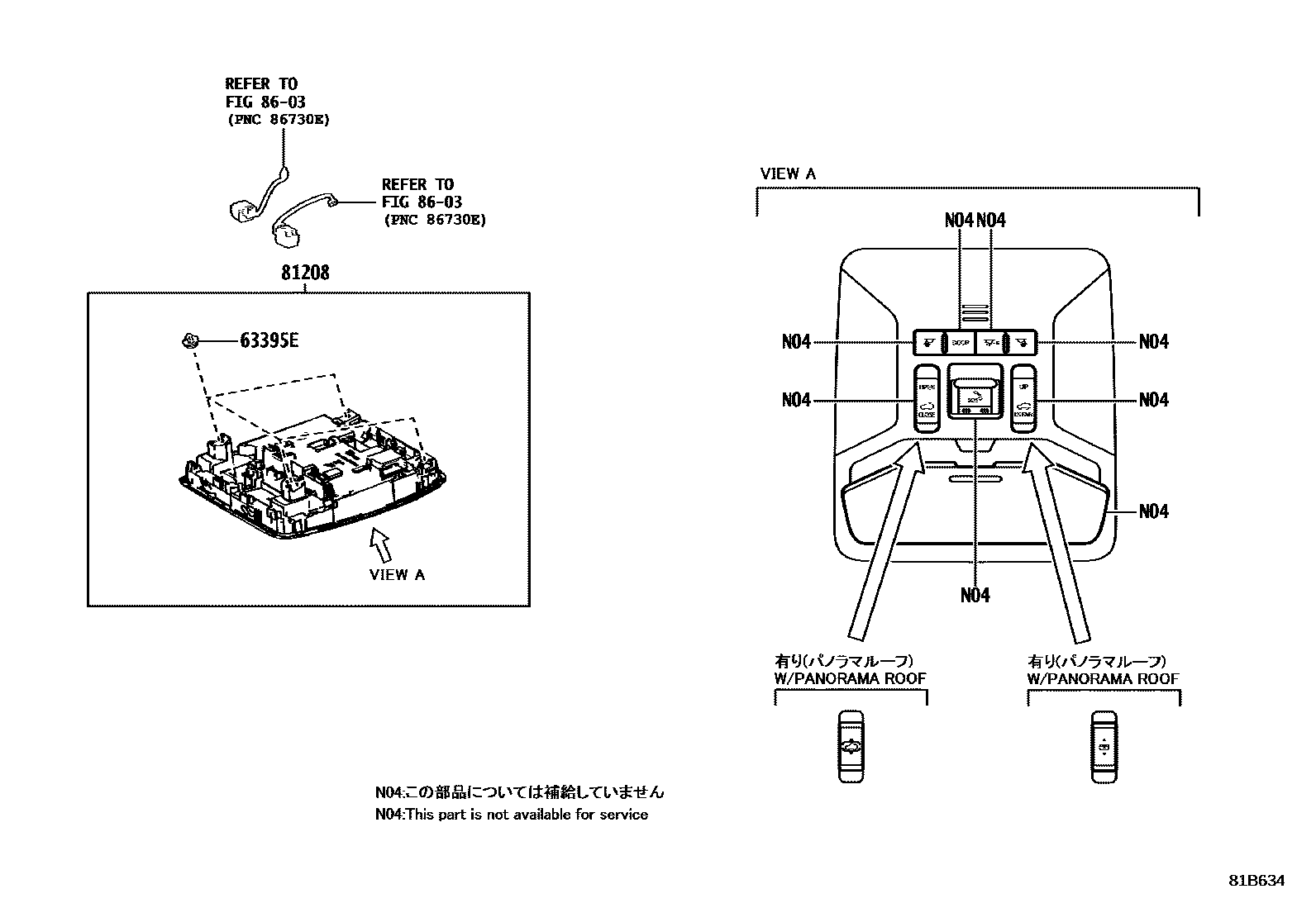

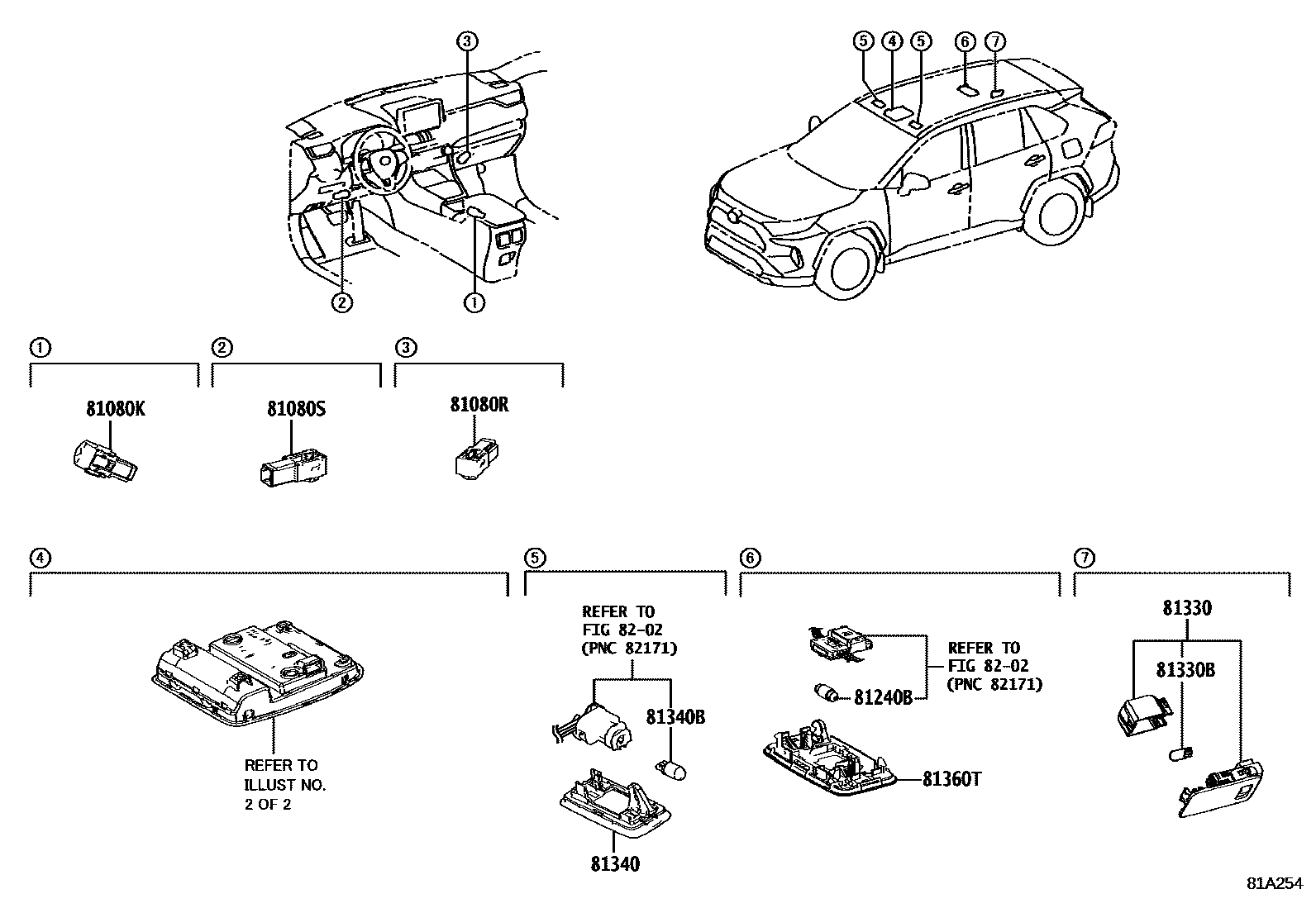

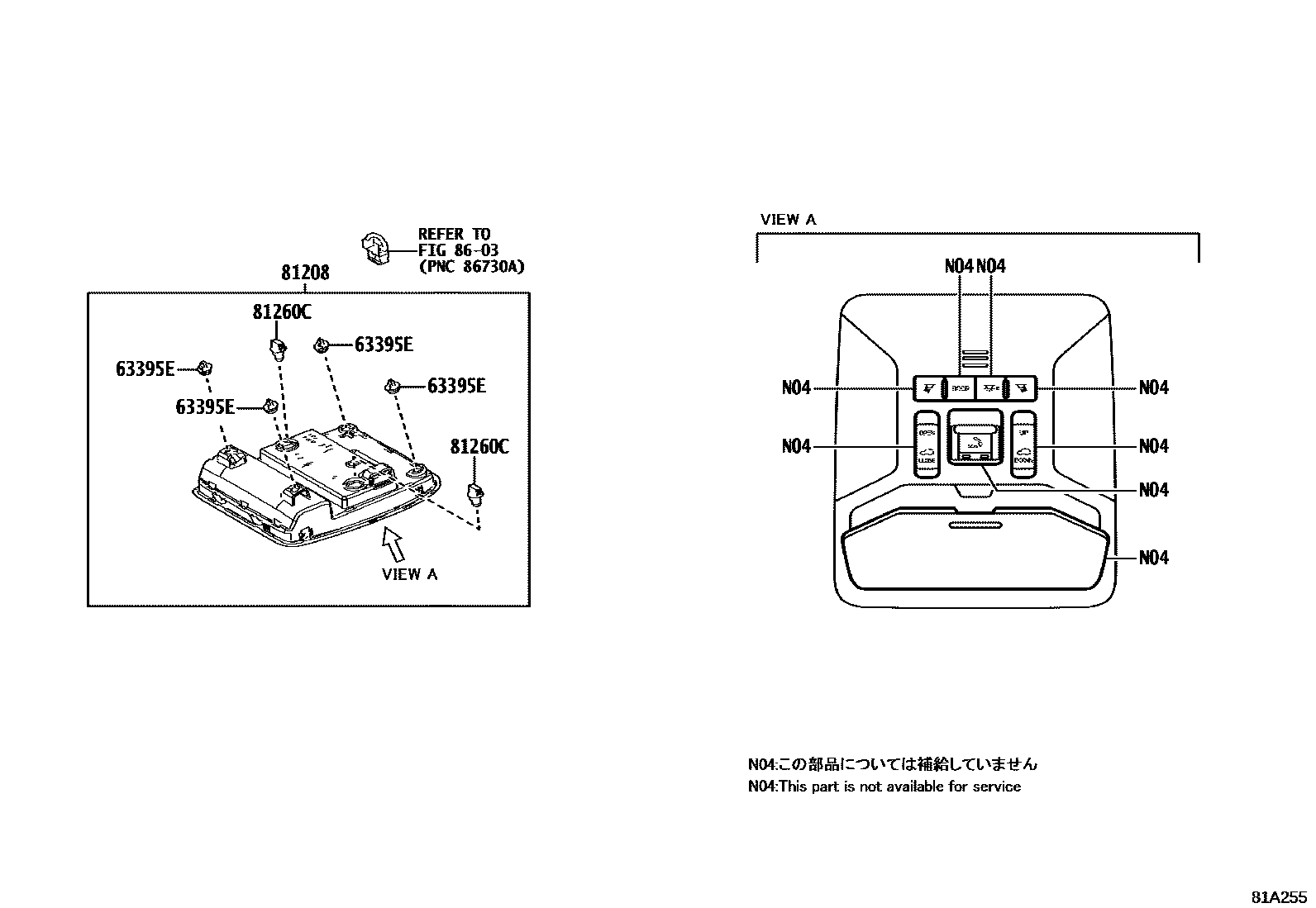

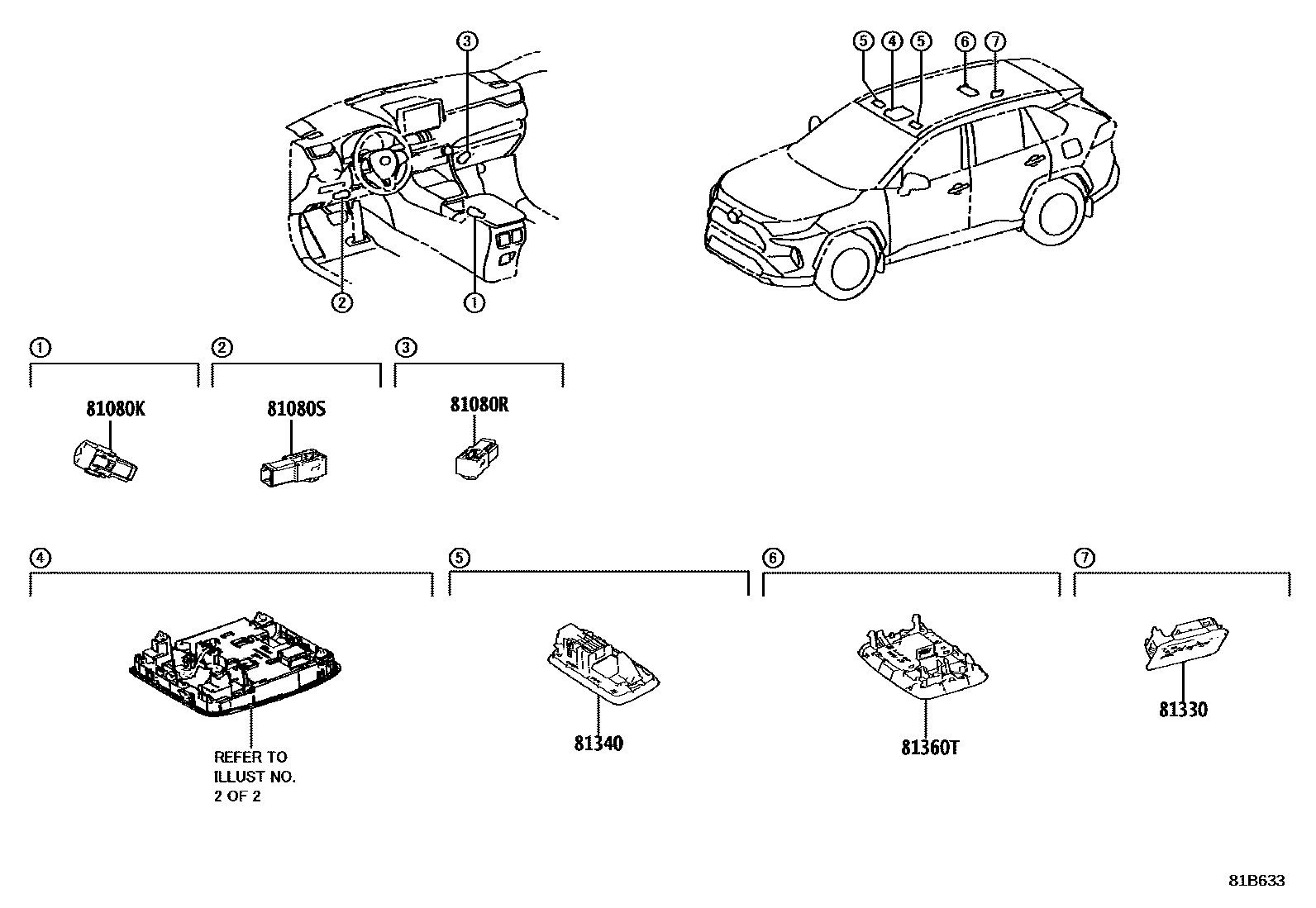

Toyota RAV4 车内灯 — Figure 8121
Toyota RAV4 EPC diagram 8121, 车内灯, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 90467-09240 · 90467-09245 |
| 81080K | Armrest box lighting assembly | 81080-42040 |
| 81080R | Right No. 1 interior lighting assembly | 81080-33280 |
| 81080S | No. 1 interior lighting assembly on the left | 81080-33280 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81330 | No. 1 trunk light assembly | 81330-0R010 · 81330-58010 |
| 81330B | trunk light bulb | 99132-12050 |
| 81340 | Vanity light assembly | 81340-0P010 · 81340-33170 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
