Toyota RAV4 后雾灯 — Figure 8116

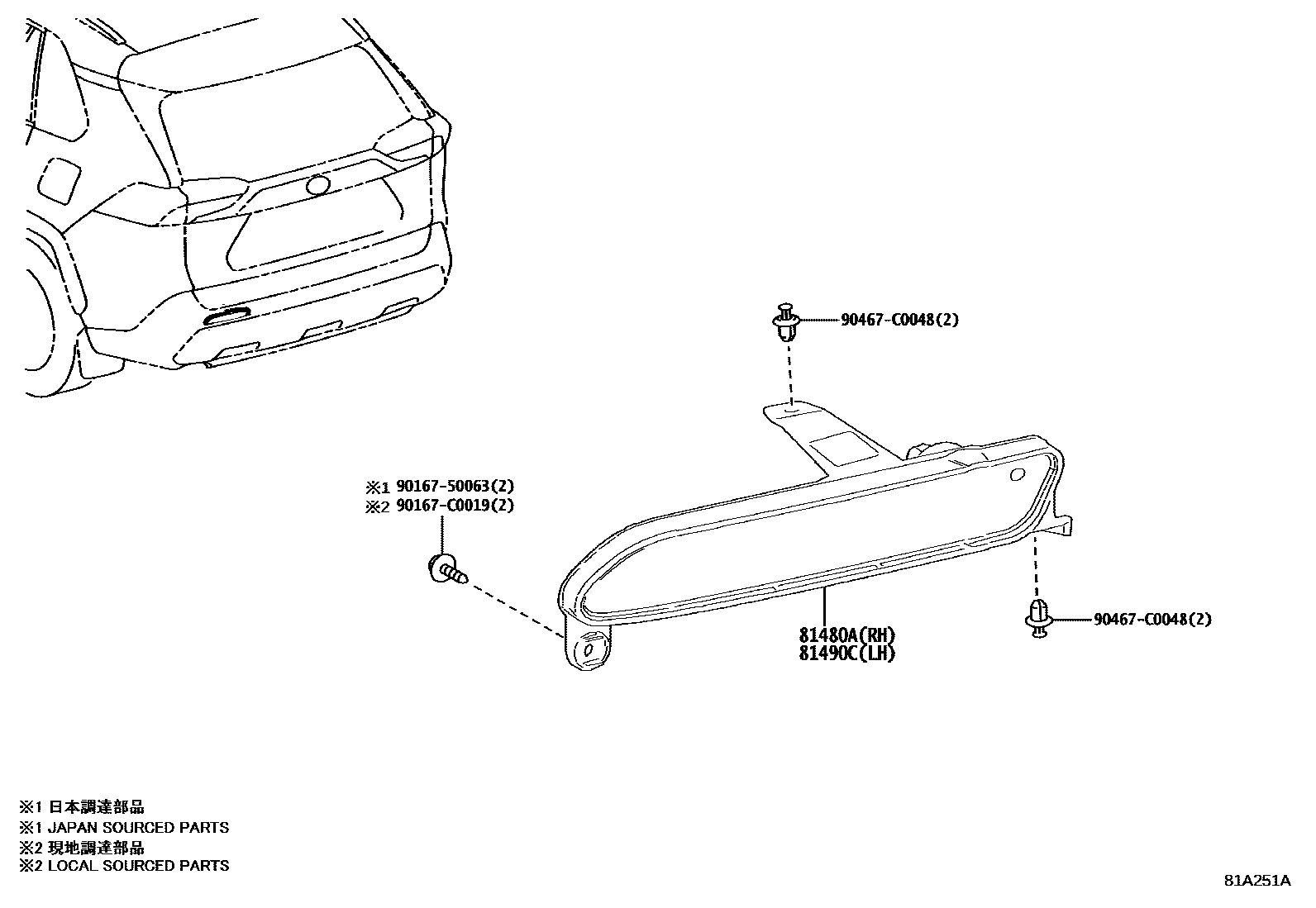

Toyota RAV4 EPC diagram 8116, 后雾灯, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81480A | Right rear fog light assembly | 81480-0R060 |
| 81490C | Left rear fog light assembly | 81490-0R060 |
