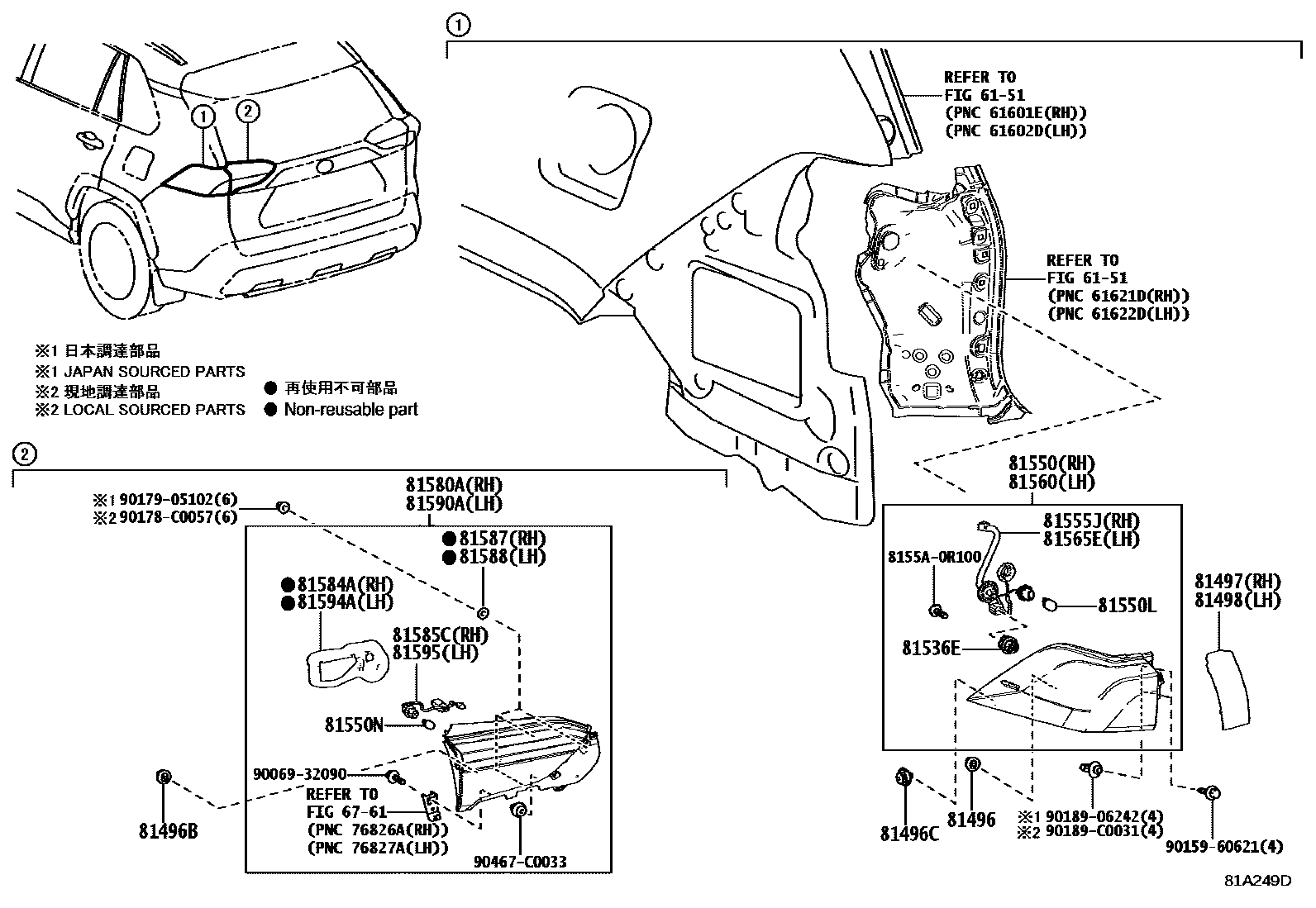

Toyota RAV4 后组合灯 — Figure 8111
Toyota RAV4 EPC diagram 8111, 后组合灯, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-02020 · 81496-52020 |
| 81496B | Rear light guide block | 81496-02020 · 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 90467-C0019 |
| 81497 | Right rear combination lamp cover | 81497-0R020 |
| 81498 | Left rear combination lamp cover | 81498-0R020 |
| 81536E | LED brake light | 81536-0R100 |
| 81550 | Right rear combination light assembly | 81550-0R100 |
| 81550L | Rear turn signal light bulb | 90981-15011 |
| 81550N | reversing light bulb | 90981-11059 |
| 81555J | Right rear combination lamp holder and wiring harness | 81555-0R100 |
| 81560 | Left rear combination light assembly | 81560-0R100 |
| 81565E | Left rear combination lamp holder and wiring harness | 81555-0R100 |
| 81580A | Rear light assembly | 81580-0R070 |
| 81584A | Right rear light gasket | 81584-0R070 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-0R070 |
| 81587 | Right rear light protective cover | 81588-0R070 |
| 81588 | Left rear light protective cover | 81588-0R070 |
| 81590A | Left rear light assembly | 81590-0R070 |
| 81594A | Left rear light gasket | 81594-0R070 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-0R070 |
