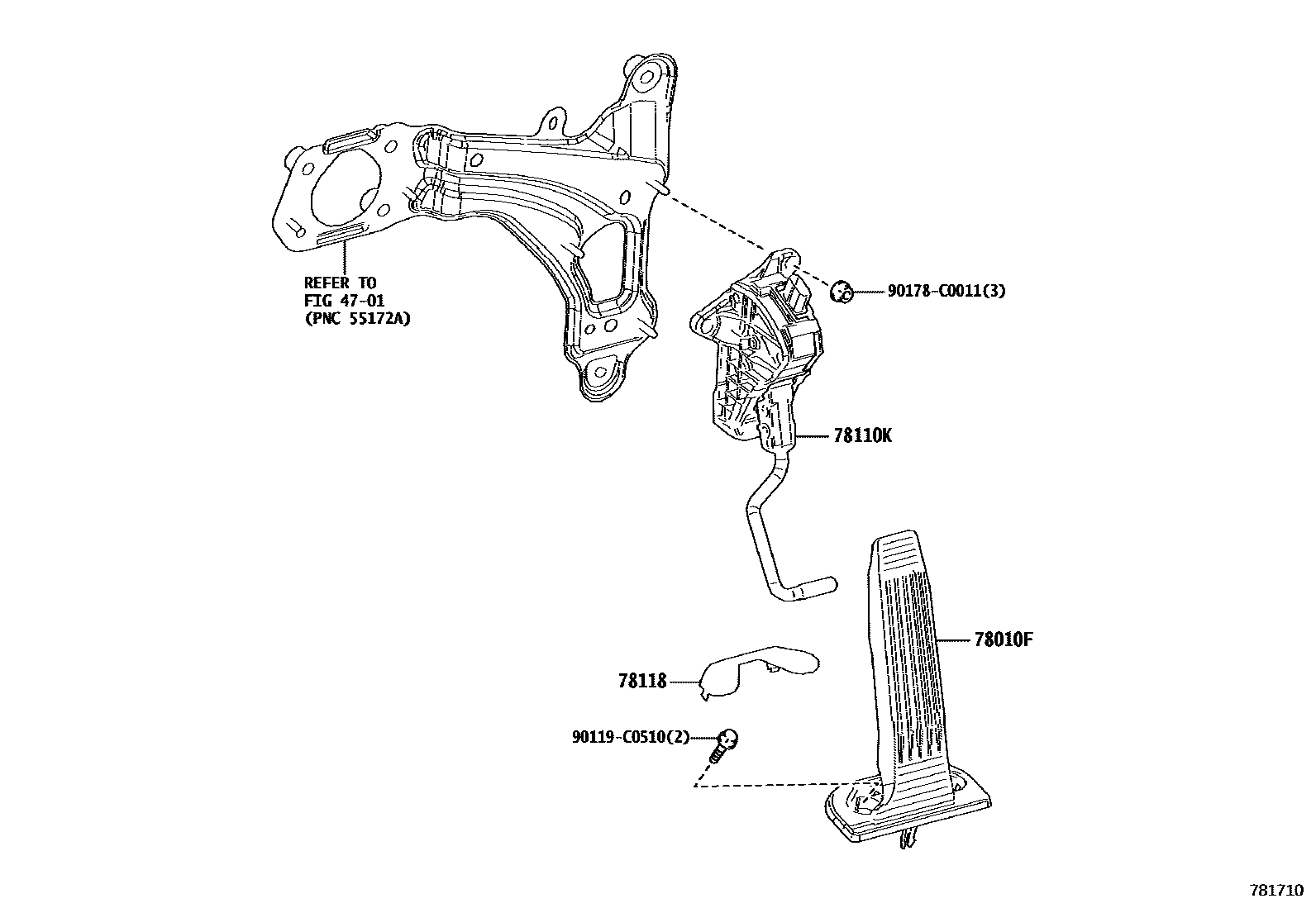

Toyota RAV4 accelerator pedal connecting rod — Figure 7851
Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78101-07020 · 78101-07021 |
| 78110K | Accelerator pedal connecting rod assembly with sensor | 78110-06171 |
| 78118 | accelerator pedal pad | 78117-07010 |
