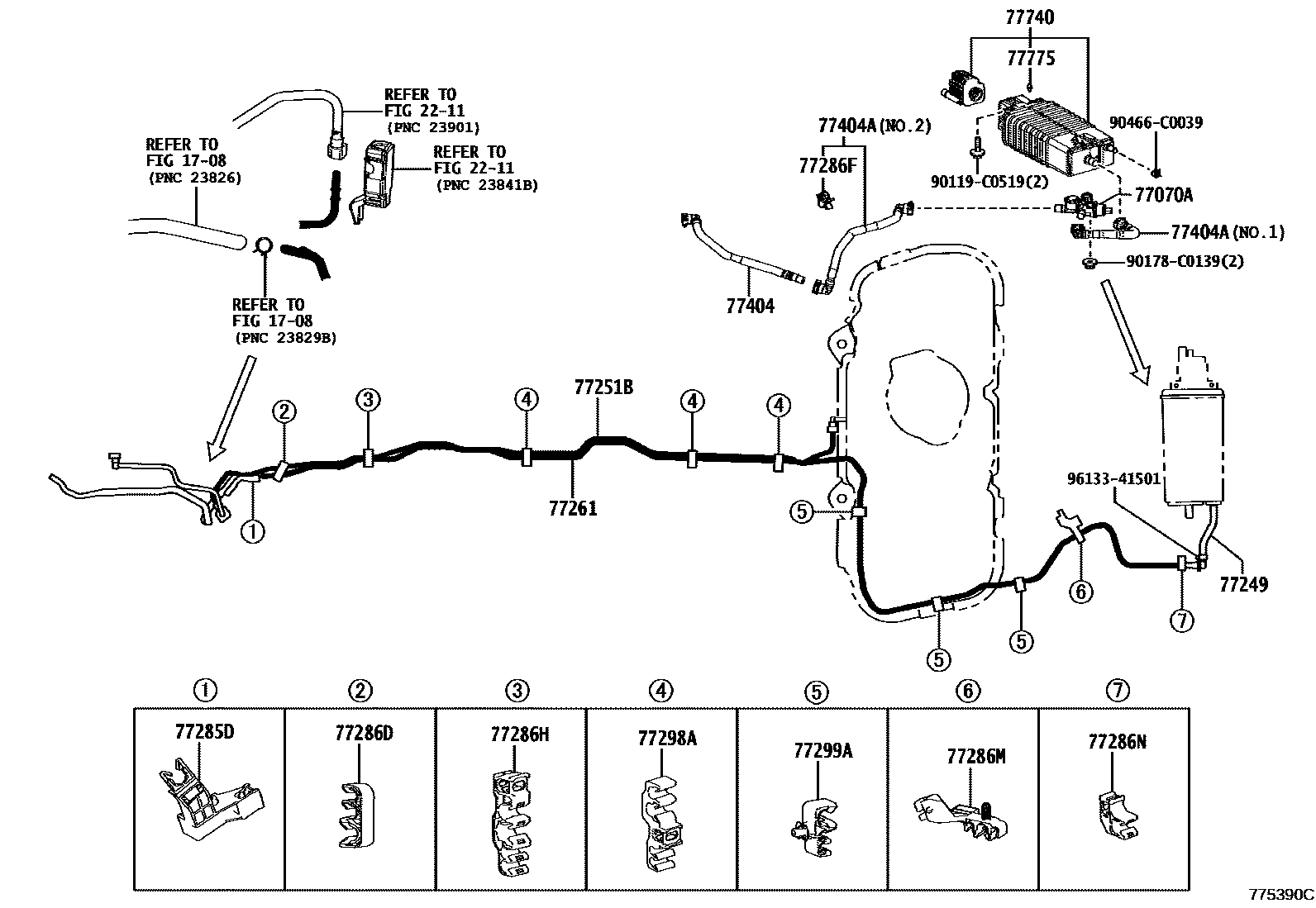

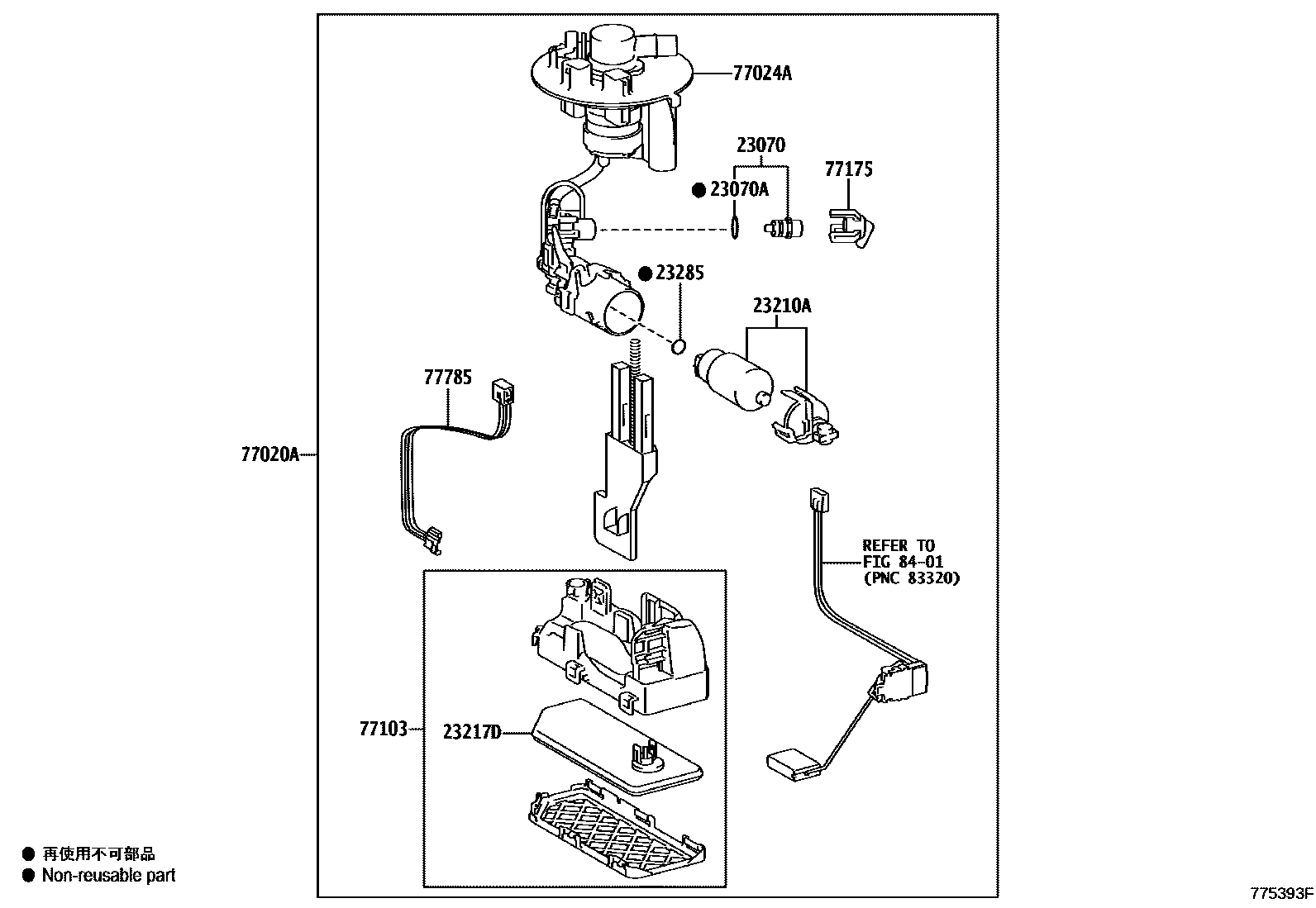

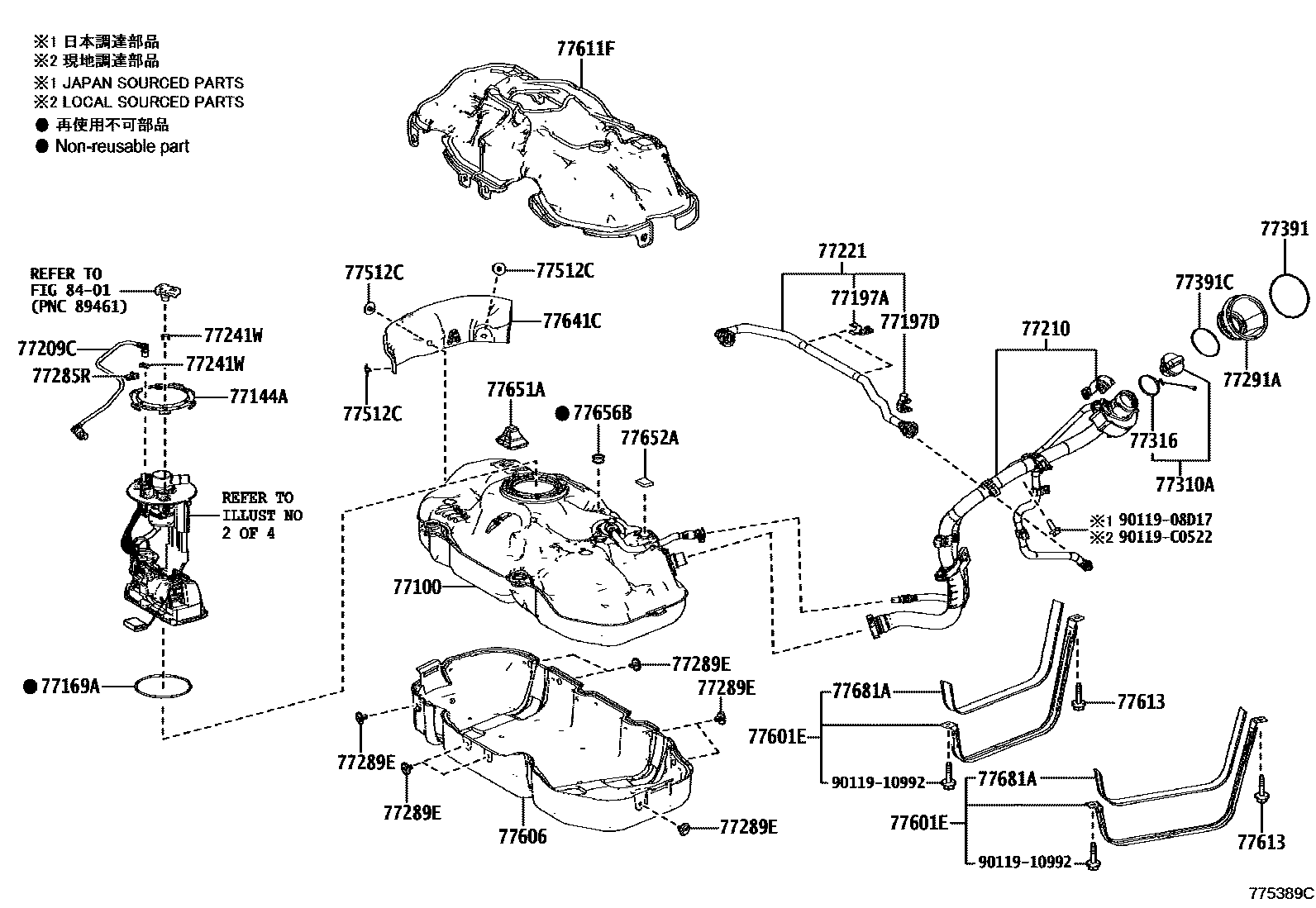

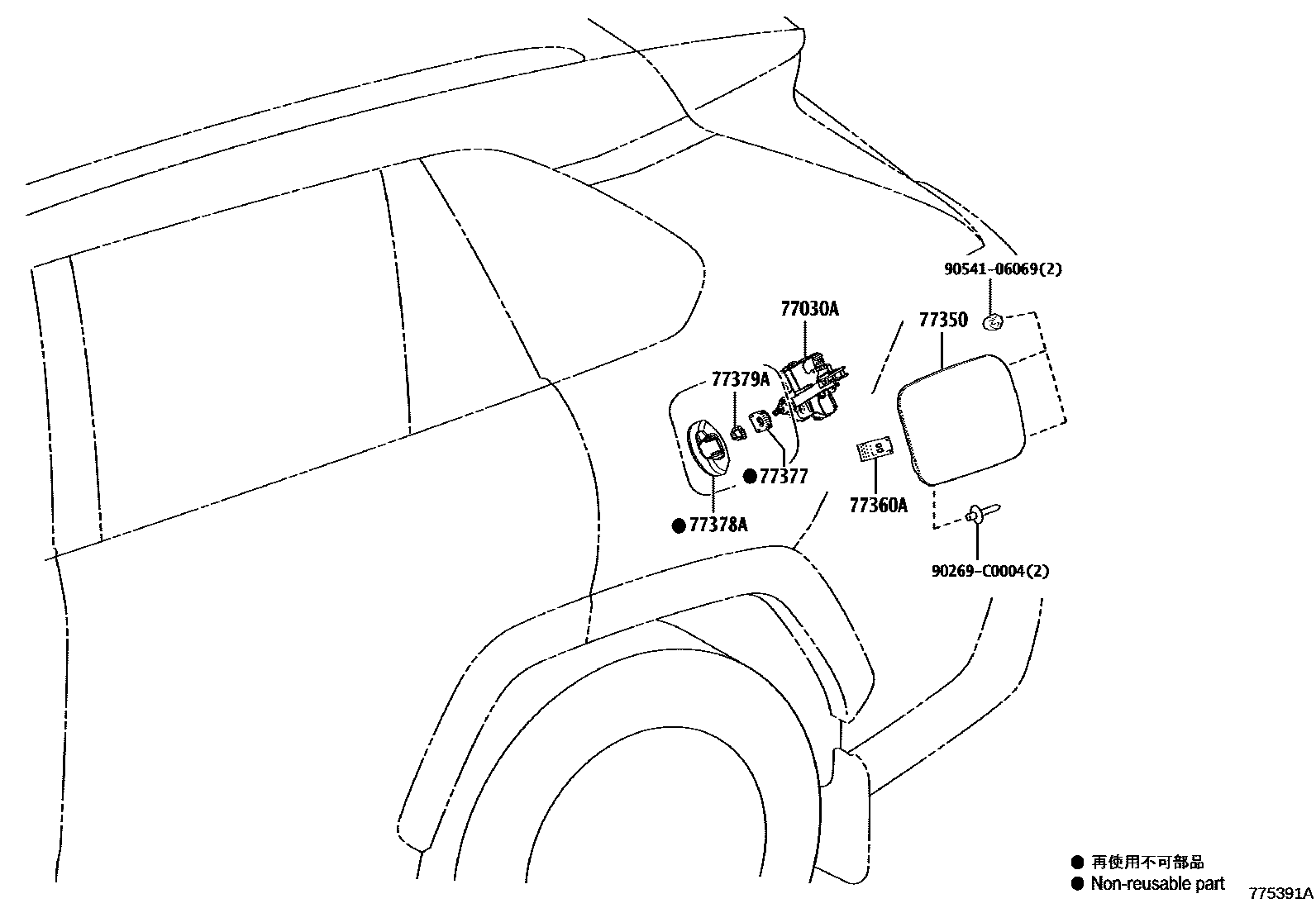

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 4 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 · 23070-F0030 |
| 23070A | No. 1 O-ring (for main fuel valve) | 90301-15024 |
| 23210A | Water pump assembly with motor and bracket | 23210-F0010 · 23210-F2010 |
| 23217D | fuel pump filter | 23217-24020 |
| 23285 | O-ring | 90301-C0073 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0R120 |
| 77024A | Fuel absorber sub-assembly | 77024-0R100 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-02100 |
| 77070A | Closed fuel tank valve assembly | 90910-15085 · 90910-15089 · 90910-CE002 |
| 77100 | fuel tank assembly | 77001-0R180 |
| 77103 | Auxiliary fuel tank sub-assembly | 77103-0A010 |
| 77144A | Fuel pump instrument fixture | 77144-0E050 · 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0A020 · 77169-47030 · 77169-F4010 |
| 77175 | No. 2 oil suction pipe bracket | 77175-F4020 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-0R050 |
| 77197D | No. 2 evaporation vent pipe clamp | 77197-07010 · 77197-47010 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-0R130 |
| 77210 | Fuel tank filler pipe assembly | 77210-0R130 |
| 77221 | No. 1 fuel evaporation vent pipe | 77227-0R130 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77249 | fuel drain hose | 77249-0R110 |
| 77251B | main fuel pipe | 77251-0R170 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-0R170 |
| 77285D | No. 1 fuel pipe clamp | 77285-0R120 |
| 77285R | No. 1 fuel pipe clamp | 77285-30350 · 77286-0E170 |
| 77286D | No. 2 fuel pipe clamp | 77285-42180 |
| 77286F | No. 2 fuel pipe clamp | 77286-0R110 |
| 77286H | No. 3 fuel pipe clamp | 77285-0R250 |
| 77286M | No. 6 fuel pipe clamp | 77285-0R200 |
| 77286N | No. 7 fuel pipe clamp | 77285-0R210 |
| 77289E | No. 1 fuel tank clip | 77289-47050 |
| 77291A | Fuel tank filler pipe cover | 77291-0R060 |
| 77298A | No. 4 fuel pipe clamp | 77298-12160 |
| 77299A | No. 5 fuel pipe clamp | 77285-0R190 |
| 77310A | Fuel tank cap assembly | 77300-06110 · 77300-11010 |
| 77316 | fuel tank cap gasket | 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-0R060 · 77350-0R070 |
| 77360A | Fuel filler cap spring assembly | 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-02190 |
| 77378A | Fuel filler cap lock cover | 77378-0R020 |
| 77379A | Fuel filler cap opening lever spacer | 77379-0R010 |
| 77391 | fuel inlet ring | 77391-0R030 |
| 77391C | Urea intake box ring | 77391-0R050 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0R240 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-0R210 · 77404-0R230 |
| 77512C | fuel tank bracket | 77512-07010 · 77512-35140 |
| 77601E | Fuel tank strap sub-assembly | 77601-0R110 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-0R100 |
| 77611F | Fuel tank upper cover | 77611-0R110 |
| 77613 | Fuel tank strap fixing bolts | 90119-10A05 |
| 77641C | Fuel tank protective shell assembly | 77641-0R120 |
| 77651A | No. 1 fuel tank liner | 77651-07010 |
| 77652A | No. 2 fuel tank liner | 77652-07020 |
| 77656B | No. 6 fuel tank liner | 77656-07010 · 77656-33010 |
| 77681A | Fuel tank strap seat | 77682-02070 |
| 77740 | Carbon canister assembly | 77740-07030 · 77740-07031 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-0A010 · 77785-52120 |
