Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

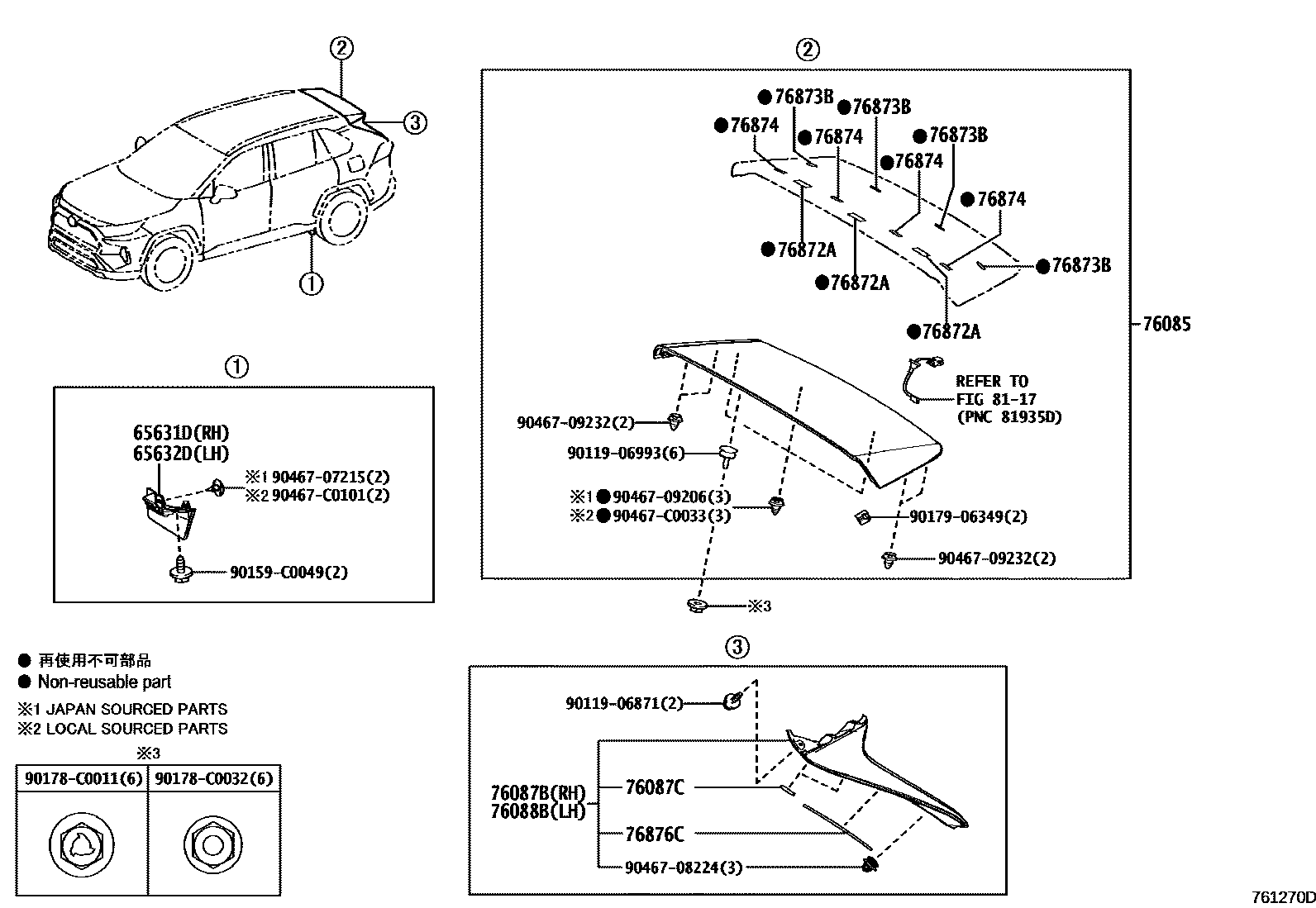

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-0R090 |
| 65632D | Left rear wheel house front panel | 65632-0R090 |
| 76085 | Rear spoiler sub-assembly | 76085-0R903 |
| 76087B | Right rear spoiler sub-assembly | 76087-0R020 · 76087-0R040 |
| 76087C | Rear spoiler pad protector | 87268-0R060 |
| 76088B | Left rear spoiler sub-assembly | 76088-0R020 · 76088-0R040 |
| 76872A | No. 1 rear spoiler protective strip | 76872-0R060 |
| 76873B | No. 2 rear spoiler protective strip | 76873-0R070 |
| 76874 | No. 3 rear spoiler protective strip | 76874-0R060 |
| 76876C | No. 4 rear spoiler protective strip | 76875-0R060 |
