Toyota RAV4 防护条 — Figure 7552

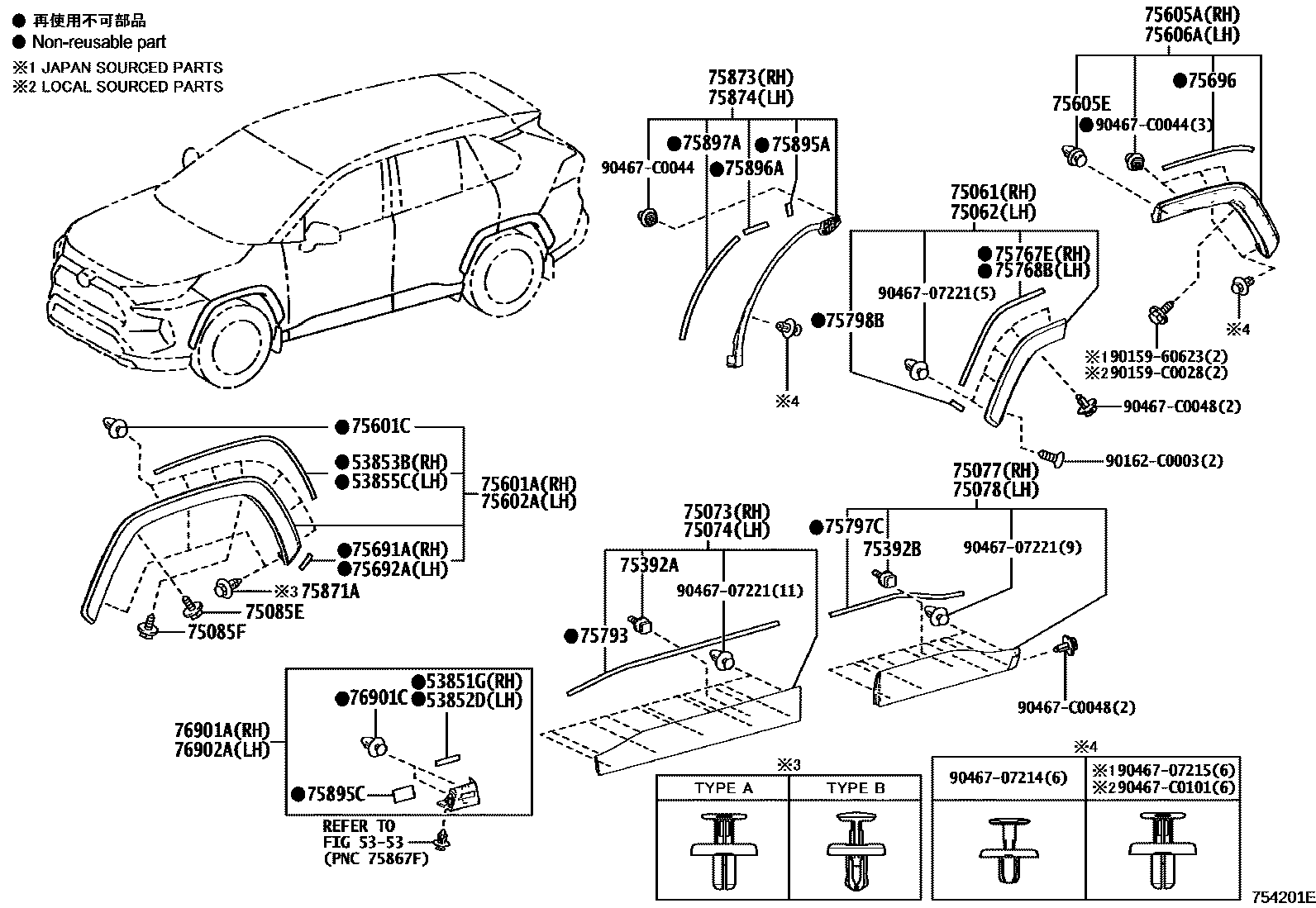

Toyota RAV4 EPC diagram 7552, 防护条, with 3 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851G | Right front fender outer panel pad | 53851-0R120 |
| 53852D | Left front fender exterior panel pad | 53851-0R120 |
| 53853B | No. 1 front fender outer panel pad | 53853-0R070 |
| 53855C | No. 5 front fender outer panel pad | 53853-0R070 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-0R070 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-0R070 |
| 62791G | Protective strip on right corner window | 62791-0R020 · 62791-0R040 |
| 62792V | Protective strip on left corner window | 62792-0R020 · 62792-0R040 |
| 75061 | Outer protective strip components | 75061-0R040 |
| 75062 | Left outer protective strip assembly | 75062-0R040 |
| 75073 | Right front door outer lower protective strip sub-assembly | 75073-0R101 |
| 75074 | Left front door outer lower protective strip sub-assembly | 75074-0R101 |
| 75077 | Right rear door outer lower protective strip sub-assembly | 75077-0R101 |
| 75078 | Left rear door outer lower protective strip sub-assembly | 75078-0R101 |
| 75085E | Screw No. 1 | 90159-60623 · 90159-C0028 |
| 75085F | No. 2 screw | 90159-60623 · 90159-C0028 |
| 75392A | No. 1 outer protective strip fixings | 75392-33020 |
| 75392B | No. 1 outer protective strip fixings | 75392-33020 |
| 75533E | Windshield outer protective strip | 75533-0R040 · 75533-0R070 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0R040 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0R040 |
| 75553A | Decorative strip on the right side of the roof, rear gutter side | 75553-0R070 |
| 75554A | Decorative strip on the left side of the roof, rear gutter side | 75554-0R070 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52020 |
| 75601A | Right front fender protection strip sub-assembly | 75601-0R120 |
| 75601C | Front fender protection strip clip | 75867-0R010 |
| 75602A | Left front fender protection strip sub-assembly | 75602-0R120 |
| 75605A | Right side enclosure outer protective strip sub-assembly | 75605-0R120 |
| 75605E | Side panel outer protective strip clip | 62217-13010 |
| 75606A | Left side enclosure outer protective strip sub-assembly | 75606-0R120 |
| 75691A | Right front fender outer protective strip liner | 75798-0R060 |
| 75692A | Left front fender outer protective strip liner | 75798-0R060 |
| 75696 | No. 1 body outer protective strip lining | 75696-0R080 |
| 75710 | Right front door waistline protection strip assembly | 75710-0R060 |
| 75720 | Left front door waistline protection strip assembly | 75720-0R060 |
| 75730 | Right rear door waistline protection strip assembly | 75730-0R060 |
| 75740 | Left rear door waistline protection strip assembly | 75740-0R060 |
| 75753 | Protective strip on right front door window frame | 75071-0R020 |
| 75754A | Protective strip on left front door window frame | 75072-0R020 |
| 75755A | Front door window frame protection strip (right center pillar) | 75755-0R040 |
| 75756D | Front door window frame protection strip (left center pillar) | 75756-0R040 |
| 75761B | Rear door window frame protection strip (right center pillar) | 75075-0R040 |
| 75762B | Rear door window frame protection strip (left center pillar) | 75076-0R040 |
| 75763A | Protective strip on right rear door window frame | 75763-0R020 |
| 75764A | Protective strip on left rear door window frame | 75764-0R020 |
| 75765B | Rear door window frame protection strip (right rear pillar) | 75765-0R020 |
| 75766B | Rear door window frame protection strip (left rear pillar) | 75766-0R020 |
| 75767E | Right rear door protective strip lining | 75767-0R050 |
| 75768B | Left rear door protective strip lining | 75767-0R050 |
| 75792 | Car door window frame protective strip clip | 75792-0D010 |
| 75793 | Front door outer upper protective strip lining | 75793-0R100 |
| 75797C | Rear door outer upper protective strip lining | 75797-0R110 |
| 75798B | Rear door outer rear protective strip lining | 75798-0R060 |
| 75851 | Right side door sill panel protective strip | 75851-0R020 |
| 75852 | Left side door sill panel protective strip | 75852-0R020 |
| 75867A | Door sill panel protective strip clip | 75867-0R010 · 75867-30130 |
| 75867C | Door sill panel protective strip clip | 75867-30120 |
| 75871A | Clip (for No. 1 front fender protection strip) | 90467-07215 · 90467-C0043 · 90467-C0101 |
| 75873 | Right side panel wheel mouth protection strip | 75873-0R020 |
| 75874 | Left side panel wheel mouth protection strip | 75874-0R020 |
| 75895A | No. 1 protective strip tape | 75895-0R030 |
| 75895C | No. 3 protective tape | 75895-0R040 |
| 75896A | No. 2 protective strip tape | 75896-0R020 |
| 75897A | No. 2 protective strip tape | 75897-0R020 |
| 76901A | Right fender sub-assembly | 76901-0R030 |
| 76901C | fender fender clip | 75867-0R010 |
| 76902A | Left fender sub-assembly | 76902-0R030 |
