Toyota RAV4 warning nameplate — Figure 7455

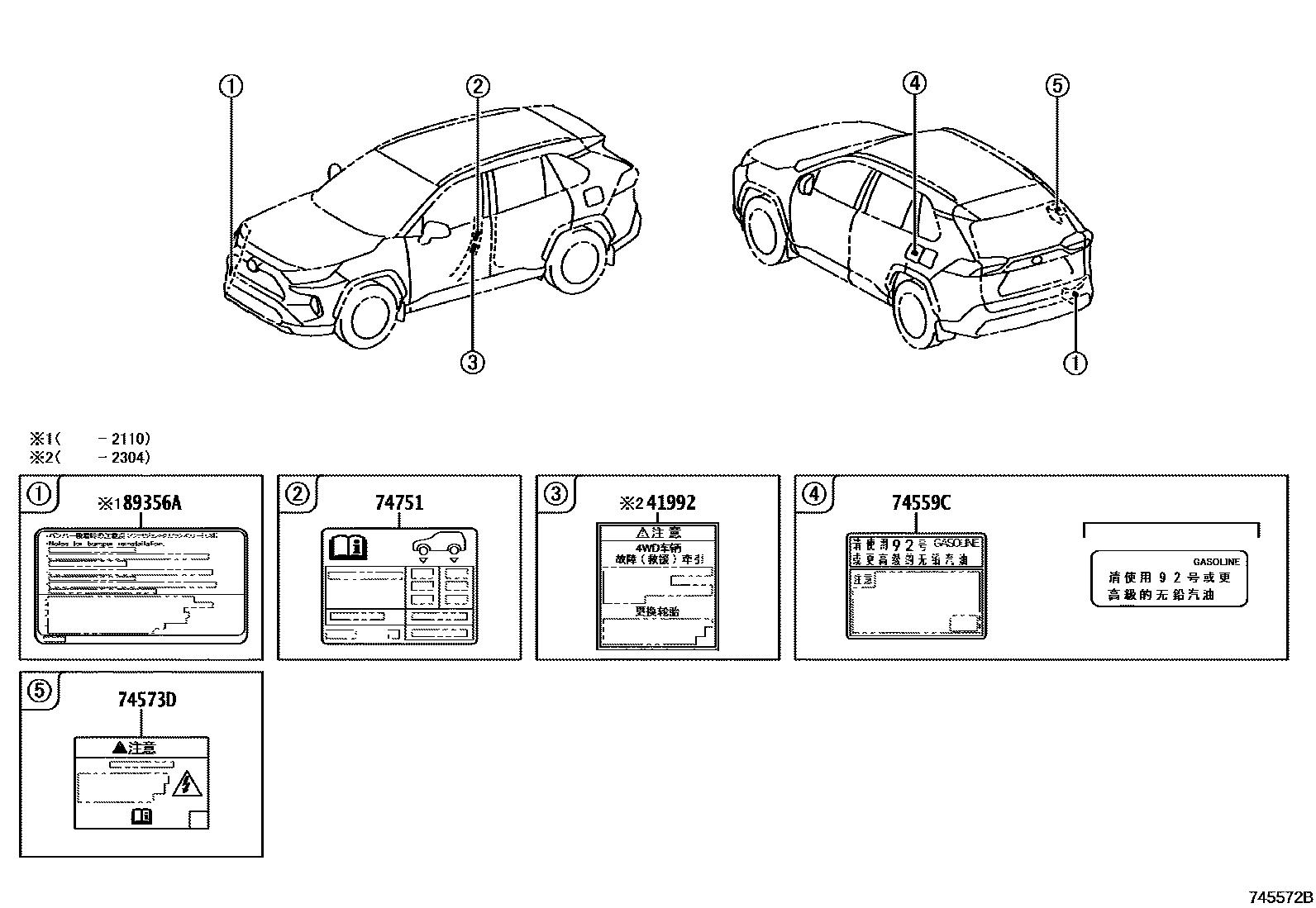

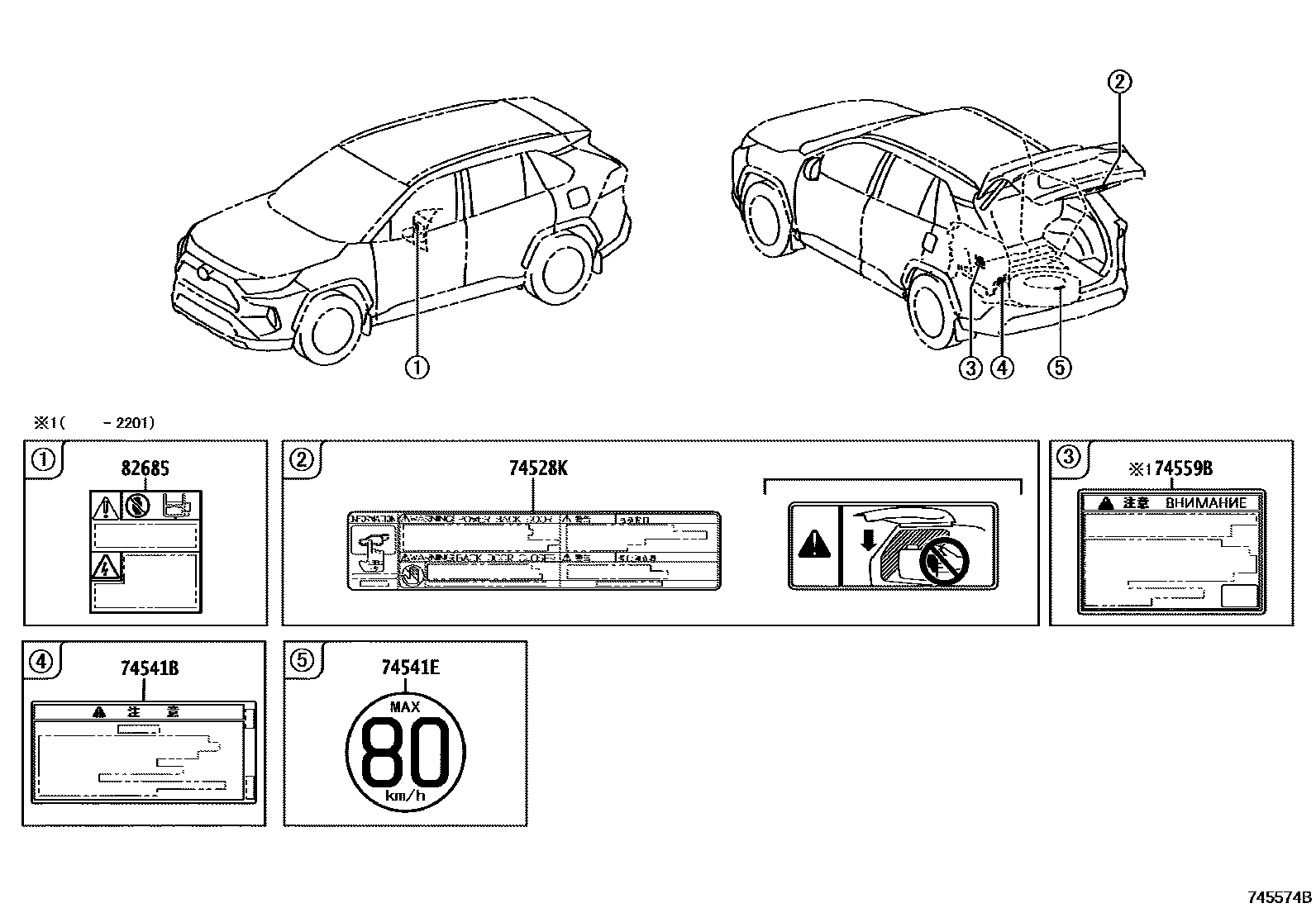

Toyota RAV4 EPC diagram 7455, warning nameplate, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293D | engine warning label | 11293-36070 |
| 16793B | Cooling fan information label | 16793-36030 |
| 41992 | Differential attention label | 41992-0R020 |
| 74528K | Door closer warning label | 74528-0R030 · 74528-0R031 |
| 74541B | Small spare tire warning plate | 42668-0N010 |
| 74541E | Small spare tire warning plate | 42668-20020 |
| 74559B | fuel information label | 74559-11020 |
| 74559C | No. 2 fuel information label | 74559-33040 · 74579-0D010 · 74579-26011 |
| 74573D | Electric vehicle battery warning labels | 74573-0R020 |
| 74751 | tire pressure information label | 42661-0R230 · 42661-0R250 · 42661-0R570 |
| 82685 | warning nameplate | 82685-02030 · 82685-02031 |
| 88723H | Cooler maintenance warning label | 88723-0R100 |
| 89356A | distance warning information label | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-0R030 |
