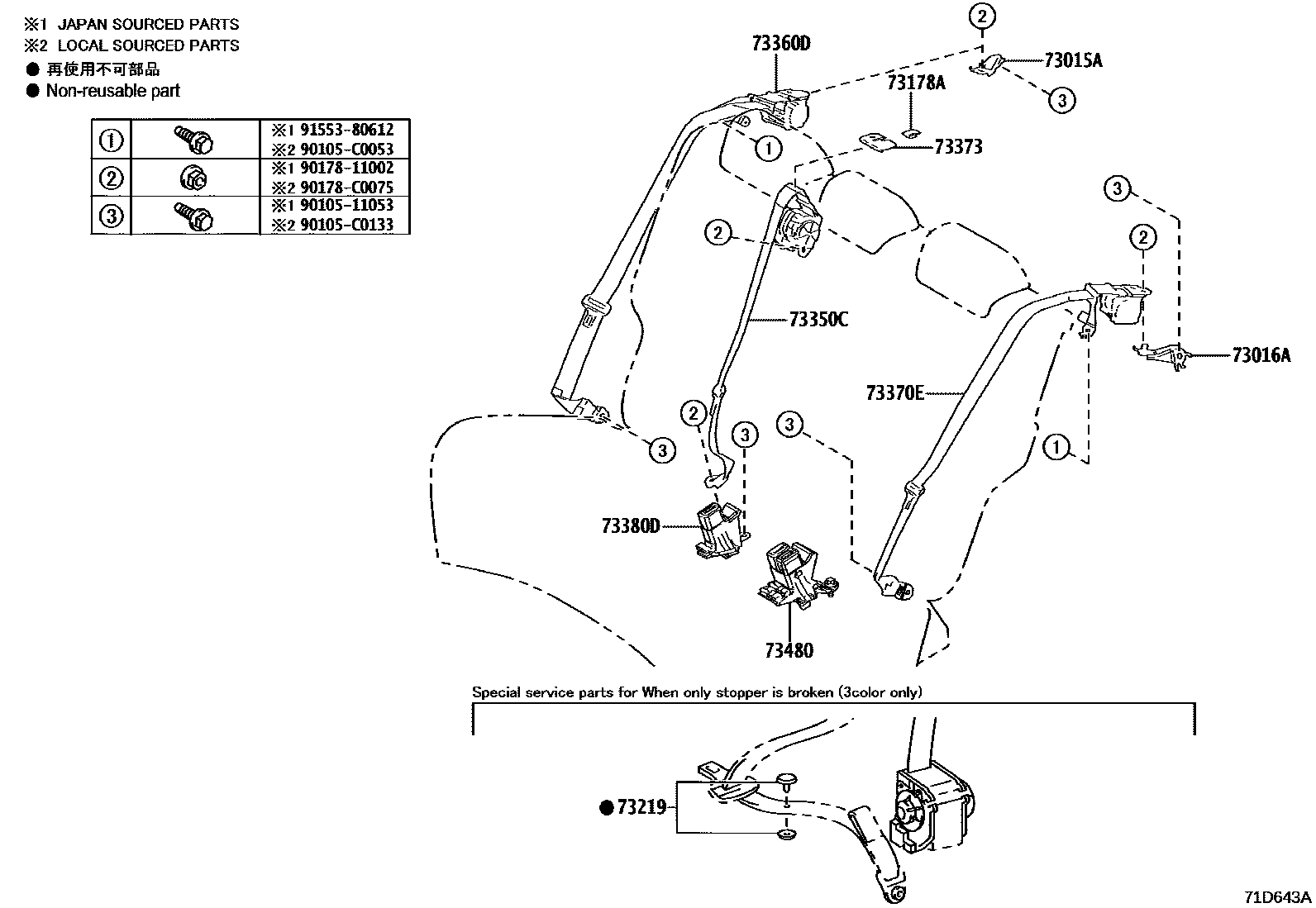

Toyota RAV4 seat belt — Figure 7152
Toyota RAV4 EPC diagram 7152, seat belt, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015A | Right seat belt outer anchor bracket sub-assembly | 73015-0R020 |
| 73016A | Left side seat belt outer anchor bracket sub-assembly | 73016-0R020 |
| 73119 | seat belt clip | 73119-22010 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-0G020 |
| 73214 | Front seat belt anchor plate | 73214-75010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
