Toyota RAV4 座椅和座椅滑轨 — Figure 7151

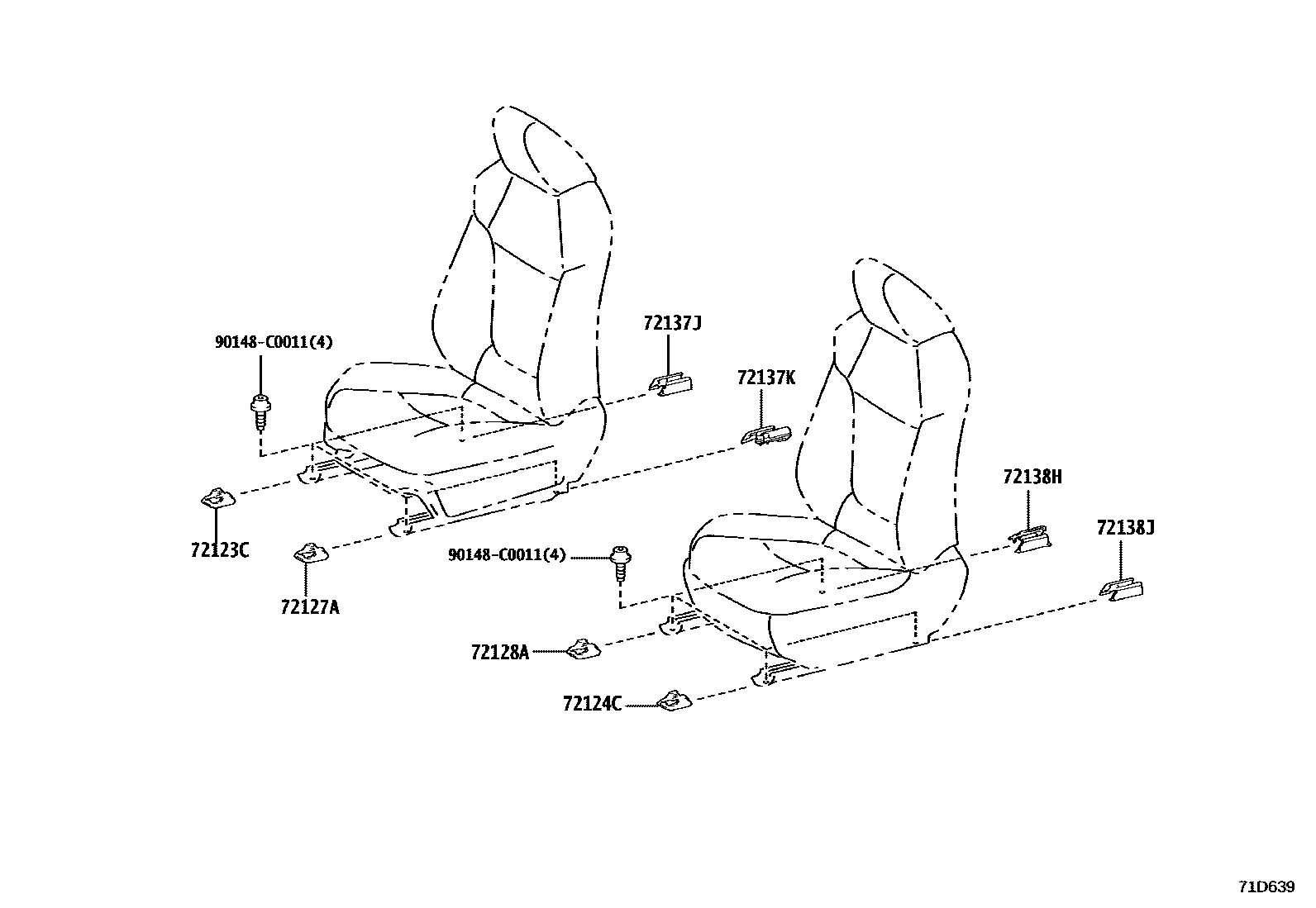

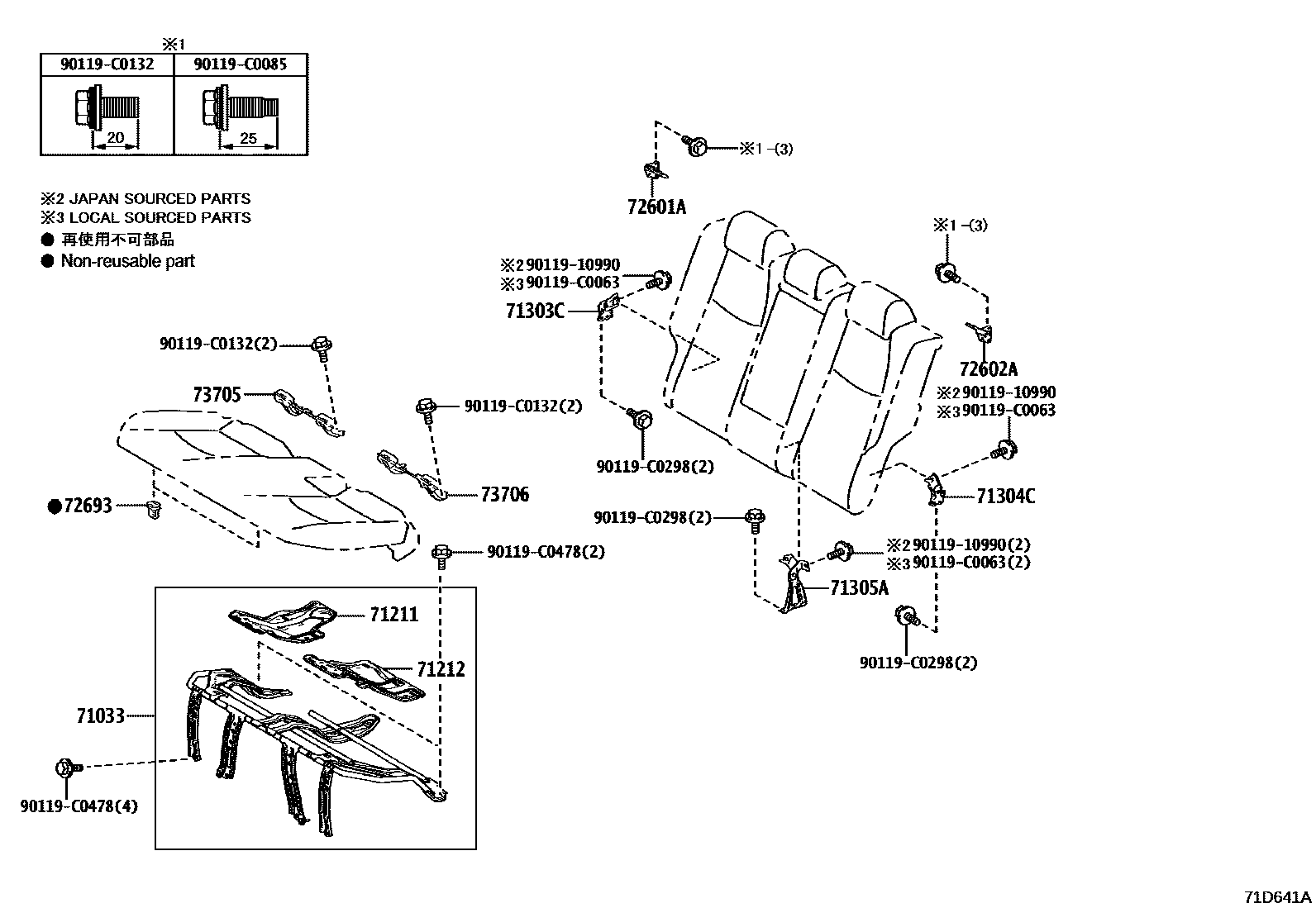

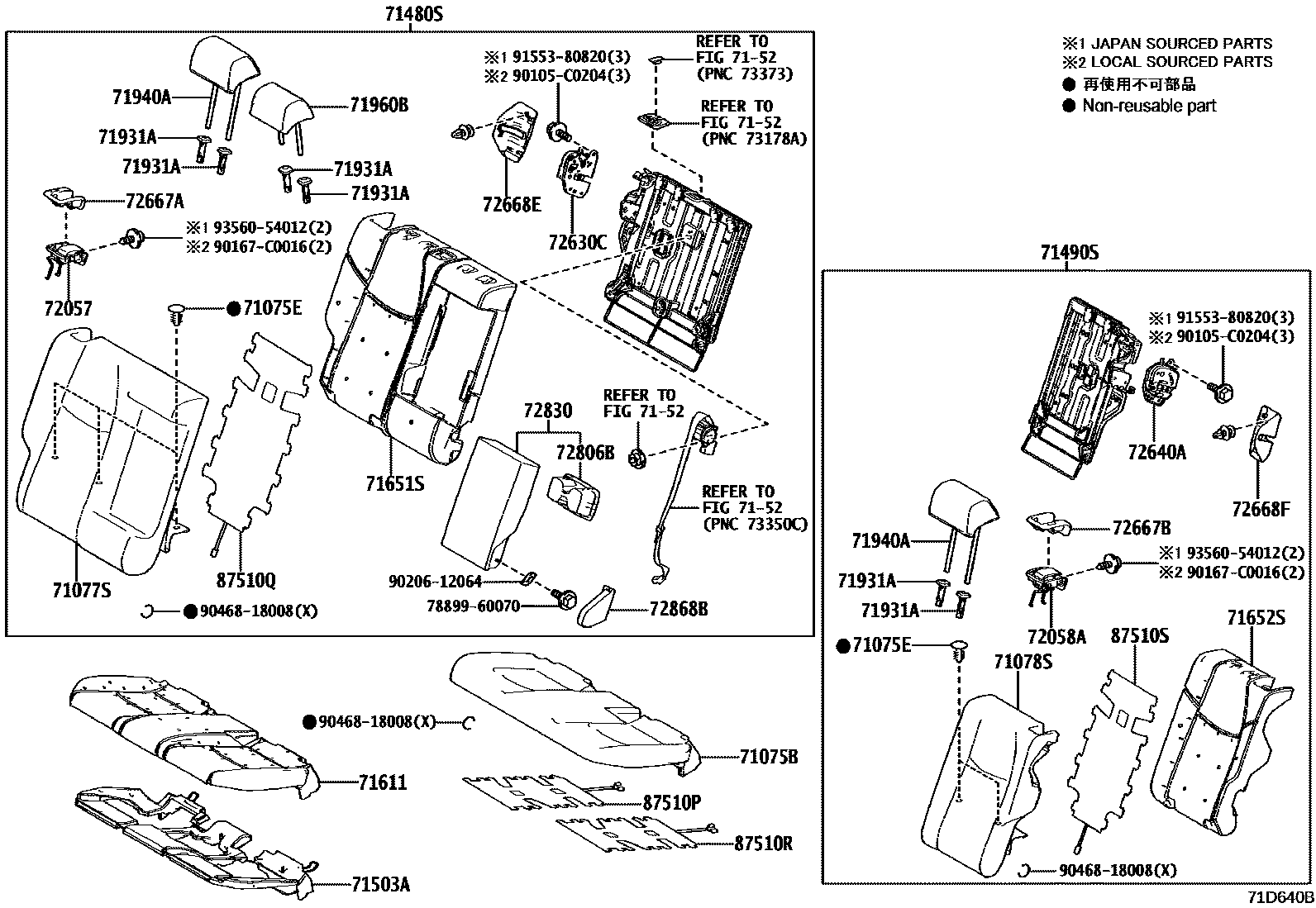

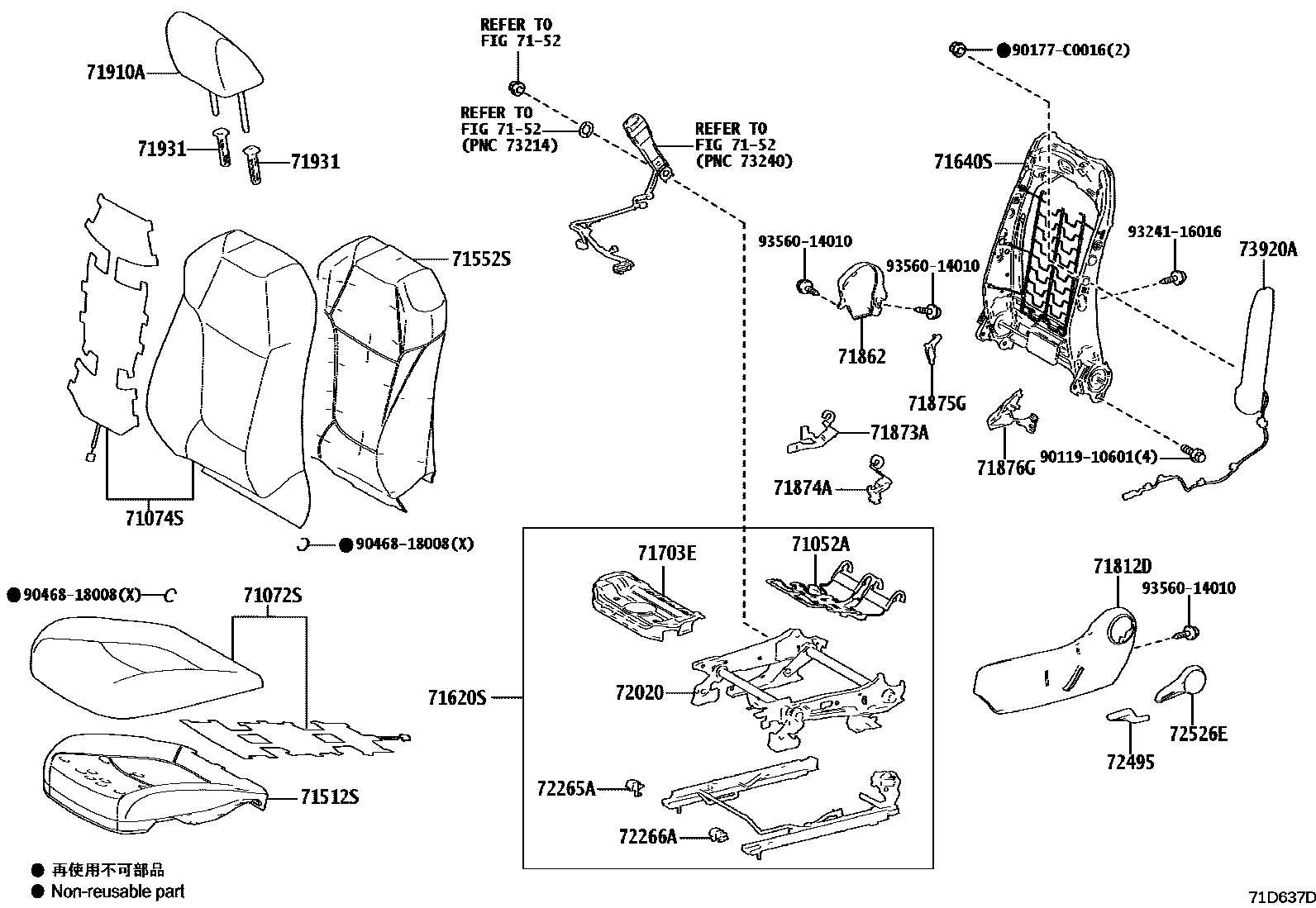

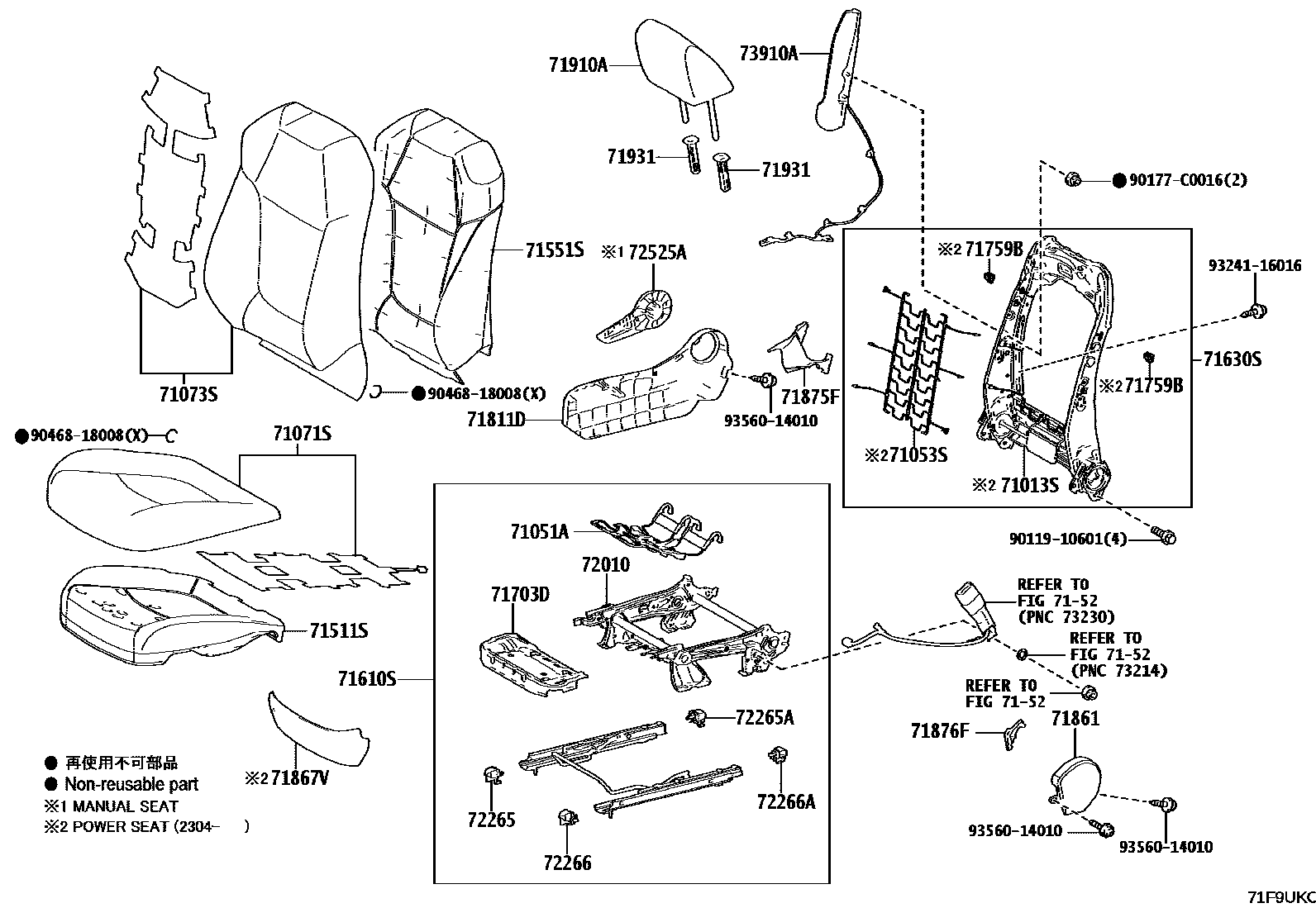

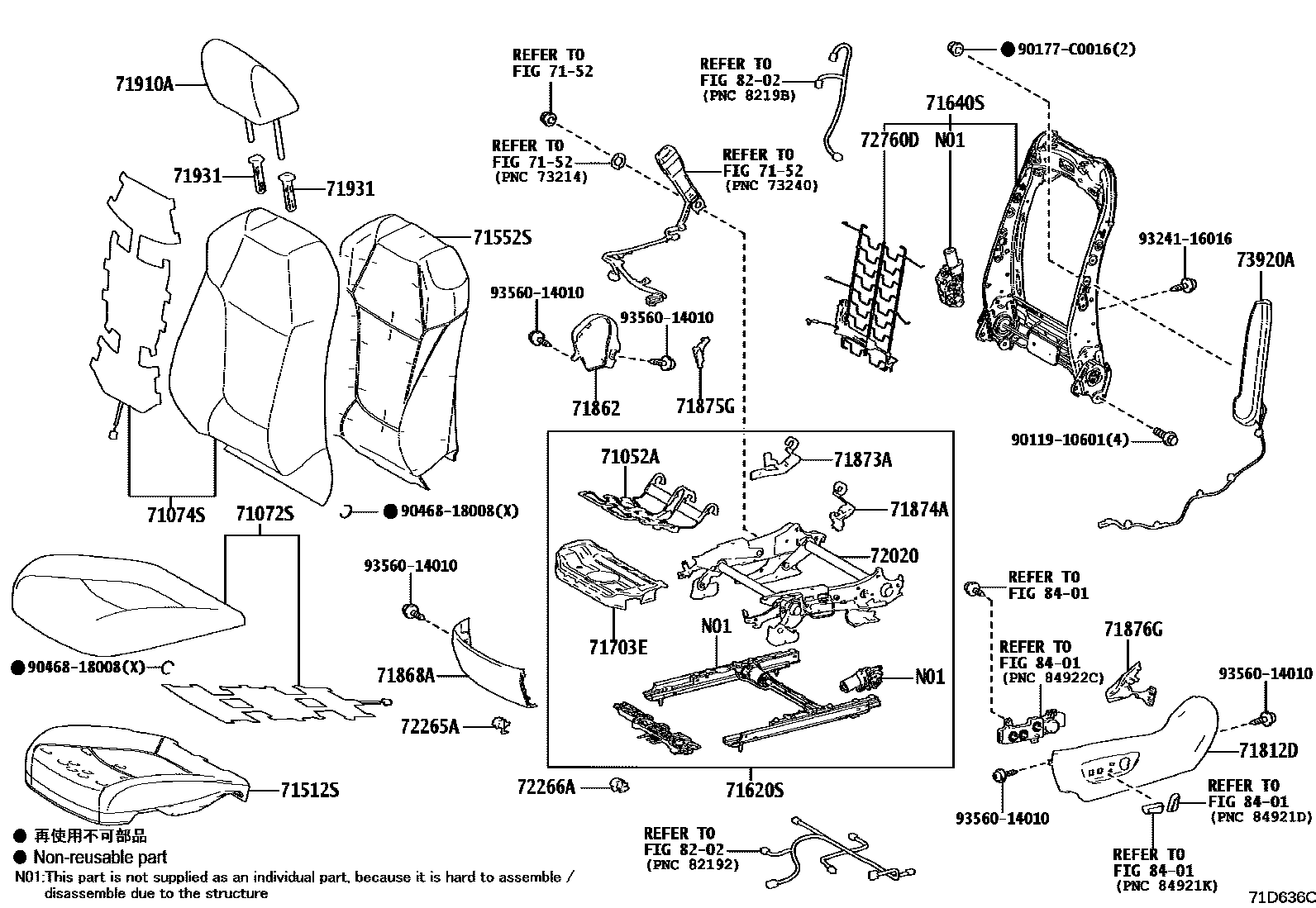

Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 6 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0E230 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-0R050 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-0R060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-0R060 |
| 71053S | Front right seat back spring sub-assembly | 71053-0R040 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-0R903 · 71071-0R904 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-0R903 · 71072-0R904 · 71072-0R905 |
| 71073S | Front right seat back cover (for split seats) | 71073-0R903 · 71073-0R904 · 71073-0R905 |
| 71074S | Front left seat back cover (for split seats) | 71074-0R903 · 71074-0R904 · 71074-0R905 |
| 71211 | Rear right seat cushion panel | 71211-0R040 |
| 71212 | Rear left seat cushion panel | 71212-0R010 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-0R030 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-0R030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-0R020 |
| 71503A | Rear seat cushion sub-assembly | 71503-0R040 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0R150 · 71501-0R210 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0R190 · 71512-0R200 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0R180 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0R230 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0E500 · 71610-0R110 |
| 71611 | Rear seat cushion cushion | 71611-0R140 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0R210 · 71620-0R220 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0E260 · 71630-0R090 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0R230 · 71640-0R240 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0R090 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0R080 |
| 71703D | Right front seat cushion panel sub-assembly | 71703-0E040 · 71703-0R020 |
| 71703E | Left front seat cushion panel sub-assembly | 71703-0R010 |
| 71759B | Front seat back hook | 71759-0R010 |
| 71873A | Front seat cushion lower guard | 71873-0R040 |
| 71874A | Front left seat cushion lower guard | 71874-0R060 |
| 72010 | Front right seat adjuster assembly | 72010-0E300 · 72010-0R090 |
| 72020 | Front left seat adjuster assembly | 72020-0R150 · 72020-0R160 |
| 72123C | Front right seat outer slide rail bracket cover | 72123-0R060 |
| 72124C | Front left seat outer slide rail bracket cover | 72123-0R060 |
| 72127A | Front right seat inner slide rail bracket cover | 72127-0R050 |
| 72128A | Front left seat inner slide rail bracket cover | 72127-0R050 |
| 72137J | Front right seat outer slide rail rear cover | 72137-0R040 |
| 72137K | Front right seat inner slide rail rear cover | 72157-0R040 |
| 72138H | Front left seat inner slide rail rear cover | 72158-0R040 |
| 72138J | Front left seat outer slide rail rear cover | 72138-0R030 |
| 72265 | Right seat rail upper rail cover | 72265-0R030 · 72265-0R040 |
| 72265A | Right seat rail upper rail cover | 72265-0R030 · 72265-0R040 |
| 72266 | Left seat rail upper rail cover | 72266-0R010 · 72266-0R020 |
| 72266A | Left seat rail upper rail cover | 72266-0R010 · 72266-0R020 |
| 72601A | Right rear seat back lock sub-assembly | 72601-0R020 |
| 72602A | Rear left seat back lock sub-assembly | 72602-0R020 |
| 72630C | Rear right seat back lock assembly | 72630-0R021 |
| 72640A | Rear left seat back lock assembly | 72640-0R021 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72760D | Left lumbar support adjuster assembly | 72760-0R060 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-0R100 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-0R030 |
| 73910A | Front right seat airbag assembly | 73910-0R070 |
| 73920A | Front left seat airbag assembly | 73920-0R070 |
| 87510P | Seat heater assembly | 87510-0R330 |
| 87510Q | Seat heater assembly | 87530-0R170 |
| 87510R | Seat heater assembly | 87510-0R340 |
| 87510S | Seat heater assembly | 87530-0R180 |
