Toyota RAV4 锁芯组件 — Figure 6765

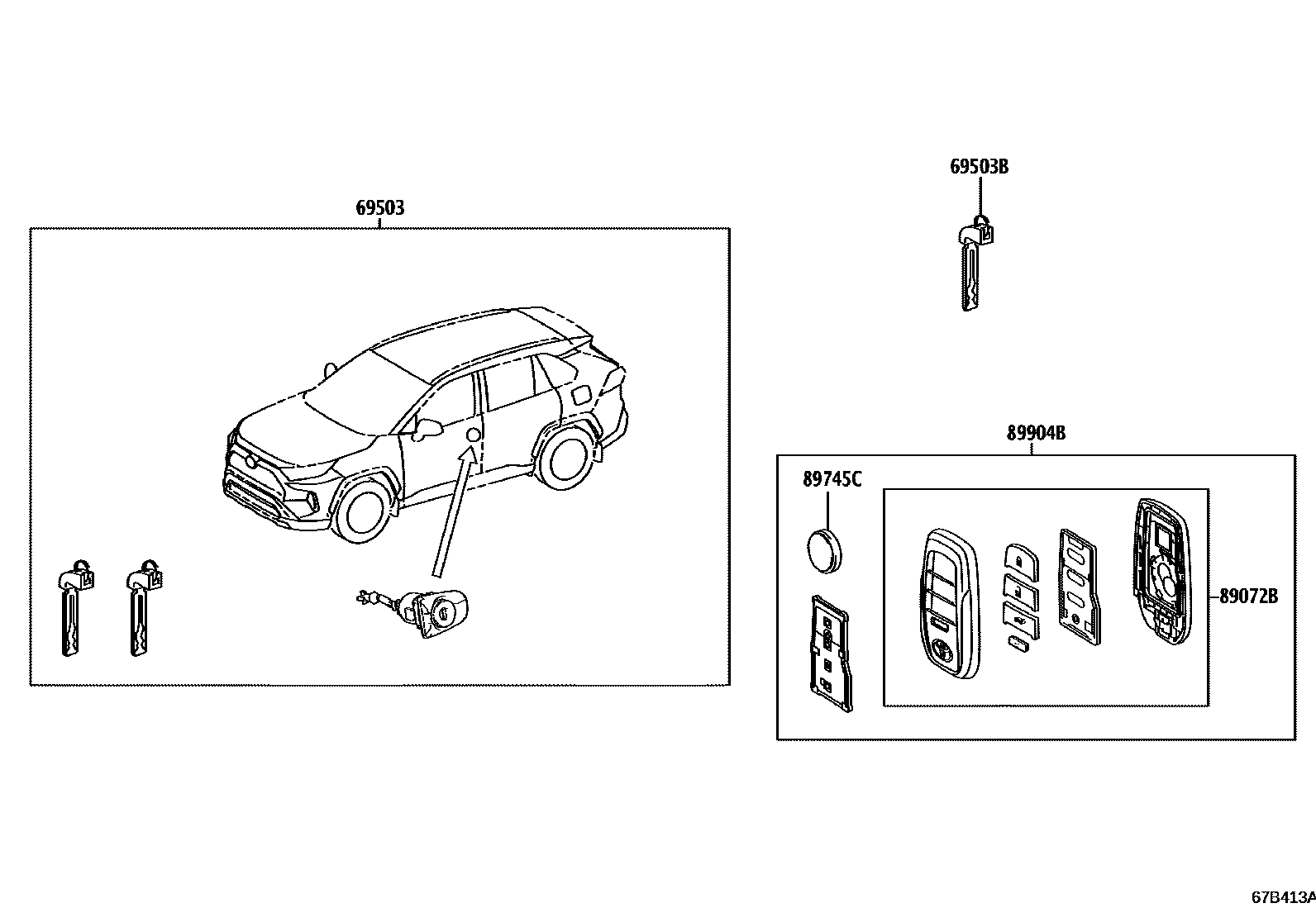

Toyota RAV4 EPC diagram 6765, 锁芯组件, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-0R230 |
| 69503B | internal tooth key | 69515-0R130 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0R360 · 89072-0R370 · 89072-0R500 · 89072-0R510 · 89072-0R520 · 89072-0R530 |
| 89745C | Transmitter battery | 89745-K0010 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-0R140 · 8990H-0R141 · 8990H-0R150 · 8990H-0R151 · 8990H-0R350 · 8990H-0R351 · 8990H-0R360 · 8990H-0R361 · 8990H-0R460 · 8990H-0R461 · 8990H-0R470 · 8990H-0R471 |
