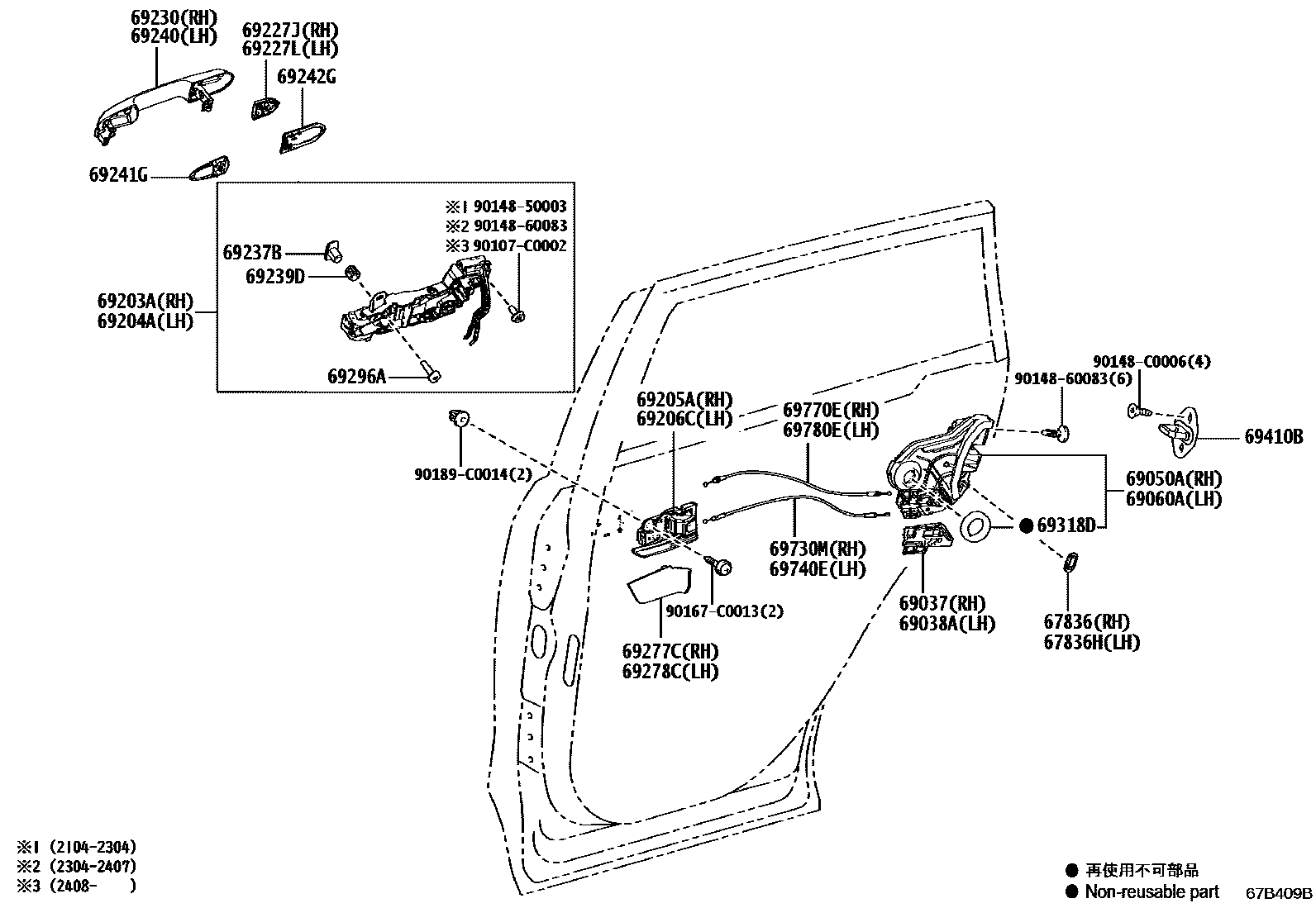

Toyota RAV4 后门锁和后门把手 — Figure 6756
Toyota RAV4 EPC diagram 6756, 后门锁和后门把手, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-02040 |
| 67836H | Left rear door lock child restraint cover | 67836-02040 |
| 69037 | Right rear door door lock cover sub-assembly | 69037-02060 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02060 |
| 69050A | Right rear door lock assembly with motor | 69050-02450 |
| 69060A | Left rear door lock assembly with motor | 69060-02450 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0R080 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0R080 |
| 69227J | Right rear door outer handle cover | 69227-0R090 |
| 69227L | Left rear door outer handle cover | 69227-0R090 |
| 69237B | Rear door handle nut | 69237-0R020 |
| 69239D | Rear door handle bushing | 69239-0R020 |
| 69241G | Rear door front exterior handle pad | 69241-0R040 |
| 69242G | Rear door rear outer handle pad | 69242-0R040 |
| 69277C | Right rear door inner handle frame | 69277-0R030 |
| 69278C | Left rear door inner handle frame | 69278-0R030 |
| 69296A | Car door inner handle screws | 69296-0R020 · 90148-C0013 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-0D020 |
| 69730M | Right rear door lock remote control cable (for opening lever) | 69730-0R070 |
| 69740E | Left rear door lock remote control cable (for opening lever) | 69730-0R070 |
| 69770E | Right rear door inner locking cable (for locking/unlocking handle) | 69770-0R070 |
| 69780E | Left rear door inner lock cable (for locking/unlocking handle) | 69770-0R070 |
