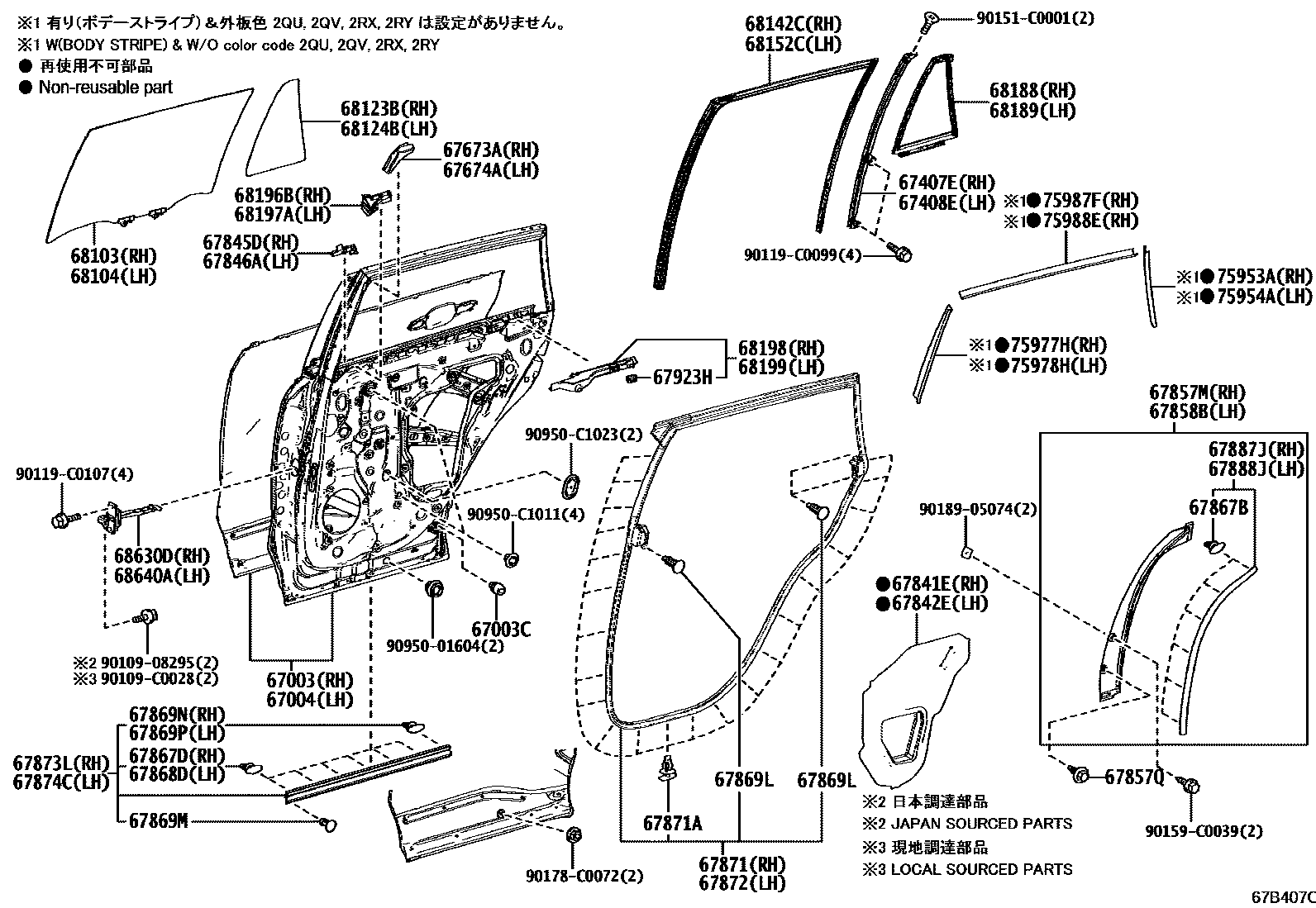

Toyota RAV4 后门板和后门玻璃 — Figure 6755
Toyota RAV4 EPC diagram 6755, 后门板和后门玻璃, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0R130 · 67003-0R131 |
| 67003C | Rear door panel cushion | 90541-09137 |
| 67004 | Left rear door panel sub-assembly | 67004-0R130 · 67004-0R131 |
| 67407E | Right rear door window divider sub-assembly | 67407-0R060 |
| 67408E | Left rear door window divider sub-assembly | 67408-0R060 |
| 67603B | Catch (for rear door trim panel) | 90467-C0033 |
| 67673A | Right rear door frame decorative strip | 67673-0R030 |
| 67674A | Left rear door frame decorative strip | 67674-0R030 |
| 67841E | Right rear door access hole cover | 67841-0R070 |
| 67842E | Left rear door access hole cover | 67842-0R070 |
| 67845D | Right rear door front outer seal | 67845-0R020 |
| 67846A | Left rear door front outer seal | 67846-0R020 |
| 67857M | Right rear door panel protector | 67857-0R070 |
| 67858B | Left rear door panel protector | 67858-0R040 |
| 67867B | Door seal strip clip (for rear door) | 53145-60030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869L | Rear door seal strip clip | 67869-26050 |
| 67869M | Car door seal strip clip | 67869-26050 |
| 67869N | Right rear door seal strip clip | 53145-02040 |
| 67869P | Left rear door seal strip clip | 53145-02040 |
| 67871 | Right rear door sealing strip | 67871-0R080 |
| 67871A | Fixings (for rear door sealing strip) | 67867-0D070 · 67867-0D090 · 67867-12150 · 67868-0D030 |
| 67872 | Left rear door sealing strip | 67872-0R060 |
| 67873L | Right rear door No. 5 sealing strip | 67873-0R041 |
| 67874C | No. 5 sealing strip of left rear door | 67874-0R041 |
| 67887J | Entry door panel No. 2 right side sealing strip | 67887-0R020 |
| 67888J | Entry door panel No. 2 left side seal | 67888-0R020 |
| 67923H | Door corner seal fixings | 67923-0R030 |
| 68103 | Right rear door glass sub-assembly | 68103-0R110 |
| 68104 | Left rear door glass sub-assembly | 68104-0R110 |
| 68123B | Right rear door corner window glass | 68123-0R110 |
| 68124B | Left rear door corner window glass | 68124-0R110 |
| 68142C | Right rear door glass lift slot | 68142-0R060 · 68142-0R061 |
| 68152C | Left rear door glass lift slot | 68152-0R060 · 68152-0R061 |
| 68173B | Right rear door glass inner sealing strip | 68173-0R060 |
| 68174A | Left rear door glass inner sealing strip | 68174-0R060 |
| 68188 | Right rear door corner window seal | 68188-0R070 |
| 68189 | Left rear door corner window seal | 68189-0R060 |
| 68196B | Right rear door beltline front seal | 68196-0R020 |
| 68197A | Left rear door beltline front seal | 68197-0R020 |
| 68198 | Right rear door beltline rear seal | 68198-0R020 |
| 68199 | Left rear door waistline rear seal | 68199-0R020 |
| 68630D | Right rear door opening limiter assembly | 68630-0R070 · 68630-0R071 |
| 68640A | Left rear door opening limiter assembly | 68630-0R070 · 68630-0R071 |
| 75953A | Inner right rear light-shielding film | 75953-0R020 |
| 75954A | Inner left rear light-shielding film | 75954-0R020 |
| 75977H | Right rear door outer lower trim strip | 75977-0R060 |
| 75978H | Left rear door outer lower trim strip | 75978-0R060 |
| 75987F | Right rear door outer trim | 75987-0R080 |
| 75988E | Left rear door outer trim | 75988-0R080 |
