Toyota RAV4 前门锁和车门把手 — Figure 6753

Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 24 PNC and OE references.

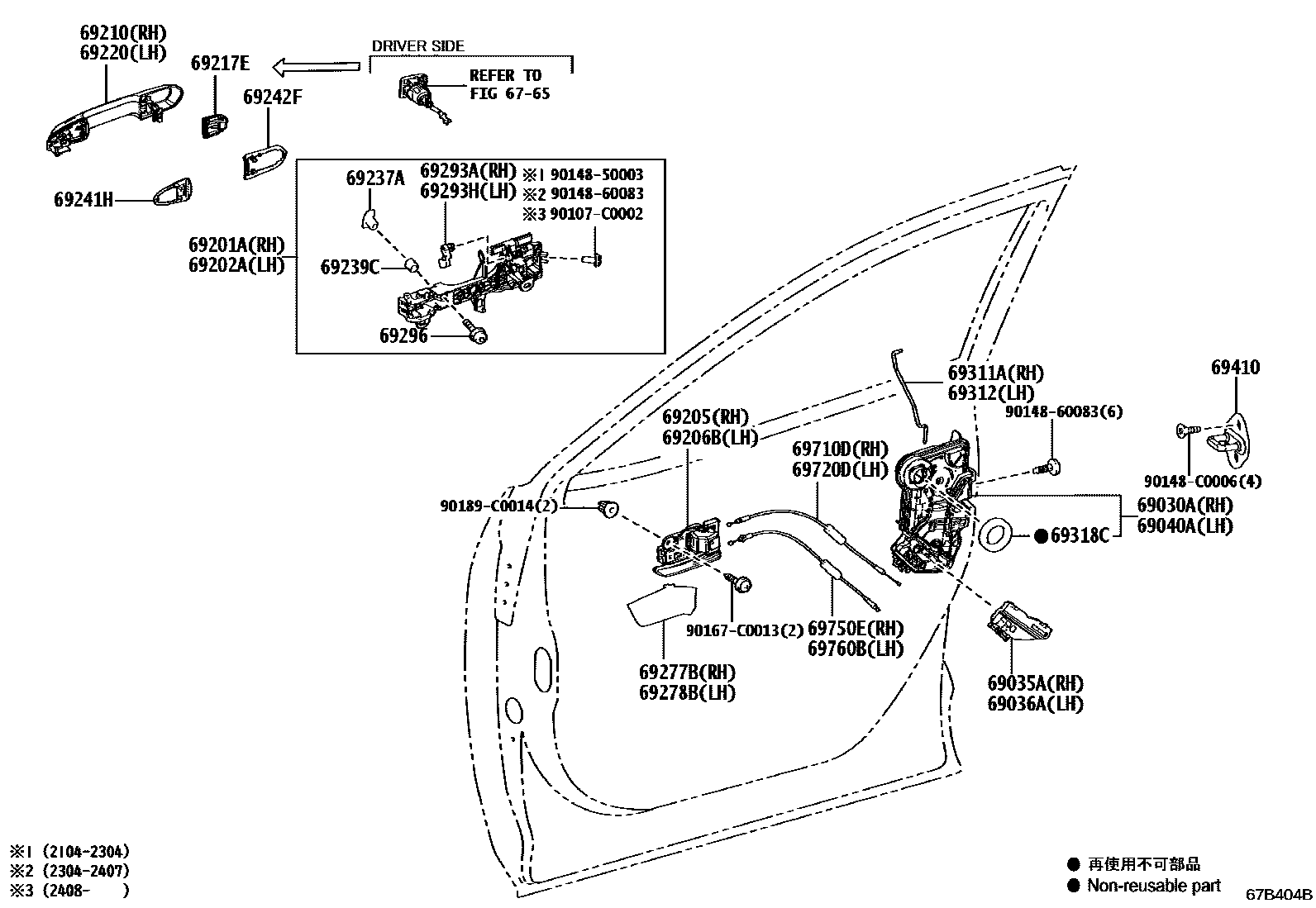

Toyota RAV4 前门锁和车门把手 EPC diagram — 67B404B
前门锁和车门把手 — 67B404B (202104 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-02620
69035ARight front door lock cover sub-assembly69035-02060
69036ALeft front door lock cover sub-assembly69036-02060
69040ALeft front door door lock assembly with motor69040-02590
69201ARight front door outer handle frame sub-assembly69201-0R090
69202ALeft front door outer handle frame sub-assembly69202-0R070
69217ERight front door outer handle cover69217-0R190
69237AFront door handle nut69237-F4030
69239CFront door handle bushing69239-07020
69241HFront door exterior handle pad69241-0R040
69242FFront door rear outer handle pad69242-0R040
69277BRight front door inner handle frame69277-0R030
69278BLeft front door inner handle frame69278-0R030
69293AFront door outer handle buckle69293-02090
69293HLeft front door outer handle buckle69293-07010
69296Car door inner handle screws69296-0R010 · 90148-C0013
69311ARight front door lock opening lever69311-0R060
69312Left front door lock opening lever69312-0R060
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-0D020
69710DRight front door lock remote control cable (for opening lever)69710-0R070
69720DLeft front door lock remote control cable (for opening lever)69710-0R070
69750ERight front door inner locking cable (for locking/unlocking handle)69750-0R070
69760BLeft front door inner locking cable (for locking/unlocking handle)69750-0R070
