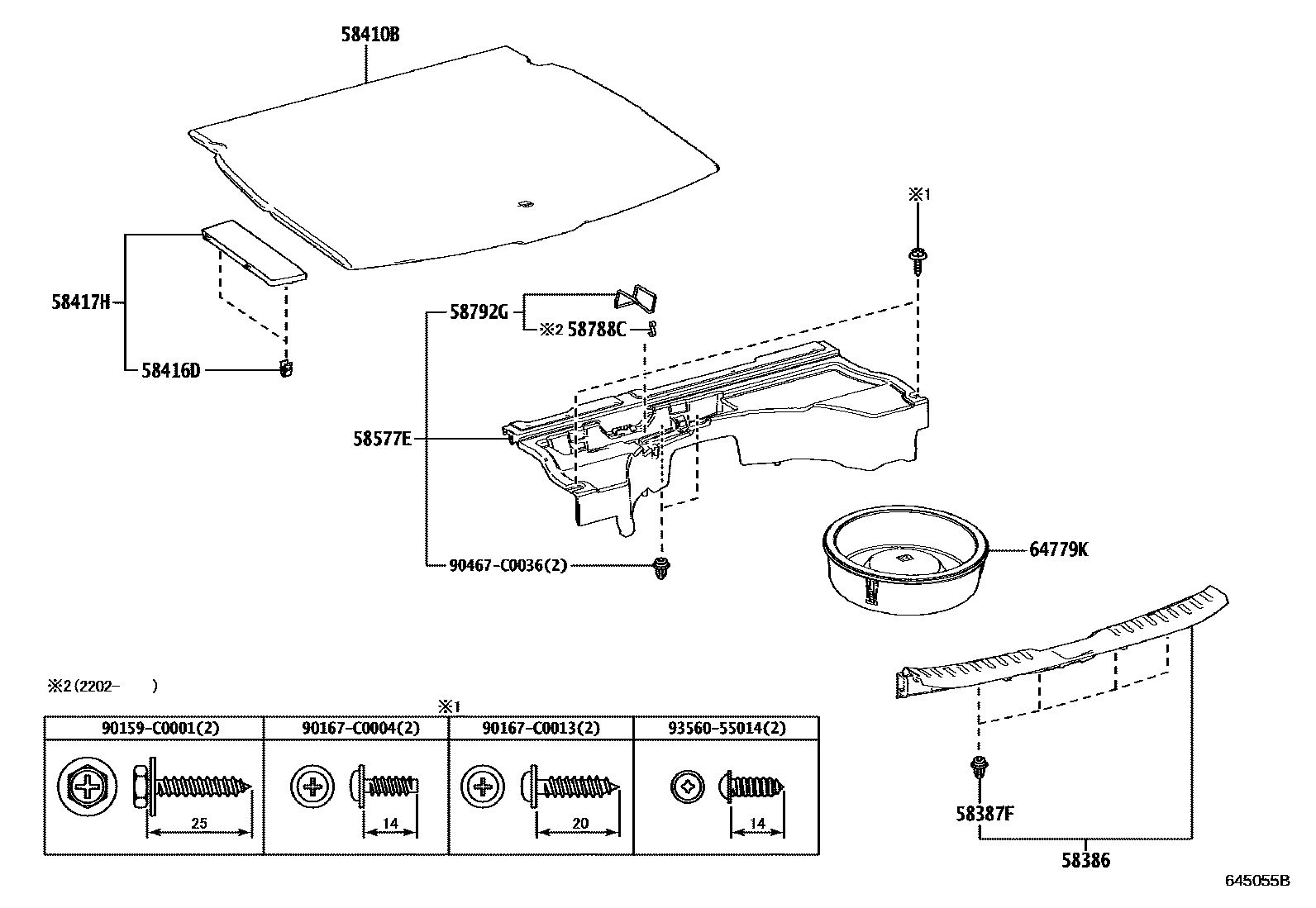

Toyota RAV4 底板和底板装饰罩 — Figure 6455
Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387F | Rear floor decorative panel clip | 90467-C0036 |
| 58416D | Rear floor clip | 90467-10201 |
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58788C | Tool Box Strap Hook No. 1 | 58788-28030 |
| 58792G | Jack Bracket Bracket | 58792-48020 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-C0071 |
| 64730K | Clip (for bottom panel side decorative panel) | 90467-C0036 |
| 64779K | Spare tire cover stop | 64779-0R190 · 64779-0R200 · 64779-0R300 |
