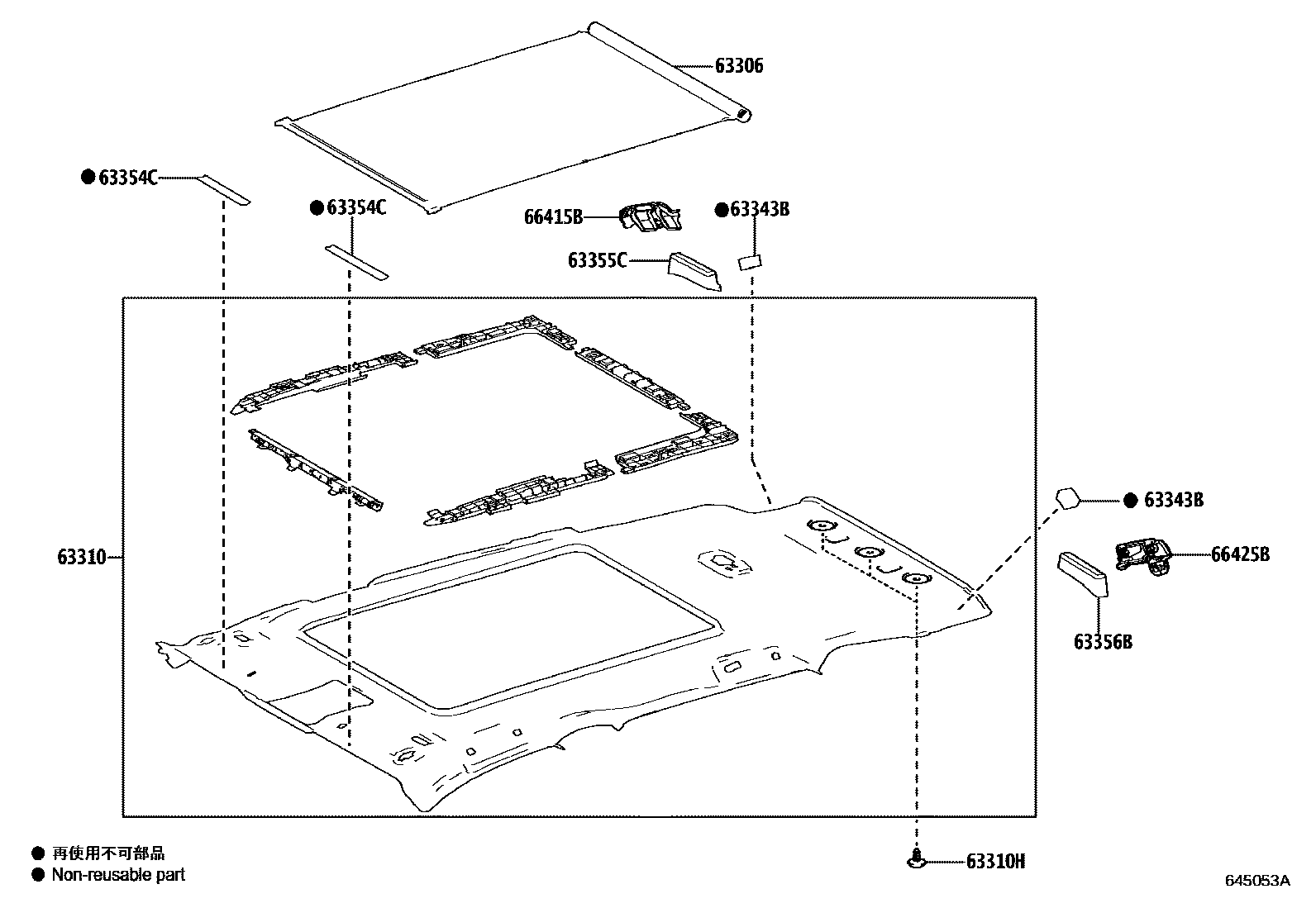

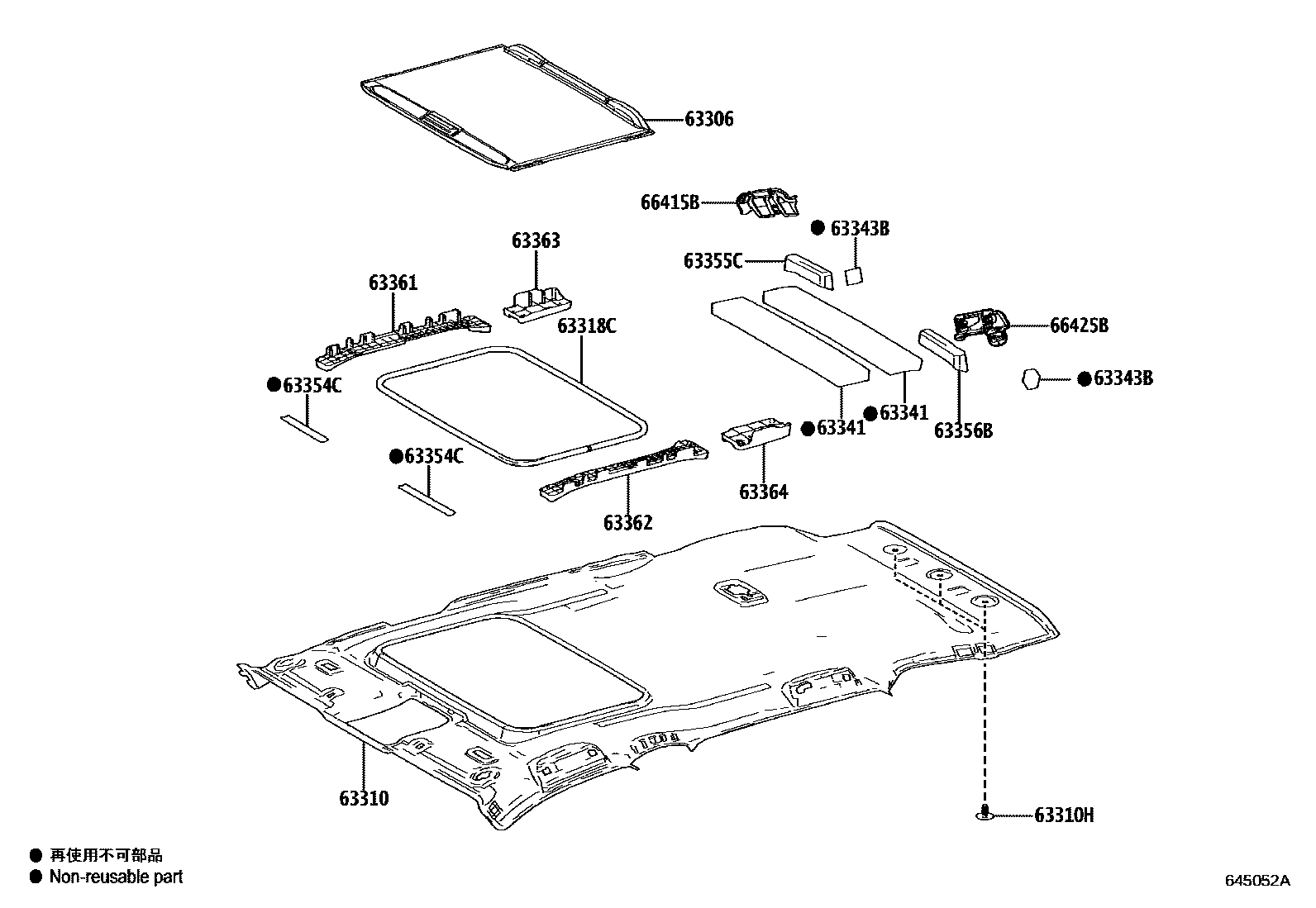

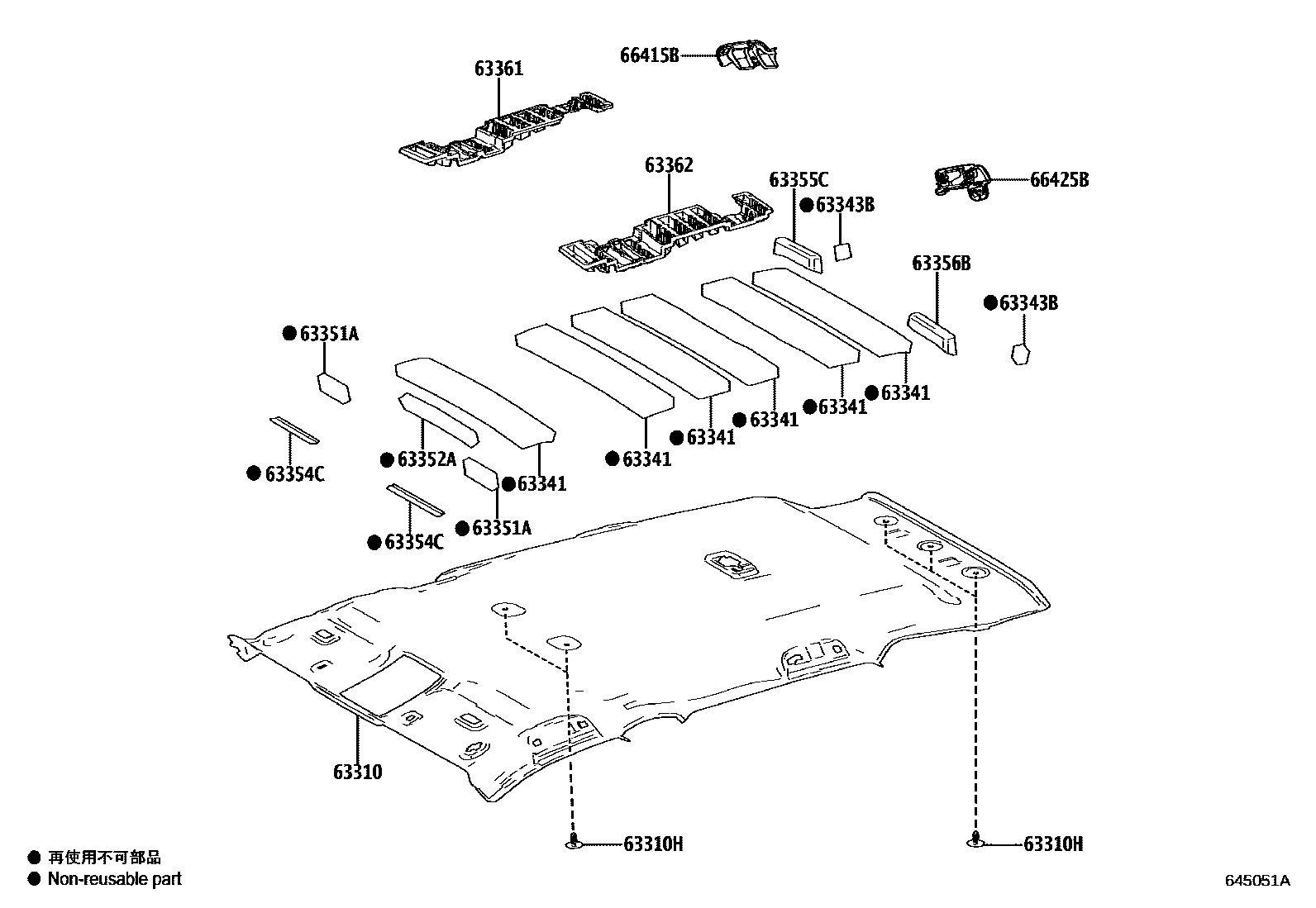

Toyota RAV4 车顶内衬和消声垫 — Figure 6452
Toyota RAV4 EPC diagram 6452, 车顶内衬和消声垫, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-0R060 |
| 63343B | Rear roof silencer pad | 63353-0R030 |
| 63351A | No. 10 roof silencer mat | 63351-0R040 |
| 63352A | No. 11 roof silencer mat | 63352-0R040 |
| 63354C | Headlining front side pads | 63354-0R030 |
| 63355C | Right side roof lining | 63355-0R040 · 63355-0R050 |
| 63356B | Roof left inner lining block | 63356-0R020 · 63356-0R030 |
| 63361 | Headlining bracket No. 1 | 63361-0R080 · 63361-0R140 |
| 63362 | Headlining bracket No. 2 | 63362-0R080 · 63362-0R100 |
| 63363 | No. 3 roof lining bracket | 63363-0R050 |
| 63364 | No. 4 roof lining bracket | 63364-0R050 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-0R080 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-0R080 |
